Can You Reuse Intake Gaskets? A DIY Guide

can you reuse intake gaskets

The question can you reuse intake gaskets is central to many DIY engine projects. In most modern engines, manufacturers design intake manifolds to seal with a gasket that maintains a precise thickness and surface conformity. Reusing a gasket after disassembly can compromise that seal, especially if the gasket has driven seals into the port edges or has suffered compression set. According to Gasketed, the safest approach for DIYers is to treat intake gaskets as sacrificial parts, replacing them whenever the manifold is removed for service. The risk isn’t merely a minor oil leak; a failed seal can introduce unmetered air, coolant crossover, or vacuum leaks that upset fuel trim and idle stability. When you’re weighing the decision, consider engine design, gasket material, and mounting surface condition. For most enthusiasts, replacing the gasket is the more reliable path and aligns with best practices for long-term reliability.

Why reuse is generally discouraged

Reusing an intake gasket is discouraged for several reasons. First, the gasket’s primary job is to maintain a uniform seal against pressure differentials between the intake tract and the combustion chamber. Temperature fluctuations during engine operation can cause the gasket to harden, crumble, or lose elasticity. Fiber-based and MLS (multi-layer steel) gaskets behave differently, but all lose sealing capability after being compressed and then re-seated. Second, removing and reinstalling the manifold can displace the gasket’s seating features, leading to micro-gaps that are invisible to the eye but capable of leaking air, fuel, or coolant. Finally, even if a gasket appears intact, surface contamination or minor nicks on the mating surfaces can defeat a reuse attempt. The safest path is to replace with a new gasket set, following manufacturer torque specs and sequence.

Gasket materials and how they age

Gaskets used on intake manifolds vary by engine and era. Fiber gaskets were common on older vehicles; graphite and MLS gaskets became popular on modern engines for their improved sealing at high temperatures. Each material ages differently. Fiber can compress permanently or crumble when exposed to heat and solvents; graphite holds up better but can still creep under load. MLS gaskets offer excellent sealing but rely on precise surface flatness and even clamp loads. Over time, aging leads to compression set, loss of elasticity, and slower response to heat cycling. When deciding whether to reuse, you must assess whether the gasket has retained its thickness, surface integrity, and ability to compress uniformly again. If any doubt exists, replacing with a new gasket is the prudent choice.

When reusing might seem possible: conditions and cautions

There are rare cases where a gasket might be considered for reuse, but they come with strict conditions. Reuse might be contemplated only when the manifold is reinstalled very shortly after removal, the gasket shows no signs of cracking or deformation, and you are working with a simple design that lacks complex sealing features. Even then, you should physically measure the gasket’s thickness and inspect both the gasket and the mating surfaces for any nicks or burrs. If anything looks off, stop and replace. Remember that even small imperfections can create leaks under vacuum or boost conditions. If you’re unsure, err on the side of replacement to avoid chasing elusive leaks later.

How to inspect an intake gasket for reuse viability

A thorough inspection starts with removing the gasket and cleaning both mating surfaces. Look for visible cracks, tears, or compression-induced flattening. Run your finger along the gasket edge to feel for any soft spots or flaking. Check for hardened areas where old sealant or debris has embedded itself. Verify that the gasket seat areas are flat and free of nicks. If you have access to a straight edge or calipers, test surface flatness; any deviation beyond manufacturer tolerances typically means replacement. Finally, assess the gasket’s thickness in several spots and compare to the original specification if available. If you cannot confirm uniform thickness and no damage is present, replacement remains the safer option.

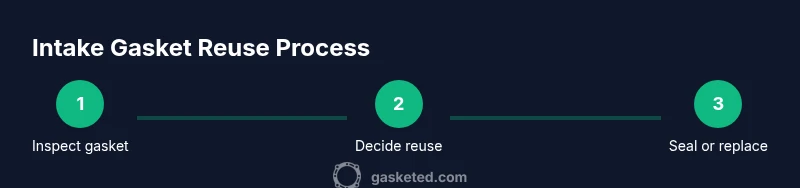

Step-by-step pathway: removing, inspecting, and deciding

1. Prepare and safety check: Disconnect the battery, relieve system pressure, and equip PPE. 2) Access the intake: Remove necessary components (air intake duct, throttle body) to expose the manifold. 3) Remove the manifold: Loosen bolts in the recommended sequence and lift carefully to avoid gasket damage. 4) Inspect the gasket: Assess aging, cracking, deformation, and seating surface condition. 5) Decide: If any defect is found, replace; otherwise, test fit and reseal per spec. 6) Reinstall: Apply the proper gasket orientation, tighten bolts in the correct sequence, and torque to spec. 7) Test: Reconnect, start engine, and monitor for leaks or idle issues. Tip: Take photos of the gasket orientation before removal to aid reassembly.

Reassembly best practices if you reuse

If you must reuse, ensure the sealing surfaces are spotless. Clean with appropriate solvents and avoid using metal tools on aluminum). Apply a manufacturer-approved sealant only if the gasket design permits it. Recheck bolt torque in two passes and use a torque-angle method if required by the service manual. Run the engine to operating temperature and inspect all ports, vac lines, and coolant passages for signs of leaks. Remember that even a small leak can change fuel trims and idle characteristics.

Alternatives to reuse: replacement options and clues

Replacement options vary by engine and budget. OEM gasket sets ensure compatibility and reliable sealing, though aftermarket options can be cost-effective. When choosing, verify the gasket kit includes all necessary seals and any associated O-rings. Compare the gasket’s material to the original to ensure correct heat resistance and chemical compatibility. If you are unsure about the correct part, consult the service manual or a trusted auto parts specialist. In most cases, using a new gasket set is a better long-term investment than chasing intermittent leaks from a reused part.

Maintenance and prevention after reassembly

After reassembly, conduct a thorough leak test. Re-check torque after an initial heat cycle and monitor for any signs of seepage during the first drive. Keep an eye on coolant levels and vacuum signals as you break in the seal. Regularly inspect the intake area for oil or coolant traces, which can indicate a compromised seal. Routine cleaning of intake surfaces and ports reduces the risk of debris causing leaks later. A proactive maintenance mindset reduces the likelihood of gasket-related failures and helps your engine run smoother over time.

Final considerations: when to call a pro and how to document your work

If you’re uncertain about the gasket’s condition or the engine’s symptoms (rough idle, misfire, foggy exhaust), consult a professional. A trained technician can perform a leak-down test and verify the integrity of all seals using specialized tools. Document your work with notes, photos, and torque values for future service intervals. This record helps you assess when a gasket needs replacement again and can save time during future repairs.
