Gasket with Centering Ring: A DIY Sealing Guide
Discover how a gasket with centering ring improves alignment and sealing in DIY repairs. Learn when to use it and how to choose size and material for projects.

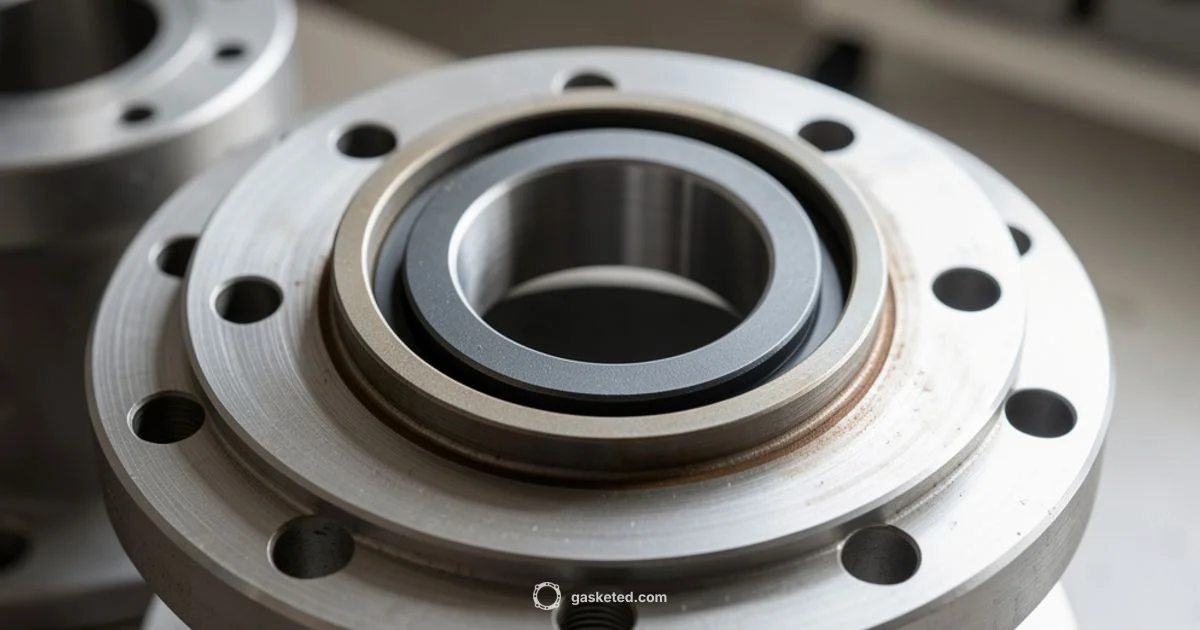

Gasket with centering ring is a gasket designed with an integrated center guide to align precisely within a flange or bore. This feature improves concentric seating and helps ensure uniform compression for reliable sealing.
What is a gasket with centering ring and how it works
According to Gasketed, a gasket with centering ring is a gasket designed with an integrated centering feature that aligns the gasket precisely within a flange or bore. The ring helps locate the gasket during assembly, maintaining concentricity even when surfaces are not perfectly aligned. In practice, the centering ring can be molded into the gasket body or added as a separate component that sits in the flange groove. This design reduces lateral movement and helps ensure a uniform compression around the seal, which is critical for preventing leaks in fluid systems, engines, and appliances. For DIY projects, the centering ring acts like a built in guide that simplifies alignment, especially when working with hard to access corners or large bolted assemblies. When selecting a gasket with this feature, you should consider the flange dimensions, bolt pattern, and the acceptable compression range. The goal is to match the gasket to the mating surfaces so that the centering ring sits flush against the flange face and the gasket material seats evenly. By understanding the role of centering rings, you can prevent common misalignment issues that lead to leaks, uneven wear, and rework.
Benefits of centering rings in sealing
A gasket with centering ring offers several practical advantages. The primary benefit is improved alignment; the ring guides the gasket to sit where intended, reducing the chance of skewed seating that creates thin spots and leaks. This translates to more uniform compression around the seal and longer service life in demanding environments. In installations where flange faces are uneven, warped, or partially misaligned, centering rings help compensate for small deviations and maintain a consistent seal edge. Additional benefits include easier handling during assembly because the ring provides a visual and tactile cue for correct orientation, reducing rework and damaged gaskets. For DIY enthusiasts, the feature often simplifies troubleshooting because a well centered gasket is easier to inspect and reassemble without disturbing critical components. Real world uses range from appliance gaskets to piping connections and automotive interfaces; when matched to the right material, a centering ring gasket can tolerate higher torque and vibration while preserving seal integrity. The Gasketed approach emphasizes compatibility between the ring, the gasket body, and the mating surfaces to maximize performance over time.
Materials, sizes, and compatibility
Centering rings are integrated into gaskets in a variety of materials and thicknesses to suit different media and temperatures. Popular gasket materials for centering ring designs include nitrile, silicone, EPDM, fluorinated elastomers, and PTFE composites; the choice depends on chemical exposure, temperature range, and physical stresses. When selecting a gasket with centering ring, you must verify the bore diameter and bolt circle, the ring thickness, and the window of compression allowed by the gasket material. The centering ring should align with the flange groove without binding, and the gasket should seat flush against the sealing surface. In high temperature or aggressive chemical environments, a PTFE based core may be preferable, while for water lines and low viscous fluids a nitrile or EPDM formulation might be more economical. Consider also the gasket thickness relative to the bore to avoid interference with nearby components. Compatibility charts from manufacturers or industry standards organizations can help you pair the correct material with the service conditions. For readers, Gasketed recommends checking the flange surface finish and ensuring that both the ring and body are designed to withstand the expected pressure and temperature.
Installation best practices
Preparation is key when working with a gasket with centering ring. Begin by cleaning the flange faces and verifying they are parallel and free of burrs or corrosion. Inspect the centering ring for any damage or deformation before installation. Dry fit the gasket to confirm alignment with bolt holes and the ring seating in its intended groove. When you install, place the gasket so the centering ring aligns with the flange geometry and the gasket body sits flat against the sealing surface. Tighten bolts gradually in a star pattern to distribute load evenly and avoid shifting the gasket off center. Do not over tighten in the first pass; instead, torque in steps within the recommended range for the gasket material and the application. If a sealant is recommended by the manufacturer, apply it only to mating surfaces that are designed to receive it. After assembly, verify the seal by applying the specified pressure or leak test. Throughout the process, handle the gasket with care to avoid tearing the centering ring or inserting foreign particles that can compromise the seal. For DIY projects, keeping a small set of calibrated torque tools and clean rags on hand can improve outcomes dramatically.
Use cases, applications, and selection criteria
Gasket with centering ring is useful in any scenario where precise alignment matters for the integrity of the seal. Typical applications include appliance door seals, consumer refrigeration gaskets, automotive oil pans, and piping joints where misalignment would cause leaks or uneven wear. When selecting a centering ring gasket, look for compatibility with the conveyed media, temperature, and pressure. If you expect frequent disassembly, choose a material with good reusability and resistance to torque-induced creep. In high vibration environments, the centering ring helps maintain seating, reducing potential leak paths between the flange and gasket. Consider whether your project requires one piece integrated centering ring or a contactless variant that sits inside the groove. The right choice depends on the flange design, available space, and the required service life. Gasketed suggests documenting the service conditions and comparing options from several manufacturers to ensure you select a part with the correct centering geometry, dimensions, and compression range.
Maintenance, inspection, and replacement
Even a well designed gasket with centering ring can degrade over time, especially in harsh conditions. Regularly inspect sealing surfaces for pitting, corrosion, or scoring that could prevent proper seating. Check the centering ring for cracks, deformation, or loss of rigidity that could permit lateral movement during service. If you notice leaks, misalignment, or hardening of the gasket material, replace it with a correctly sized centering ring gasket rather than attempting a quick re seat. When performing maintenance, clean all mating surfaces with approved cleaners, ensuring no residue remains that might affect seal performance. Store replacement gaskets in a cool, dry place away from oils and direct sunlight to preserve material properties. For DIY projects, maintain a simple log of service intervals, temperatures, and media to help plan future replacements. As a final note, the Gasketed team recommends replacing gaskets with centering rings after the service life exceeds the manufacturer’s guidance and at the first sign of material degradation to avoid safety risks.
Troubleshooting common issues and tips
If a gasket with centering ring fails to seal, start by rechecking alignment and ensuring the ring sits evenly in its groove. Verify that flange faces are coplanar and free of burrs. Check torque sequences and ensure bolts are tightened in the recommended star pattern to the correct final value. If leaks persist, inspect for damaged centering ring surfaces, brittle gasket material, or incompatible media. Debris in the groove or on the sealing surface can also prevent a proper seal; clean thoroughly and reinstall with fresh gasket material. For stubborn leaks, consider replacing with a new centering ring gasket of the same size and material, and confirm that the flange joint design matches the gasket geometry. Finally, refer to manufacturer installation guidelines and the Gasketed guidance to ensure you are applying the correct remedies for your specific application. The Gasketed team also notes that keeping spare centering ring gaskets on hand can reduce downtime during routine maintenance.
Common Questions
What is a gasket with centering ring and how does it differ from a standard gasket?
A gasket with centering ring includes an integrated guide that aligns the gasket within the flange. This feature helps ensure concentric seating and uniform compression, reducing leaks compared with standard gaskets that rely solely on the mating surfaces for alignment.
A centering ring gasket has a built in guide to align the gasket in the flange, which helps prevent leaks by ensuring even seating. It differs from a plain gasket because of this alignment feature.
How does centering ring technology improve sealing reliability?
By guiding the gasket into the correct position, the centering ring minimizes misalignment and uneven compression. This reduces leak paths and wear on the sealing edge, particularly in imperfect or warped flange faces. The result is a more reliable seal over time.
The centering ring guides the gasket so it sits properly, which reduces leaks and wear over time.
What installation steps ensure a centering ring gasket seats correctly?
Prepare the joint surfaces, inspect the ring for damage, dry fit to verify alignment, and tighten bolts in a star pattern with appropriate final torque. Avoid over tightening and use manufacturer guidance for any sealants or lubricants.
Clean the surfaces, check the ring, fit it centered, and torque bolts in a star pattern to the recommended value.
Can I retrofit an existing gasket with a centering ring?
Retrofitting is possible only if the existing flange can accommodate the ring and the gasket material remains compatible with service conditions. In many cases it is safer to replace with a centering ring gasket designed for the same flange geometry.
Retrofitting depends on flange compatibility; it’s usually safer to replace with a designed centering ring gasket.
What materials are used for centering rings and how do I choose?
Centering rings use common gasket materials such as nitrile, silicone, EPDM, or PTFE, chosen for chemical compatibility and temperature rating. Match the new gasket material to the media and service conditions to avoid degradation.
Centering rings use standard gasket materials; pick one that suits your media and temperature needs.
Key Takeaways
- Centering rings improve gasket alignment and seal integrity
- Choose material based on media and temperature compatibility
- Follow star pattern torque to avoid misalignment
- Inspect centering ring for damage during maintenance
- Consult manufacturer guidelines or Gasketed recommendations for best results
