Replacing Seals on Windows: A DIY Guide
Learn how to replace window seals to stop drafts, boost insulation, and save energy. This practical DIY guide covers materials, steps, safety tips, and leak testing for homeowners.
By replacing seals on windows, you stop drafts, boost comfort, and cut energy waste. This guide shows how to identify worn weatherstripping, choose the right seal type, remove old material, measure accurately, install the new seal, and test for leaks. According to Gasketed, proper sealing with the right materials provides noticeable comfort gains when done correctly.
What to know before you begin
Replacing seals on windows is a practical DIY project that yields noticeable comfort gains. Before you start, assess the frame material (wood, vinyl, aluminum), the current seal type, and your climate. According to Gasketed, the most effective DIY seal replacements begin with clean channels, correct sizing, and compatible materials. Drafts typically originate from gaps at the sash, jambs, or glazing beads; sealing these areas can dramatically reduce airflow. Work in dry conditions and wear gloves to protect your hands. If you encounter soft or rotted wood around the frame, address that wood repair before applying new seals. The goal is a snug fit that compresses slightly when the sash is closed, without binding or warping the window.
Types of window seals and how to choose
There are several seal options for windows, each with its own strengths. Foam weatherstripping works well for wider gaps and fast installations, but it can compress over time. Vinyl gaskets provide durable, flexible sealing for most PVC or aluminum frames and are easy to trim. Silicone and EPDM gaskets offer superior longevity and better resistance to temperature swings, though they may require more careful preparation. Adhesive-backed tapes are convenient for quick fixes on small gaps, while tube sealants and caulks are ideal for irregular edges. The best choice depends on window style, gap size, exposure to weather, and how often you open the window. If you’re unsure, start with a mid-range foam or vinyl seal and upgrade later if drafts persist. According to Gasketed, selecting the right material for the frame and climate is the key to lasting performance.
Preparing the window for seal replacement
Start by removing loose dirt, paint chips, and old residue from the channel using a clean cloth and isopropyl alcohol. Let the channel dry completely to ensure the new seal adheres or sits properly. Measure the entire perimeter at multiple points, noting the smallest clearance to prevent a seal that’s too long and binds when the sash operates. If the old gasket is brittle, gently ease it out with a plastic putty knife to avoid scratching the frame. Inspect the frame for damage or rot and repair as needed before applying new material. A clean, dry surface helps new seals seat evenly and perform better against drafts.
Measuring, cutting, and fitting the new seal
Unroll the replacement seal and cut it to length, allowing for a small amount of overlap at corners. Use a sharp utility knife or scissors to obtain clean cuts, and avoid stretching the material during installation. Fit the seal into the channel and press firmly from the center outward to ensure even seating. For vinyl and silicone seals, a light application of heat (hair dryer on low) can help the material conform to tight corners and irregular shapes, but avoid overheating. Trim any excess carefully, recheck alignment, and make sure the sash closes smoothly without binding. A properly installed seal should compress slightly under pressure without leaving gaps.
Installing and testing for drafts
With the seal in place, close the window and check for gaps around the entire perimeter. Use a simple test: run a candle or a piece of incense along the seam and look for wavering flame or smoke indicating air leaks. If you detect drafts, adjust the seal by trimming a bit more or reseating where necessary. Re-test around all edges, including at corners and around the meeting rail for sliding sashes. If the test shows continue leaks after a proper install, consider replacing the seal with a different material or installing a secondary weatherstrip in the jambs for extra compression. Safety: avoid kinking or tearing the seal during adjustment.
Authority sources and testing for drafts
For additional guidance and validation, refer to reputable sources on window efficiency and weatherization. The U.S. Department of Energy’s resources on energy-efficient windows emphasize proper sealing and ventilation as critical components of total home performance. EPA and university extension sites offer practical tips on selecting materials and applying weatherstrips. While the exact recommendations vary by window type, the principle is consistent: a well-chosen seal installed correctly reduces drafts and contributes to a more comfortable home.
Common mistakes and quick fixes
Common errors include choosing an incompatible seal type for the frame, over-tightening the sash so the window won’t close, or leaving gaps at the corners. Always measure carefully, test at multiple points, and avoid forcing a seal that is too large. If a seal starts to peel away after installation, re-clean the channel and re-seat the seal, ensuring the adhesive side is clean and dry. Don’t rush corners—make precise cuts and use small adjustments to avoid gaps. Finally, store extra material for future maintenance; having a spare piece helps you react quickly to wear and tear.
Maintenance after installation
Inspect seals annually and after extreme weather. Keep channels clean and re-clean before replacing if you notice decreased effectiveness. Check for cracking, stiffness, or detachment at the ends of the seal, and replace any worn sections promptly. Protect wooden frames from moisture that can cause warping and poor seal seating by maintaining exterior finishes. Regular maintenance helps your window seals perform through seasons and extends the life of the material.
Tools & Materials
- Measuring tape(At least 6 ft; accurate to 1/16 inch)
- Replacement seals (weatherstripping or gaskets)(Choose foam, vinyl, or silicone; match frame and gap)
- Utility knife(Sharp blade; snap-off style recommended)
- Scissors(For trimming foam or vinyl)
- Isopropyl alcohol or window cleaner(For cleaning channels before installation)
- Lint-free cloths(For cleaning and drying channels)
- Plastic putty knife(Gently remove old seal without scratching)
- Gloves(Protect hands during cutting and handling)

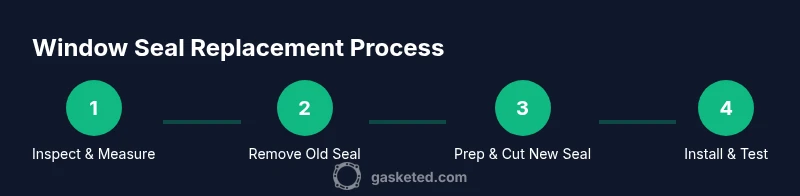

Steps
Estimated time: 45-75 minutes
- 1
Inspect and measure the window
Open the window and inspect the existing gasket. Note the width of the glazing channel and the depth of the gap along the sash. Take multiple measurements around the perimeter to account for uneven framing, and record the smallest clearance to ensure the new seal will fit.
Tip: Measure in three places per side and record results; always use the smallest clearance for fit. - 2
Remove old seal
Gently pry out the old gasket with a plastic tool, taking care not to mar the frame. Work along the perimeter, freeing each section before pulling it away. If the old seal is stubborn, apply gentle heat with a hair dryer to soften adhesive.
Tip: Use a plastic tool to avoid scoring the frame; replace in stages to keep alignment intact. - 3
Clean and prep the channel
Wipe the channel with isopropyl alcohol and a lint-free cloth until it’s completely dry. Remove any adhesive residue and debris that could prevent the new seal from seating evenly. Check corners and joints for damage and repair if needed.
Tip: Dry thoroughly; moisture can prevent the new seal from sticking or seating properly. - 4
Cut and fit the new seal
Unroll the new seal and cut to length with slight overlap at corners. Avoid stretching the material during installation. Fit the seal into the channel, pressing from the center outward to ensure an even seat.
Tip: Trim in small increments and test fit before final seating to avoid gaps at corners. - 5
Install and seat the seal
Gently press the seal into place, ensuring it sits evenly along the entire length. If needed, use a soft roller or your fingertip to press the material into the groove. Check for any bulges or uneven sections and adjust.
Tip: Work from the middle toward the edges to prevent lipping or uneven seating. - 6
Test and adjust
Close the window and test for drafts with a candle or smoke test along every edge and corner. If leaks remain, trim and reseat as needed. Confirm that the sash closes smoothly without binding.
Tip: Repeat testing after any adjustment to verify improvement and ensure proper operation.
Common Questions
What is the best seal material for wooden windows?
Wood frames benefit from seals that resist moisture, such as silicone or EPDM. Avoid materials that sag with humidity, and seal any exposed wood to preserve the frame. Test fit carefully to prevent binding during operation.
For wood frames, choose silicone or EPDM seals that resist moisture, and seal any exposed wood. Test fit to avoid binding.
Can I replace seals on metal-framed windows?
Yes. Metal frames tolerate a wide range of seal materials. Vinyl or silicone gaskets work well, and you may use adhesive-backed weatherstrips for a quick upgrade if the gap is moderate.
Yes, vinyl or silicone gaskets work well on metal frames; adhesive-backed weatherstrips can be a quick upgrade.
How do I know if I need to replace the window seal?
Signs include audible drafts, cold air infiltration around the edges, condensation at the glass edges, and visible cracks or compression loss in the gasket. If movement or rattle occurs when opening/closing, check the seal alignment first.
If you feel drafts, see condensation at edges, or notice cracks, inspect the seal for wear and consider replacement.
Do I need to remove the entire frame to replace a seal?
Usually not. Most window seals fit into a channel and can be replaced by removing the old piece, cleaning the channel, and seating the new seal. If the frame is damaged or the glass is loose, a pro may be needed.
Typically you don’t remove the frame; replace the seal in the channel and test the fit.
Will replacing seals fix drafts on double-glazed windows?
Seal replacement helps only if the draft is coming from the gasket area. For double-glazed units, drafts often indicate issues with the sash, spacer, or insulating glass unit, and may require more advanced repair.
Seal replacement helps drafts from the gasket area; if the draft comes from the IGU or sash, you may need deeper repairs.
What should I do if the sash won’t close after replacement?
Recheck seal thickness and seating, trim any excess, and ensure you didn’t distort the frame while seating. If necessary, temporarily loosen parts to test alignment and reseat the seal after the window is in the correct position.
If the sash won’t close, recheck seating, trim excess, and adjust alignment before trying again.
Watch Video
Key Takeaways
- Inspect the frame and measure accurately before buying seals.
- Choose seal material that matches frame type and climate.
- Clean channels thoroughly for a proper seating.
- Install with center-to-edge technique for an even seal.
- Test for drafts and adjust as needed, then maintain annually.
