Rubber Seal Ring: DIY Guide for Gasket Repairs

What is a rubber seal ring and how it works

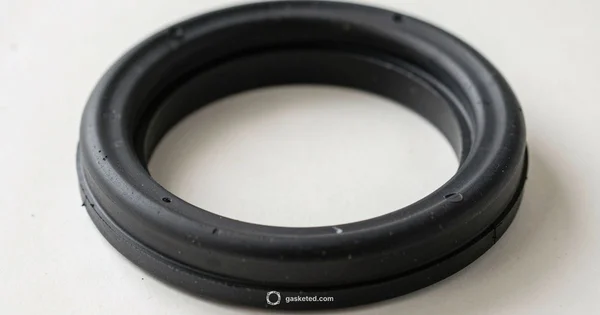

A rubber seal ring is a cylindrical or flat profile that fits into a groove or between two mating surfaces. When compressed, the ring deforms to fill gaps and form a seal that resists leakage. The effectiveness of the seal depends on the material, size, and surface finish of the joined parts. In everyday DIY projects, rubber seal rings are common in faucets, washing machines, dishwashers, automotive clamps, and irrigation fittings. The goal is a dependable barrier that accommodates movement, vibration, and pressure changes without permanent deformation. Regular inspection helps catch cracking, hardening, or tears early, reducing the risk of sudden leaks.

To achieve a reliable seal, always match the ring to the application. For water and mild chemicals, a versatile material like EPDM often performs well. For oils and fuels, nitrile or fluorocarbon compounds may be preferable. The right profile and dimensions are as important as material choice. When replacement is needed, choose a rubber seal ring that mirrors the groove width, inner diameter, and cross sectional shape of the old ring. A poor fit commonly leads to leaks and accelerated wear.

In installation, cleanliness matters. Debris in the groove or on the sealing surfaces can prevent full compression and create high spots that leak. After seating the ring, ensure the mating surface sits flat without distortions. Over time, repeated cycles or twisting during assembly can weaken the ring, so handling with care is essential for longevity.

Materials and compatibility

Rubber seal rings come in several common compounds, each selected for different environments and chemicals. Nitrile is known for oil resistance and general use in automotive and machinery. EPDM shines in water systems and steam where chemical stability and flexibility are priorities. Silicone offers excellent temperature tolerance and flexibility but may not handle aggressive chemicals as well as other rubbers. Fluorocarbon based materials, sometimes called FKM, provide strong chemical resistance for specialty fluids and high temperatures.

Choosing the right material depends on what the seal will contact. Water friendly surfaces benefit from EPDM or silicone, while hydrocarbon exposures favor nitrile or fluorocarbon. Consider exposure duration and any cleaning agents the system uses. Remember that some applications may require food-grade or medical-grade rubber seal rings, which specify additional standards. Always verify compatibility with the system’s fluids and temperatures before installation.

Beyond material choice, profile and size are critical. The seal must fit the groove precisely and compress evenly when tightened. A ring that is too large can bulge or slip out of place, while one that is too small won’t seal properly. If you are unsure, consult the equipment manufacturer’s guidelines or seek a qualified technician to verify the correct dimensions.

Wear, aging, and signs of failure

Rubber seal rings are subject to aging and wear from heat, chemical exposure, and repeated cycling. Over time, the rubber may harden, crack, or lose elasticity, reducing sealing performance. Visible signs of trouble include cracks along the surface, fraying edges, or flattening of the ring in the groove. Leaks around the joint after a recent maintenance or installation can indicate a compromised seal.

Environmental factors such as UV exposure, ozone, or aggressive cleaners can accelerate degradation. If a seal shows wear but remains in the groove, it may still function for light use, but efficiency will decrease. In high demand systems, replace aging rings proactively rather than waiting for a noticeable leak. Regular inspection schedules help catch degradation early and extend overall system life.

Installation best practices

Before installation, inspect the groove for nicks, corrosion, or debris. Clean the groove and sealing surfaces with a soft cloth and a mild solvent if needed, then dry thoroughly. Lightly lubricate the ring with a compatible lubricant only if the material permits; some coatings can improve seating and reduce torque requirements. Place the rubber seal ring evenly into the groove or onto the mating surface, ensuring it sits flat and fully seated.

When tightening, follow the recommended torque or snug it until the joint is evenly compressed. Avoid over-tightening, which can deform the ring or damage the groove. If reassembling a two piece joint, ensure the ring remains in place during assembly to prevent pinching. After assembly, test for leaks with a simple pressure or water test before returning the system to service.

Common installation mistakes and how to avoid them

Common mistakes include selecting an incorrect size, using the wrong material for the application, and not cleaning the groove beforehand. Another frequent issue is twisting or stretching the ring during placement, which creates weak spots. Using petroleum-based lubricants on certain rubber types can degrade the surface, so always check compatibility first.

To avoid these errors, measure carefully and refer to the original specifications. If in doubt, compare the new ring to the old one side by side. Work slowly, keep surfaces clean, and test the seal after installation. If leaks persist, re-check alignment, material choice, and whether the groove has sharp edges that could cut the ring.

Documentation and labeling also help, especially in multi-gasket systems. Keep spare seals in their original packaging and away from direct sunlight or heat sources to prevent premature aging.

Maintenance and storage tips

Maintenance is often about prevention. Regularly inspect seals for signs of wear and replace aging rings before failure. When removing rubber seal rings, handle them carefully to avoid stretching or tearing. After removal, store unused rings in a cool, dry place away from chemicals and sunlight. A stable storage environment helps preserve elasticity and shape for longer.

Create a routine that includes checking seals during seasonal maintenance or after servicing related equipment. Cleaning, drying, and proper reassembly practices reduce risk of leaks. If you notice a trend of frequent replacements, there may be an underlying issue such as improper groove dimensions or fluid incompatibility that requires a broader diagnosis.

Tip: keep several spare sizes on hand to match diverse repair scenarios. This practice minimizes downtime and supports faster DIY gasket repairs.

Applications across domains

Rubber seal rings are versatile across many domains, including home plumbing, appliances, automotive assemblies, and small industrial equipment. In plumbing, EPDM rings are common for water lines, while nitrile rings might be used in fuel systems. Appliances such as dishwashers and washing machines use rings to prevent leaks around hoses and fittings. Automotive applications include engines, radiators, and vacuum lines where resilient seals are essential.

For outdoor or high-temperature settings, silicone or fluorocarbon rings may offer better performance. In food processing or medical devices, food-grade or medical-grade rubbers ensure safety and compliance. When selecting a rubber seal ring for a multi-use environment, consider exposure to cleaning agents, humidity, oil, and temperature swings. A well-chosen seal enhances reliability and reduces maintenance investments over time.

How to choose the right rubber seal ring

Start by identifying what the seal will touch and under what conditions. Consider chemical compatibility with fluids or cleaners, temperature range, and exposure to pressure or vibration. Then choose the material accordingly, such as EPDM for water based applications or nitrile for oils. Confirm the size and groove geometry before purchasing.

Next, examine the profile and hardness that best fit the mating surfaces. A broader contact area often provides better sealing but may require more compression. Ensure the ring sits evenly in the groove and that the joint is clean before assembly. If multiple rings are used, match each one to its specific groove and function. Finally, document the chosen material and dimensions for future maintenance and replacements.

Troubleshooting leaks and common failures

If a leak appears after replacement, recheck the ring orientation, size, and seating depth. A damaged or deformed ring will not seat properly and should be replaced. Look for signs of cracking, hardening, or tearing on the ring’s surface as indicators of aging. Also verify that the groove is smooth and free of sharp edges that can cut the ring during installation.

In persistent leak scenarios, test the system without pressure first to confirm the seal path. Sometimes leaks originate from adjacent components rather than the ring itself. If you suspect chemical incompatibility, consult material datasheets and consider switching to a more compatible rubber compound. Regular maintenance and proper material selection dramatically reduce the chance of recurring leaks.
