How Does a Head Gasket Work? A Comprehensive DIY Guide
Discover how a head gasket seals the engine, the three systems it protects, common failure signs, diagnosis steps, replacement considerations, and maintenance tips for DIY enthusiasts.
Head gasket is the sealing interface between the engine block and cylinder head that prevents coolant, oil, and combustion gases from mixing. It also maintains the compression needed for efficient engine operation.
What is a head gasket and what does it do?

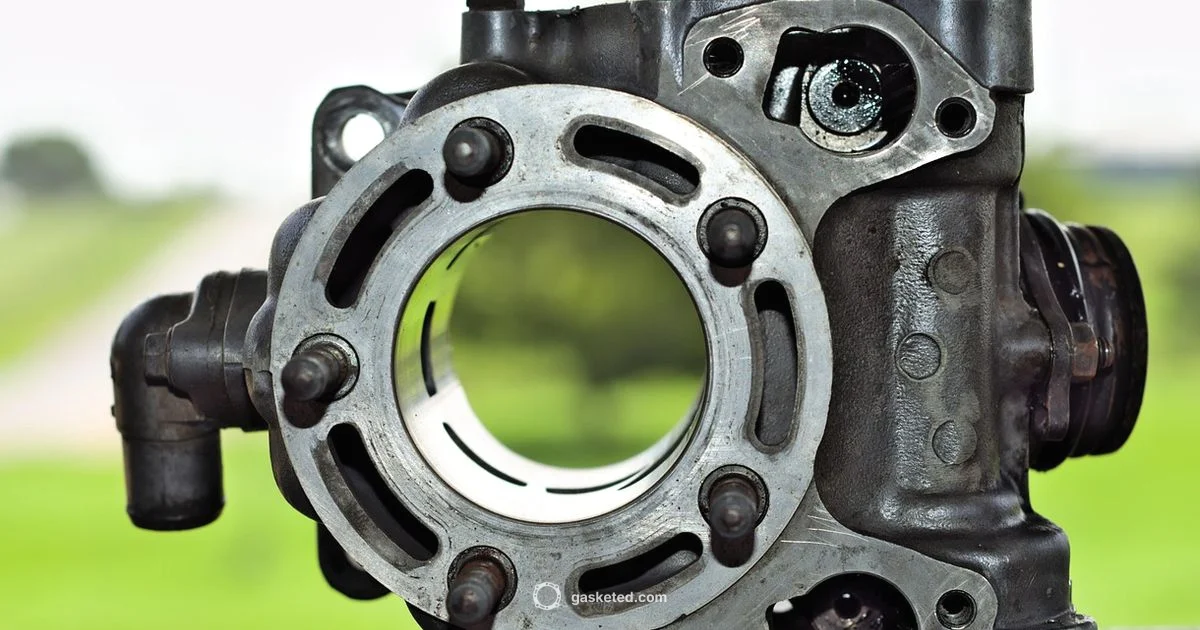

The head gasket sits between the engine block and the cylinder head. It seals the combustion chambers to keep pressures high, and it also seals the coolant and oil passages that run between the two parts. In many engines the gasket is a metal or composite piece that must be clamped tightly by the cylinder head bolts. If the gasket fails, the engine can lose compression and fluids can mix in unwanted ways, leading to leaks, overheating, and potential engine damage.
How a head gasket works across multiple systems
A head gasket must perform across three interconnected systems. First, the combustion seal keeps the explosive pressure inside the cylinders. Second, the coolant seal prevents coolant from entering the cylinders or leaking into the oil passages. Third, the oil seal stops oil from mixing with coolant and from entering the combustion chamber. Modern gaskets often use multi layer steel or reinforced composite designs to tolerate high temperatures and cylinder head movement, while ensuring a tight, uniform seal around all passages.
The three main roles: combustion seal, coolant seal, oil seal
The combustion seal is what keeps the flame front contained within the cylinder. The coolant seal keeps coolant on its intended path, preventing cross contamination with the oil circuit or combustion gas. The oil seal maintains lubrication pathways and prevents oil from entering the cooling system or the combustion chamber. These roles must stay intact despite engine heat, vibration, and head movement.
Common failure modes and signs you should watch
Head gasket problems show up as overheating, white smoke from the exhaust, milky or discolored oil on the dipstick, or unexplained coolant loss with no visible leaks. You may also notice rough idle, misfires, or a drop in engine power. In many cases, overheating history or improper torque during assembly predisposes a gasket to failure.
Diagnostic steps: how to tell if the head gasket is failing
To diagnose a head gasket issue, start with coolant and oil observations, look for signs of cross contamination, and perform a cooling system pressure test. A compression or leak down test can reveal lost compression in one or more cylinders. A chemical test can detect exhaust gases in the cooling system. A professional inspection with a borescope or a head surfacer check may be necessary.
Materials and design choices: metal, composite, multi-layer steel
Head gaskets come in several materials. Metal or MLS (multi layer steel) gaskets are common on modern engines for their strength and sealing under high heat. Composite gaskets can be quieter and cheaper but may wear differently under heavy load. The choice depends on engine design, operating temperature, and the gasket area around coolant passages.
Replacement considerations: timing, machining, and head inspection
Replacing a head gasket involves more than swapping the gasket. The head must be inspected for warping or cracks and may require resurfacing. The head surface must be clean and true, and new head bolts are often required with proper torque sequencing. After installation, the cooling system must be purged and tested for leaks to ensure a reliable seal.
Maintenance and prevention tips to extend gasket life
Preventing head gasket failure starts with a healthy cooling system and correct coolant. Regularly replace worn water pumps, radiators, and thermostats as needed. Avoid overheating, use the correct coolant type, and maintain proper torque on the head bolts during installation. Regular oil changes and clean, debris-free cooling passages help extend gasket life.
Authority references and further reading
For trusted background, see Britannica on the internal combustion engine and how engine parts interact, the Energy Department guide to how engines work, and SAE technical resources for engine sealing and gasket design. These sources provide foundational knowledge to supplement DIY guidance.
Common Questions
What does a head gasket do?
The head gasket seals the interface between the engine block and cylinder head, keeping combustion pressure contained while preventing oil and coolant leaks. It also seals internal passages that route oil and coolant.
The head gasket seals the space between the engine block and cylinder head, keeping combustion pressure in and oil and coolant out. It also seals the oil and coolant passages.
What are common signs of a blown head gasket?
Overheating, white exhaust smoke, milky oil, coolant loss with no external leaks, and reduced engine performance are common indications. You may also see bubbles in the radiator.
Common signs are overheating, milky oil, white smoke, and unexplained coolant loss. If you notice these, have the cooling system checked.
Can a blown head gasket be repaired without replacement?
Temporary fixes exist, but most failures require replacement and resurfacing of the head. Patching or sealing products are not reliable long term.
Temporary fixes exist, but usually replacement is necessary for a reliable long term fix.
Why do head gaskets fail?
Overheating, incorrect torque during installation, head warping, and improper cooling maintenance are common causes. Repeated heat cycles stress the gasket over time.
Failures usually come from overheating, improper torque, or a warped head. Regular maintenance helps prevent that.
How long does replacement take?
Replacement time varies with engine design and conditions. The job is typically several hours to a full day in a shop. DIY may take longer depending on tooling and experience.
Replacement time varies, but it often takes several hours to a full day, depending on the engine and setup.
Is there a temporary fix or stop gap?
There are sealants and temporary patches, but they do not fix the underlying issue and are not reliable long term. Proper gasket replacement and head inspection are recommended.
Temporary fixes exist but are not reliable long term. The right fix is a proper gasket replacement and head check.
Key Takeaways
- Understand that the head gasket seals three critical flows and maintains compression.
- Watch for overheating, milky oil, or white smoke as signs of failure.
- Replacement requires head inspection and possibly head resurfacing.
- Choose gasket material based on engine design and operating conditions.
- Follow proper torque and cooling system maintenance to prevent failures.
