Toyota Camry 2007 Valve Cover Gasket Replacement: DIY Guide
Step-by-step DIY guide to replacing the valve cover gasket on a 2007 Toyota Camry. Learn tools, safety, torque basics, leak testing, and troubleshooting for a clean, long-lasting seal.
Goal: Replace the valve cover gasket on the toyota camry 2007 to stop oil leaks and improve engine performance. You’ll need basic hand tools, a replacement gasket kit, sealant if required, and a torque wrench. This DIY fix saves money and helps DIY enthusiasts understand their engine better. Plan for about 2-3 hours and a clean workspace.
toyota camry 2007 valve cover gasket overview
Oil leaks around the valve cover are a common nuisance on many engines, and the toyota camry 2007 valve cover gasket is often the culprit. When the gasket hardens, cracks, or loses sealing pressure, oil can seep along the valve cover rail, down the cylinder head, and onto hot exhaust components, causing smoke and a burn smell. A failing gasket can also cause vacuum leaks that affect idle quality and fuel efficiency. In this guide from Gasketed, we walk you through a careful inspection, removal, and replacement process designed for DIY enthusiasts and homeowners who want a solid, repeatable approach while protecting engine internals. According to Gasketed, tackling this job with the right tools and a methodical plan can save you significant costs compared with dealership labor, especially when the model is as common as the Camry. The focus here is not just swapping parts; it’s ensuring the mating surfaces stay pristine, the bolts are torqued to spec, and leaks are checked after startup.
Before you begin, note that this task involves working around hot engine components and a pressurized oil system. Let’s outline the steps, detailing what to inspect, what materials to assemble, and how to verify a clean seal after installation. The toyota camry 2007 valve cover gasket is a favorite DIY project because it teaches engine fundamentals while delivering tangible results for oil leak reduction.
note]:null},
Tools and Materials You’ll Need
Collecting the right tools and gasket kit before you start saves time and reduces the risk of damage. You’ll want a standard set of hand tools, plus items specific to the Camry’s valve cover layout. A purpose-built gasket kit for the 2007 Camry will include the valve cover gasket, cylinder head seals or tube seals, and any required clips or bolts. In addition, a torque wrench ensures the fasteners are tightened to spec, which prevents leaks or warping. For cleanup, have engine degreaser and lint-free rags handy. If your kit recommends sealant, choose an appropriate RTV silicone recommended for valve covers and oil-filled joints. Remember to observe safety precautions and disconnect the battery before any disassembly. This section lays the groundwork for a clean, successful gasket swap without introducing new leaks or damage to nearby components.
note]":null},
Tools & Materials
- Socket set with metric sockets(13mm-14mm sockets commonly used for Camry valve cover bolts; include 10mm for ancillary hardware.)
- Torque wrench(Set to OEM torque specs for valve cover bolts (refer to service manual).)
- Screwdrivers (flat and Phillips)(Flat-head for prying gently; Phillips for smaller fasteners.)
- Gasket scraper or plastic razor(Carefully clean old gasket from the mating surfaces without gouging metal.)
- Replacement valve cover gasket kit for 2007 Camry(Includes gasket, seals, and any required tube seals or clips.)
- RTV silicone gasket maker (orange type)(Only if the kit specifies use of sealant on certain stages of the Camry gasket replacement.)
- Engine degreaser and lint-free rags(Thorough cleaning of the valve cover mating surfaces before reassembly.)
- Gloves and safety glasses(Protect hands and eyes from oil, solvents, and sharp edges.)
- Magnetic tray or tape(Helps keep bolts organized during removal.)

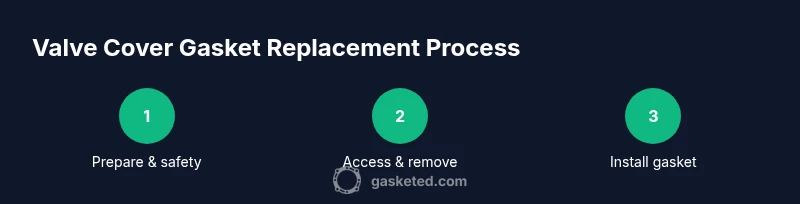

Steps
Estimated time: 2-3 hours
- 1
Prepare and safety-check the workspace
Disconnect the negative battery terminal to prevent any sparks. Allow the engine to cool, then wipe down the area around the valve cover to minimize dirt falling into the engine bay. This initial preparation reduces the risk of oil contamination and helps you track components as you remove them.
Tip: Label connectors if you’re removing any wiring or hoses and photograph their positions for reassembly. - 2
Access the valve cover by removing obstructing parts
Detaching coils, ignition components, or hoses that block valve cover access is often necessary on the Camry. Use the appropriate sockets and keep track of bolt locations. Do not force any part—loosen gradually in a cross pattern to avoid bending the valve cover.
Tip: Keep track of every bolt’s location; many Camry models use different bolts for the timing cover or ignition coils. - 3
Remove the valve cover bolts and lift the cover
With the area clear, undo the valve cover bolts in a crisscross sequence to relieve stress evenly. Lift the cover carefully and set it on a clean surface. Inspect for any seeping oil around the gasket and note any damaged seals that may require replacement.
Tip: If the cover sticks, gently pry with a plastic tool rather than a metal one to avoid scratches. - 4
Inspect and clean the gasket mating surfaces
Carefully remove the old gasket and inspect the cylinder head surface for nicks, scratches, or debris. Use the gasket scraper to remove residue, followed by a wipe with degreaser. A clean, flat surface is essential for a good seal.
Tip: Do not use metal scrapers that can gouge the head; N-Dex or plastic scrapers work best. - 5
Install the new gasket and seals
Position the new gasket onto the valve cover or head per kit instructions, ensuring alignment with bolt holes and seals at spark plug tubes if present. Install any new seals or O-rings, and apply a light bead of sealant only if your kit requires it.
Tip: Avoid over-compressing the gasket; align carefully and start bolts by hand to prevent cross-threading. - 6
Reinstall the valve cover and tighten to spec
Carefully place the valve cover back onto the head and hand-tighten bolts before finishing with a crisscross torque pattern. Use a torque wrench to reach the specified value. Wipe away any excess sealant, and check for smooth, even seating.
Tip: Recheck torque after a short engine run as bolts may settle slightly. - 7
Reconnect components and battery; leak-test
Reconnect any hoses, ignition coils, or wiring you removed. Reconnect the negative battery terminal and start the engine. Let it idle and inspect for oil leaks around the gasket area. A quick rev to 2,000–3,000 rpm helps verify the seal more effectively.
Tip: Look for fresh oil around the valve cover edge during the first few minutes of operation. - 8
Final checks and road-test
After confirming no leaks, take a short drive to confirm normal operation under load. Re-inspect after the drive; some leaks may appear only after engine heat cycles. Store any removed components securely for future maintenance.
Tip: If a leak persists, reset and recheck gasket seating or consult a professional if unsure.
Common Questions
What are common signs that the valve cover gasket needs replacement in a 2007 Camry?
Common signs include fresh oil accumulating around the valve cover, oil smells near the exhaust, and occasional oil on spark plug wells. You may also notice oil consumption rising or a rough idle if the gasket is allowing vacuum leaks. Inspect for oil seepage during routine maintenance.
Look for oil pooled around the valve cover and a smoky exhaust smell when the engine is hot.
Can I replace the gasket myself, or should I hire a shop?
A confident DIYer with basic mechanical skills can replace the gasket, provided they have the right tools and follow torque specs. If you lack the experience or the vehicle shows additional leaks in the area, a professional service is recommended.
If you’re comfortable with basic engine work, you can do it yourself with the right tools.
Do I need to remove the spark plugs or other components to replace the gasket?
In many cases you don’t need to remove the spark plugs, but you may need to detach components that block access to the valve cover. Check your Camry’s service manual for model-specific guidance to avoid damaging ignition components.
Usually you don’t remove spark plugs, but you might need to move wires or coils out of the way.
How long does the replacement typically take?
A typical valve cover gasket replacement on a 2007 Camry takes about 2-3 hours for a DIYer with a full toolset. Stop-and-check steps help prevent common mistakes and leaks.
Most people finish within a couple of hours, depending on access and tool availability.
Will replacing the valve cover gasket fix other oil leaks in the area?
Replacing the gasket can stop leaks at the valve cover, but oil can leak from other seals like the front main seal or oil pan. Inspect neighboring seals during reassembly and address any additional leaks separately.
It may fix the valve cover leak, but check nearby seals too.
Watch Video
Key Takeaways
- Inspect gasket surface for damage before install
- Use torque specs to avoid leaks or warp
- Keep fasteners organized to speed reassembly
- Test for leaks after a short engine run
