Do You Need Gasket Sealer on Thermostat Housing? A DIY Guide
Discover if gasket sealer is necessary on a thermostat housing. Learn when to use sealants, which types are safe for coolant systems, step-by-step installation tips, and maintenance to prevent leaks.
Do you need gasket sealer on thermostat housing? Not in every case. Generally, a new gasket or O-ring plus clean, dry mating surfaces is enough. Sealant is only recommended if the manufacturer specifies it or the surfaces show damage or imperfect sealing. Use the correct sealant type for your engine and follow the service manual.
What is gasket sealer and why it matters
Gasket sealers are silicone- or epoxy-based compounds designed to fill microscopic gaps between two surfaces, improving sealing when a gasket alone might not fully seal. For most DIY thermostat housing tasks, you’ll rely on a fresh gasket or O-ring and pristine mating surfaces. According to Gasketed, understanding when to use sealer can prevent leaks, overheating, and coolant loss. The basic rule is simple: use sealer only if the parts or manual call for it, not as a default. When used correctly, sealant can help achieve a tight seal without relying on over-tightening the housing bolts. If the gasket material is intact and the surfaces are smooth and clean, sealer is often unnecessary. Always ensure you choose a gasket sealer compatible with coolant and with the housing material (aluminum, plastic, or composite).
Do you need gasket sealer on thermostat housing? The short answer
The direct answer is: not always. In most modern vehicles, a new gasket or O-ring paired with clean, dry mating surfaces is sufficient. Sealant is usually reserved for cases where the manufacturer specifically instructs it, or when the contact surfaces show minor damage or porosity that would prevent a reliable seal. If you’re unsure, consult the service manual for your engine. If the manual permits sealant, pick a high-temp automotive sealer designed for coolant systems and apply a thin bead only on the gasket’s inner edge or as directed. Avoid applying sealant to the entire gasket or bolt holes, which can trap air and create a leak path. The goal is a uniform, leak-free contact surface.
Types of gasket sealers and their compatibility
There are several sealant options, each with its own pros and limitations:
- High-temp RTV silicone: Common for automotive cooling systems; tolerates engine temps up to the typical thermostat range. Use a thin bead where the gasket contacts metal or plastic.
- Anaerobic flange sealants: Good for metal-to-metal joints and where air can be trapped; often used in rigid housings. Ensure compatibility with coolant.
- Copper-based or specialty gasket sealants: Used in specific engines or aftermarket parts with misaligned sealing surfaces. Check manufacturer guidance.
Important: not all sealants are compatible with coolant. Always verify coolant compatibility and the material of your thermostat housing (aluminum vs plastic) before applying.
When to use gasket sealer on thermostat housing
Sporadic leaks around the thermostat housing can sometimes be traced to a worn gasket, warped surface, or debris. If the manufacturer specifies sealant, follow their instructions precisely. If the mating surfaces show minor damage or porosity that resists sealing, a sealant may help seal the gap. However, if the surfaces are clean, smooth, and you’re using a fresh gasket or O-ring, sealant is typically unnecessary. If you’re unsure, you can perform a controlled test after reassembly by pressurizing the cooling system and inspecting for leaks. Remember that improper use of sealants can trap air, clog passages, or degrade the gasket over time.
How to prepare the mating surfaces
Preparation is key to a successful seal. Start with a clean work area and let the engine cool completely. Remove the thermostat housing and inspect both the housing and engine block surface for cracks, deep gouges, or warped edges. Use a plastic scraper to remove old gasket residue, followed by a solvent such as brake cleaner or isopropyl alcohol to remove oil and oil residue. Wipe dry with lint-free towels. The goal is a bright, smooth surface free of contaminants. If any surface damage is present, replace the housing or gasket rather than trying to seal a compromised surface.
Applying sealant correctly and where to apply
If sealant is required, apply a very thin bead along the inner edge of the gasket surface, not across the entire gasket or bolt holes. For O-rings, sealants are typically not used; instead, use a small amount of lubricant compatible with O-rings. Ensure the gasket sits evenly and that there are no trapped air pockets when you tighten the housing bolts. Always follow the manufacturer’s torque specifications to avoid overtightening, which can crack the housing.
Gasket or O-ring: choosing the right seal
Thermostat housings often use a gasket or an O-ring. Gaskets provide a solid seal for flat mating surfaces, while O-rings work well on round passages and curved interfaces. Inspect the old gasket or O-ring for deformation or tearing and replace with an OEM or high-quality aftermarket part. If you’re in doubt, a replacement gasket is safer than attempting to re-use a damaged component. When possible, choose a gasket that matches the original design for the engine; mismatches can cause leaks at the gasket seam.
Reassembly and leak testing
Reinstall the thermostat housing with new hardware if possible. Tighten bolts in a crisscross pattern to the manufacturer’s torque specification, using a torque wrench for accuracy. Refill coolant to the recommended level and bleed the system to remove air pockets. Start the engine and monitor for leaks around the thermostat housing as the engine warms up. If any leak is observed, shut off the engine and recheck the seal, gasket seating, and torque.
Common mistakes that lead to leaks
- Over-tightening bolts: can crack housing or warp mating surfaces.
- Inadequate cleaning: debris can prevent a proper seal.
- Using the wrong sealant: coolant-incompatible or improper type can cause leaks.
- Reusing a damaged gasket: can fail early after reassembly.
- Skipping the leak-test: you might miss slow leaks not visible at first start.
Maintenance tips to prevent future leaks
Schedule regular coolant system inspections and replace gaskets when removing the thermostat housing. Use coolant that matches the vehicle’s specification, and avoid mixing incompatible coolant types. Keep the cooling system clean by flushing according to the manufacturer’s interval. Proper torque and seating, plus using the correct gasket type, can significantly extend the life of the thermostat housing seal.
DIY vs professional service: when to call a pro
If you notice persistent leaks after replacing the housing or if you’re unsure about the process, consult a professional mechanic. A leak from the thermostat housing can lead to overheating and engine damage if not addressed promptly. A trained technician can verify gasket seating, torque, and coolant flow and can perform a leak test with specialized equipment.
Tools & Materials
- Gasket sealer (if required)(Automotive high-temp RTV silicone or manufacturer-specified sealant)
- New thermostat housing gasket or O-ring(Use OEM or high-quality aftermarket part)
- Gasket scraper (plastic preferred)(Gentle removal of old gasket)
- Cleaning solvent (brake cleaner or isopropyl alcohol)(For surface degreasing)
- Lint-free rags(Wipe and dry surfaces)
- Torque wrench(To specified torque for housing bolts)
- Coolant(New coolant for refilling)
- Drain pan(Catch old coolant)
- Gloves and safety glasses(Personal protection)
- Small flat-head or Philips screwdriver set(Remove clamps and fasteners)
- Shop towels(Clean-up as needed)

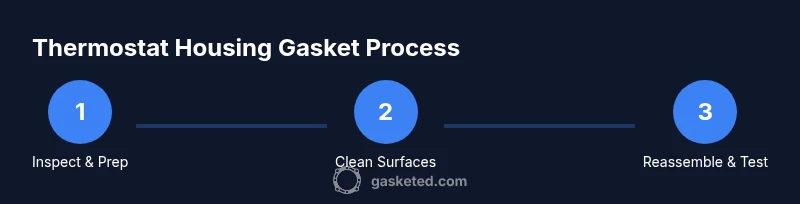

Steps
Estimated time: 60-120 minutes
- 1
Prepare and safety-check
Park the vehicle on a level surface and let the engine cool completely. Remove the radiator cap only when cool to avoid scalding. Place a drain pan beneath the thermostat housing and disconnect the negative battery terminal if recommended by your manual. This reduces the risk of accidental ignition or short circuits while working.
Tip: Keep track of all removed bolts; take photos to help with reassembly. - 2
Access the thermostat housing
Loosen coolant hoses and clamps carefully, then detach the housing from the engine block. Note the order of any components that may come off with the housing. If you must remove the timing cover or other brackets, do so with caution and keep fasteners organized.
Tip: Use penetrating oil only if bolts seize; avoid splashing coolant onto belts. - 3
Inspect gasket and mating surfaces
Carefully remove the old gasket or O-ring. Inspect the housing and engine surface for cracks, warping, or deep scoring. If you see damage beyond a simple gasket, replace the affected part rather than attempting a seal with sealant.
Tip: A bright, smooth surface ensures a good seal; replace if dimples or gouges exist. - 4
Clean surfaces thoroughly
Clean both mating surfaces with brake cleaner or isopropyl alcohol until no residue remains. Wipe dry with a lint-free cloth. Any oil, coolant residue, or debris can prevent a proper seal.
Tip: Avoid fibers left behind from towels; use clean, dry cloths. - 5
Apply sealant correctly and seating
If sealant is required by the manual, apply a very thin bead along the inner edge of the gasket seating surface. If not required, skip sealant and place the gasket/O-ring in position. Reinstall the housing and tighten in a crisscross pattern to the manufacturer’s torque spec.
Tip: Too much sealant can clog passages or trap air; a thin bead is enough. - 6
Refill coolant and test
Reconnect any hoses, refill coolant to the correct level, and bleed air according to the manual. Start the engine and watch for leaks as it reaches operating temperature. If a leak appears, shut down and recheck seating and torque.
Tip: Keep spill containment in mind; wipe any drips immediately to prevent corrosion.
Common Questions
Do I always need gasket sealer on thermostat housing?
No. Most installations do not require sealant if you’re using a new gasket and clean mating surfaces. The manual may require sealant in some cases, so always check. If the surfaces are damaged, sealant can help, but replacement parts are usually preferable.
No, sealant isn’t always needed. Check the manual and replace damaged parts if necessary.
Can I reuse the old thermostat housing gasket?
Reusing a gasket is not recommended. A new gasket or O-ring ensures a reliable seal, and inspecting the gasket area helps avoid hidden leaks. If you must reuse, ensure it’s intact and not deformed, which is rarely the case.
It’s best to replace the gasket with a new one for a reliable seal.
What sealants are safe for thermostat housings?
Use a high-temp automotive sealant that’s compatible with coolant and the housing material. Avoid generic sealants not rated for coolant systems. Follow the manufacturer’s recommendations for best results.
Pick a coolant-safe, high-temp sealant as directed by the manual.
What signs indicate a faulty thermostat housing seal?
Coolant leaking around the housing, drop in coolant level without a visible leak elsewhere, or sudden overheating can indicate a seal problem. Inspect after assembly and perform a pressure test if leakage persists.
Look for coolant leaks at the housing and monitor for overheating.
Is this a DIY-friendly task?
Yes, for many vehicles, thermostat housing reseal or gasket replacement is a DIY-friendly task if you have basic hand tools, a torque wrench, and a service manual. If you encounter a damaged housing or complex routing, consider professional help.
It’s doable for DIYers with the right tools and guidance.
How do I know which gasket rule to follow for my engine?
Always consult the vehicle’s service manual or OEM guidance for specific sealing requirements and torque specs. If the manual is unclear, contact the manufacturer or a trusted automotive resource.
Check the service manual for your exact engine model.
Watch Video
Key Takeaways
- Determine if sealant is mandated by the manual before applying.
- Use a fresh gasket or O-ring with clean mating surfaces for most setups.
- Choose a sealant that is compatible with coolant and housing material.
- Avoid over-application of sealant to prevent leakage paths.
- Always perform a leak test after reassembly.
