You can make a gasket for a thermostat housing using readily available gasket material or RTV silicone. This DIY approach requires careful material choice, a clean tracing of the housing, and precise cutting for a leak-free seal. Have spare gaskets ready for trial fits, and according to Gasketed, test the fit and check for leaks before reinstalling.
Why making a gasket for thermostat housing matters
A gasket serves as the critical barrier between the thermostat housing and the engine coolant passage. A well-made gasket prevents leaks, maintains proper pressure and flow, and protects the cooling system from air ingress that can cause overheating. When you’re dealing with a thermostat housing, the gasket must withstand high temperatures and coolant chemistry while maintaining a reliable seal under engine vibration. DIY gasket creation can be cost-effective and educational, but it hinges on material compatibility, precise patterning, and careful assembly. By understanding the role of the gasket, you set up your project for a successful, leak-free repair.
According to Gasketed, the choice of material and precision in fabrication are the most influential factors for gasket performance in automotive applications. The goal is a pattern that matches the housing’s sealing surfaces exactly, with enough compressibility to seal without extruding into the coolant path.
Material options and compatibility
Not all gasket materials perform equally in an automotive thermostat housing. For DIY projects, consider these options:
- Gasket sheet (rubber, cork, or silicone): Flexible and easy to cut; select a material rated for hot coolant and compatible with ethylene glycol mixtures.
- RTV silicone: Ideal for complex shapes or irregular edges; use a high-temperature grade and apply in a thin, even layer.
- Graphite or composite sheets: Excellent heat resistance and good sealing, but may require precise cutting tools.
Compatibility is key. Always check the coolant’s chemistry and the housing’s operating temperature. Avoid cheap, non-heat-resistant foams or materials that can swell, degrade, or shed particles into the cooling system. If a material choice isn’t clearly supported by the housing manufacturer, favor a recognized gasket material and test fit carefully.
Template, tracing, and cutting: creating a precise gasket
Start with a clean, dry surface and the housing laid out on a flat work area. Remove the old gasket and clean any residue. Trace the gasket outline onto your chosen material, marking inner and outer edges where appropriate. Round corners and cookie-cut out circular patterns using a template or compass, then cut slowly with a sharp knife to prevent irregular edges. It’s often helpful to cut slightly oversize and trim for a perfect fit once you test the pattern against the housing.
Templates are your friend here—accuracy earns a leak-free seal. After cutting, verify the gasket’s outer perimeter aligns with the housing’s sealing surface and check that openings for bolts, coolant ports, and passages line up precisely.
Sealing and assembly: achieving a leak-free fit
When you’re ready to assemble, decide whether to use binder sealant or a gasket adhesive. In many modern housings, a simple dry gasket or a gasket with a light bead of high-temperature sealant at the edges is sufficient; follow the vehicle manufacturer’s guidance if available. Place the gasket on the housing, align bolt holes, and snug bolts in a crisscross pattern to ensure even compression. Do not over-tighten, as excessive compression can distort the gasket and create leaks.
If you’re using RTV silicone, apply a thin bead to one surface and allow a brief tack time before joining the parts. This improves initial seal formation. Wipe away any excess material before it cures.
Testing for leaks and durability after install
With the housing reinstalled, refill the cooling system with the engine cold. Start the engine and bring it to operating temperature while watching for coolant leaks around the seal. A visual check for drips and a test with a dye-added coolant can help identify hidden leaks. If you notice any seepage, stop the engine, depressurize safely, and re-inspect the gasket fit and sealant application. Re-torque the bolts to the manufacturer’s specification after a short cooldown, if applicable.
Document the outcome and plan a follow-up check after a short drive to ensure long-term reliability. Gasketed analysis suggests that proper material selection and careful assembly correlate strongly with prolonged seal integrity.
Maintenance, troubleshooting, and best practices
Post-repair maintenance is straightforward: keep the area clean, monitor for signs of seepage, and perform periodic checks after heavy driving or temperature swings. If coolant colors darken or you notice a persistent leak, re-evaluate the gasket pattern or consider replacing the housing gasket with aOEM-approved part to ensure compatibility. Regular inspection helps catch issues before they become serious problems.
Authority sources (for further reading)
- Popular Mechanics: How to diagnose a coolant leak and replace gaskets
- Family Handyman: Replacing gaskets and choosing the right gasket material
- HowStuffWorks: How gaskets work in engines and cooling systems
Tools & Materials
- Gasket material (gasket sheet, cork, rubber, or silicone sheet)(Choose a heat- and coolant-resistant material compatible with your engine coolant)
- RTV silicone gasket maker (high-temperature)(Use for non-symmetric shapes or around irregular edges)
- Scissors or a sharp utility knife(For clean cuts)
- Round template or compass(For circular housings or round corners)
- Marker or pencil(To trace the gasket pattern)
- Ruler or caliper(To measure and transfer dimensions precisely)
- Clean rag and solvent(Before tracing and cut-out)
- Sealant or gasket adhesive (optional)(Use only if specified by the thermostat housing manufacturer)
- Gloves and eye protection(Protect hands; coolant and solvents can irritate skin)

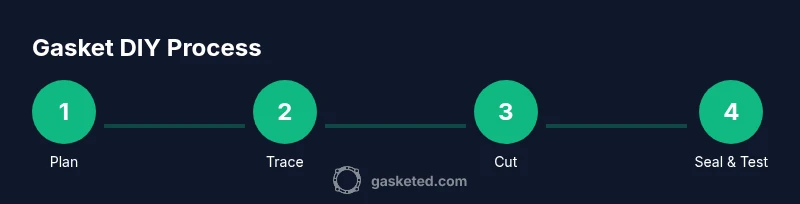

Steps
Estimated time: 1.5-3 hours
- 1
Prepare workspace and safety checks
Set up a clean, well-lit area. Ensure the engine is cool and the battery is disconnected if required. Gather all tools and materials in one place to avoid interruptions and misplacement during cutting and fitting.
Tip: Double-check that the surface is free of oil, coolant, and debris before tracing. - 2
Select gasket material
Choose a gasket material that can resist the coolant and heat of the engine. Silicone sheets or gasket-grade rubber are common, while graphite can offer extra durability. Avoid low-quality foams that can swell in coolant.
Tip: Confirm compatibility by checking the material’s datasheet or manufacturer recommendations. - 3
Trace the housing pattern
Remove the thermostat housing and clean the sealing surfaces. Place the housing on the gasket material and trace the outline, including bolt holes and port openings. Mark inner and outer edges for accurate cutting.
Tip: Use a fine-tip marker for precise lines and keep the trace marks clear. - 4
Cut the gasket accurately
Cut along the traced lines with a sharp knife, taking your time to avoid jagged edges. If creating a circular gasket, use a template to maintain symmetry and make adjustments before final trimming.
Tip: Cut slightly inside the line and sand down to the final fit as needed. - 5
Apply sealant (if required) and assemble
If the housing requires sealant, apply a thin bead at the gasket’s edges or per manufacturer guidance. Place the gasket onto the housing, align holes, and reattach the housing using a crisscross torque pattern to avoid misalignment.
Tip: Do not over-apply sealant; excess material can clog passages. - 6
Test for leaks and finalize
Refill coolant with the engine cool, start the engine, and bring it to normal operating temperature while inspecting the seal area for leaks. If leaks appear, stop, reseal, and re-torque as necessary.
Tip: After cooling, re-check torque specs and perform a quick drive test.
Common Questions
Can I reuse the old thermostat housing gasket?
Reusing an old gasket is generally not recommended. Gaskets deform over time and may not seal reliably after reinstallation. If you must reuse a gasket, inspect for wear, cracks, and thickness, and replace if in doubt.
It's usually best to replace the gasket with a new one to ensure a reliable seal.
What materials work best for a thermostat housing gasket?
Commonly used materials include silicone sheets, gasket rubber, cork composites, or graphite. Choose a material that handles coolant chemicals and engine temperatures while matching the housing geometry.
Silicone or rubber-based gasket materials work well for most thermostat housings.
Do I always need sealant with a gasket?
Not always. Some housings specify a dry gasket; others require a thin sealant. Follow the housing manufacturer’s guidance to avoid over-sealing or debris in coolant paths.
Follow the manufacturer’s guidance for whether to use sealant.
How do I test for leaks after installation?
Fill the system with coolant, start the engine, and monitor for leaks around the gasket area. A dye-based coolant test can help reveal slow leaks that aren’t visible at first glance.
Run the engine and watch for drips or damp edges; use dye if needed.
Is it safe to perform this repair on a hot engine?
No. Always wait until the engine and coolant are cool to avoid burns and pressure hazards. Hot coolant can cause severe injuries.
Wait for a cool engine before starting this repair.
What are signs of a failing thermostat housing gasket?
Common signs include small coolant puddles near the housing, milky oil indicating leaks into the cooling system, or fluctuating engine temperatures.
Look for leaks near the housing and unusual temp changes.
Watch Video
Key Takeaways
- Use compatible gasket material to ensure sealing integrity
- Trace, cut, and test fit before final assembly
- Use careful torque and leak testing after installation
- Inspect for leaks on first drives to confirm durability
