Head Gasket Change: DIY Replacement Guide
Learn how to perform a head gasket change safely with a complete step-by-step guide, required tools, safety tips, and troubleshooting for DIY enthusiasts and homeowners.
You can perform a head gasket change by following a thorough, step-by-step guide using the right tools and a clean workspace. This task requires (1) a solid repair manual for your engine, (2) accurate torque specs, and (3) a clean, dry shop environment. Expect several hours and careful safety practices.
What is a head gasket and why change it?
The head gasket sits between the engine block and the cylinder head, sealing combustion, coolant, and oil paths. A healthy gasket keeps compression in the cylinders and prevents cross-contamination of fluids. When a head gasket begins to fail, you may notice coolant leaks, white steam, milky oil, or overheating. In many engines, a head gasket change is necessary to restore engine reliability and prevent catastrophic damage. DIY enthusiasts should understand that this is a major repair that requires careful preparation, the right tools, and a clean work environment. While prices for professional service can be high, performing the change yourself is feasible with a good repair manual, proper torque specs, and a methodical approach. Gasketed's guidance emphasizes double-checking every seal and surface because residual debris or misalignment is a common cause of early leaks. A successful gasket change not only replaces the material but ensures the timing, cooling, and lubrication systems are reassembled correctly, so the engine seal remains airtight for the next life of the motor.
Causes and signs of head gasket failure
Head gasket failure is rarely a single event; it usually results from a combination of overheating, improper torque, corrosion, or decades of wear. Signs include unexplained coolant loss without a visible leak, persistent white exhaust, milky oil on the dipstick, overheating under light load, and a drop in compression on one or more cylinders. A cracked or warped cylinder head can mimic gasket problems, so thorough diagnosis matters. Before replacing a head gasket, verify the root cause—overheating or coolant contamination can recur if the cooling system isn’t repaired. Gasketed recommends a cooling-system service as part of the project, plus a pressure test and a leak-down test to map the extent of the issue. Document every symptom with photos and notes; this helps track the success of the repair after reassembly.
Preparation and planning for a head gasket change
Plan the job around a complete parts list, a repair manual for your engine, and a dedicated workspace. Confirm you have access to timing marks, torque specs, and any required special tools. Set aside a full day or more, as skill level and engine type vary widely. Label hoses, wires, and connectors, so reassembly remains straightforward. Inspect the cylinder head and the block mating surfaces for warping or pitting; if either surface is damaged, professional resurfacing may be required. Gather the coolant and oil you’ll replace, and arrange proper disposal. Finally, ensure you have sufficient lighting and a clean bench for gasket and bolt storage. Proper planning reduces the risk of rework and helps the engine achieve a reliable seal at startup.
Working space, safety, and environmental considerations
This job creates dust, coolant spray, and hot surfaces. Work in a well-ventilated area and wear eye protection, gloves, and a sturdy apron. Use a chemical-resistant tray to catch drips and collect waste coolant for recycling or disposal per local regulations. Keep a fire extinguisher and a first-aid kit nearby. Source a clean, lint-free surface to lay out bolts and components in the correct sequence. Avoid mixing old and new hardware unless the manufacturer explicitly allows it. Finally, dispose of used oil and coolant responsibly, and never pour them down the drain. A tidy workspace reduces the chances of losing parts or introducing debris into the engine internals.
What to expect during teardown and reassembly
During teardown you’ll remove the intake and exhaust hardware, valve cover, timing components, and ultimately the cylinder head. Expect a thorough cleaning of the head and block mating surfaces before the new gasket goes in. The torque sequence for the head bolts is critical and often uses a two-phase process: initial snug torque, followed by several angle-torque steps. Reassembly should proceed in reverse order, ensuring that all seals, o-rings, and cooling passages are accounted for. After installing the new gasket and reassembling the top end, refill coolant and oil, bleed air from the cooling system, and check for leaks at multiple points. If you detect coolant in your oil or bubbles in the radiator, stop and reassess before engine startup.
Aftercare: testing, priming seals, and maintenance
Once you’ve reassembled and filled fluids, perform a gradual heat cycle: start the engine, monitor for leaks, and re-check coolant levels after the engine reaches operating temperature. A coolant system pressure test confirms a solid seal, while a compression test verifies retained cylinder pressure. If signs of leakage appear, reseal the mating surfaces in the correct order and reseat the gasket. Plan a short test drive to confirm normal operating temperatures and to monitor for unusual noises or coolant loss. Finally, replace any related gaskets or seals as part of a preventive maintenance plan to extend the life of the repair. Document service time, notes, and measurements for future reference.
Tools & Materials
- New head gasket set(OEM-style or precision aftermarket per engine; includes intake/exhaust gaskets)
- New head bolts(If your engine uses torque-to-yield bolts, replace them)
- Torque wrench(Calibrated to engine torque specs; have both high and low range)
- Socket set (metric and SAE)(Includes sockets for cylinder head bolts and accessory removal)
- Gasket scraper and solvent(Careful to remove old gasket without scratching mating surfaces)
- Coolant drain pan and coolant(Catch and dispose coolant properly; collect from radiator and system)
- Oil drain pan and new oil(Catch old oil and replace with recommended grade)
- Gasket sealant (if specified)(Only use if manufacturer recommends; otherwise rely on the gasket)
- Torque sequence chart or repair manual(Engine-specific pattern; follow exact order)
- Anti-seize compound(Apply sparingly where bolts thread into metal)

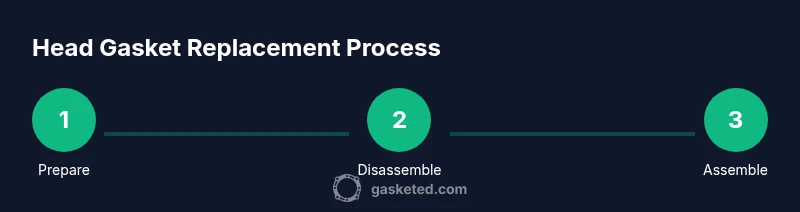

Steps
Estimated time: 8-16 hours
- 1
Prepare workspace and safety
Disable the vehicle's electrical system by disconnecting the negative battery terminal. Gather tools, PPE, and a clean area. Label hoses and connectors to simplify reassembly.
Tip: Double-check the battery is fully disconnected before any metal contact. - 2
Drain fluids and disconnect components
Drain the coolant and oil into appropriate containers. Remove or loosen intake/exhaust components as needed to access the head, keeping track of fasteners.
Tip: Label hoses and take photos before removal to aid reassembly. - 3
Remove intake and valve cover
Remove the valve cover and any timing covers or accessory belts necessary to access the head. Keep fasteners organized and in the correct order.
Tip: Do not pry gasket surfaces; use a scraper to avoid surface damage. - 4
Check timing and align marks
Before removing the timing belt/chain, note or mark the timing position. After removal, verify alignment before reassembly to prevent valve/piston interference.
Tip: Take a clear photograph of the timing alignment for reference. - 5
Remove head bolts in sequence
Loosen bolts in the manufacturer’s specified sequence, gradually. Use torque-to-yield pattern if required and replace bolts with new ones.
Tip: Do not skip steps; improper loosening can warp the head. - 6
Lift head and inspect surfaces
Carefully lift the cylinder head and inspect the mating surfaces for warping, pitting, or corrosion. If warped, consult a machine shop for resurfacing.
Tip: Place the head on a clean, flat surface to prevent contamination. - 7
Clean surfaces and inspect head gasket area
Clean the block and head surfaces thoroughly. Remove old gasket material with care, ensuring no debris remains in coolant or oil passages.
Tip: Avoid introducing metal shavings into oil or coolant passages. - 8
Install new gasket and torque bolts
Place the new gasket carefully, reseat, and tighten bolts in the correct sequence and torque spec. Follow any angle-torque steps if required.
Tip: Use a dry torque pattern first, then apply angle torque if specified. - 9
Reassemble timing components and fluids
Reinstall timing components, valve train, and accessories. Refill coolant and oil, and bleed air from the cooling system.
Tip: Keep track of any replaced seals and O-rings; verify all passages are clear.
Common Questions
What is a head gasket and what does it do?
The head gasket seals the combustion chamber between the engine block and cylinder head, and also seals coolant and oil passages. Without a proper seal, compression leaks and cross-contamination can occur.
The head gasket seals the engine block to the head, keeping combustion, coolant, and oil separate. A failed gasket can cause leaks and overheating.
What are common signs of a blown head gasket?
Common signs include unexplained coolant loss, white smoke, milky oil, overheating, and engine misfires due to compression loss. A cooling system pressure test helps confirm.
Look for coolant loss, white smoke, milky oil, or overheating—these point to a possible head gasket issue.
Can I drive with a blown head gasket?
Driving with a blown head gasket is risky and can cause severe engine damage. If you suspect a failure, stop driving and diagnose the root cause before continuing.
No—driving with a blown gasket can severely damage the engine. Get it diagnosed and repaired before you drive it again.
How long does a head gasket change take?
Replacement time depends on engine design and skill level. Plan for a full day or more, especially if machine work is needed for surface restoration.
Most replacements take a full day or more, depending on engine type and whether resurfacing is required.
What affects the cost of replacement?
Cost varies with engine type, gasket quality, bolt replacement, and whether head resurfacing or additional seals are needed.
Cost depends on engine design, parts choice, and whether head work is required.
Should I machine the head?
If the head or block surface is warped or scored, milling may be required. Otherwise, fine resurfacing or a proper cleaning may suffice.
If surfaces are damaged, you may need resurfacing. A shop can confirm the best option.
Is a DIY head gasket change safe for beginners?
It’s a challenging repair best suited for experienced DIYers with mechanical skills and the right manual. If unsure, seek guidance or professional help.
It’s a tough job for beginners; make sure you have solid guidance and the right tools.
Watch Video
Key Takeaways
- Plan with engine-specific manuals and torque specs.
- Replace gasket, bolts, and related seals for reliability.
- Keep surfaces clean to ensure a proper seal.
- Verify timing and bleed cooling system after reassembly.
- Test thoroughly and monitor for leaks after startup.
