Head Gasket Replacement: A DIY Guide
Discover a practical, step-by-step DIY approach to head gasket replacement. This guide covers diagnosis, planning, tools, torque, leak testing, and post-repair maintenance for reliability.
According to Gasketed, replacing a head gasket is a major repair that benefits from careful planning. This guide outlines the core steps, necessary tools, and safety considerations, from diagnosis to reassembly. Expect a multi-hour job on a well-equipped bench, and consider professional help for complex engines.
What a head gasket does and why replacement matters
A head gasket sits between the engine block and cylinder head, sealing four critical passages: the combustion chambers, coolant channels, and oil passages that run between the block and head. Without a perfect seal, you can move coolant into oil, lose compression, overheat, and risk engine damage. Replacing a head gasket is a major undertaking because you must disassemble parts of the engine, clean surfaces flawlessly, and restore precise tolerances. According to Gasketed, head gasket failures are more likely in engines with high mileage or extreme temperature cycling. Gasketed Analysis, 2026 notes that even small imperfections on the mating surfaces can compromise sealing. The repair involves selecting the right gasket kit, inspecting the cylinder head and block for warping, and using the correct torque sequence to prevent future leaks. Preparing for this job with a clean workspace and organized parts saves time and reduces mistakes.
Signs a head gasket is failing
Not all leaks are obvious, so look for a combination of symptoms. Common signs include white milky oil, coolant loss with no external leak, persistent overheating, white exhaust smoke, and reduced engine performance. You might also notice bubbles in the radiator, or cooling system pressure loss when the engine is cold. The symptoms can resemble other problems (like a bad intake gasket or cracked head), so a systematic diagnostic approach is essential. Start with a compression test on all cylinders; a loss in one cylinder or a pattern across adjacent cylinders points to head gasket issues. A follow-up leak-down test can confirm whether the seal between the cylinder head and block is compromised. If coolant or oil is visibly contaminated, plan for a thorough cleaning during disassembly.
Diagnosing vs. misdiagnosis
Diagnosing a head gasket failure requires confirming a seal problem and ruling out other issues. Do not rush to gasket replacement based on a single symptom. Use diagnostic steps: compression and leak-down testing, cooling-system pressure tests, and inspection of spark plugs and oil for cross-contamination. If the head shows warping, or cracks are found, replacement of the gasket alone will not fix the root cause. In such cases, plan for head machining or even a machine shop inspection before reinstalling a new gasket. A careful diagnosis saves time and money and reduces the risk of repeating the repair soon after completion. As always, follow the vehicle’s service manual for the specific checks and tolerances.
Tools, workspace, and safety
Set up a clean, organized workspace with adequate lighting and ventilation. Protect yourself with gloves and safety glasses, and always disconnect the battery before beginning. Have a shop manual, torque spec chart, and a clean drain pan ready. Essential tools include a torque wrench, a complete socket set, breaker bar, torque-angle gauge, feeler gauges, gasket scraper, and a refurbished head-bolts kit if your engine requires new bolts. A leak-down tester and coolant/oil catching containers help confirm a seal after reassembly. Keep rags and degreaser on hand to clean gasket surfaces. Label hoses and electrical connectors with tape to speed reassembly and reduce mistakes.
Planning the job: timing, head inspection, and machine shop
Begin by removing components that block access to the head (air intake, valve cover, exhaust manifolds, and sometimes the timing belt or chain). When you remove the head, mark the timing chain or belt position to preserve timing alignment. Inspect the cylinder head and engine block surfaces for warping or cracks; if you detect any irregularity, plan for machine shop service such as resurfacing. Check the head bolts and whether new bolts are required per your manufacturer’s guidelines. Decide whether to reuse the timing components or replace them with new parts. Create a step-by-step plan, list required gaskets and seals, and verify coolant and oil removal procedures in advance.
Choosing the replacement approach: OEM vs aftermarket gaskets
Gasket quality matters. Many DIYers choose reputable aftermarket gasket sets when OEM options are unavailable or cost-prohibitive, but ensure the gasket kit includes all necessary seals and valve-cover gaskets. Follow the engine’s service manual recommendations for gasket orientation and dowel alignment. Some engines benefit from gasket sealants or sealant-coated mating surfaces, only if the manufacturer permits. If the head shows any surface irregularities, consider head machining rather than simply swapping gaskets to avoid a repeat failure.
Common mistakes and how to avoid them
Avoid reusing warped head, corroded bolts, or dirty mating surfaces. Do not skip a leak test or pressure test after reassembly. Forgetting to re-mark timing marks can lead to timing misalignment and valve damage. Not cleaning oil passages or coolant channels can leave debris that causes leaks. Finally, rushing through torque steps or skipping the recommended torque sequence increases the risk of head gasket failure in weeks or months.
The reassembly and testing phase
Follow the reverse order of disassembly. Install the head gasket with the correct orientation, then reposition the cylinder head and reinstall bolts in the specified sequence. Torque bolts to the manufacturer’s value, using a torque-angle approach where required, and recheck torque after a cooldown period. Reconnect timing components, refill coolant and oil, and bleed air from the cooling system. Start the engine carefully and monitor for leaks, unusual noises, or overheating during the initial warm-up.
Aftercare and maintenance
After the initial startup and a short break-in, monitor oil and coolant levels daily for the first week. Watch for signs of leakage under the head area or around the gasket seals. Maintain proper fluid levels and replace the thermostat if old or sticking. Consider a second leak-test after the engine has run under load to confirm a durable seal. Routine maintenance such as regular coolant flushes helps prevent future gasket failures.
Authority Sources
• Car and Driver: https://www.caranddriver.com • Popular Mechanics: https://www.popularmechanics.com • National Highway Traffic Safety Administration: https://www.nhtsa.gov
Tools & Materials
- Comprehensive service manual for your engine(Contains torque specs, sequence, and special procedures)
- Torque wrench(Prefer adjustable or preset to vehicle specs)
- Torque-angle gauge(Some engines require angle tightening after initial torque)
- Metric socket set(Includes hex and torx as needed)
- Breaker bar(For initial bolt loosening and high-torque removal)
- Feeler gauges(Check flatness if you suspect warping)
- Gasket scraper(Clean old gasket material from surfaces)
- New head gasket and valve cover gasket set(All seals per engine type)
- Coolant and engine oil(Fresh fluids for after reassembly)
- Engine degreaser/cleaner(Cleanup surfaces before reassembly)
- Leak-down tester(Confirm seating of the gasket after assembly)
- Shop towels/rags(Cleanup and blot spills)

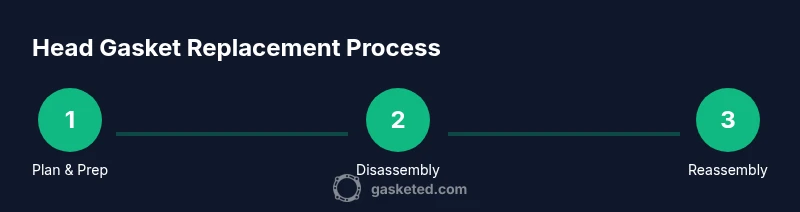

Steps
Estimated time: 6-12 hours
- 1
Prep and safety
Disconnect the battery, relieve fuel pressure if needed, and drain cooling systems as per manual. Set the vehicle on a level surface with proper jack stands. This reduces the risk of accidental starts or spills during disassembly.
Tip: Label everything and take photos before removing parts. - 2
Remove components to access the head
Remove the air intake, hoses, ignition components, exhaust, and any accessories blocking access to the head. Keep parts organized and photographed so reassembly is accurate.
Tip: Keep bolts in labeled containers by subsystem. - 3
Mark timing and dismantle timing components
Set the engine to a reference position (e.g., Top Dead Center) and mark the timing chain/belt and cam gears. Remove the belt/chain and associated timing gears with care to preserve alignment.
Tip: Double-check marks against the manual before removing components. - 4
Remove the cylinder head bolts and lift the head
Loosen head bolts in the prescribed pattern in stages while the head remains seated. Lift the head straight up once bolts are removed to avoid warping.
Tip: Do not pry under the head; use a proper extractor if needed. - 5
Inspect surfaces for warping
Place a straight edge across the head and block surfaces to check for warping or cracks. If warped, plan for machining before continuing.
Tip: Record measurements and consult a machinist if in doubt. - 6
Clean mating surfaces
Scrape old gasket material and clean both surfaces thoroughly. Any debris or residue can cause leaks after reassembly.
Tip: Avoid metal shavings; use solvent and lint-free wipes. - 7
Install new head gasket and reseat head
Position the gasket in orientation per the manual, align dowels, and carefully lower the head into place. Reinstall bolts in the original pattern and hand-tighten to locate.
Tip: Do not reuse damaged bolts; ensure even seating. - 8
Torque bolts and reinstall timing components
Torque bolts in the specified sequence to the manufacturer’s values and apply any required angle-tightening steps. Reinstall the timing belt/chain and ensure timing marks align.
Tip: Recheck torque after cooldown per manual. - 9
Reassemble, refill fluids, and test
Reattach components in reverse order, fill coolant and oil, and bleed air from the cooling system. Start the engine and monitor for leaks and proper operation during the break-in period.
Tip: Perform a leak-down test to confirm sealing after initial startup.
Common Questions
What is a head gasket and what does it do?
The head gasket seals the combustion chambers and cooling/oil passages between the engine block and cylinder head. It keeps hot gases separate from coolant and oil, preventing cross-contamination and maintaining compression.
A head gasket seals the important passages between the block and head, preventing leaks and keeping the engine's compression intact.
What are common signs of a blown head gasket?
Common signs include milky oil, coolant loss with no visible leak, overheating, white exhaust smoke, and reduced performance. These symptoms can resemble other issues, so use a systematic diagnostic approach.
Look for milky oil, coolant loss, overheating, and white smoke to suspect a head gasket issue, then diagnose with compression and leak-down tests.
Can I replace a head gasket myself?
It is possible for experienced DIYers with the right tools and instructions, but it is a complex repair with significant risk if done improperly. Consider professional help for engines with interference timing or warped heads.
Yes, if you have the right tools and manuals, but it’s a challenging job that can cause serious engine damage if not done correctly.
How long does it take to replace a head gasket?
Typical replacement times range from several hours to a full day depending on engine design and access. You may need machine shop work if the head is warped.
Most replacements take many hours and sometimes require a machine shop for head resurfacing.
Is re-torque needed after initial test?
Some engines require re-torquing after the mechanical and cooling cycles to ensure the gasket settled correctly. Always follow the service manual.
Yes, some engines need a re-torque after cooling; check your manual for the exact procedure.
What if the head is warped?
If the head is warped, it often requires machining or replacement rather than a gasket-only repair. A machinist should assess the surface and tolerances.
Warped heads usually need resurfacing or replacement, not just a gasket change.
Watch Video
Key Takeaways
- Assess feasibility before starting
- Follow precise torque and timing procedures
- Inspect head and block surfaces for warping
- Use fresh gaskets and seals
- Test thoroughly after reassembly
