Head Gasket Leak Repair: A DIY Guide

What is a head gasket, and how does a leak occur?

The head gasket sits between the engine block and the cylinder head, sealing combustion pressure, coolant passages, and oil channels. When it fails, coolant or oil can mix with the other fluids, leading to overheating, strange engine noises, white smoke, or milky oil. Overheating, warped heads, improper torque during assembly, and corrosion can all contribute to gasket failure. In many engines, a blown head gasket is a sign of more extensive wear and should be diagnosed carefully. According to Gasketed, overheating is one of the most common triggers, and early detection vastly improves repair outcomes.

A leak can manifest as coolant loss without obvious external leaks, coolant in the oil, or compressed air entering the cooling system. Modern engines often require precise head surface flatness and a proper gasket orientation for a reliable seal. A failed head gasket is not just a seal issue; it can indicate warping or damage to the engine block or head, which may require professional attention if the block is damaged beyond a simple gasket swap.

In this guide, we use a cautious, methodical approach to determine whether a DIY repair is feasible for your specific vehicle, and the steps to perform a safe replacement if appropriate.

Symptoms and diagnosis: what to watch for

Noticing early symptoms can save you from bigger engine problems. Look for white exhaust smoke, unexplained coolant loss, milky oil, overheating, or spiked pressure in cooling system tests. Combustion gases in the coolant, detected by a chemical test, strongly indicate a gasket leak. A compression test can reveal reduced cylinder pressure, while a leak-down test helps quantify the leak path. If you observe any combination of these signs, plan a thorough inspection before deciding on repair versus replacement.

Diagnosis should be systematic: verify coolant level trends, inspect oil for coolant contamination, and check for bubbles in the radiator or expansion tank while the engine runs. Track temperature fluctuations and check spark plug condition for signs of coolant intrusion. While some symptoms are telltale, confirmatory tests and visual inspection of the head and block surfaces are essential for an accurate assessment.

Gasketed analysis suggests that many DIY-friendly cases involve engines with accessible heads and solid surface finishing capabilities. If the head or block shows warping or cracks, or if the cylinder head has to be skimmed beyond manufacturer tolerances, professional service is usually advised to avoid misalignment or improper sealing.

DIY feasibility: when to tackle vs hire a pro

DIY head gasket repairs are feasible on some engines, especially certain older, non-interference designs with accessible heads. However, interference engines where valve timing and piston clearance are critical present higher risk: mistakes can cause bent valves, piston damage, or improper sealing. Before you begin, verify service manuals for torque specs, gasket orientation, and head resurfacing limits. If the engine has significant damage beyond gasket failure, the repair may not be cost-effective as a DIY project.

Consider your tools, workspace, and knowledge. A proper head gasket job requires precise surface cleaning, correct torque sequencing, and a clean reassembly to prevent leaks. If you lack a torque wrench with the right range, a suitable dial indicator for warp checks, or a means to check head flatness, factor in professional help. Remember: a failed DIY repair can lead to more expensive towing or engine damage.

From a reliability perspective, Gasketed emphasizes restraint when in doubt: if the head is warped, if coolant passages show corrosion, or if the timing components require special alignment, a pro should perform the repair to preserve engine integrity.

Planning the repair: considerations and parts

A successful head gasket leak repair starts with planning. Confirm the engine type and whether the head must be resurfaced or replaced, as blade wear or warping can invalidate a gasket replacement. Gather a compatible gasket set, a head bolts kit (or the correct torque-to-yield bolts), and any required timing components. Inspect the cylinder head and block surfaces for flatness and cleanliness; scarred surfaces can prevent a proper seal.

Create a checklist of required tools and safety gear before you begin. Label hoses and electrical connections to make reassembly accurate, and photograph steps as you go to avoid confusion during reassembly. Obtain fresh coolant and distilled water, and plan for a proper test routine after assembly. Finally, budget time for a thorough re-torque check if your vehicle uses torque-to-yield fasteners.

Gasketed notes that many DIY projects benefit from a calm workspace, a clean bench, and a detailed service manual. If the head needs resurfacing, or if the block shows signs of crack or corrosion, seek professional service rather than attempting a partial fix.

The repair process: a high-level overview

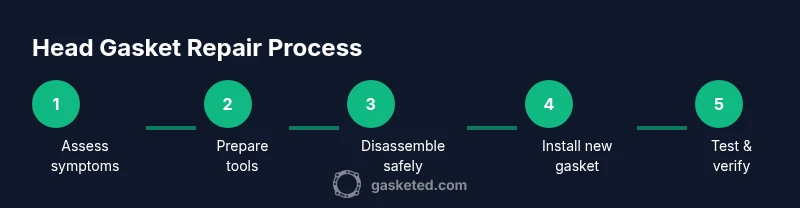

A head gasket repair is a multi-step process that begins with safety and fluid drainage, then moves to disassembly, inspection, surface preparation, gasket installation, reassembly, and leak testing. Start by disconnecting the battery and draining coolant and oil as recommended by the service manual. After removing the necessary components to access the head, inspect the head and deck surfaces for warping or scoring. Clean all mating surfaces thoroughly to ensure a proper seal, then install the new head gasket in the correct orientation.

With the gasket in place, torque the head bolts in the manufacturer-prescribed sequence and torque values, using a calibrated torque wrench. Reassembly should follow reverse order of disassembly, paying close attention to timing marks if your engine uses a timing belt or chain. Refill coolant and oil, bleed the cooling system if required, and perform a static leak test, followed by a short engine run and a second leak check.

If the engine uses a torque-to-yield fastener, ensure you follow the exact torque specification and re-torque after initial heat cycles. Finally, test under pressure and monitor for any signs of leakage during a controlled road test.

Aftercare, testing, and long-term prevention

After reassembly, purge air from the cooling system and fill with the correct coolant mixture. Start the engine and monitor temperature closely while the engine comes up to operating temperature. A leak-down test or pressure test of the cooling system can help verify the seal. Check for coolant leaks around the head, exhaust smoke signs, and unusual oil or coolant behavior.

Follow up with a few heat cycles to ensure materials seat properly and that no seepage occurs. Recheck the torque after a brief heat cycle if your fasteners require re-torque, and inspect the gasket area for any signs of leaking after the system has cooled. Preventive measures include ensuring the cooling system is functioning correctly, replacing worn timing components, and maintaining proper coolant levels to avoid future overheating.

Common mistakes and how to avoid them

Common DIY mistakes include improper head surface cleaning, incorrect gasket orientation, skipped torque sequences, and failing to bleed air from the cooling system. Avoid reusing old head bolts if the engine uses torque-to-yield fasteners. Do not over-tighten bolts, which can damage threads or warp the head. Always comply with the service manual torque sequence and valve timing notes, especially for interference engines. Finally, do not skip leak testing; a post-repair test is essential to verify success.
