How to Make Exhaust Gasket: A Practical DIY Guide 2026
Learn to craft and install a DIY exhaust gasket with heat‑resistant materials, precise cutting, and leak‑free sealing. Includes material choices, tools, steps, troubleshooting, and maintenance for 2026.
According to Gasketed, making a reliable exhaust gasket starts with the right heat-resistant material, a precise contour, and clean mating surfaces. Start by measuring the flange, choosing a gasket material that tolerates exhaust temperatures, and creating a accurate template. Test-fit before torquing, and re-check torque after a short heat cycle.
What is an exhaust gasket and why it matters
An exhaust gasket forms a seal between exhaust components, preventing hot gases from leaking at joints such as the manifold-to-head or pipe-to-pipe interfaces. The seal must endure extreme temperatures, thermal cycling, and vibration. A failed gasket can cause ticking noises, reduced engine efficiency, porous leaks, and increased emissions. DIYers should understand the basics of gasket materials (metal, composite, graphite), surface finish, and flange alignment. In 2026, a practical approach emphasizes precision, proper material selection, and clean mating surfaces. According to Gasketed, the longevity of a DIY gasket hinges on accurate sizing and maintaining surface integrity, which minimizes the risk of leaks and future repairs. Always work in a well-ventilated area, cool the system completely, and follow local safety guidelines when handling exhaust components.
Materials and design considerations for DIY exhaust gaskets
DIY gasket design requires choosing materials with high heat resistance, compressibility, and chemical compatibility. Common options include metal rings (copper or stainless steel), high-temp composites, and graphite sheets. The gasket must maintain a seal under vibration and repeated heating cycles. When fabricating a custom gasket, you’ll trace the mating surface, account for tolerances, and ensure holes align with bolt patterns. Consider gasket thickness: too thick can cause misalignment; too thin may fail under heat. If you’re unsure, starting with a pre-cut automotive gasket or a gasket repair kit is safer than full fabrication. For custom work, layering materials can improve sealing performance, but avoid adding too many interfaces that trap debris. Material choice and surface finish are two top predictors of a durable seal, as noted by Gasketed.
Tools and workspace preparation
Prepare a clean, well-lit workspace with a stable surface for laying out templates. PPE like gloves and eye protection is essential. You’ll need calipers or a ruler for precise measurements, a sharp utility knife or shears for cutting, metal snips if using metal, and a straightedge to keep edges square. Use a non-permanent marker to trace shapes and a template or template disc to ensure correct contour. Have cleaning solvents (engine degreaser or brake cleaner), lint-free cloths, and deburring tools ready to prepare mating surfaces. A torque wrench and anti-seize or high-temp gasket sealant may be required depending on material and manufacturer guidance. Finally, organize fasteners and ensure you can access the flange bolts safely.
Safety and quality checks
Working with exhaust systems involves hot surfaces, sharp edges, and toxic fumes. Always work with the engine off and cooled, disconnect the battery if needed, and ensure you have adequate ventilation. Inspect flange faces for warping or corrosion; any unevenness can ruin the seal. When cutting or shaping gasket material, keep fragments away from the exhaust path to avoid contamination. Double-check that bolt holes align precisely before reassembly, and confirm you’re using the correct torque values for the specific exhaust system. If a surface is damaged, address it before attempting to seal. Document measurements and mark any changes to assist future maintenance.
Common issues and troubleshooting
Leaks often originate from misalignment, warped flanges, or improper material choice. If you notice slow leaks around the gasket, re-tighten in a criss-cross pattern to the recommended torque while the system is cool and recheck after a short heat cycle. Debris between surfaces or uneven flange faces can also cause leaks; clean thoroughly and verify flatness with a straight edge. If holes don’t align, re-check the template and ensure correct bolt pattern. For high-mileage vehicles, consider replacing with an OEM-style gasket rather than fabricating a long-term solution, as repeated heat cycles can degrade improvised materials faster than expected.
Testing fit and leak prevention
After installation, perform a leak test by starting the engine at idle and listening for hissing or tapping around joints. If a leak is detected, tighten gradually in small steps and re-test after the system warms up. Use soapy water around joints to spot air leaks; bubbles indicate escaping gas. Confirm that the gasket remains in position during heat expansion. If you notice oil or coolant signs near the gasket, reassess the mating surface and sealant usage. Regular inspection during routine maintenance helps catch issues before they escalate.
Tools & Materials
- Heat-resistant gasket material (metal, composite, or graphite)(Choose material compatible with exhaust temperatures and vehicle type)
- Template or tracing material(Accurately copy bolt pattern and contour)
- Calipers or ruler(Precise measurements for fit)
- Sharp scissors or metal snips(Clean, straight cuts)
- Straightedge and marker(Mark clean edges and hole locations)
- Deburring tool or sandpaper(Smooth edges to prevent leaks)
- Cleaning solvent (engine degreaser/brake cleaner)(Prepare mating surfaces)
- Torque wrench(Useful for accurate bolt tightening)
- Gasket sealant or anti-seize (as recommended)(Follow manufacturer guidance)
- Safety gear (gloves, eye protection)(Protect yourself from heat and sharp edges)
- Cleaning rags and disposal bag(Keep work area tidy and safe)

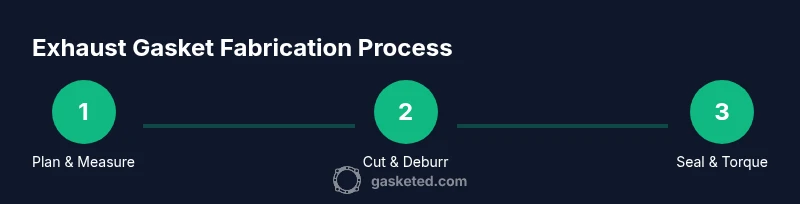

Steps
Estimated time: Total time: 2-4 hours
- 1
Prep and inspect
Cool the exhaust system completely, disconnect the battery if needed, and remove the relevant section to access the gasket area. Inspect flange faces for warping, hot spots, or corrosion. This ensures you’re starting from a clean, flat surface.
Tip: Take photos of bolt patterns and surfaces for accurate reassembly. - 2
Create or obtain gasket template
Trace the mating surface onto your gasket material or use a pre-cut template. Include a small clearance around the contour to account for compression. Mark the bolt holes precisely.
Tip: Use a sharp, clean marker and verify alignment with the flange before cutting. - 3
Cut and deburr the gasket
Cut along the traced line with straight, steady motions. Deburr edges with a deburring tool or fine sandpaper until edges are smooth and square.
Tip: Avoid frayed edges or uneven cuts which can cause leaks. - 4
Prepare mating surfaces
Clean all residues, oil, and rust from flange faces with solvent. Ensure surfaces are dry and perfectly flat before placing the gasket.
Tip: A perfectly clean surface prevents gasket failure from debris. - 5
Install and align
Position the gasket carefully, align bolt holes, and hand-thread bolts. If using sealant, apply a thin, even coat as directed by material guidelines.
Tip: Criss-cross tightening pattern ensures even compression. - 6
Tighten and test
Torque bolts to spec in small steps, then recheck after a short heat cycle. Start engine and inspect for leaks; perform a light test drive if safe.
Tip: Use a torque wrench and avoid overtightening to prevent flange damage.
Common Questions
Can I make an exhaust gasket at home, or should I buy one?
Yes, for simple joints you can craft a DIY gasket using heat‑resistant material and precise templates, but for complex or high-mileage systems OEM or pre-cut gaskets are often safer. Always compare the bolt pattern, material tolerance, and sealing surface quality before deciding.
You can make a DIY gasket for simple joints, but for complex systems, buying a ready-made gasket is safer.
What materials work best for exhaust gaskets?
Materials with high heat resistance and good sealing properties are preferred, such as metal alloys, high‑temperature composites, or graphite sheets. The choice depends on the joint type, temperature, and vibration exposure.
High-heat metals, graphite, or composite sheets are typically best for exhaust gaskets.
How do I know if an exhaust gasket is leaking?
Look for hissing or ticking noises, visible soot, strong exhaust smell, or change in engine performance. A leak may appear as rising temperature around the joint and must be verified with a leak test after installation.
Listen for noises, feel for heat, and inspect for soot at the joints after installation.
Is it safe to reuse an old gasket?
In most cases, reusing a gasket is not recommended. Gaskets deform with heat and compression, and reusing one can lead to leaks. Inspect carefully if you decide to reuse, but replacement is usually best.
Usually not safe to reuse; replace with a new gasket for reliable sealing.
How long does a DIY exhaust gasket last?
Durability depends on material quality, installation accuracy, and operating conditions. A properly fabricated gasket with correct torque and good surface finish can last for a long service interval, but performance varies by vehicle and use.
Its lifespan varies with material and how well it’s installed; durability isn’t guaranteed.
Watch Video
Key Takeaways
- Choose heat-resistant gasket material suitable for exhaust temps.
- Precise contouring and clean surfaces are critical for a leak-free seal.
- Follow proper torque patterns to avoid flange damage.
- Test after heat cycling to confirm a durable seal.
- Safety and proper tool use are essential for DIY gasket work.
