How to Make a Gasket for a Flange: A DIY Guide
Step-by-step guide to craft a flange gasket: material selection, template creation, precise cutting, and proper installation torque. Includes tools, safety tips, and troubleshooting.
To make a gasket for a flange, choose a gasket material that matches the flange and fluid, measure the bolt circle and seal area, and cut a custom gasket from the chosen sheet using a precise template. This DIY approach saves cost and ensures a tight, leak-free seal when installed with calibrated bolts and sealant if recommended.

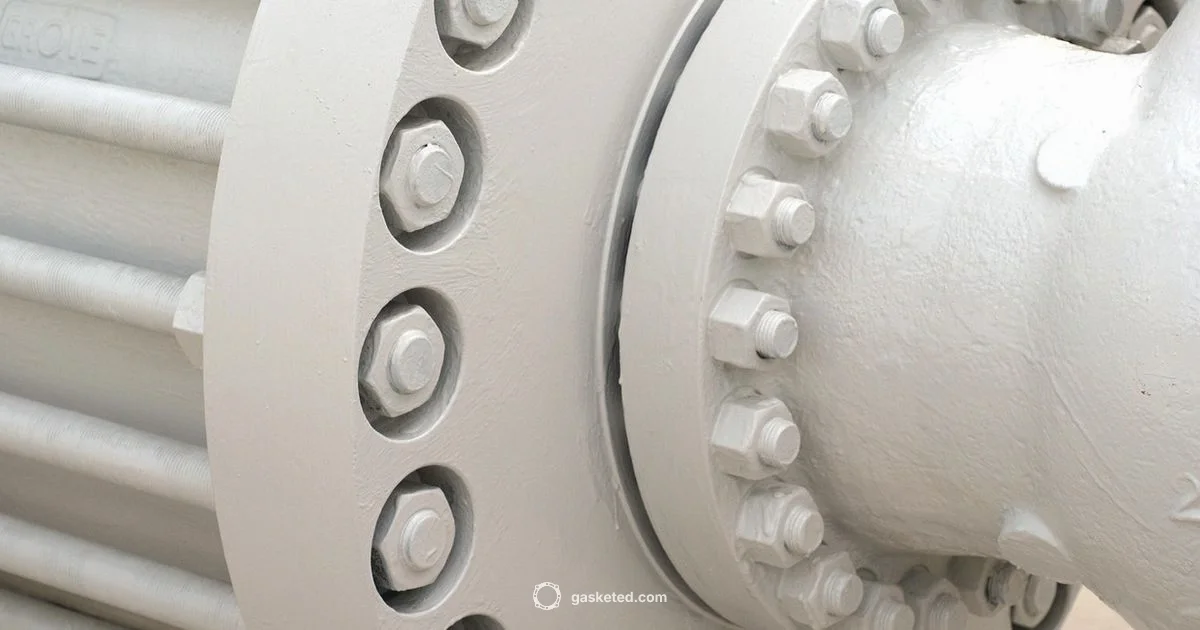

Understanding flange gaskets and when DIY makes sense
For many home projects, a flange gasket must seal two joined pipes or equipment surfaces. The gasket material must resist the conveyed fluid, endure system pressures, and withstand temperature swings. When standard pre-cut gaskets are unavailable or when a non-standard flange size is involved, making a gasket for flange on-site can save time and money. According to Gasketed, DIY gasket fabrication can be a practical solution for homeowners tackling small, non-critical systems, provided you follow correct material selection and careful fabrication practices. This section explains how to evaluate your flange, choose materials, and plan a DIY gasket project that minimizes risk while delivering a reliable seal.
Material science behind flange gaskets
Gaskets work by filling microscopic irregularities on mating surfaces to create a seal that resists fluid intrusion under pressure. The material you choose must balance compressibility, chemical compatibility, and temperature tolerance. Common DIY options include EPDM or neoprene rubber for water-based systems, nitrile for oil-containing services, cork for low-pressure gas, and graphite for higher temperatures. For a flange carrying compatible fluids at moderate temperatures, a thin, flexible sheet may suffice; for high-temperature or aggressive chemicals, thicker, more robust materials are needed. Always consult the material data sheet for hardness (durometer), compression set, and chemical compatibility. How to make gasket for flange begins with aligning material choice with service conditions and the flange geometry, ensuring a reliable, safe seal. (This paragraph reinforces the keyword and general concept without committing to a specific brand or model.)
Template creation and measurement techniques
Accurate measurements are the backbone of a successful gasket. Start by determining the bolt circle diameter (BCD), the number of bolts, and the outer diameter of the sealing face. Trace a precise template of the bolt pattern onto sturdy paper or cardstock, then draw an inner opening matching the bore or sealing face. Transfer this template to the gasket material using a sharp marker, keeping the template flat and aligned with the gasket sheet grain. For flange surfaces with irregularities, a shim or beaded edge can be added, but avoid making the gasket overly thick. Rigorous measurement, repeated verification, and a clean transfer ensure your DIY gasket fits perfectly when installed.
Cutting, punching, and finishing the gasket
Place the template on the gasket material and cut the outer profile with a sharp utility knife or a dedicated gasket cutter to maintain smooth edges. Use a center punch or small hole punch for drilling bolt holes, ensuring holes are perfectly aligned with the flange pattern. Remove burrs with a fine file or emery cloth, then lightly sand edges to minimize sharpness that could damage sealing surfaces. If you’re using a composite or fiber gasket, avoid tearing by moving the knife slowly along the line and keeping the cut perpendicular to the material. A well-cut gasket reduces edge chipping and improves seating.
Installation considerations and leak prevention
Before assembly, inspect both flange faces for nicks, corrosion, or residue. Dry-fit the gasket to verify alignment, then recheck bolt hole tolerance. When ready, apply recommended sealant only if the material dictates it; some rubber-based gaskets require no sealant, while graphite or fiber gaskets may benefit from a compatible sealant. Tighten bolts in a star or crisscross sequence to distribute pressure evenly, and monitor the torque spec for your service. Recheck for leaks after a test run, and avoid over-tightening, which can crush the gasket and shorten its life.
Maintenance, inspection, and signs of failure
Even a well-made gasket can fail if the flange surfaces aren’t clean or if the operating conditions exceed the material’s limits. Look for signs like persistent wet spots, seepage around bolts, residue buildup, or cracking in edge areas. Regular checks during operation help detect leaks early and prevent damage to surrounding hardware. If you observe any leakage, depressurize the system, inspect the gasket seating, re-torque if within specification, and consider replacing with a new gasket made from a material better suited to the service.
Safety and environmental considerations
When fabricating gaskets, wear cut-resistant gloves, eye protection, and a dust mask if sanding fibers. Work in a well-ventilated area to avoid inhaling fumes from sealants or solvents, and store materials per manufacturer instructions. Dispose of waste materials and used sealants according to local regulations. Keeping workspaces clean reduces the risk of contamination and improves gasket quality.
Standards, testing, and practical tips
Adherence to standards improves gasket reliability. While DIY projects don’t replace professional standards, you can use data sheets and CNC-ready templates to improve accuracy. For testing, perform a low-pressure leak test before full operation, verifying bolt sequence and seating. If you’re unsure about material compatibility or torque requirements, consult manufacturer guidelines or seek professional advice. This approach helps ensure the gasket performs reliably over its intended life.
Tools & Materials
- Gasket sheet material (EPDM, neoprene, nitrile, cork, graphite, or composites)(Choose based on fluid, temperature, and pressure)
- Measuring tools (calipers, ruler, caliper set)(Precision matters for fit)
- Template material (paper/cardboard)(For bolt pattern and bore outlines)
- Sharp cutting tools (utility knife or gasket cutter)(Keep blades sharp for clean edges)
- Hole punch or drill with appropriate bit(Matching bolt hole diameter)
- Marker or scribe(Accurate transfer of template)
- Fine file or sanding block(Edge finishing)
- Safety gear (gloves, goggles, mask)(Protect during cutting and sanding)
- Torque wrench(Proper bolt torque during install)
- Sealant compatible with gasket material (optional)(Only if material calls for it)
- Clamps or weights (optional)(Keep gasket flat during cutting)
Steps
Estimated time: 60-120 minutes
- 1
Identify flange specs and material
Confirm the flange type, bolt pattern, and fluid/service conditions. Choose gasket material that resists the chemical, pressure, and temperature of the service. Document all choices before cutting.
Tip: Always verify compatibility from the data sheet before selecting material. - 2
Create a precise bolt-pattern template
Measure bolt circle diameter and bolt count. Draw the bolt hole positions on paper using a compass, then transfer to the gasket sheet as a guide.
Tip: Double-check symmetry by counting holes on opposite quadrants. - 3
Transfer template to gasket material
Place the template on the gasket sheet and trace the outer profile and bore. Use a straight edge to keep lines true and avoid slippage.
Tip: Secure template with tape to prevent shifting during tracing. - 4
Cut the gasket outline precisely
Cut along the traced lines with a sharp blade, maintaining a perpendicular angle to the material to avoid bevels that affect seal.
Tip: Make multiple light passes rather than one deep cut. - 5
Drill or punch bolt holes cleanly
Mark bolt hole centers and drill or punch with care, ensuring holes are round and aligned with the template.
Tip: Use backing material to prevent tear-out on thin sheets. - 6
Finish edges and deburr
Smooth any burrs around the outer edge and bolt holes to prevent surface damage during installation.
Tip: A fine file or emery cloth provides a clean edge. - 7
Dry-fit the gasket on the flange
Place the gasket onto the flange and verify alignment with the bolt holes and bore. Correct any misalignment before permanent assembly.
Tip: If misalignment occurs, recheck template measurements. - 8
Install with proper torque and test
Assemble using the correct torque pattern; wait for any sealant cure if used, then test for leaks under low pressure.
Tip: Torque bolts in a star pattern to even out compression. - 9
Inspect and finalize
Inspect gaskets after initial operation. If leaks appear, re-torque or replace with a new gasket sized for the service.
Tip: Document results to refine future DIY gasket projects.
Common Questions
What material should I use for a flange gasket?
Material choice depends on the fluid, temperature, and pressure. Common DIY options include EPDM or neoprene for water-based services, nitrile for oils, cork for low-pressure service, and graphite for high temperatures. Always consult the material data sheet for chemical compatibility.
Material choice depends on the fluid, temperature, and pressure. Check the data sheet for compatibility.
Is gasket sealant needed for a DIY flange gasket?
Some gasket materials work without sealant; others benefit from a compatible sealant. Follow the gasket material manufacturer’s guidance to avoid chemical incompatibilities or relief of malleability.
Sealant depends on the material; follow manufacturer guidance.
How do I ensure bolt-hole alignment during DIY gasket making?
Create and verify a precise bolt-pattern template, then transfer it to the gasket material. Dry-fit on the flange and adjust if any holes or edges are off by more than a small tolerance.
Make a precise template and dry-fit before final assembly.
Can I reuse an old gasket after trimming it?
Reusing a gasket is generally not recommended due to compression set and surface degradation. Use a new gasket cut to the exact flange pattern for best results.
Avoid reusing old gaskets; use a fresh one.
What safety steps should I follow when making a gasket?
Wear gloves and eye protection; work in a well-ventilated area when using solvents or sealants; store materials safely to prevent injury.
Wear PPE and work in a ventilated space.
What if leaks occur after installation?
Depressurize the system, inspect gasket seating, and re-torque in the proper sequence. If leaks persist, replace the gasket with a more compatible material.
Depressurize, re-seat, re-torque, and consider a different material if leaks persist.
Watch Video
Key Takeaways
- Choose material based on fluid and temperature.
- Measure bolt circle precisely and transfer to gasket.
- Cut and finish edges for a clean seal.
- Torque in a star pattern to distribute compression.
- Test under controlled conditions before full operation.
