How to Remove Cylinder Head Gasket: A Step-by-Step DIY Guide
Learn a safe, thorough method to remove a cylinder head gasket with practical steps, tooling, and tips for DIYers. Gasketed guides you through planning, disassembly, inspection, and reassembly to prevent leaks.
Goal: You will remove a cylinder head gasket safely and correctly. This task requires a clean workspace, the right tools, a new head gasket, and a way to drain coolant and oil. In this guide, you’ll learn the exact steps to disconnect components, verify timing, remove the head, and prepare surfaces for reassembly.
Getting Started: Safety and Planning
According to Gasketed, removing a cylinder head gasket is a high-precision job that demands organization, a clean workspace, and proper safety practices. Before you touch a bolt, confirm you have the vehicle’s service manual or OEM torque specifications, a clear appraisal of the engine’s layout, and a dedicated workspace that can contain coolant spills and oil leaks. Gather PPE such as gloves and eye protection, and plan a full disassembly-and-reassembly sequence. The goal is to minimize contamination, maintain correct component orientation, and avoid reassembly mistakes that could cause further damage.
You'll want to set aside a window of time that accounts for unexpected delays, and to communicate with household members about vehicle work. Do not rush the process; a calm, methodical approach reduces the risk of warping a cylinder head or misplacing fasteners.
Understanding the Task: Why Surfaces and Torque Matter
The head gasket seals between the engine block and cylinder head, resisting combustion pressures, coolant, and oil flow. If your gasket surfaces aren’t clean or the head isn’t true, you’ll seal leaks poorly after reassembly. Plan for meticulous cleaning of the mating surfaces, checking for warpage with a straight edge and feeler gauge, and ensuring you have the correct torque sequence and specification for your engine. A careful approach here saves time later and reduces the chance of rework.
Tooling and Workspace Setup: What You Need on Hand
A well-lit, organized workspace is essential. You’ll map out the service path, park the vehicle level, and position catch pans for coolant and oil. With your tool kit ready, you’ll minimize time spent searching for hardware and maximize cleanliness. Keep solvent, rags, and designated containers for used fasteners separate to avoid cross-contamination.
Inspecting Head and Block Surfaces: Warpage, Flatness, and Debris
Inspect both the head and block mating surfaces for warpage, pitting, or deep scoring. A warped surface is a primary cause of gasket leaks after reassembly; even a small deviation can compromise seal integrity. Use a straightedge and lighting to check the surfaces, then measure with a feeler gauge across multiple points. If warpage is detected, plan for professional resurfacing or a replacement part before continuing.
Disassembly: Removing Components and the Head
Begin by safely disconnecting the battery and draining coolant and oil as required. Remove components that obstruct the head, such as the intake and exhaust manifolds, valve cover, and timing components per the service manual. Maintain a labeled map of where each part goes to prevent confusion during reassembly. When you reach the head bolts, note the removal sequence, as head bolts are often torqued in a specific pattern that must be reversed during reinstallation.
Gasket Removal and Surface Cleaning: The Step You Can’t Rush
Gasket removal should be deliberate to avoid gouging the mating surfaces. Use a plastic scraper or gasket-removal tool to lift the old gasket without scratching metal. Clean all residue with a solvent recommended by the engine manufacturer, and wipe surfaces dry. Any residue left on the block or head can cause leaks or mis-seating of the new gasket.
Reassembly Planning: Torque, Gasket Seating, and Fluids
Set up a fresh gasket kit and new head bolts where applicable. Apply the correct gasket orientation and ensure the head is properly seated before torquing. Follow the manufacturer’s torque sequence precisely, using a calibrated torque wrench. Refill cooling and lubrication systems, bleed air where required, and verify there are no leaks before starting the engine.
Final Checks: Start-Up, Leaks, and Long-Term Maintenance
After reassembly, start the engine and monitor for coolant leaks, oil leaks, and abnormal noises. Check the coolant reservoir level and ensure the engine reaches normal operating temperature without steam or abnormal pressure. If a leak appears, recheck bolt torque and gasket seating, then re-test. Properly torqued bolts and clean mating surfaces are the keys to long-term reliability.
Tools & Materials
- Metric socket set(Include deep sockets and torx where applicable)
- Breaker bar(For initial bolt loosening)
- Torque wrench(In-spec torque and reverse-sequence relock)
- Gasket scraper / plastic putty knife(Avoid metal scraping to prevent surface damage)
- Engine coolant drain pan(Capture ~2-4 quarts; plan for spills)
- Rags and solvent(Keep surfaces clean and dry)
- New head gasket kit(OEM or blunt aftermarket; ensure compatibility)
- New head bolts (if required)(Many engines require fresh bolts)
- Torque-angle gauge (if required)(Some engines use angle-torquing)

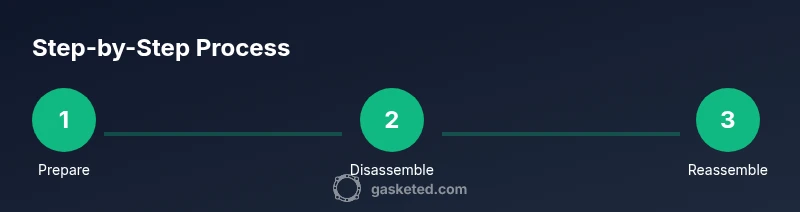

Steps
Estimated time: 8-12 hours
- 1
Prepare workspace and safety
Disconnect the battery, drain coolant and oil as specified, and set up your work area with containment for spills. Label fasteners and keep removal steps organized to minimize mixing parts.
Tip: Wear eye protection and gloves; coolant and oil can be hot and caustic. - 2
Remove obstructions
Take off the intake and exhaust manifolds, valve cover, and any shields or timing covers blocking access to the head bolts.
Tip: Label hoses and wires to prevent misrouting on reassembly. - 3
Mark timing components
If the engine uses a timing belt/chain, mark the alignment with tape or a reference tool before loosening components.
Tip: Accurate timing marks prevent post-rebuild timing errors. - 4
Loosen head bolts
Loosen head bolts in the reverse sequence specified by the service manual, using steady, even pressure to avoid warping.
Tip: Do not pry; lifting force should come from bolts. - 5
Lift the head
Carefully lift the head straight up after bolts are free, using a support to evenly distribute weight and avoid bending the surface.
Tip: If the head sticks, re-check for stubborn bolts or seized components. - 6
Remove old gasket and clean
Peel away the old gasket and scrub both mating surfaces with approved solvent until clean and dry.
Tip: Check for gasket remnants that could cause leaks. - 7
Inspect head and block
Check for warpage, cracks, or corrosion. If you detect warpage beyond spec, plan for resurfacing or replacement before reinstall.
Tip: A warped head will nullify a new gasket’s seal. - 8
Install new gasket and reassemble
Place the head gasket in the correct orientation, reinstall the head, and torque in the correct sequence to spec. Reconnect components and refill fluids.
Tip: Double-check all connections before first start. - 9
Test start and inspect
Start the engine and monitor for leaks or abnormal noises. Recheck torque after the initial warm-up if the torque spec requires it.
Tip: Perform a leak test and coolant system bleed to ensure full function.
Common Questions
What is the purpose of a cylinder head gasket?
The head gasket seals the combustion chamber with the engine block and maintains proper separation of coolant and oil passages. It prevents leaks and maintains compression.
The head gasket seals the engine’s cylinders and oil passages to prevent leaks.
Can I reuse head bolts after removal?
Most engines require new head bolts because they are designed for a precise stretch. Reusing bolts can lead to improper clamping and leaks.
New head bolts are usually required for a proper seal.
Is this something a DIYer can do at home?
If you have a well-equipped garage, the service manual, and patience, you can perform the task. It’s a labor-intensive procedure with precise torque specifications and potential head resurfacing needs.
It’s doable for a patient DIYer with the right tools and manuals.
How long does head gasket removal and replacement take?
Expect to allocate a full workday, plus additional time for parts sourcing, cleaning, and testing. Some engines require more time if complications arise.
Plan for a full day; some engines take longer if complications show up.
What are common warning signs during reassembly?
Watch for coolant leaks, engine overheating, misfires, or unusual noises. Recheck torque and gasket seating if any warning signs appear.
Leaks and overheating are red flags; recheck everything if they appear.
Do I need special tools beyond a standard shop kit?
Some engines require timing tools or a torque-angle gauge. Refer to the service manual for engine-specific requirements.
Some engines need special timing tools or angle torque tools.
Watch Video
Key Takeaways
- Plan thoroughly before starting.
- Keep surfaces clean and verify flatness.
- Torque sequence and new bolts protect head gasket longevity.
- Test thoroughly after reassembly to confirm a leak-free seal.
