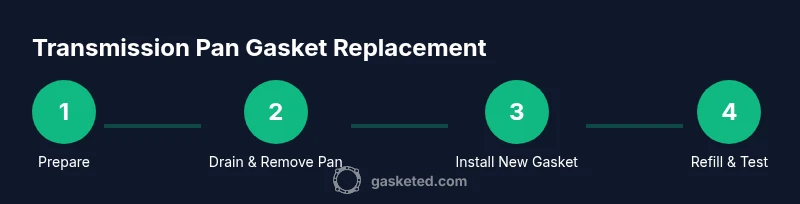

Transmission Pan Gasket Replacement: A DIY Guide for Home
Learn how to replace a transmission pan gasket with confidence. This step-by-step guide covers tools, draining, gasket seating, torque basics, and leak-prevention tips for DIY enthusiasts.
You will replace a transmission pan gasket by safely draining the transmission fluid, removing the pan, cleaning mating surfaces, installing a new gasket, re-sealing the pan, and refilling fluid to proper level. The key requirements are a compatible gasket, correct torque sequence, clean surfaces, and a leak-test after reassembly. Follow this process carefully to avoid new leaks or damage.
What a transmission pan gasket does and why replacement matters
According to Gasketed, the transmission pan gasket seals between the transmission pan and the valve body, preventing fluid leaks and maintaining proper hydraulic pressure for smooth gear changes. A worn gasket can cause slow leaks, low transmission fluid levels, and heat buildup that accelerates wear. Replacing the gasket when you notice evidence of seepage helps preserve fluid quality, protects internal components, and reduces the risk of more serious transmission failure. This section lays the groundwork by explaining gasket function, why failures occur, and how a properly chosen gasket supports long-term reliability. You’ll see that gasket replacement isn’t just about stopping leaks—it’s about safeguarding the entire transmission control system. The guidance here is tailored for DIY enthusiasts and homeowners who want a practical, methodical approach rather than guesswork. Expect to work in a clean area, use common hand tools, and follow manufacturer guidance on torque and sealant use where applicable.
Signs of gasket wear and failure
Leaks are the most obvious indicator, but there are other clues your gasket is failing. If you notice oil spots under the vehicle after parking, small puddles near the transmission pan, or a low fluid sight line that drops between checks, plan an inspection. Ferrite magnets on the pan can collect metal shavings, signaling excessive wear; while not all shavings imply a gasket issue, a heavy accumulation warrants a closer look at seals and related components. Inconsistent shifting, slipping, or overheating can also hint that the gasket is allowing fluid loss or contamination. To verify, perform a careful visual inspection once the pan is accessible and compare the gasket’s condition to the original fitment specs. When in doubt, consult a service guide for your specific make and model. Remember, a fresh gasket is part of a broader preventive approach to transmission maintenance.
Preparation: workspace, safety, and planning
Set up a clean, well-lit workspace with a stable elevation for the vehicle. Gather all tools and the replacement gasket before you start to minimize interruptions. Disconnect the battery to avoid accidental shorts when working near electrical connectors. Use wheel blocks and jack stands in place of a lone jack, and have a drain pan ready to capture old fluid. Label bolts and keep track of their locations to ensure proper reassembly. With the right steps and patience, gasket replacement becomes a straightforward project rather than a rushed repair that risks leftover leaks.
Gasket selection: OEM vs aftermarket and compatibility
Choosing the right gasket matters for sealing integrity and longevity. OEM gaskets are designed for the exact fit and compound specified by the manufacturer, potentially offering the best reliability, while aftermarket options can be cost-effective but may require careful compatibility checks. Verify the gasket material (e.g., silicone, rubber), thickness, and hole alignment to match your transmission pan and model. If your vehicle has a magnetic drain plug or a revised pan design, double-check that the replacement gasket accommodates those features. In some cases, the refined design has improved sealing properties that reduce the likelihood of leaks after service.
Draining fluid and removing the pan: safety and procedure
Begin by warming the vehicle slightly to expand seals, then safely raise and support the car. Place a drain pan under the transmission, and carefully drain excess fluid per your vehicle’s service manual. After draining, locate and remove the pan bolts in a criss-cross sequence to prevent bending the pan. Lower the pan gently, being mindful of the pan’s Fragile edges and any retained magnets. Keep the old gasket intact until inspected; note any signs of gasket deformation, tearing, or residue that indicates contact with metal or debris. This step reduces the chance of leaks after reassembly and helps you assess surface condition for a proper seal.
Cleaning and inspecting the mating surfaces
With the pan removed, inspect both the pan flange and the transmission mating surface for nicks, gasket remnants, or burrs. Use a plastic scraper to remove old gasket material without scratching metal surfaces; a light solvent can help dissolve gasket residue but avoid harsh cleaners that could degrade the aluminum pan. Wipe surfaces dry and ensure all threads, holes, and the sealing surface are clean and smooth. If you find deep grooves or pitting, address them before reassembly; grinding or resurfacing is typically beyond DIY scope and may require professional service. A clean surface is critical for a reliable seal.
Installing the new gasket and reassembling the pan
Align the gasket with the pan or the transmission flange, depending on your vehicle’s design, and position the pan carefully. Reinstall the pan with bolts in the criss-cross pattern to ensure even seating. Tighten bolts to the manufacturer’s specified torque, using a calibrated torque wrench. If your gasket requires sealant, apply only the type and amount recommended by the gasket manufacturer or the service guide. Recheck alignment after initial snugging and follow any prescribed bolt sequence for final torque. A proper seal begins with full contact between gasket and surfaces and ends with uniform bolt load.
Refilling fluid, torque checks, and leak testing
Refill the transmission with the correct fluid type and level as specified by the vehicle manufacturer. Use a funnel to avoid spills, and recheck the level after the engine warms up and the transmission cycles. Start the engine, move through gears, and re-check for any leaks around the pan. If leaks are detected, re-tighten bolts in small increments in the criss-cross sequence and recheck. Conclude with a road test to simulate real driving conditions and confirm that the gasket maintains a proper seal under load. Safety is crucial; never run a vehicle with leaks or low fluid.
Post-replacement maintenance and disposal considerations
Dispose of old transmission fluid responsibly at a certified collection facility. Keep an eye on fluid level for the first few days of operation, especially after a replacement. Maintain a clean area around the replacement site to prevent debris from interfering with the seal. Periodically inspect the pan after long drives or heavy use and address any seepage promptly. This proactive approach helps maintain transmission health and can prevent costly repairs in the long term. Clean tools and a tidy workspace also minimize the chances of accidental recontamination.
Troubleshooting common leaks and when to seek professional help
If a leak persists after replacement, re-check the gasket seating and bolts for proper torque and ensure the gasket is oriented correctly. Inspect for scratches on the mating surfaces and verify the replacement gasket is the correct part for your model. Some leaks may arise from related seals near the pan, such as the filter or cooler lines, which require separate inspection. If uncertainty remains or if you observe metal shavings, overheating, or shifting issues, consult a professional technician. Early intervention can prevent major transmission damage.
Tools & Materials
- Drain pan(Large enough to hold all drained fluid)
- Jack stands and wheel blocks(Vehicle must be fully supported)
- Torque wrench(Use manufacturer-specified torque)
- Ratchet and socket set(Typical bolt sizes vary by model)
- Gasket scraper or plastic putty knife(Avoid metal scrapers on aluminum pans)
- New transmission pan gasket(Ensure correct part number for your vehicle)
- Gasket sealant (if recommended)(Only use if explicitly advised by gasket manufacturer)
- Clean rags and solvent(For surface cleaning and degreasing)
- Funnel and drain hose(To minimize spills during refill)
- Gloves and eye protection(Personal safety during fluid handling)
- Magnet or magnetic pickup tool(Check for metal shavings in pan)
- Replacement transmission fluid(Match viscosity and spec to your vehicle)
- Gasket sealant remover(If adhesive residue sticks to surfaces)
- Owner’s manual or service guide(Torque specs and sequence vary by model)
Steps
Estimated time: 2-4 hours
- 1
Prepare and secure the vehicle
Park on a level surface and engage the parking brake. Raise the vehicle with a jack and support with jack stands. Remove the necessary access panels to reach the transmission pan. This ensures stability and safety before you start draining fluid.
Tip: Always use jack stands; never rely on a jack alone. - 2
Drain the transmission fluid
Place the drain pan under the pan and loosen the pan drain plug or bolts to drain as much fluid as possible. Accept that some fluid will spill; plan your workspace accordingly and wear gloves. Allow complete drainage before removing the pan.
Tip: If your vehicle has a drain plug, consider removing it first to control the flow. - 3
Loosen and remove the pan bolts
Loosen all bolts in a criss-cross pattern to prevent warping. Remove them and keep them organized by location. Gently lower the pan, being careful not to spill residual fluid and to avoid bending the pan.
Tip: Take a photo of bolt layout before removal to assist reassembly. - 4
Inspect and remove the old gasket
Carefully detach the old gasket without scratching the mating surfaces. Wipe both surfaces clean of old gasket material and debris. Inspect the pan and flange for damage or burrs that could affect sealing.
Tip: Make sure the sealing surface is perfectly flat and smooth. - 5
Install the new gasket and reseal the pan
Fit the new gasket in place, aligning bolt holes. If your gasket sits on the pan or flange, secure it per the OEM instruction. Reposition the pan and insert bolts loosely, then torque in a criss-cross sequence to the specified value.
Tip: Never reuse a torn gasket; ensure contact is complete around the entire sealing surface. - 6
Reinstall and torque the pan bolts
Tighten bolts in the proper sequence to avoid pan distortion. Use a torque wrench set to the manufacturer’s spec. Wipe away any oil or residue from the bolts and check for alignment after torquing.
Tip: Cross-check torque with a second pass in the same sequence to ensure uniform seating. - 7
Refill the transmission fluid and test
Reconnect any lines, lower the vehicle, and refill with the correct fluid to the proper level. Run the engine and cycle through gears, then recheck the level when hot. Observe the pan area for leaks and address immediately if any appear.
Tip: Check the level after running through gears; cold readings can be misleading. - 8
Final checks and cleanup
Perform a road test and re-check for leaks after the vehicle has warmed up. Dispose of old fluid properly and clean up spills. Restore any panels or shields and store tools for the next maintenance task.
Tip: Recheck the area after a short drive, especially if leaks were initially suspected.
