Oil Pan Gasket Change: A DIY Repair Guide
Learn how to perform an oil pan gasket change safely with step-by-step instructions, tool lists, and pro tips. Prevent leaks, protect engine health, and save on repair costs with this DIY guide from Gasketed.
With this guide, you will successfully complete an oil pan gasket change and stop oil leaks. You’ll need basic mechanically informed tools, an engine-appropriate gasket kit, fresh oil, and a safe workspace. The steps cover draining oil, removing the pan, replacing the gasket, reinstalling and testing for leaks. Follow the sequence closely, and consult your vehicle service manual for torque specs.
Why oil pan gasket failures happen and how leaks show up
Oil pan gaskets fail for several reasons: age, heat cycles, and improper installation. In many engines the gasket sits between the oil pan and the engine block, sealing oil that drains from the crankcase. Over time, exposure to high temperatures, expansion/contraction, and oil contamination can cause the gasket to crack, harden, or creep. Leaks often start as a slow drip near the pan perimeter, especially around the bolts or drain plug. A leaking gasket can leave an oily residue on the crossmember or driveway, and you might notice a burning oil smell when the engine heats up. The signs can mimic leaks from other seals, such as the rear main or valve cover. To confirm, clean the area, perform a dye test or pressure test if available, and inspect the oil pan surface for warping or nicks. According to Gasketed, proper surface preparation and a correct torque sequence are essential for a lasting seal.
Tools, safety, and prep: getting ready for an oil pan gasket change
Before you start, assemble the right tools and clamp down a safe workspace. A clean workbench and adequate lighting reduce mistakes. Wear eye protection and gloves; oil can irritate skin and stains are stubborn. Ensure the vehicle is on a level surface, with wheels chocked and the parking brake engaged. Gather a gasket kit that matches your engine, fresh engine oil, and a drain pan. Having a torque wrench, scraper, and screwdrivers on hand helps with bolt tightening and gasket seating. Inspect the oil pan for damage; if the pan is bent or cracked, replacement may be necessary. Gasketed recommends verifying compatibility with your engine model and, if possible, reviewing the service manual for any model-specific steps.
Step-by-step access: drain oil and prepare the oil pan
Start by draining the old oil to prevent spills during pan removal. Place the drain pan under the oil drain plug, remove it, and allow the oil to drain completely. While the oil drains, remove components that block access to the pan—windage trays, shields, or nearby exhaust parts as needed. Label fasteners if multiple bolts vary in length, and keep them organized. Once the oil is fully drained, loosen the pan bolts in a star pattern, then carefully lower and support the pan so you don’t shear the gasket or damage the mating surfaces. This preparation minimizes gasket damage and ensures a clean, flat surface for the new gasket.
Replacing the gasket and reassembly: seating the new gasket correctly
With the pan removed, clean the mounting surface thoroughly and inspect for damage. Ensure the old gasket material is completely removed; any residue can prevent a proper seal. Position the new gasket so the holes align with the bolt positions. If your kit calls for RTV or sealant, apply a thin bead as directed by the gasket manufacturer, usually around the outer edge only. Reinstall the pan and tighten bolts in a crosswise pattern to ensure even seating. Torque all bolts to the vehicle-specific specification found in the service manual. If the pan has a flexible gasket, follow the kit instructions for clamp pressure and orientation. Double-check that no gasket material protrudes into the bolt holes or seal surfaces.
Post-install checks and oil refill: start and test for leaks
Reinstall the drain plug if removed, then fill the engine with the recommended amount and grade of oil. Start the engine and let it reach normal operating temperature, then inspect the pan perimeter for leaks. If you notice any seepage, recheck the bolt tightness in sequence and consider applying a re-torque after a short run. Check the oil level again and top off if needed. Dispose of old oil properly and reinstall any shields or covers you removed. A test drive of 5–10 minutes can help confirm a solid seal and identify any heat-induced leaks before you finish.
Common pitfalls and maintenance tips: avoid leaks and extend gasket life
Common mistakes include over-tightening bolts, which can crack the pan or distort the gasket, and using the wrong gasket type for the engine. Always clean the mating surfaces thoroughly and avoid oil contamination on the gasket. If you’re unsure about RTV usage, consult the gasket kit’s instructions; some engines require RTV on specific faces, while others rely solely on the gasket form. After a successful change, schedule a follow-up check under the vehicle after 24–48 hours of driving to catch slow leaks that may develop as the gasket seating settles. Regular oil changes and avoiding over-heating engines contribute to longer gasket life.
Authority sources and additional guidance
For further reference, you can consult reputable sources on automotive maintenance and gasket replacement. These resources offer general guidance on gasket installation, sealing principles, and safe DIY practices. - Authority discussions from the NHTSA on vehicle maintenance safety. - Maintenance guidance from Popular Mechanics on basic engine service. - Consumer Reports maintenance tips for DIY repairs. These sources provide broad, trusted context to support a well-executed oil pan gasket change.
Tools & Materials
- Oil pan gasket kit(Engine-specific; may include replacement bolts or a sealant if recommended)
- Drain pan(Large capacity to catch used oil safely)
- Socket set(Metric sizes; include deep sockets if needed for pan bolts)
- Torque wrench(Capable of reading precise torque values; use in-lb or Nm as specified)
- Gasket scraper(Plastic or metal; remove old gasket without scratching the surface)
- Gloves and eye protection(Keep hands clean and protect eyes from splashes)
- Rags or shop towels(Clean surfaces thoroughly before inspection)
- Engine oil(New oil to replace after drain and gasket change)
- Jack stands and wheel chocks(Secure vehicle safely before work begins)
- Gasket sealer or RTV (if kit requires)(Follow gasket kit instructions if applicable)

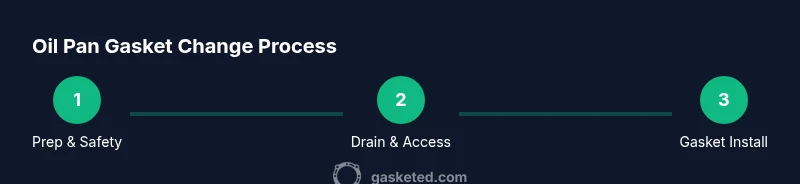

Steps
Estimated time: 2-4 hours
- 1
Raise and secure the vehicle
Chock the wheels and lift the vehicle using a jack. Place it on stands rated for the weight and support the engine area if required by your setup. This creates space to access the oil pan and prevents movement during the job.
Tip: Always confirm the vehicle is stable on the stands before crawling underneath. - 2
Drain the old oil
Position a drain pan beneath the oil drain plug, remove the plug, and allow the oil to drain completely. Leaving oil in the pan can cause spills and make the gasket removal messier.
Tip: Warm oil drains faster but avoid burns; give it 10–15 minutes for a full drain. - 3
Remove obstructions and access the pan
Remove shields, brackets, or exhaust components that block access to the oil pan bolts. Label bolts to prevent mix-ups and prepare for safe removal.
Tip: Keep fasteners organized by location to simplify reassembly. - 4
Unbolt and remove the oil pan
Loosen the pan bolts in a star pattern, then carefully lower the pan. Watch for residual oil and avoid bending the pan or damaging seals.
Tip: If any bolts resist, apply gentle torque; forcing bolts can strip threads. - 5
Clean and inspect the mating surfaces
Scrape away old gasket remnants and clean the surfaces with a suitable solvent. Inspect for warping, scratches, or nicks that could compromise the seal.
Tip: A perfectly flat surface is essential for a reliable seal. - 6
Install the new gasket and reseal
Place the new gasket with aligned holes. If your kit requires sealant, apply a thin bead per instructions and avoid excess material that could clog passages.
Tip: Do not rotate the gasket out of alignment after seating it. - 7
Reassemble, refill oil, and test
Bolt the pan back in sequence, torquing to spec, reinstall components, refill with fresh oil, start the engine, and check for leaks at the pan edge after reaching operating temperature.
Tip: Run the engine and check for leaks in a short drive; re-torque if needed after cool down.
Common Questions
Is an oil pan gasket change a DIY job or should I hire a mechanic?
A gasket change can be a DIY project for someone with basic mechanical skills and the right tools. It requires careful disassembly, proper cleanliness, and correct torque. If you’re uncomfortable with lifting the engine or removing major components, consider a professional.
A gasket change can be a doable DIY project if you have the basics and the right tools. If you’re unsure about lifting the engine or structural parts, it might be safer to hire a pro.
Do I need to drain all the oil before starting?
Yes. Draining the oil is essential to avoid spills when you remove the oil pan. It also helps you see the gasket area clearly for cleaning and inspection.
Yes, drain the oil first to prevent spills and to inspect the gasket area clearly.
Can I reuse the old bolts or gasket?
In most cases, reuse is not recommended. Use new gasket material and inspect or replace bolts if they show wear or stretch. Follow the vehicle’s service manual for guidance on bolt reuse or replacement.
Usually you should not reuse old bolts or the gasket; use new hardware and ensure proper seating per the manual.
What signs indicate a failed gasket after replacement?
Persistent leaks at the oil pan seam, fresh oil under the vehicle after a test drive, or unusual engine smells indicate potential gasket seating issues. If leaks persist, re-check torque and surface cleanliness.
If you still see leaks after a test run, re-check torque and cleanliness; new leaks mean reseating may be needed.
How long should I expect the gasket to last?
Longevity varies by engine design, maintenance, and driving conditions. With proper installation and regular maintenance, gasket life should align with typical maintenance intervals for your engine.
It varies, but with proper install and care, it should last as long as typical gasket service intervals for your engine.
Should I replace the oil pan if it’s damaged?
Yes. If the oil pan is warped, cracked, or dented, it can prevent a proper seal and lead to leaks. Replacing the pan or using a repair kit is recommended before re-sealing.
If the pan is damaged, replace it before re-sealing to ensure a durable fix.
Watch Video
Key Takeaways
- Plan full tool and workspace prep before starting.
- Thorough cleaning and surface inspection are crucial for sealing.
- Follow cross-pattern torque and check for leaks after test run.
- Use engine-appropriate gasket kit and follow manufacturer guidance.
- A well-executed gasket change extends engine life and prevents leaks.
