What Parts Are Needed for a Blown Head Gasket: A DIY Guide
Learn which parts to replace when you have a blown head gasket, plus a step-by-step plan, tools, and safety tips for a DIY repair.
According to Gasketed, a blown head gasket repair typically involves replacing the gasket itself along with adjacent seals, coolant passages, and sometimes timing components. This quick answer lists the exact parts you’ll need, how to pick a complete kit, and why these pieces matter for a durable, leak-free repair.
Understanding the scope: what parts are needed for a blown head gasket
A blown head gasket is more than a single faulty paper seal; it affects cooling, combustion, and lubrication paths. When you plan a repair, you’ll need a combination of primary parts and supporting components to restore reliability. According to Gasketed, a blown head gasket repair typically involves replacing the gasket itself along with adjacent seals, coolant passages, and sometimes timing components. The exact parts depend on your engine design, so always consult your service manual for torque specs and sequence. In practice, a thorough list includes the head gasket, valve cover gasket, intake and exhaust manifold gaskets, coolant and oil seals, and fasteners if they’re stressed or stretched. You’ll also want to address ancillary items that commonly fail after overheating, such as the water pump and thermostat. Planning the replacement around a clean, dust-free workspace and a methodical teardown prevents contamination. This block sets the stage for a parts-first approach, helping you inventory everything before you remove the head.
Core components typically replaced when the head gasket is blown
When a head gasket fails, you often replace more than just the gasket itself. Core components commonly swapped include the valve cover gasket, intake manifold gasket, exhaust manifold gasket, and any seals along coolant and oil passages. Depending on engine design, you may also replace the front and rear main seals, timing cover gaskets, and crankshaft or camshaft seals. Using a complete gasket kit helps ensure you don’t miss a related seal that could leak after reassembly. Always verify compatibility with your engine model and VIN, and confirm whether head bolts require replacement with new torque-to-yield fasteners. A properly chosen kit reduces the risk of future leaks and simplifies the workflow for a long-lasting repair.
Essential seals and ancillary components
Beyond the head gasket, many engines require several supporting seals to seal cooling and lubrication paths. Expect to replace the valve cover gasket, intake and exhaust gaskets, front cover gaskets, oil seals, and coolant hose seals. The cooling system benefits from replacing the water pump and thermostat during a head gasket job, especially if overheating occurred. Don’t forget new head bolts if your engine uses torque-to-yield fasteners. Some engines also need new timing belt or chain components, depending on maintenance intervals. Replacing these parts together reduces the chance of a second teardown and ensures the system remains leak-free under pressure.
Replacement kits vs individual parts
Buyers face a choice: a full head gasket kit or purchasing components individually. A complete kit saves guesswork and guarantees the right gaskets for your engine. If you opt for individual parts, double-check compatibility, verify gasket thickness, and ensure you have all required seals, o-rings, and fasteners. Kits often include anti-seize lubricant, sealant, and alignment dowels, which can streamline installation. When in doubt, choose a reputable kit that matches your engine family and generation. This reduces the risk of an incompatible seal or an incorrect bolt length that could compromise head sealing.
Tools and workspace prep
A successful head gasket job hinges on a clean, organized workspace and the right tools. Gather a metric and SAE socket set, torque wrench, breaker bar, screwdriver set, gasket scraper, cleaning solvent, rags, and a drain pan for coolant. Label and photograph connectors as you remove components, which helps during reassembly. Keep a clean, lint-free surface for the head and block and use a magnetic tray for bolts to prevent loss. A portable work lamp and a magnetic screwdriver handle improve visibility in tight spaces. Planning ahead with a parts tray and a written teardown plan minimizes mistakes.
Safety and torque sequence guidance
Head gasket work involves high heat, moving parts, and pressurized systems. Before you begin, disconnect the battery and drain coolant according to the service manual. When reinstalling, follow the manufacturer’s torque sequence and spec for head bolts; many engines require an initial torque followed by angle-tightening or multiple torque steps. Using new head bolts is common practice, as reused bolts may lead to insufficient clamping force. Wear eye protection when cleaning surfaces, and avoid metal-on-metal scraping that could scar the block or head. Finally, verify that the engine is free of coolant and oil before starting.
Cleaning, surface prep, and machining considerations
Surface prep is critical. Use a plastic scraper to remove gasket material; avoid shaving metal that could gouge the block or head. Inspect the head and block for warping or cracks; if damaged, a machine shop may surface the heads and refinish the blocks. A pristine, flat mating surface ensures the gasket seals properly and reduces the potential for leaks. If there are any coolant passages blocked by scale, flush them thoroughly and inspect for corrosion. After cleaning, wipe surfaces with a lint-free cloth and solvent, then recheck alignment marks before gasket installation.
Reassembly principles and leak testing
Reassembly should follow the exact torque sequence from the service manual, applying recommended torque and angle turns if required. After the head is torqued, reinstall manifolds, belts, and hoses, then fill and bleed the cooling system. Start the engine and monitor for leaks, pressure, and temperature changes. A final test with a leak-down or compression check can confirm the repair’s integrity before regular driving. Keeping a log of readings will help you spot slow leaks early and avoid future head gasket failures.
Tools & Materials
- Socket set (metric and SAE), 3/8-inch drive(Includes deep sockets for tight clearance)
- Torque wrench(Calibrated; used for final head bolt sequence)
- Breaker bar(Leverage for removing stubborn bolts)
- Screwdrivers (flat and Phillips)(Various sizes for hose clamps and small fasteners)
- Gasket scraper (plastic preferred)(Remove old gasket without metal gouges)
- Gasket kit (head gasket + seals)(Ensure compatibility with engine model)
- Head bolts (new)(If engine design requires torque-to-yield bolts)
- Coolant drain pan(Catch coolant safely during drain)
- Degreaser/solvent and lint-free rags(Clean surfaces thoroughly)
- Anti-seize lubricant or thread lubricant(Used on bolt threads if permitted)
- Sealant (engine assembly approved)(Only if specified by service manual)
- New water pump and thermostat (optional but recommended)(Consider replacing if overheating occurred)

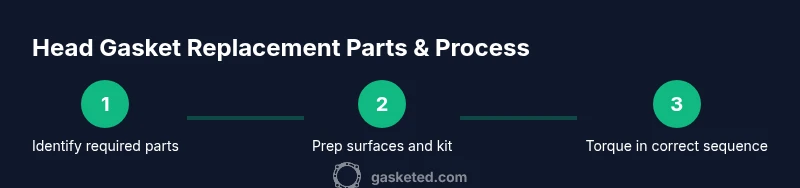

Steps
Estimated time: 6-12 hours
- 1
Disconnect battery and drain coolant
Begin by disconnecting the negative battery terminal to prevent any short circuits. Open the cooling system drain valve or carefully remove the radiator cap to drain coolant. This ensures a clean, safe environment for teardown.
Tip: Label hoses and use a marked tray to catch coolant for easy cleanup. - 2
Remove intake and exhaust components as needed
Carefully detach hoses, manifolds, and any auxiliary components obstructing access to the head. Take photos and label fasteners to simplify reassembly. Avoid bending or twisting pipes to prevent cracks.
Tip: Keep track of gasket surfaces to avoid cross-contamination. - 3
Inspect head and block surfaces
Check the head and block mating surfaces for warping or cracks using a straight edge and feeler gauges. If warped beyond service limits, plan for resurfacing at a machine shop. This step prevents premature gasket failure after reassembly.
Tip: Record measurements and consult a pro if you’re unsure. - 4
Remove old gasket and clean surfaces
Gently pry off the old gasket without gouging metal. Clean all gasket debris and oil residue from both surfaces using solvent and lint-free cloths. A spotless surface is essential for an effective seal.
Tip: Avoid introducing debris into coolant channels. - 5
Install new head gasket with correct orientation
Place the new head gasket in the correct orientation per the manual. Align any timing marks and ensure the gasket sits flush against both surfaces. Misalignment ruins seals and can cause leakage.
Tip: Double-check orientation before torquing bolts. - 6
Torque the head bolts in sequence
Tighten head bolts in the specified sequence to the initial torque, then apply final torque or angle turns as required. Improper sequence can warp the head and create leaks.
Tip: Use a torque-to-yield bolt if specified by the manufacturer. - 7
Reassemble manifolds and accessories
reinstall intake/exhaust manifolds, belts, water pump, and thermostat as applicable. Reconnect sensors and hoses with clean clamps. Ensure gaskets are seated and fasteners are all snug.
Tip: Replace any worn hoses to prevent future leaks. - 8
Fill coolant and bleed, then test
Fill the cooling system, bleed air, and start the engine to operating temperature. Check for leaks and re-torque if required after initial run. A leak-test or compression test verifies the repair.
Tip: Monitor temperature closely during first heat cycle.
Common Questions
What parts are included in a typical head gasket replacement kit?
A typical kit includes the head gasket, valve cover gasket, intake and exhaust manifold gaskets, front and rear seals, and often bolts and timing components. Always verify kit compatibility with your engine model.
A usual kit includes the main head gasket plus all related seals; confirm compatibility with your engine.
Do I need to replace the water pump during a blown head gasket repair?
If the water pump shows signs of wear or overheating, many technicians replace it during a head gasket job to prevent a future failure. It’s a common and recommended practice when the pump is accessible.
If the water pump looks worn or is part of an overheating incident, consider replacing it.
Can I reuse head bolts after a head gasket repair?
Most engines require new head bolts because they are designed for single-use torque-to-yield clamping. Reusing bolts can compromise head sealing and engine integrity.
Usually, you should use new head bolts as per the manufacturer’s spec.
How can I tell if the head is warped or cracked?
A straight edge check across the head and block, plus a leak-down or compression test, can indicate warping or cracks. If in doubt, have a machine shop inspect the head.
Run a straight-edge check and consider a professional inspection if you see gaps.
Is DIY head gasket repair suitable for beginners?
DIY head gasket repair is feasible for experienced DIYers with a proper toolkit, service manual, and a clean workspace. Beginners should assess risk and consider professional help for critical steps.
It’s doable for capable DIYers; if you’re unsure, seek guidance or a pro.
Watch Video
Key Takeaways
- Plan parts before teardown and verify kit compatibility
- Replace head gasket plus related seals for reliability
- Follow exact torque sequence to avoid warping
- Bleed cooling system and test for leaks after assembly
