What’s the difference between manifold gasket and head gasket? A clear, practical comparison
A thorough, analytical comparison of manifold gasket vs head gasket, covering location, functions, failure modes, replacement scope, and maintenance tips to help DIYers and homeowners diagnose correctly and plan cost-effective repairs.
Manifold gaskets seal the intake and/or exhaust manifolds to the engine, while head gaskets seal the block-to-head interface to contain combustion pressure and separate coolant and oil passages. The difference matters for diagnosis, repair scope, and cost: misidentifying can lead to wasted labor, incorrect parts, and recurring leaks. A correct, location-based diagnosis speeds repairs and reduces risk.
What's at stake when distinguishing gasket types
Mistaking a manifold gasket for a head gasket—or vice versa—can lead to incorrect repairs, wasted time, and renewed failures. The difference between what's sealed by these gaskets is fundamental: head gaskets protect the combustion chamber and seal coolant and oil passages, while manifold gaskets seal the interfaces between the engine block or cylinder head and the intake or exhaust manifolds. For DIY enthusiasts and homeowners, understanding what's involved helps you diagnose symptoms accurately rather than chasing the wrong culprit. In this article we compare the two gasket types in context, discuss typical failure modes, and offer practical guidelines for safe, cost-conscious maintenance. The keyword in focus is what's the difference between a manifold gasket and a head gasket, and the answer hinges on location, function, and repair scope. By the end, you'll be able to map symptoms to the correct gasket and plan a repair that actually fixes the problem.
Anatomy: where each gasket sits and what it does
The manifold gasket is placed at the interface between the engine's cylinders and the intake manifold (and separately at the exhaust manifold interface in some designs). Its primary job is to seal air or exhaust gases as they move from the intake or exhaust manifold into the cylinders or away from the exhaust system. The head gasket sits between the engine block and the cylinder head. It seals the combustion chambers and also blocks coolant and oil passages from mixing between the cooling system and the lubrication circuit. Because both gaskets seal against high pressures and temperatures, the installation surfaces must be flat, clean, and free of defects. If you replace one gasket but neglect the other components, leaks, misfires, or overheating can persist. The distinction in location and function is the first clue to the right repair path.
Materials and design differences
Modern manifold gaskets use materials designed to tolerate thermal cycling and exposure to fuels or exhaust byproducts. They may incorporate multilayer steel (MLS), graphite, or composite fibers, depending on design and engine family. Head gaskets use robust composite blends or copper alloys shaped to maintain a seal under combustion pressures that can reach several hundred psi. Head gaskets are engineered to resist coolant and oil intrusion, while manifold gaskets emphasize sealing across interfaces under dynamic heat and pressure fluctuations. The choice of material affects reusability, torque requirements, and the likelihood of leaks caused by warping or gasket creep. When you inspect these parts, you’ll notice different thicknesses, bolt patterns, and sealing surfaces tailored to the gasket’s job.
Common failure modes and symptoms
For a head gasket, typical signs include coolant loss without visible leaks, milky oil, white exhaust smoke, and a drop in compression in one or more cylinders. Intake-manifold or exhaust-manifold gaskets usually present as vacuum leaks, rough idle, misfires, or coolant leaks near the manifold interfaces. In some engines, head-gasket failures allow coolant to contaminate oil, or oil to enter the cooling system, which can lead to overheating and sludge. Manifold-gasket failures often show up as power loss, idle instability, or palpable leaks around the manifold joints. Because symptoms can overlap, a careful diagnostic approach—combining compression tests, leak-down tests, and sometimes a cooling-system pressure test—is essential.
Replacement complexity, cost, and labor considerations
Replacing a head gasket is typically more invasive and labor-intensive than replacing a manifold gasket. Head-gasket work often requires engine disassembly, surface inspection for warpage, and possible timing-chain or belt work. Labor time can be substantial, and parts costs rise when head resurfacing is necessary. Manifold-gasket replacement may involve removing the intake manifold or exhaust manifold, resealing with new gaskets, and reassembling with attention to torque specs. In both cases, a proper cleaning of mating surfaces and re-torquing the bolts after a heat cycle are critical steps. For DIYers, the decision should weigh the vehicle's design, the availability of a service manual, and comfort with heavy engine work. When budgeting, allow for possible machine shop costs if head surfaces are uneven.
Tools, safety, and DIY feasibility
DIY gasket work calls for basic mechanical tools and precision torque wrenches, plus gaskets, sealants, and cleaning solvents. Ensure the engine is cool before starting and disconnect the battery. For head-gasket work, some engines require timing marks to be re-aligned, which demands careful procedure following the factory manual. Working at the manifold interfaces may be more forgiving, but you still need to ensure clean surfaces and proper gasket seating. Always replace related components if they are near the end of their life—valve seals, thermostat, water pump, and hoses. Safety should guide your choices—never rush through cooling-system work, and be mindful of hot coolant and compressed springs within the valve train.
How to identify which gasket you need for your engine
Begin with a diagnostic checklist: look for signs of coolant contamination in oil, white smoke from the exhaust, or unusual engine temperature behavior. Inspect the areas around the intake and exhaust manifolds for leaks and use a vacuum gauge to check for leaks at the manifold interfaces. If you see coolant mixing with oil or a loss of compression focused on cylinders with the manifold, the head gasket trouble is more likely. Conversely, if you detect a vacuum leak at the manifold, the manifold gasket is a probable culprit. Always confirm with a pressure test and, when possible, consult the engine’s service manual for the exact gasket part numbers and torque specs. The goal is precise identification to avoid unnecessary disassembly and to target the correct gasket.
Maintenance and prevention to extend gasket life
Regular cooling-system service, keeping the coolant at the proper mix, and ensuring the engine maintains stable temperatures reduces thermal stress on gaskets. Use the recommended gasket materials for your engine and avoid overtightening bolts, which can crack sealing surfaces. Inspect the gasket interfaces during routine maintenance and replace gaskets only when necessary—understanding the cost and labor implications helps avoid premature work. For DIYers, a routine check of manifold seals during timing belt or chain service aligns with best practices for preventive maintenance. Keep a log of torque specs and gasket part numbers so you can repeat a successful job in the future.
Decision framework: choosing the right repair path
Create a decision-tree that weighs symptoms, engine design, and labor feasibility. If you’re facing a true head-gasket failure with coolant loss, milky oil, or significant compression loss at multiple cylinders, plan for head-gasket replacement and potential head resurfacing. If symptoms point to a manifold interface leak or vacuum issue near the intake or exhaust manifold, start with the manifold gasket. For many DIYs, starting with a diagnostic-backed plan avoids unnecessary disassembly and saves money. A careful assessment of whether you are DIY-capable, or whether you should hire a professional, often determines the final path. The key is to align the diagnostic evidence with the correct gasket’s role.
Quick reference: when to replace one vs the other
Think of the head gasket as the seal for the engine’s combustion, coolant, and oil pathways—when it fails, the consequences are broad and severe. The manifold gasket handles the interfaces with the intake or exhaust system and is often easier to access. If your symptoms are coolant leakage into cylinders, milky oil, or white smoke, expect head-gasket issues. If you notice vacuum leaks around the manifold, or power loss linked to intake flow, the manifold gasket is the likely suspect. By focusing diagnosis on the gasket's role and the affected systems, you can choose the safer and more economical repair path.

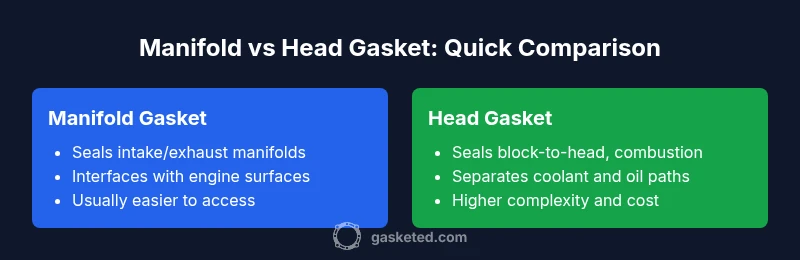

Comparison
| Feature | Manifold gasket | Head gasket |
|---|---|---|
| Primary role | Seals intake and/or exhaust manifolds to engine surfaces | Seals block-to-head, containing combustion; blocks coolant/oil cross-contamination |
| Location in engine | Interfaces with intake/exhaust manifolds | Between engine block and cylinder head |
| Common failure causes | Thermal cycling, torque issues, surface defects | Overheating, head warpage, aging gasket material |
| Typical symptoms | Vacuum leaks at manifold, idle roughness, localized leaks | Coolant/oil cross-contamination, white smoke, loss of compression |
| Replacement difficulty | Moderate; manifold access varies by engine design | High; requires engine disassembly or surface resurfacing |
| Labor time (approx.) | Hours to a day for manifolds; varies by engine | Many hours to multiple days depending on engine and surface checks |
| Cost considerations | Lower parts cost; potential labor variability | Higher parts and labor costs, possible head resurfacing |
Pros
- Clarifies repair path for DIYers and pros
- Helps avoid misdiagnosis and wasted labor
- Supports better budgeting and planning
- Encourages thorough surface inspection and torque discipline
What's Bad
- Engine design variability can blur distinctions
- Symptom overlap may still require tests
- Head-gasket work carries higher risk and cost
- Requires accurate service manuals and torque specs
Head gasket work is generally more involved than manifold gasket work, but accurate diagnosis is the deciding factor.
If symptoms point to combustion-side issues, plan for head gasket replacement with potential head resurfacing. If manifold interfaces show leaks, target the manifold gasket first. In both cases, precise identification saves time and money.
Common Questions
What is the main difference between a manifold gasket and a head gasket?
The main difference lies in location and role. Manifold gaskets seal the interfaces with the intake and/or exhaust manifolds, while head gaskets seal the block-to-head boundary to contain combustion pressure and separate coolant and oil passages. Correct identification guides the repair path and reduces risk of misdiagnosis.
Manifold gaskets seal manifolds to the engine; head gaskets seal the block to head and separate fluids. Location determines the right repair.
Can manifold gasket fail without involving the head gasket?
Yes. A failure at the manifold gasket can occur independently, causing vacuum leaks or coolant leaks at the manifold interface without a head-gasket problem.
Yes. Manifold gasket leaks can happen on their own and don’t always involve the head gasket.
What are common signs of a blown head gasket vs a faulty manifold gasket?
Head-gasket symptoms include coolant loss with milky oil, white exhaust smoke, and compression loss. Manifold-gasket issues show vacuum leaks, rough idle, misfires, or localized coolant leaks near the manifold.
Head gaskets usually show coolant-oil mixing and white smoke; manifold gaskets cause vacuum leaks and rough idling.
Is DIY gasket replacement safe for beginners?
Gasket work can be challenging for beginners, especially head-gasket work which may require timing alignment and head resurfacing. Assess tool access, torque requirements, and risk tolerance, and consider professional help for complex jobs.
Gasket work can be tough for beginners—head gaskets in particular often need professional handling.
How long does head gasket replacement typically take?
Time varies by engine, but head-gasket replacement is generally longer than manifold-gasket work and may require machine shop checks if the head is warped.
It varies, but expect longer timelines for head gaskets due to potential head work.
Can head gasket failures be prevented with preventive maintenance?
Preventive maintenance like regular cooling-system service, correct coolant mix, and avoiding overheating helps reduce head-gasket risk. You cannot eliminate all risk, but maintenance lowers it significantly.
Keep the cooling system healthy and avoid overheating to reduce head gasket risk.
Key Takeaways
- Identify gasket type by location and function to guide repairs
- Head gasket issues affect combustion and cooling systems more severely
- Manifold gasket work is typically easier but still requires careful sealing
- Diagnostics (compression, leak-down, coolant tests) are essential
- Budget for potential surface checks and related component replacements
