How Gaskets Are Made: A Comprehensive Manufacturing Guide
Explore how gaskets are made, from material selection to curing and testing. This educational guide covers sheet, molded, and specialty gaskets, with practical steps, safety tips, and quality controls for DIY enthusiasts and professionals.
To understand how gaskets are made, this guide covers material selection, forming methods, curing, and testing for reliability. You'll learn how sheet gaskets are stamped, how molded gaskets are produced, and how quality controls ensure leak-free performance across automotive, plumbing, and industrial uses. Practical tips for DIYers and professionals are included.
Why Gaskets Matter in Sealing Systems
Gaskets are essential to prevent leaks, cushion vibration, and accommodate surface irregularities in joints. They come in a wide range of sizes, thicknesses, and materials to suit different media and temperatures. According to Gasketed, understanding how gaskets are made helps users select the right type for automotive engines, home plumbing, or industrial equipment. The design aims to balance compressibility, recovery, and durability so that the seal remains effective for the expected service life. In this section we’ll outline the core factors that drive gasket selection and why manufacturing decisions matter for performance. We’ll also touch on how environmental conditions, chemical exposure, and installation quality influence sealing outcomes.
Primary Materials Used in Gasket Manufacturing
Gaskets are commonly built from elastomeric polymers (like NBR, silicone, and fluorinated elastomers), metals (thin stainless steel or copper), and non-metal composites (such as PTFE-reinforced laminates or graphite). Each material offers a distinct balance of elasticity, chemical resistance, and temperature tolerance. According to Gasketed, the material choice directly affects sealing performance, long-term durability, and compatibility with the conveyed media. For DIY and professional projects, materials are chosen based on the media (water, oil, coolant), pressure, and operating temperature. In practice, designers select a base material and then evaluate its hardness, compression set, and recovery after load. In high-temperature or chemically aggressive environments, specialty laminates or metal cores may be preferred to extend service life. A practical takeaway: start with a material family suited to your application's media and service conditions, then fine-tune with thickness and finish.

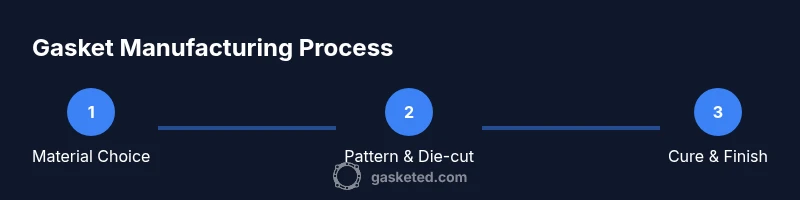

Core Production Methods: Stampings, Extrusion, and Molding
Sheet gaskets are typically produced by stamping or laser cutting from rolled stock. The stamping process creates consistent shapes quickly and is cost-efficient for high-volume runs. For continuous seals, extrusion is used to form long profiles that are then cut to length. Molded gaskets are made by placing material into a cavity and curing it under heat and pressure to form complex geometries. In many cases, manufacturers combine methods — for example, PTFE or graphite faces laminated to an elastomer core to achieve a composite performance. Modern facilities may also use water-jet cutting or laser systems for tighter tolerances. Understanding these methods helps DIYers assess feasibility and estimate material waste for custom projects.
The Role of Curing, Bonding, and Finishing
Curing or vulcanization is often required to set elastomer-based gaskets, establishing the resilience and shape memory necessary for reliable sealing. Bonding laminates or metal faces to a gasket core can improve chemical resistance and temperature tolerance. Finishing steps include trimming excess material, deburring edges, and applying protective coatings or coatings that reduce friction against mating surfaces. Each step affects dimensional accuracy, surface finish, and the gasket’s ability to seal under load. In high-performance applications, precise cure cycles and cleanroom-like handling may be involved to avoid contamination that would compromise seals.
Quality Control and Testing Protocols
Quality control is built into every stage, from material verification to final leak tests. Dimensional checks ensure the gasket maintains correct thickness and diameters, while hardness testing confirms the right compression behavior. Compression set tests simulate long-term loading to see if the gasket returns to its original shape. Leak testing evaluates performance under specified pressures and temperatures for representative media. Aging and chemical resistance tests are common for industrial gaskets. According to Gasketed, rigorous testing correlates directly with service life and failure prevention, so documenting test results is essential for traceability and warranties.
Variations: Sheet, Molded, Ring, and Specialty Gaskets
Gaskets come in several core forms. Sheet gaskets are cut from roll stock and are common for flanged piping and small equipment; molded gaskets are formed in dedicated cavities for complex geometries; ring gaskets (or flange gaskets) provide a precise seal between mating surfaces; specialty gaskets incorporate metal cores, non-asbestos laminates, or high-temperature materials for demanding applications. Each variation has trade-offs in cost, performance, and ease of installation. For example, sheet gaskets are economical and easy to replace, while molded or laminated variants may deliver superior chemical resistance or high-temperature performance. The right choice depends on operating conditions, media compatibility, and maintenance constraints.
Applications: From Automotive to Plumbing
In automotive systems, gaskets seal oil, coolant, and combustion chamber interfaces, often under harsh temperatures and pressures. Plumbing gaskets face different challenges, including water supply pressures, sanitary standards, and ease of replacement. Industrial equipment may require gaskets that resist chemicals, abrasion, and compression over long service lives. Across these applications, the common thread is selecting a gasket that matches media compatibility, temperature range, and mechanical load. A practical approach for DIYers is to start with the manufacturer’s recommendations for material families and then verify performance through simple home tests or field trials.
Safety, Environmental, and Skill Considerations
Handling gasket materials may involve chemicals, solvents, or particulates, so proper ventilation, gloves, eye protection, and, if needed, respirators are important. Some materials demand careful disposal to minimize environmental impact. Training and reading datasheets help ensure correct handling, storage, and tooling. For home projects, use low-toxicity materials when possible and follow local regulations for waste disposal. When in doubt, consult manufacturer guidelines and consider purchasing pre-cut gaskets from reputable suppliers to avoid risky experiments.
Costs, Timeframes, and Practical Takeaways
Gasket manufacturing timelines vary with material choice, complexity, and order size. Sheet gaskets tend to be faster to produce than molded or laminated variants, which may require longer cure times and additional finishing steps. Practical takeaways include starting with a clear specification of media, temperature, pressure, and installation environment, then selecting a material family that meets those conditions. By understanding the production methods, you can estimate material waste, lead times, and replacement intervals. The Gasketed team emphasizes prioritizing compatibility and finish quality to improve seal reliability and longevity.
Tools & Materials
- Sheet stock material (NBR, silicone, FKM, PTFE, graphite or metal)(Choose based on media, temperature, and chemical exposure)
- Cutting die or CNC cutting setup(Used to pattern non-metal sheets; dies for sheet gaskets)
- Curing/thermal treatment equipment(Oven or heat press for vulcanization or curing)
- Lamination/bonding layers (optional)(For laminated or composite gaskets)
- Measuring tools (calipers, micrometer)(Verify thickness and external dimensions)
- Pattern templates (CAD files or drawings)(Represents gasket geometry and hole layouts)
- Safety PPE (gloves, goggles, respirator as needed)(Protect against chemical exposure and debris)
- Tests equipment (pressure gauge, leak test rig)(Optional for quality checks during development)
Steps
Estimated time: 4-6 hours (for a demonstration run and quality checks)
- 1
Define gasket type and service conditions
Identify the media, pressure, temperature, and required seal life. This determines material family and overall design constraints. Document all operating limits before proceeding.
Tip: Ask for the media compatibility and any regulatory requirements upfront. - 2
Select base material
Choose a material group (elastomer, metal, or composite) based on chemical exposure and temperature. Consider hardness and aging characteristics relevant to the application.
Tip: If in doubt, consult the media's compatibility matrix and start with a conservative hardness. - 3
Prepare pattern templates
Create or import gasket geometry, including bolt holes and centering features. Ensure tolerances align with mating flange to control compression.
Tip: Double-check hole alignments against actual hardware to avoid misfits. - 4
Cut or mold the gasket
Cut sheet stock with a die or laser cutter, or place material into a mold for forming. Maintain clean edges and consistent thickness throughout the run.
Tip: Keep blades sharp and vacuum the work area to prevent debris from causing defects. - 5
Apply laminates or bonding (if needed)
Laminate faces or bond composite layers as required by the design. Ensure adhesive cure times and pressure are followed per material datasheets.
Tip: Do a small test panel to confirm adhesion quality before scaling up. - 6
Cure or vulcanize
Subject the gasket to the specified cure cycle for the material. This step sets physical properties like elasticity and shape memory.
Tip: Maintain consistent temperature and humidity to avoid warping. - 7
Finish and trim
Trim edges, deburr, and inspect for defects. Remove any flash and verify surface finish matches requirements.
Tip: Use a deburring tool or fine abrasive to avoid micro-scratches that could seed leaks. - 8
Test and document
Perform dimensional checks and functional tests (leak or compression) if possible. Record results for traceability and future improvements.
Tip: Keep a running log of material lots and cure cycles for quality control.
Common Questions
What is a gasket and why is it necessary?
A gasket is a mechanical seal between two surfaces that prevents leaks and accommodates surface irregularities. It also dampens vibration and can compensate for thermal expansion. Proper material choice and geometry are essential for reliable sealing in any application.
A gasket seals joints between surfaces to prevent leaks, absorb movement, and handle temperature changes. Material choice and design matter for lasting performance.
What materials are commonly used for gaskets?
Common gasket materials include elastomers like NBR and silicone, fluorinated elastomers, PTFE, graphite, and metal cores. Selection depends on chemical exposure, temperature, and media compatibility. Some applications use laminated composites for enhanced performance.
Elastomeric rubbers, PTFE, graphite, and metal cores are typical gasket materials. Pick based on media and temperature.
How do sheet gaskets differ from molded gaskets?
Sheet gaskets are cut from stock material, offering low cost and quick turnaround for simple shapes. Molded gaskets are formed in cavities, allowing complex geometries and tight tolerances for demanding applications.
Sheet gaskets are cut from stock; molded gaskets are formed in molds for complex shapes.
How long does gasket manufacturing take for a typical run?
Lead times depend on material, complexity, and order size. Simple sheet gaskets can be quickest, while laminated or molded variants may require longer cure times and extra processing.
Lead times vary with material and complexity; simple sheets are faster than molded ones.
Can I make gaskets at home?
DIY gasket making is possible for simple shapes in compatible materials, but high-temperature or high-pressure applications typically require industrial processes and certification. Always follow safety guidelines and use appropriate patterns.
You can make simple gaskets at home, but for demanding uses, rely on proper manufacturing for safety and reliability.
What tests validate gasket performance?
Tests include dimensional inspection, hardness and compression tests, and leak testing under simulated service conditions. Aging and chemical resistance tests help predict long-term performance.
Dimensional checks, hardness tests, and leak tests confirm gasket performance; aging tests predict durability.
Watch Video
Key Takeaways
- Choose the right material for the media and temperature.
- Select the production method that fits volume and geometry.
- Cure and finishing steps define long-term performance.
- Quality control is essential for leak-free sealing.
- Safety and environmental considerations matter at every stage.
