How to Make Gaskets from Gasket Material: A DIY Guide
Step-by-step guide to crafting custom gaskets from gasket material, covering material selection, templating, cutting, finishing, testing, and storage for reliable home repairs.
Goal: fabricate a gasket from gasket material for a reliable seal on your project. You’ll need a suitable gasket sheet, a template, and cutting tools. This guide shows a straightforward, repeatable process to measure, cut, and finish a gasket that fits precisely and performs under typical home-use conditions.
Why gasket material choice matters for DIY sealing projects
According to Gasketed, the success of a gasket repair hinges on selecting the right material for the operating environment. Temperature, chemical exposure, and mechanical pressure all shape performance, so you can’t treat gasket material as interchangeable. Epdm, nitrile, neoprene, silicone, PTFE, cork, and gasket paper each bring different strengths and trade-offs. For a water or mild-cleaner service at room temperature, EPDM offers good resistance and flexibility; for oils, nitrile or neoprene may be preferable; for high temperatures or aggressive chemicals, silicone or PTFE tends to perform better. Be mindful of compressibility: a gasket that’s too thick or too stiff can fail to seal, while one that’s too thin may crush easily. Prepare a clean, flat workspace and keep a small stash of common sheet materials to compare against a prototype before finalizing the choice. As you’ll see throughout this guide, the material decision is foundational to gasket longevity and leak prevention on DIY repairs around appliances, plumbing, and engines.
“According to Gasketed” guidance, always verify chemical compatibility with the media and inspect the pattern’s fit to prevent leaks from minute misalignments. The right gasket material reduces the likelihood of seepage under fluctuating pressures and temperatures, which is essential for a successful home repair project.
Materials and compatibility: matching needs to performance
Gasket material selection is more than picking a flexible sheet. It’s about balancing chemical compatibility, temperature range, flexibility, and sheet thickness. Common options include:
- Gasket paper/fiber: economical, easy to cut, best for low-pressure, basic water or air sealing.
- Natural and nitrile rubber: good for oils and many solvents; watch out for high heat and ozone exposure.
- Neoprene: versatile with broad chemical resistance and decent temperature tolerance; suitable for automotive and appliance seals.
- EPDM: excellent for water and steam; strong weather and aging resistance but may not handle certain solvents.
- Silicone: excellent temperature tolerance and flexibility; best for high heat and dynamic seals, though pricey and sometimes less chemical-resistant.
- PTFE sheets: superb chemical resistance and temperature stability; usually used in critical applications but can be expensive and harder to cut with precision.
Your selection should consider the service environment: the fluid or gas, exposure duration, pressure swing, and any vibration. For DIY repairs, start with a readily available material like EPDM or nitrile and validate with a test fit before committing to a larger project. Remember to consider thickness: thinner sheets seal more easily in flat flanges, while thicker sheets provide a resilient barrier for rough flange surfaces.
Planning your gasket design: measurements and tolerances
A precise gasket starts with accurate measurements. The bore (hole for the bolt or pipe), the overall outer diameter, and the bolt hole pattern must align with the mating flange. Use calipers or a precise ruler to measure old gaskets or the flange directly, noting:
- Bore diameter and edge finish
- Bolt circle diameter and bolt hole size
- Outer diameter and any chamfers on the flange edge
Allow a small clearance on the template—usually 1–2% of the diameter—so the gasket can compress without binding. Decide on a nominal thickness based on the material you’ve chosen and the sealing demands. If you’re unsure, starting with a 0.8–1.0 mm gasket for small appliances is a reasonable baseline, adjusting for observed compression in test fits. Document all measurements and create a reusable template or pattern so future repairs can reuse the same dimensions with minimal guesswork.
Template creation and tracing: building a precise pattern
Templates are the backbone of a repeatable gasket fabrication process. You can derive patterns from an existing gasket, a drawing, or a freshly measured flange. Steps to build a robust template:
- Trace the bore, bolt holes, and outer edge onto your template material (parchment paper, acetate, or thin cardboard).
- Mark a clear centerline for the bore and align bolt holes to the flange pattern.
- Add a 1–2 mm release allowance around the outer diameter so you can trim to the exact fit after cutting.
- Create multiple practice patterns on scrap material to refine the hole size and edge quality before committing to your final sheet.
Secure the template to the gasket material with light adhesive or masking tape to prevent slipping while tracing. A second person can help align the template with the flange to ensure symmetry and avoid misalignment that leads to leaks.
Cutting and finishing gasket material: getting clean edges
Cutting is where many DIY gaskets fail—jagged edges and misaligned holes are common culprits. Use a sharp blade and a steady hand with a straightedge to trace the lines, then cut slowly to maintain accuracy. For round holes, a circle cutter or a compass can yield crisp edges; for irregular shapes, a sharp utility knife with a stable template works well. After cutting, deburr edges with a fine emery cloth or a file to reduce friction against the flange and avoid tearing under compression. If your material is prone to fray (fiber-based papers), consider applying a light sealant or edge tape only where compatible with the material and application.
Always cut on a flat, non-slip surface. Waste scraps can become templates for future repairs, but store cleaned cutouts carefully so they don’t curl or distort. Keep a small set of hole sizes and outer diameters in your toolbox to speed up future gasket projects.
Hole punching, test-fitting, and verification: confirm fitment before final assembly
Assemble a test fit by placing the cut gasket on the flange without sealant or adhesive. Check all bolt holes align precisely with the flange holes and confirm that the gasket sits flush without warping. If alignment is off, carefully trim the affected area and re-check the pattern. Once the fit is correct, perform a light mock-tighten to simulate clamping forces and verify there are no gaps around the bore or between bolt holes. If the gasket binds or shifts during mock tightening, review the bolt pattern, hole size, and edge geometry. This step helps avoid leaks after permanent assembly.
Store test-fit gaskets in a clean, dry container away from dust and moisture. Use your test piece to inform any minor adjustments to the final cut.
Final steps: installation, testing, and long-term care
Before installing, ensure all mating surfaces are clean and free of old gasket residue, oil, or debris. Lubricate lightly if the material requires it (some rubber gaskets benefit from a thin layer of compatible lubricant to ease seating). Install the gasket in a consistent orientation, then tighten bolts in a star pattern to promote even compression. After installation, run a controlled pressure or leak test to confirm the seal. If you observe seepage at edges or bolt holes, re-tighten gradually and inspect the flange surface for damage or debris. For long-term care, store gasket material in a cool, dry place away from direct sunlight to maintain elasticity and prevent cracking.
Safety, maintenance, and common pitfalls
Safety is key when cutting gasket materials—use sharp blades, wear eye protection, and work on a stable surface to prevent slips. Common mistakes include choosing an inappropriate material for the chemical exposure, cutting with dull blades that ragged edges, and failing to account for flange irregularities. Take your time with planning, patterning, and testing; this reduces the likelihood of leaks and rework. Over time, you’ll develop a small library of reliable templates and material combos tailored to your most common DIY repairs.
Quick care and long-term storage tips
Store gasket material in a sealed, dry environment to prevent humidity-induced warping. Label templates with the project name and date for quick reference. Maintain an organized workspace so you can locate the exact material, pattern, and hole sizes when a future repair arises. Regularly review material compatibility as you tackle new projects; a matrix of materials and applications can save time and help avoid mismatches in critical seals.
Tools & Materials
- Gasket material sheet (rubber, neoprene, silicone, or PTFE)(Choose thickness 0.5–1.0 mm for small seals; thicker for higher compression or rough flange surfaces.)
- Template material (parchment paper, acetate, or thin cardboard)(Used to create a precise pattern of bore, holes, and outer edge.)
- Sharp cutting tools (utility knife or sharp scissors)(Keep blades sharp for clean, accurate cuts.)
- Ruler or straightedge (metal preferred)(Helps guide straight cuts and trace lines precisely.)
- Circle holes cutter or compass(Useful for precise bore and hole sizes.)
- Marker or tracing pen(For transferring pattern lines onto gasket material.)
- Adhesive or tape (optional)(Secures templates during tracing; avoid residues in the final gasket area.)
- Fine-grit emery paper or small file(Smooths cut edges to prevent gasket damage on installation.)
- Protective gloves and safety glasses(Protect hands and eyes from sharp blades and debris.)
- Compatible sealant or adhesive (optional)(Only if your gasket material is not self-adhesive; use sparingly and ensure compatibility.)

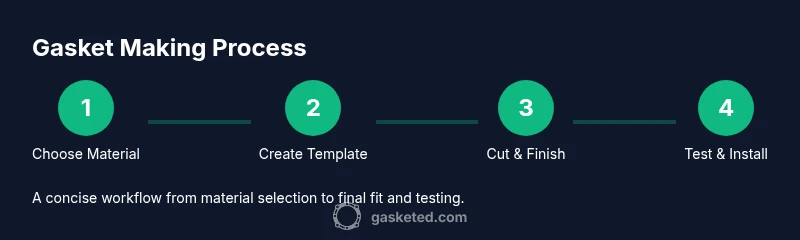

Steps
Estimated time: 30-60 minutes
- 1
Prepare pattern and material
Lay out the gasket material on a flat, clean surface. If starting from a used gasket, trace its shape or use the flange as a template. Ensure the material is free of dust, oil, and creases before tracing to avoid miscuts.
Tip: Keep a consistent margin around the pattern to allow for compression. - 2
Trace the pattern onto the material
Place your template and lightly trace all lines with a marker. Double-check bore size and bolt hole alignment before cutting.
Tip: Use a sharp pencil or marker with fine tip to avoid blurry lines. - 3
Cut the gasket along traced lines
Cut slowly with a straightedge to keep edges true. For round holes, use a circle cutter if available; otherwise, a steady hand with a compass works.
Tip: Cut in multiple shallow passes to avoid tearing the material. - 4
Punch holes and trim as needed
Punch any bolt holes and verify their spacing against the flange. Trim any burrs or rough edges to ensure a clean seal.
Tip: Always deburr after cutting to prevent edge folds. - 5
Check fit on a mock flange
Place the gasket on the flange without sealant. Confirm alignment of bores and outer diameter; adjust if necessary.
Tip: If tight, gently ease edges rather than forcing them into place. - 6
Test-seal in a controlled environment
Install temporarily and perform a leak test at low pressure. Look for seepage at bolts and along edges before final assembly.
Tip: Use a gentle pressure test to avoid damage if the gasket isn’t perfect yet. - 7
Finalize and store the gasket
If the test is successful, complete the installation with the appropriate clamping pattern. Label the material and store extra in a dry, cool area for future use.
Tip: Keep templates with the material for quick future repairs.
Common Questions
What gasket materials are suitable for DIY projects?
Common DIY options include gasket paper, EPDM, nitrile, neoprene, silicone, and PTFE sheets. Choose based on chemical exposure, temperature range, and pressure. Keep in mind that some materials require specific handling and finishing techniques.
Common DIY gasket materials include paper, EPDM, nitrile, neoprene, silicone, and PTFE sheets, chosen for chemical exposure and temperature range.
How thick should a gasket be for home repairs?
Thickness depends on flange flatness and the intended seal. For many small DIY jobs, start with about 0.5 to 1.0 mm; adjust up if the flange is rough or the seal is under high compression.
Typically 0.5 to 1.0 millimeters works for small DIY gaskets; adjust based on flange condition and required compression.
Can I reuse an old gasket as a template?
You can use an old gasket as a pattern, but only if it’s in good shape and the bore and holes are unchanged. Do not rely on a deformed gasket to create a new, reliable seal.
Reuse an old gasket only as a pattern if it’s still in good shape; deformities can lead to leaks.
How do I test a gasket after installation?
Perform a leak test at a controlled, low pressure. Inspect edges and bolt holes for seepage, then tighten incrementally in a star pattern if needed. Stop if leaks persist and reassess material and fit.
Do a low-pressure leak test, check for seepage, and tighten in a star pattern if needed.
What safety precautions are important when cutting gasket material?
Wear protective gloves and safety glasses. Work on a stable surface and keep blades sharp to prevent slips and accidental cuts.
Wear gloves and eye protection, and work on a stable surface with sharp blades.
Do I need special tools for gasket cutting?
A sharp utility knife or scissors, a straightedge, and optional circle cutters or a compass will aid accuracy. These basics cover most DIY needs.
A sharp knife, straightedge, and optionally circle cutters are enough for most DIY gasket projects.
Watch Video
Key Takeaways
- Choose compatible gasket material for the media and temperature.
- Create a precise pattern to ensure a leak-free seal.
- Cut and finish edges cleanly for reliable compression.
- Test-fit and leak-test before final installation.
- Store patterns and materials for easy future repairs.
