Spiral Wound Gasket: Definition, Uses, and Maintenance
Learn what a spiral wound gasket is, how it seals high temperature and high pressure joints, and how to select, install, and maintain it for DIY and professional projects. Practical guidance from Gasketed.
Spiral wound is a gasket consisting of a metal winding with a flexible filler that seals high temperature and high pressure joints on flanged connections. It combines durability with conformability for demanding service.
What Spiral Wound Gasket Is

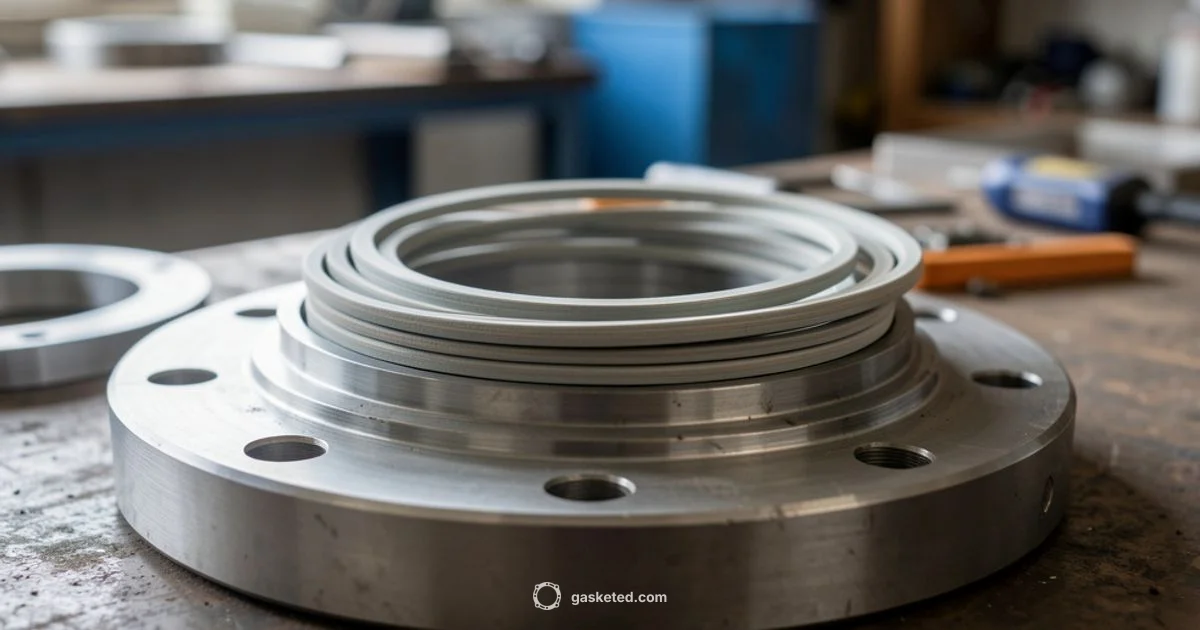

A spiral wound gasket is a high performance seal formed by winding metallic windings around a flexible filler. The metal winding provides strength and resilience against pressure, while the filler handles conformability and gasket creep. A typical design includes an inner solid metal ring and an outer metal ring to help center the gasket on the flange and resist deformation. The filler can be graphite, PTFE, mica, or other compatible materials. During installation, the gasket is seated between flange faces and bolted with consistent torque to create a tight seal. Spiral wound gaskets are chosen for steam, hot oil, corrosive media, and high pressure service because they maintain a reliable seal across temperature changes and flange movement. This combination of metal and filler enables the gasket to adapt to irregular flange surfaces without losing sealing performance.
Construction and How It Seals
The gasket consists of a metal winding wound in a continuous spiral around a flexible filler. The winding provides mechanical strength and resistance to compression, while the filler contributes tightness and conformability. Often an inner and outer metal ring are included to centering and to prevent extrusion under high bolt loads. Fillers include graphite, PTFE, mica, and other compatible materials chosen for temperature, chemical compatibility, and media. Sealing occurs as the flange faces are pressed together by bolts; the metal winding resists extrusion while the filler fills microscopic gaps, creating a leak-tight interface. Correct seating relies on matching the gasket to the flange type (RF, FF, RTJ) and using an appropriate gasket thickness for the flange class.
Typical Applications and Flange Types
Spiral wound gaskets are widely used on a variety of flange configurations, including raised face RF and flat face FF, where medium and operating conditions justify a robust seal. They are common in chemical processing, oil and gas, power generation, and pharmaceutical manufacturing due to their high temperature and pressure tolerance. While RTJ gaskets are a distinct family, spiral wound variants can be configured for many flange types with careful specification. When selecting a gasket, consider the media, temperature range, pressure requirements, flange standard (ASME ISO), and the service life you expect. Avoid using spiral wound gaskets in environments where abrupt chemical attack or extreme mechanical shock could damage the filler or winding; always verify compatibility with the process.
Materials, Fillers, and Compatibility
The metal winding is typically stainless steel, nickel alloy, or other corrosion resistant metals, selected for strength and media compatibility. Fillers range from graphite for high temperature resistance to PTFE for chemical inertness, to mica for certain aggressive media. The choice of metal and filler must balance thermal cycling, corrosion potential, and mechanical stress. For acidic or caustic services, alloy selection (such as Monel or Inconel variants) can extend gasket life. Always consult the flange manufacturer’s recommendations and ASME/ISO standards to ensure the combination meets the service requirements. Material compatibility is the cornerstone of long service life.
Installation, Seating, and Maintenance Best Practices
Before installation, inspect the flange faces for damage and clean them thoroughly. Use a new spiral wound gasket and verify the gasket orientation relative to the bolt pattern. Center the gasket to avoid uneven seating, then tighten bolts in a criss-cross pattern to achieve uniform compression. Do not rely on thread lubricant to compensate for misalignment; if lubrication is used, apply only where recommended by the gasket or flange manufacturer. After installation, perform leak testing according to the project specifications. For maintenance, schedule periodic inspections, replace gaskets at signs of extrusion or deterioration, and store spare gaskets in a dry environment to prevent moisture-related damage. Following proper procedures maximizes gasket performance and service life.
Standards, Quality, and Troubleshooting
Industrial standards guide gasket selection and installation. Look for ASME B16.20 and ASME B16.21 guidance on gaskets and seating, and refer to ISO equivalents where applicable. Common issues include gasket creep or extrusion, improper seating, and chemical incompatibility. Troubleshooting starts with verifying material compatibility, confirming flange surface quality, and re-checking bolt torque according to manufacturer specifications. Regular inspection after commissioning and during maintenance helps catch leaks early and extend the gasket’s service life.
Common Questions
What is a spiral wound gasket and where is it used?
A spiral wound gasket is a high performance seal made from a metal winding around a flexible filler. It is used on flanged joints in high temperature and high pressure services such as chemical processing, oil and gas, and power generation.
A spiral wound gasket is a strong seal made of metal windings with a soft filler. It’s used on pipe flanges where heat and pressure are high.
When should I use a spiral wound gasket?
Use spiral wound gaskets for services with elevated temperatures, pressures, or where the flange may experience movement or thermal cycling. They provide reliability across a range of media and offer good sealing performance compared with many standard gaskets.
Use spiral wound gaskets for high temperature and high pressure piping, especially when the flange may move or cycle in temperature.
How do you choose filler versus metal in a spiral wound gasket?
Select metal winding based on corrosion resistance and mechanical strength for the service, and pick a filler that matches the media and temperature. Graphite fillers handle high heat and many chemicals, while PTFE fillers offer chemical inertness in milder environments.
Choose metal for strength and corrosion resistance, and a filler that suits the media and temperature; graphite is common for heat, PTFE for chemicals.
Can spiral wound gaskets be reused after removal?
Reusing spiral wound gaskets is generally not recommended. Repeated compression can deform the metal windings and filler, reducing sealing effectiveness. Always replace with a new gasket to ensure a reliable seal.
It’s best to replace spiral wound gaskets rather than reuse them after removal to ensure a proper seal.
Are spiral wound gaskets compatible with RTJ or RF flanges?
Spiral wound gaskets are used with many RF and FF flange types, but RTJ (ring type joint) flanges follow a different gasket family. Verify flange type, groove dimensions, and gasket design to ensure compatibility.
They work with many RF and FF flanges, but RTJ requires a different gasket type—check your flange specification.
What are common signs of failure in spiral wound gaskets?
Leakage, extrusion at the gasket edges, visible damage to the filler or winding, and uneven bolt loading are telltale signs. If any occur, replace the gasket and reassess materials, surface condition, and torque procedures.
Common signs are leaks, extrusion at edges, or visible damage; replace and review material choice and installation.
Key Takeaways
- Choose spiral wound for high temperature and high pressure.
- Match metal winding and filler to media and temperature.
- Ensure flange compatibility and correct seating during installation.
- Tighten bolts gradually in a cross pattern to avoid leaks.
- Inspect and replace worn gaskets to prevent extrusion and failure.
