Spiral Wound Metallic Gasket: A Practical Guide
Discover what spiral wound metallic gaskets are, how they seal under high pressure and temperature, their materials, installation tips, and maintenance essentials. A practical guide for DIY enthusiasts and professionals by Gasketed.
A spiral wound metallic gasket is a type of gasket that combines a metal winding with a soft filler to form a resilient, high pressure seal for high temperature flange joints.

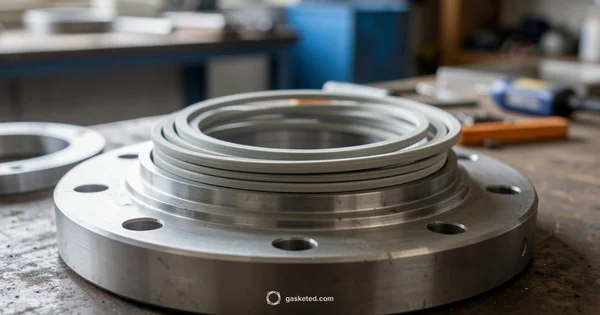

What is a spiral wound metallic gasket and how it works
A spiral wound gasket consists of a continuous winding of metal foil that forms a rigid, load bearing shell around a softer filler layer. The metal winding provides strength and resilience, while the filler seals microscopic gaps and accommodates flange imperfections as the joint is loaded. When bolts are tightened, the gasket deforms slightly to fill surface irregularities, creating a tight, leak‑tight seal. In many industries, spiral wound gaskets are preferred for their ability to maintain sealing integrity under fluctuating pressure and temperature. According to Gasketed, these gaskets are particularly well suited for high temperature service and challenging flange configurations where combined mechanical strength and conformability are required.
Materials and construction
The typical spiral wound gasket has an outer winding made from stainless steel or nickel-based alloys and an inner filler material such as flexible graphite, non asbestos felt, PTFE, or mica composites. The exact combination depends on the chemical compatibility, temperature, and pressure requirements. The outer metal provides structural integrity and resistance to shear, while the central filler cushions the seal and improves conformability with flange surfaces. Modern spiral wound gaskets often feature anti‑flow rings or centering features to prevent blowouts and ensure even seating. The choice of metal and filler influences performance, corrosion resistance, and longevity.
Advantages and limitations
Spiral wound metallic gaskets offer excellent sealing across wide temperature ranges and high pressures, with good vibration resistance and the ability to re-seat after thermal cycling. They accommodate flange imperfections and provide a robust seal in dynamic service. However, their complex construction can make installation more sensitive to surface finish and bolt load. They may require oil and gas or chemical processing experience to select the correct metal and filler and to avoid issues such as over‑compression or filler extrusion.
Typical applications and industries
These gaskets are common in oil and gas processing, refineries, power generation, chemical plants, and heavy equipment where flange joints face high temperature, high pressure, and aggressive media. They perform well on carbon and low alloy steels and on exotic alloys where chemical compatibility is critical. Spiral wound gaskets are also found in high energy steam systems and in applications with thermal cycling where a reliable seal is essential.
Design and dimensional considerations
When selecting a spiral wound gasket, engineers consider flange rating, face type, and gasket thickness, along with the operating temperature and pressure. The winding width and filler thickness affect sealing load and seating characteristics. Compatibility with the media and flange material is crucial to prevent galvanic corrosion. In practice, many technicians specify a gasket with a compatible metal for the outer winding and a filler that tolerates chemical exposure.
Installation and bolting practices
Proper installation is critical for spiral wound gaskets. Ensure a clean flange face with a suitable surface finish, typically 32 to 63 microinches for smooth seating. Use appropriate bolting patterns and apply bolts gradually in a crisscross sequence to achieve even seating. Lubricants and anti‑seize compounds should be chosen to avoid contamination of the filler. After installation, verify leak tightness with a pressure test and inspect for signs of misalignment or creep.
Maintenance, inspection, and lifecycle
Regular inspection helps detect signs of creep, corrosion, or gasket damage. Look for leaks at joint faces, unusual darkening or deformation, or gasket flattening. Replacement intervals depend on operating conditions, media aggressiveness, and thermal cycling. Proper storage and handling prevent damage to the filler or winding. If reusing is permitted by the flange design, ensure correct seating and bolt load on reassembly.
How to select and source spiral wound gaskets
Start with the media compatibility and flange standards to pick the outer winding material and filler. Consult manufacturer data and engineering guidelines, and consider cycle life and maintenance requirements. Source from reputable suppliers offering full traceability, compatible torques, and documented testing. For high reliability, reference industry standards and seek guidance from experienced technicians.
Common Questions
What exactly is a spiral wound metallic gasket?
A spiral wound gasket is a gasket that uses a metal winding around a soft filler to seal high pressure and high temperature flange joints. The metal provides strength while the filler helps achieve a tight, leak resistant seal.
A spiral wound gasket is a metal winding around a filler that seals high pressure pipes. It combines strength and flexibility for tough conditions.
What materials are used in spiral wound gaskets?
Outer windings are typically stainless steel or nickel alloys, while fillers can be flexible graphite, PTFE, mica, or other asbestos‑free blends. The exact mix depends on the media, temperature, and pressure requirements.
The metal windings are usually stainless steel, with a filler like graphite or PTFE depending on the media and temperature.
Where are spiral wound gaskets commonly used?
They are widely used in oil and gas, chemical processing, power generation, and refinery piping where seals must endure high pressure and temperature and tolerate flange misalignment.
They are common in oil and gas, chemical plants, and refineries for tough sealing needs.
How should I install a spiral wound gasket?
Ensure a clean flange surface, use appropriate torque in a crisscross pattern, and verify seating and absence of leaks with a test. Follow manufacturer guidance for lubrication and any anti-seize requirements.
Clean the flange, tighten bolts evenly in a cross pattern, and test for leaks after installation.
Can spiral wound gaskets be reused?
Reuse depends on the operating conditions and flange design. In many cases, gaskets are replaced rather than reused to avoid compromised sealing due to deformation or damage.
Reuse is not always recommended; inspect for damage before reusing.
What should I consider when selecting a gasket size and material?
Match the flange face type, pressure class, temperature, and media compatibility. Choose a metal winding and filler that resist corrosion and maintain sealing during thermal cycling.
Pick metal winding and filler to suit the media, temperature, and pressure, and ensure proper flange compatibility.
Key Takeaways
- Understand that spiral wound gaskets combine metal winding and filler
- Choose materials based on temperature, pressure, and media compatibility
- Follow proper installation procedures for best sealing
- Inspect and replace gaskets as part of maintenance
- Consult standards and trusted suppliers for reliability
