What Gasket Sealer for Intake Manifold: A DIY Guide
Discover the right gasket sealer for an intake manifold, why high-temp RTV silicone is often best, and how to apply it with a safe, step-by-step workflow for DIY homeowners.
Using a high-temperature RTV silicone gasket sealer is the recommended approach for most intakes. Choose a neutral-curing automotive sealer, apply a thin bead to the gasket surface, and torque to spec after it cures. This method minimizes leaks, prevents oil intrusion, and supports even gasket compression when resealing the intake manifold.
Why gasket sealer for intake manifold matters
When you service an intake manifold, selecting the right gasket sealer is as important as choosing the gasket itself. If you’re searching for what gasket sealer for intake manifold to use, the answer is generally a high-temperature RTV silicone designed for engines. A proper sealer helps prevent leaks, oil intrusion, and vacuum loss while allowing the gasket to compress evenly. According to Gasketed, using the correct sealer improves long-term reliability and reduces recurring maintenance. In addition to choosing the right sealer, you must prepare clean surfaces, inspect for warpage, and torque fasteners to specification. Otherwise, even small leaks can compromise fuel economy and response.
Top features and factors to consider
Key features to look for include temperature rating (high-temp), compatibility with solvents and fuels, cure type (neutral vs acid), and engine oil resistance. For intake manifolds, you want a sealer that cures in the presence of moisture, forms a flexible seal, and resists oil. Compatibility with the gasket material matters; silicone sealers are generally versatile with most gasket types. Consider the sealant bead width and the reusability of the gasket. Always check your vehicle's service manual for torque specs and curing times.
Choosing the right gasket sealer type
There are several broad categories: silicone RTV, anaerobic sealants, and composite gaskets. For intake manifolds, silicone RTV is usually preferred because of temperature exposure and the need for a thin, uniform bead. Neutral-curing silicones reduce corrosion risk on aluminum manifolds. Avoid acidic or copper-based sealants near sensitive engine sensors. Always select a sealant that lists automotive use and health safety data. If you’re unsure, consult the service manual or Gasketed guidance.
Surface prep and application steps
Before applying any sealant, ensure the mating surfaces are clean and dry. Remove the old gasket completely, then scrub away old sealant with a non-abrasive pad and degreaser. Dry the surfaces thoroughly, inspect for warpage, and verify the gasket will seat flush. Apply a thin, continuous bead of gasket sealer along the gasket’s mating surface or onto the gasket itself, depending on the product instructions. Align the new gasket precisely, place the manifold, and hand-tighten bolts before final torquing in the recommended sequence. Allow the sealant to reach the initial set per the label before attempting a leak test.
Reassembly and curing considerations
Reassembly should follow the vehicle’s torque sequence and final torque specs found in the service manual. After installation, avoid cranking the engine for the time stated on the sealant label; this preserves the initial seal. If the sealant requires curing time, plan for it and perform a leak test after the cure period. Keep exposures to solvents and cleaners away from sensors and electrical connectors, and verify there are no fuel or vacuum leaks once the engine is started.
Common mistakes and troubleshooting
Common mistakes include applying too much sealant, which can squeeze into ports or injectors, and using a sealant not rated for automotive engines. Ensure the surfaces are completely dry and free of oil before application. If leaks occur after reassembly, recheck torque, sealant compatibility, and gasket seating. In case of persistent leaks, disassemble and clean the mating surfaces again, then reattempt with fresh gasket and sealer following the manufacturer’s instructions.
Tools & Materials
- High-temperature RTV silicone gasket sealer(Automotive grade; neutral-curing preferred; follow label for cure time.)
- Intake manifold gasket (new)(Use OEM or gasket kit sized for your engine.)
- Gasket scraper (plastic preferred)(Avoid metal gouging; use to remove old sealant.)
- Solvent or degreaser(Clean, dry surfaces free of oil and residue.)
- Lint-free rags(Wipe surfaces and remove lint to prevent contamination.)
- Torque wrench(Follow manufacturer torque sequence and spec.)
- Socket set and screwdrivers(For removing/installing manifold bolts.)
- Safety glasses and gloves(Protect eyes and skin from chemicals.)
- Torque sequence diagram or service manual(Use the proper bolt pattern and sequence.)

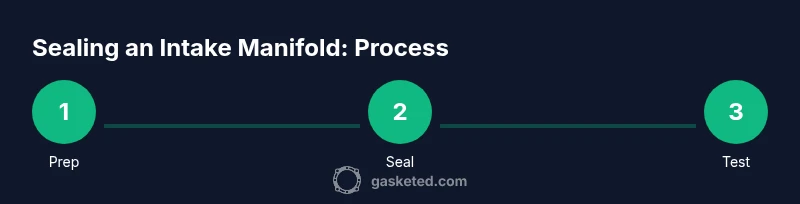

Steps
Estimated time: 1 hour 30 minutes
- 1
Prepare the workspace and safety measures
Disconnect the battery to prevent shorts. Gather all tools and lay out components in labeled trays. Ensure the work area is clean to avoid contaminating gaskets.
Tip: Label hoses and wires so reassembly is straightforward. - 2
Remove intake manifold and old gasket
Loosen bolts in the service manual sequence, then carefully lift the manifold away. Remove the old gasket and any lingering sealant. Inspect the mounting surface for damage or warp.
Tip: Take photos or make simple sketches to capture bolt positions. - 3
Clean mounting surfaces thoroughly
Wipe both mating surfaces with solvent to remove oil and old sealant. Scrub gently with a plastic scraper and dry completely before proceeding. Inspect for scratches or pitting and address if found.
Tip: Dry surfaces are essential for a proper seal. - 4
Apply gasket sealer and install new gasket
Apply a thin, continuous bead of sealer along the gasket surface or on the gasket as directed by the product instructions. Place the new gasket accurately and align bolt holes. Hand-tighten bolts before torquing.
Tip: Use a consistent bead width to avoid gaps. - 5
Torque bolts in the prescribed sequence
Tighten bolts gradually in a crisscross pattern to the recommended torque. Recheck torque after initial startup if the manual requires it. Wipe away any excess sealant that may squeeze out.
Tip: Avoid over-torquing; it can crack the manifold. - 6
Final checks and curing
Reconnect battery, start the engine, and listen for leaks. If the sealant requires curing time, avoid revving high and allow it to reach full cure per label. Recheck for leaks after the recommended cure period.
Tip: If leaks appear, re-inspect gasket seating and torque sequence.
Common Questions
What gasket sealer is best for intake manifold?
For most engines, a high-temperature RTV silicone gasket sealer designed for automotive use is recommended. Neutral-curing variants minimize corrosion. Always consult the service manual.
The best sealer is a high-temperature RTV silicone made for engines; neutral-curing types reduce corrosion. Check your manual for specifics.
Can I reuse the old gasket if it looks fine?
Reusing the old gasket is generally not advised. A fresh gasket provides a reliable seal and reduces the risk of leaks. Inspect the old gasket for damage only if you have a replacement ready.
It's usually best to replace the gasket rather than reuse it.
Will sealer harm sensors or electrical components?
Sealants should be kept away from sensitive sensors and electrical connectors. Apply only to mating surfaces as directed and wipe away any excess to prevent contamination.
Keep the sealer away from sensors and electrical parts.
How long does the sealer take to cure?
Cure time varies by product. Always follow the sealant label for cure time and handling. Do not start the engine until the recommended cure period has elapsed.
Follow the label for cure time and don’t rush the engine start.
Can I use regular silicone sealant for intake manifolds?
Only if the product is explicitly rated for automotive engine use. Non-automotive silicone can fail under engine heat and fumes. Always choose an engine-grade sealer.
Only use silicone sealant rated for automotive engines.
Do I need to torque bolts in a specific pattern?
Yes. Always follow the manufacturer’s torque sequence to prevent warping and ensure an even seal. Recheck torque after the cure period if required.
Use the proper torque sequence to avoid warping.
Watch Video
Key Takeaways
- Use high-temperature RTV sealer for intake manifolds
- Prepare surfaces and follow torque sequences precisely
- Apply a thin bead and avoid excess sealant
- Follow manufacturer cure times for best results
