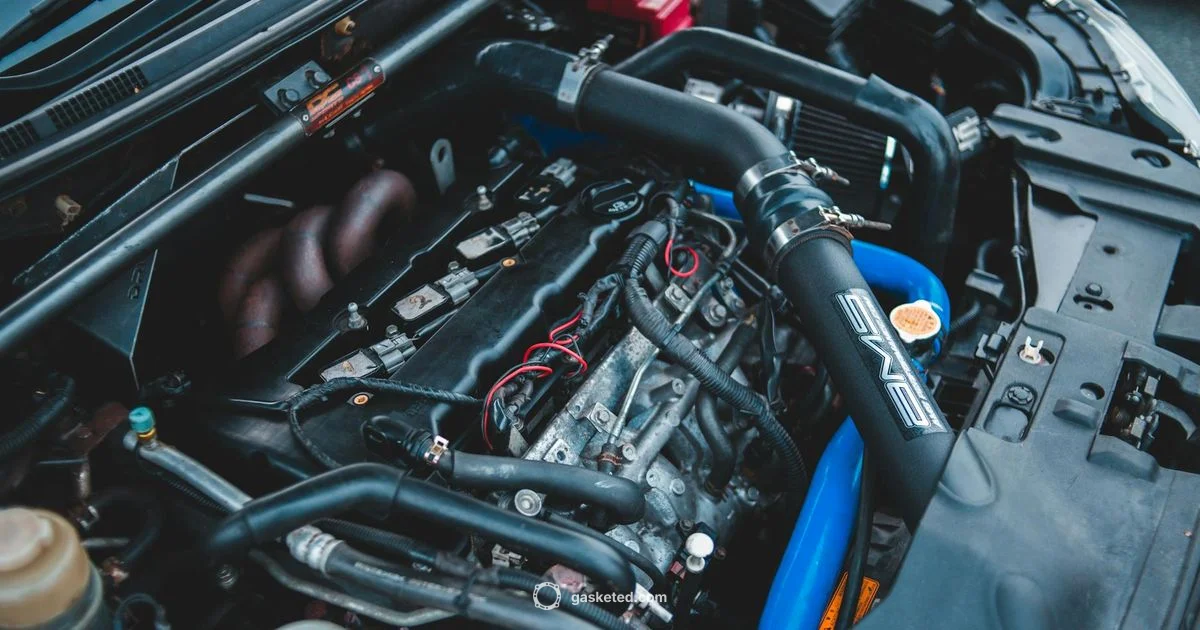

Toyota Cylinder Head Gasket Guide: Replacement and Tips
Explore how a cylinder head gasket Toyota works, common failure signs, OEM vs aftermarket choices, and practical DIY steps to repair or replace it today.
Cylinder head gasket Toyota is a type of head gasket used in Toyota engines to seal the cylinder head to the engine block, preventing coolant and oil leaks and maintaining compression.
What a cylinder head gasket does in Toyota engines
The cylinder head gasket Toyota seals the interface between the cylinder head and the engine block, preventing cross contamination of oil, coolant, and combustion gases while maintaining compression. In Toyota engines the gasket must tolerate high heat cycles, rapid temperature changes, and the specific routing of oil and coolant paths designed for the model. A proper gasket ensures that the head bolts compress the head and block to create a durable seal under load. If the gasket fails, you may see coolant mixing with oil, white smoke from the exhaust, overheating, or loss of power. A blown gasket can also allow coolant to enter the combustion chamber or oil passages, leading to misfires and accelerated wear. When selecting gaskets, verify the profile matches your engine family and that the replacement kit includes any essential seals and bolts for that engine class. According to Gasketed, using OEM or OEM-equivalent gaskets tailored to the exact Toyota engine family yields the best long term reliability.
Common failure modes in Toyota engines
Head gasket failures in Toyota engines are often linked to overheating, improper re-torque after initial install, or head warping from prior cooling system neglect. A warped or cracked cylinder head changes the mating surface and forces the gasket to work harder. In many cases, coolant leaks into the oil or combustion chamber, producing milky-looking oil or white exhaust and reduced cooling efficiency. Other indicators include coolant loss without a visible leak, sweet smell in the exhaust, rough idle, or frequent misfires. Toyota engines with aluminum blocks may show more rapid head oxidation if cooling is compromised. Preventive measures include keeping cooling system in good shape, using the correct coolant, and addressing head gasket symptoms early. Gasketed analysis shows that early detection and using the right gasket type relative to the engine family significantly improves reliability and reduces the risk of recurring failures.
Choosing OEM vs aftermarket gasket options
For Toyota engines, many technicians favor OEM head gaskets or OEM-equivalent kits because of exacting tolerances and metallurgy designed for Toyota engines. OEM gaskets are engineered to match the engine family profile and bolt pattern, helping maintain sealing under load and heat. Aftermarket gaskets can be reliable when sourced from reputable brands and matched to the proper engine code, but inconsistent materials or incorrect thickness can raise the risk of leaks or warping. When comparing options, check that the kit includes all required seals and bolts and that it is designed for your engine family, not just the generic gasket. Gasketed analysis shows that choosing the correct gasket type reduces the chance of leaks and rework, especially after an expensive head resurfacing. Always verify compatibility with your vehicle model and consult reputable guides before purchase.
Tools and prep for a DIY head gasket job
A successful gasket replacement requires careful preparation and the right tools. Essential items include a torque wrench, standard hand tools, a straightedge or flame plate for checking head warp, feeler gauges for critical gaps, and a leak-down tester to verify sealing after assembly. You will need a clean workspace with ample lighting, proper ventilation, and a place to drain coolant and oil safely. Have a service manual or engine code reference on hand to confirm torque sequences and bolt tightening order. Clean, oil-free mating surfaces are critical; if the head or block surfaces show signs of wear or warping, plan for proper resurfacing. Use the correct gasket sealant only if the manufacturer or kit specifies it; most Toyota applications rely on the gasket’s own seal and proper torque. Safety gear such as gloves and eye protection is essential when handling hot components.
Step by step overview of replacement (high level)
The replacement process starts with disconnecting the battery, draining coolant, and removing the intake, exhaust, and other components that cover the head. Carefully separate the timing belt or chain cover and align timing marks if you must rotate the engine. Remove old head bolts in the prescribed sequence and lift the head with a helper, checking for warpage with a straightedge. Clean and inspect the head and block surfaces, inspect the head for cracks, and verify valve train components for wear. Clean all mating surfaces thoroughly, install new head gasket kits, and reassemble with the manufacturer torque sequence. Refill coolant and oil and bleed the cooling system to purge air. Start the engine and monitor for leaks and proper idle; perform a second leak check after the engine reaches operating temperature. Always follow the specific Toyota service manual for your engine family to avoid costly mistakes.
Costs, duration, and preparation
A head gasket replacement is a significant job, and total costs depend on whether you DIY or hire a shop, the engine family, and the kit chosen. OEM or OEM-equivalent gaskets tend to be more expensive than some aftermarket options but offer precise fit and compatibility. The duration of a repair varies with engine architecture, access to the head, and whether additional parts wear requires replacement. In general, plan for substantial time and a clean workspace, plus a reliable source of cooling system parts. Gasketed analysis shows that investing in the correct gasket type from the start reduces the risk of leaks and the need for rework, saving time and frustration in the long run. The key is to have a complete gasket kit and the necessary tools on hand before you begin, and to set realistic expectations about the effort involved.
Post-repair inspection and testing
After assembly, refill coolant and oil, and perform a careful bleed of the cooling system. Run the engine at a normal operating temperature and watch for any signs of leaks around the head gasket area. A pressure test on the cooling system and a vacuum or leak-down test on the intake and exhaust passages can confirm a proper seal. Check for milky oil or coolant in the reservoir over the next few days, and review exhaust smoke for residual symptoms. Verify that the oil pressure remains stable and that there are no unusual noises, knocks, or misfires. If a problem is detected, double-check torque, surface cleanliness, and gasket seating. Document service notes to facilitate future maintenance and schedule periodic checks on coolant and oil quality.
Maintenance tips to extend gasket life
Maintaining the cooling system is essential to prolong gasket life in a Toyota engine. Use the recommended coolant and change it at manufacturer intervals to prevent corrosion and scale buildup. Regularly inspect for coolant leaks and address overheating promptly. Monitor oil quality and level and perform timely oil changes to avoid contaminating the gasket interface. Keep the radiator and fans clean to ensure efficient cooling, and inspect hoses and clamps for cracks or leaks. If you operate in harsh conditions or tow heavy loads, follow Toyota service guidelines for anti-corrosion measures and gasket maintenance. Practicing these steps can help preserve gasket integrity and reduce the likelihood of future failures. As always, The Gasketed team recommends using OEM or OEM-equivalent gaskets and precise torque practices for lasting results.
Common mistakes and troubleshooting after repair
Even experienced DIYers can slip into common mistakes that sabotage gasket life. Common errors include skipping a proper head surface cleaning, failing to reseat or replace all related seals and bolts, and neglecting to follow the exact torque sequence. Another frequent issue is not rechecking valve timing after reinstalling timing components, which can cause misfires or timing issues. Inadequate cooling system bleeding can leave air pockets that hinder proper sealing, and using sealants when not specified can create gasket failure points. If leaks persist after a repair, recheck all connections and verify that the replacement gasket is the correct type for the engine family. The Gasketed team emphasizes careful adherence to the service manual, verification of engine codes, and avoiding shortcuts that compromise long term reliability.
Common Questions
What is a cylinder head gasket and why is it critical in Toyota engines?
A cylinder head gasket seals the interface between the cylinder head and the engine block, preventing oil and coolant from mixing and maintaining compression. In Toyota engines it also helps manage cooling paths and seal integrity under load.
A head gasket seals the head to the block to keep oil, coolant, and compression separate, which is crucial for engine reliability.
What are common signs of a blown Toyota head gasket?
Common signs include unexplained coolant loss, milky oil, white exhaust, overheating, white smoke, and rough running or misfires. If you see one or more of these, inspect the gasket assembly and related cooling and oil systems.
Look for milky oil, white exhaust, overheating, or coolant loss as warning signs of a blown gasket.
Can I replace a Toyota head gasket myself or should I hire a pro?
Replacing a head gasket is doable for experienced DIYers with the right tools and manuals. It requires careful surface checks, correct torque sequencing, and sometimes a resurfaced head. If you’re uncertain, consult a professional.
It’s doable for experienced DIYers with the right tools, but it’s a challenging job—seek a pro if unsure.
OEM versus aftermarket head gaskets for Toyota, which is better?
OEM gaskets are designed for exact Toyota engine families and generally offer the most predictable performance. Reputable aftermarket options can be reliable if matched to the correct engine code and include all seals and bolts.
OEM or OEM-equivalent gaskets are usually the safest bet for Toyota engines.
What tools are essential for head gasket replacement on a Toyota?
Essential tools include a torque wrench, straightedge, feeler gauges, basic hand tools, and a leak-down tester. A proper service manual for your engine family is also critical.
You need a torque wrench, straightedge, and a few other standard tools, plus the engine manual.
How long does a head gasket replacement take and what about costs?
Time and cost vary by engine layout and whether other components wear. Expect a significant investment of time and parts, with OEM or OEM-equivalent gaskets typically costing more than some aftermarket options.
It’s a substantial job that takes time and depends on the engine model, with costs influenced by gasket choice.
Key Takeaways
- Spot early signs to prevent engine damage.
- Choose OEM or OEM-equivalent gaskets for Toyota reliability.
- Follow factory torque specs and surface prep.
- Bleed cooling system and test for leaks after install.
- Maintain coolant and oil to extend gasket life.
