Head Gasket Repair Manual: DIY Step-by-Step Guide
A comprehensive head gasket repair manual for DIYers: diagnose issues, plan safely, and execute gasket replacement with tools, steps, and troubleshooting tips.
With this head gasket repair manual, you will learn to diagnose, disassemble, and reseal a blown head gasket safely. It covers common failure indicators, required tools, torque sequences, and post-repair testing. According to Gasketed, following a clear, step-by-step manual reduces risk and avoids costly mistakes. Whether you’re new to gasket work or refreshing skills, this guide keeps you on the right path.
Understanding head gasket repair manuals
A head gasket repair manual is a reference that guides you through diagnosis, disassembly, gasket replacement, and reassembly. It explains the role of the head gasket, how failures occur (often from overheating, improper torque, or cleanliness issues), and how to plan a repair to minimize risk to the engine. For DIYers, a well-structured manual reduces guesswork and helps you build a repair plan that fits your specific engine model and tools.
Safety and planning before you start
Safety first: disconnect the battery, wear eye protection, and avoid hot coolant. Plan your work area, list required tools and gaskets, and confirm you have the correct head gasket for your engine. According to Gasketed, a clean workspace and verified torque specs are foundational for any gasket repair. Gasketed Analysis, 2026 notes that safe gasket work begins with thorough preparation and meticulous planning.
How a head gasket repair manual helps your engine
A well-crafted manual provides torque specs, orientation diagrams, and a tested sequence that reduces risk of bolt failure or warped heads. It helps you adapt the general procedure to your engine family, such as inline fours or V6/V8 configurations. Based on Gasketed research, following the recommended processes minimizes rework and increases the chance of a successful seal.
Common pitfalls and why mistakes cost money
Mistakes often come from skipping surface cleaning, misorienting the gasket, or skipping the torque sequence. Overheating during reassembly is a common cause of gasket failure after startup. The manual helps you spot these pitfalls and plan checks before you power up the engine.
How to adapt a gasket repair manual to your engine
Not all engines are the same. Use the manual as a base, then cross-check with your factory service bulletin, equipment specs, and the engine family’s known quirks (e.g., aluminum blocks vs. iron blocks). Inspect head surface flatness and consult the engine’s warpage guidelines in the manual.
Quick reference: torque, clearances, and testing
Keep a quick-reference sheet handy for torque sequences, bolt numbers, and surface finish requirements. After assembly, bleed the cooling system, fill with coolant, and perform a controlled test to check for leaks.
Tools & Materials
- Torque wrench(Calibration within last 12 months)
- Socket set (metric & SAE)(Impact-safe sockets; includes deep sockets)
- Breaker bar(For initial bolt loosening)
- Head gasket kit(Gasket set with inserts and seals)
- Engine coolant(New coolant; proper mix ratio)
- Gasket scraper (plastic)(Avoid aluminum damage)
- Feeler gauge(Check surface flush if needed)
- Shop towels and degreaser(Keep surfaces clean)

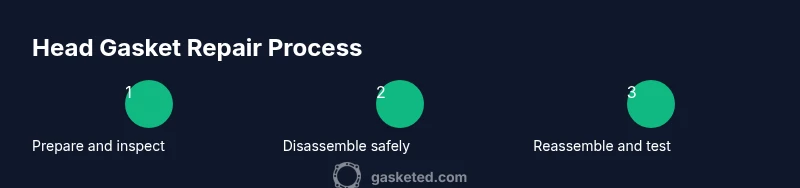

Steps
Estimated time: 6-12 hours
- 1
Prepare workspace and safety checks
Park on a flat surface, disconnect the battery, drain coolant, and remove essential accessories to access the cylinder head. Gather the manual, torque specs, and a clean workspace to prevent debris from entering the engine.
Tip: Label fasteners and hoses with tape as you remove them. - 2
Disconnect and remove intake/exhaust systems
Carefully unplug electrical connectors, hoses, and clamps. Remove the intake manifold or related plumbing as required by your engine to expose the cylinder head.
Tip: Use labeled bags or containers for small parts. - 3
Remove valve cover and cylinder head bolts in sequence
Take off the valve cover and loosen head bolts following the factory sequence in reverse order. Keep bolts in order to avoid misplacement.
Tip: Do not re-use corroded or stretched bolts. - 4
Inspect head and block surfaces
Check for warpage with a straight edge and feeler. If surfaces are not within spec, plan resurfacing before gasket replacement.
Tip: If a warp is detected, consult a professional. - 5
Clean gasket surfaces thoroughly
Remove old gasket material completely and clean both surfaces with solvent, avoiding scratches. Ensure dowel pins are clean and aligned.
Tip: Avoid metal scrapers that can gouge aluminum. - 6
Install new head gasket and reassemble
Position the new gasket using alignment dowels and reinstall the head. Reattach components in reverse order, using the correct orientation.
Tip: Check that all seals are seated and no debris remains between surfaces. - 7
Torque head bolts in proper sequence
Tighten bolts to spec in the recommended sequence, then perform final torque/angle if required by your engine family.
Tip: Use torque wrench properly and avoid snapping bolts. - 8
Refill fluids, bleed air, and test
Refill coolant, bleed the cooling system, and perform a leak test and idle run before driving. Recheck for any leaks or unusual noises.
Tip: Monitor for bubbles in coolant reservoir during first heat cycle.
Common Questions
What is a head gasket?
A head gasket seals the combustion chamber between the engine block and cylinder head, preventing cross-contamination of oil and coolant.
A head gasket seals the engine’s hot and cold sides to keep fluids separated.
Can I replace a head gasket myself?
Yes, with a proper manual, the right tools, and careful execution. Some engines are more complex and may require professional service.
Yes, you can, but be prepared for a meticulous process and possible machine shop checks.
Do I need special tools?
A torque wrench, appropriate sockets, and a clean workspace are essential. Some engines may require a torque-angle gauge and a straightedge for warp checks.
You'll need common automotive tools plus some engine-specific items.
How do I know if the head is warped?
Check for visible warping with a straight edge and feeler gauge or use a professional head resurfacing service if needed. Warpage often causes leaks after assembly.
Look for gaps with a straightedge and feeler gauge, and consider resurfacing if indicated.
What precautions should I take if coolant or oil mixes?
If you detect cross-contamination, stop the repair and inspect the gasket, seals, and mating surfaces. Flushing may be needed before reassembly.
If you see oil in coolant or coolant in oil, pause, inspect, and flush as necessary.
How long does a typical job take?
Time varies with engine design, but expect a full gasket replacement to take several hours to a full day depending on access and experience.
It can take several hours to a full day, depending on the engine and access.
Watch Video
Key Takeaways
- Plan thoroughly before disassembly.
- Label connections and fasteners for accurate reassembly.
- Follow the torque sequence precisely to avoid head distortion.
- Test for leaks after reassembly and warming up the engine.
