A compression test is the fastest way to confirm a blown head gasket. In most cases, you’ll see low compression on one or more cylinders and a pattern that points to the gasket rather than a valve or piston. If you suspect a blown head gasket, stop driving and begin diagnosing with a basic compression test now.
Why a Compression Test Matters
When you suspect a gasket failure, a compression test is the fastest way to pin down the problem. The phrase compression test blown head gasket describes what you’re looking for: a cylinder or cylinders with noticeably lower pressure than the rest, following a recognizable pattern that points away from simply worn rings or valves. According to Gasketed, this quick pressure test guides your next steps without tearing the engine apart on the first attempt. You’ll use a hand-held compression gauge and a known-good ignition system to obtain reliable readings from each cylinder in a repeatable sequence. If readings are uniform and near spec, the gasket is likely intact. If one cylinder or a small cluster shows a stark drop, or the pattern matches a gasket failure, you’re likely dealing with a blown head gasket or warped head. This early insight saves time, money, and the risk of further damage.
Signs You Might Have a Blown Head Gasket
Beyond the compression readings, several signs can accompany a suspected gasket failure. Look for coolant loss without a visible leak, white smoke from the exhaust, milky oil on the dipstick, overheating after short drives, or misfires on multiple cylinders. A compression test blown head gasket often explains sudden pressure changes alongside these symptoms. Keep in mind that similar signs can appear with valve problems or warped heads, so rely on the pattern and the actual compression numbers rather than a single symptom. Document readings meticulously; they become the backbone of your repair plan and help when discussing options with a shop.
Tools and Safety for a Compression Test
Before you start, assemble a few essentials: a calibrated compression gauge, the vehicle service manual’s cylinder spec, a torque wrench, and basic hand tools. Safety comes first: wear eye protection, gloves, and ensure the engine is cool and the battery is disconnected. If you are testing a modern vehicle, consult the service manual for ignition cut-off procedures to disable fuel or ignition without triggering fault codes. Avoid cranking the engine for more than a few seconds per cylinder to prevent fouling the gauge. Keep your work area clean and wear gloves to protect against hot surfaces and sharp edges. A clean, dry environment also reduces the risk of introducing dirt into the cylinders.
Preparing Your Vehicle for Testing
Preparation is essential for accurate results. Park on a flat surface, engage the parking brake, and allow the engine to cool completely. Remove the engine cover and disconnect the battery's negative terminal. Remove the spark plugs (one by one) to facilitate easier cranking and to prevent compression readings from being affected by ignition. If your vehicle has a fuel injection system, disable fuel delivery per the manual to avoid spray during cranking. Inspect the spark plug wells and cylinder head for signs of coolant intrusion or oil contamination. A clean, dry spark plug hole helps ensure the gauge reads true compression.
Dry vs Wet Compression Test: How to Read the Data
A dry compression test measures cylinder pressure with no added oil. Compare all cylinders to factory spec; a 10-20% drop alone may indicate a problem, but multiple correlated drops are more telling. A wet compression test adds a small amount of clean engine oil into the cylinder and is used to distinguish valve/seat issues from worn rings. If the reading improves significantly with oil, it suggests piston rings or cylinder walls are the issue rather than the gasket. Remember: always perform multiple readings for each cylinder and record the highest stable value. Consistency across the majority of cylinders supports a gasket repair or further diagnostics, while isolated drops point toward a targeted fix.
Interpreting the Results: What the Numbers Mean
Readings must be compared to the engine’s spec in the service manual. A healthy engine will show similar compression across all cylinders. A compression test blown head gasket often presents one or more cylinders with a notable drop and an unmistakable pattern near the affected area. If the test suggests a gasket issue, you should consider a leak-down test to pinpoint the exact location and degree of leakage. Correlation with other signs (coolant in oil, frothy oil, overheating) strengthens the case for gasket-related failure. Never rely on a single number; the trend and pattern are what guide the fix.
Common Pitfalls and Safety Considerations
Avoid cranking the engine for long periods, which can heat components and skew readings. Do not reuse old or damaged compression gauges, as faulty readings mimic genuine problems. When dealing with potential gasket issues, avoid driving the car long distances; the risk of catastrophic engine damage increases with continued operation. If you observe continuous coolant loss, white exhaust, or visible oil in the cooling system, stop immediately and seek professional help. Always keep the area dry and clean to prevent dirt from entering the cylinders or the gauge.
When to Seek Professional Help and What to Expect Next
If the compression test indicates a blown head gasket, the next step is to plan a gasket replacement with proper head inspection and resurfacing if required. This job typically requires a trained mechanic or machine shop equipped for head cleaning, gasket seating, and torque specification verification. A professional assessment confirms head warp or cracking, and ensures whether deck resurfacing is needed. If the vehicle is older or heavily damaged, weigh the costs against replacement and consider a rebuilt engine option. Gasketed recommends consulting multiple shops for quotes and asking about head torque specs, gasket types, and warranty coverage.
Prevention Tips to Avoid Future Failures
Regular maintenance is your best defense against head gasket failures. Keep cooling systems clean and leak-free, monitor coolant levels, and fix any overheating promptly. Use the correct coolant type and maintain proper pressure in the cooling system. Address minor oil leaks quickly, as oil contamination in the cooling system can compromise gasket integrity. Finally, use high-quality gaskets and sealants when performing any gasket work, and always torque bolts to spec using the manufacturer’s sequence.

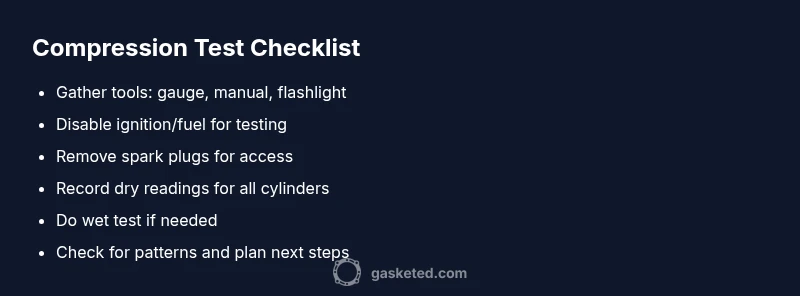

Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace and safety gear
Park on a flat surface, cool engine, disconnect the battery, and gather tools. Remove the engine cover if present and lift spark plugs out for easy cranking. This ensures clean, uninterrupted compression readings.
Tip: Label each plug or cylinder to avoid mix-ups later. - 2
Disable ignition and fuel (if applicable)
Consult your manual to neutralize ignition or fuel injection so the engine can crank without starting. This prevents raw fuel from distorting readings and keeps the test safe.
Tip: Double-check that the ignition is fully disabled before cranking. - 3
Attach the compression gauge
Screw the gauge tight into each cylinder’s spark plug bore, ensuring a good seal. Crank the engine with the throttle fully open and observe the gauge within a few seconds per cylinder.
Tip: Crank in slow, even motions and avoid over-cranking to prevent gauge damage. - 4
Record dry readings across all cylinders
Note the peak pressure for each cylinder in a consistent order. Record any readings that diverge more than the engine spec or stand out as outliers.
Tip: Use the same gauge and technique for every cylinder. - 5
Perform a wet compression test (optional but recommended)
Add a small amount of clean engine oil into the cylinder, then retest. If readings improve, rings may be the issue rather than a gasket.
Tip: Only add a few milliliters to avoid hydro-locking the cylinder. - 6
Compare results and evaluate patterns
Look for a single low cylinder or a contiguous group with low readings. A gasket problem often presents as a localized drop with consistent measurement across other cylinders.
Tip: Create a quick chart to visualize patterns. - 7
Decide next steps
If readings indicate a gasket issue, plan for a leak-down test or head gasket replacement with professional evaluation of head warp.
Tip: Document all data to share with a shop for accurate quotes.
Diagnosis: Engine shows low compression on one or more cylinders during a compression test, with possible overheating and coolant/oil cross-contamination.
Possible Causes
- highBlown head gasket causing loss of cylinder pressure
- mediumWorn piston rings or valve seats
- lowCracked or warped cylinder head
- lowIntake/exhaust valve leak or gasket issue around the affected cylinder
Fixes
- easyConduct a dry compression test across all cylinders with a calibrated gauge to establish baseline readings
- easyPerform a wet compression test by adding a small amount of engine oil and retesting to differentiate rings vs gasket failure
- mediumRun a leak-down test to pinpoint whether the issue is gasket, head warp, or valve, and locate the exact leakage path
- hardIf gasket failure is confirmed, plan a head gasket replacement with proper head resurfacing and torque verification
Common Questions
What does a low compression reading really mean?
Low readings suggest the cylinder cannot hold pressure, which can be due to a blown head gasket, worn rings, or valve issues. The pattern across cylinders helps pinpoint the exact cause.
Low compression means the cylinder can’t hold pressure, often due to gasket or valve issues. Look for patterns across cylinders to confirm.
Can a compression test prove a blown head gasket alone?
A compression test strongly suggests a gasket problem but is not definitive. Additional tests like a leak-down test or coolant/oil analysis are typically needed for confirmation.
The compression test strongly suggests a gasket issue but you’ll usually need more tests to confirm.
Is a wet compression test better than a dry test?
The wet test helps distinguish rings from a gasket problem by re-testing with oil. If readings rise, rings may be the issue; if not, a gasket or head problem is more likely.
A wet test can help tell if rings or a gasket are the issue.
Should I drive the car if I suspect a blown head gasket?
No. Driving with a suspected blown head gasket can cause severe engine damage, including coolant and oil mixing and overheating. Seek professional evaluation promptly.
Do not drive it; get a professional check as soon as possible.
Will I need to remove the head to fix a blown gasket?
In most cases, a blown head gasket requires removing the cylinder head for gasket replacement and possible head resurfacing. A professional shop can confirm the extent of head damage.
Usually the head must be removed to replace the gasket and inspect for warp.
What safety steps should I prioritize during testing?
Always test with the engine cool, disconnect the battery, and wear eye protection. If the vehicle is modern, disable fuel/ignition per the manual to prevent accidental ignition.
Cool engine, disconnect power, wear protection, and follow manual guidelines for safety.
Watch Video
Key Takeaways
- Perform a dry and wet compression test for accuracy
- Look for localized low readings to indicate gasket issues
- Use leak-down tests to confirm the root cause
- Plan head gasket replacement with shop support if indicated
- Prevent future failures with proper maintenance
