Gasket Head Replacement: A DIY Guide
Learn how to perform gasket head replacement safely with a clear, step-by-step approach. This guide covers tool lists, parts selection, process overview, safety notes, and practical tips for a successful gasket head replacement as a DIY project.
In this guide you will learn how to perform gasket head replacement with a patient, stepwise approach. You’ll assess the need, gather the right tools, drain coolant safely, reseat new gasket, torque the head properly, and test for leaks. This DIY task is feasible for confident home mechanics with a clean workspace.
What is gasket head replacement and why it matters
The head gasket sits between the engine block and cylinder head. It seals coolant and oil passages and maintains compression in the combustion chamber. When it fails, you can see white smoke, coolant leaks, overheating, misfires, and milky oil. Replacing the head gasket restores gasket integrity and prevents further damage to the cylinders and pistons. According to Gasketed, performing a proper gasket head replacement is a precise, multi-step task that pays off with a reliable engine and fewer leak-related headaches. The job requires careful cleaning, the correct gasket set for your engine, and accurate torque in a prescribed sequence. By planning ahead, you limit the risk of head warpage or gasket misalignment, which are common causes of a failed repair.
When to DIY vs. professional service
Gasket head replacement is within reach for a motivated DIYer, but it’s not a casual weekend project. If your head has signs of warpage, a cracked head, or a coolant/oil contamination that suggests a severe engine issue, professional service is recommended. Even when the engine appears salvageable, you’ll save time and frustration by inspecting the head surface, valley, and deck for flatness and cleanliness. In many modern engines, specialized tools and torque sequences are required, which favors a careful, patient approach rather than rushing the job. Consider your workshop space, lighting, and cleanliness—these factors strongly influence success. If you’re uncertain, start with a simpler gasket replacement on an older or smaller engine before attempting a modern, interference-fit design.
Tools, materials, and workspace setup
A head gasket replacement requires a dedicated workspace, organized components, and the right tools. Prepare a clean bench area, generous lighting, magnetic parts trays, and a reliable storage method for fasteners. Having a service manual on hand for torque specs, bolt sequence, and gasket orientation is essential. Keep a notepad or camera to document routing and positions of hoses, sensors, and cables. This reduces mistakes during reassembly and speeds up the troubleshooting phase if leaks appear after reassembly. Remember to work in a well-ventilated space and wear PPE such as eye protection and gloves.
Selecting gaskets, sealants, and related parts
Choose a gasket set designed specifically for your engine model—OEM or equivalent high-quality aftermarket options. Verify that the head gasket, intake/exhaust gaskets, valve cover gasket, and any required seals are included. If your engine requires a sealant, follow the manufacturer’s recommendations, and avoid over-application which can clog passages. Inspect the cylinder head and engine block deck surfaces for warping or pitting; resurfacing may be necessary if surfaces are out of spec. When in doubt, consult the service manual or a trusted technician for guidance on gasket thickness and material (graphite, multi-layer steel, or composite).
Step-by-step overview: high-level flow of the process

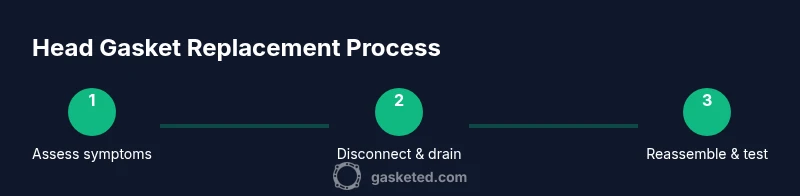

The typical flow for gasket head replacement begins with a full system assessment and coolant/oil drainage, followed by removing components that shield the head, such as the intake, exhaust manifolds, and valve cover. After removing the cylinder head, you’ll inspect the surface, clean all gasket remnants, install the new gasket in the correct orientation, and reassemble with the correct torque sequence. Finally, refill cooling and lubrication fluids, perform a leak test, and run the engine to operating temperature to verify proper operation. This overview is designed to set expectations and prepare your plan before you begin the hands-on steps.
Safety, common mistakes, and maintenance tips
Always disconnect the battery before starting and avoid forcing bolts, which can snap studs or warp the head. Common mistakes include reusing old bolts, skipping surface cleaning, and not torque-sequencing correctly. Keep fasteners organized in labeled bins and reference the torque order precisely from the service manual. After completion, perform a pressure test for leaks and monitor for coolant or oil consumption over the first few days of operation. Regular maintenance, including coolant flushes and oil changes, helps extend gasket life and reliability.
AUTHORITY SOURCES
For additional grounding, consult established automotive resources:
- https://www.nhtsa.gov/road-safety/vehicle-maintenance
- https://www.ase.com/
- https://www.consumerreports.org/cars-maintenance/repair-troubleshooting-guide/
Tools & Materials
- Socket set (metric and SAE)(Deep sockets; 6-point recommended)
- Torque wrench(Calibrated; torque sequence per manual)
- Breaker bar(For initial bolt loosening)
- Head gasket set(OEM-spec or high-quality aftermarket)
- Gasket scraper (plastic blade)(Avoid aluminum scratches)
- Feeler gauge or thickness gauge(Check valve train clearances if needed)
- Sealant (if required)(As per engine manual; avoid excess)
- Coolant and engine oil(New coolant; fresh oil and filter)
Steps
Estimated time: 2-6 hours
- 1
Prepare workspace and safety measures
Set up a clean, well-lit workspace. Disconnect the battery and drain coolant and oil as required by your engine’s service manual. Gather tools and parts in labeled containers to prevent misplacement.
Tip: Keep a photo log of hose connections before removal. - 2
Remove components to access the head
Remove the intake manifold, exhaust headers, valve covers, and any brackets obstructing access to the head. Label hoses and connectors to simplify reassembly. Take note of torque specs for any fasteners you remove.
Tip: Work methodically; place bolts in labeled bags by location. - 3
Loosen and lift the cylinder head
Loosen head bolts in the correct sequence using a breaker bar, then gradually loosen to relieve stress. Lift the head evenly and place it on a clean surface. Inspect the head and block surfaces for warping or damage.
Tip: Do not skip the service manual torque sequence; misordering can warp the head. - 4
Clean surfaces and install new gasket
Clean the deck and head surfaces with a plastic scraper and solvent. Ensure all oil and coolant passages are debris-free. Install the new gasket in the correct orientation as per manual.
Tip: Ensure gasket faces are dry and free of contamination. - 5
Reassemble you engine components
Reverse the removal steps to reinstall the head, manifold, and covers. Torque head bolts in the specified sequence, gradually increasing torque per step. Recheck all fasteners after initial startup cooldown.
Tip: Use a torque-angle method if required by your engine. - 6
Refill fluids and test run
Refill coolant and oil with fresh fluids. Reconnect the battery and start the engine, monitoring for leaks and abnormal noises. Perform a pressure test and coolant leak test after warm-up.
Tip: Bleed air pockets from the cooling system if applicable. - 7
Final inspection and maintenance
Check for oil in the coolant and look for white exhaust indicating leaks. Double-check for signs of head warp and ensure proper idle and timing. Replace components if you notice issues.
Tip: Keep performance logs for future maintenance. - 8
Document everything for future reference
Record torque specs used, gasket part numbers, and any deviations from the manual. Store service notes with vehicle records for resale and future maintenance.
Tip: Take high-quality photos of the reassembled engine bay for future reference.
Common Questions
What is a head gasket and why replace it?
The head gasket seals the cylinder head to the engine block, preventing coolant and oil leaks and maintaining compression. A blown gasket can cause overheating, white smoke, and engine damage. Replacement is recommended when diagnostic tests indicate a failure.
A head gasket seals the engine and prevents leaks; a blown one can lead to overheating and engine damage.
Can I replace a head gasket myself?
Yes, with the right tools, surface inspection, and torque knowledge. It’s a complex job, so consider your experience level and be prepared for a full-day project on many engines.
Yes, but it’s a complex job that can take a full day or more depending on the engine.
How long does head gasket replacement take?
Expect several hours to a full day, depending on engine layout and your familiarity with the process. Plan for a patient, methodical workflow rather than rushing.
It can take several hours to a full day, depending on engine layout and experience.
What torque specs are required?
Torque specs vary by engine; consult the service manual for your specific model and follow the prescribed sequence. Use a calibrated torque wrench for accuracy.
Specs vary by engine; refer to the service manual and torque precisely.
Should I replace the timing components during this repair?
If advised by the service manual or if timing marks are exposed during head work, inspect or replace timing belt/chain and related tensioners to ensure proper alignment on reassembly.
Timing components may need inspection or replacement if exposed during head work.
What are signs of a failed head gasket after repair?
Watch for coolant leaks, white exhaust, overheating, or milky oil after startup. If symptoms persist, recheck compression and leak tests and consider professional evaluation.
Watch for leaks or overheating after startup; recheck if symptoms persist.
Watch Video
Key Takeaways
- Plan ahead and organize parts before disassembly
- Follow OEM torque Specs for reliable results
- Label hoses and wires to simplify reassembly
- Test for leaks after refilling fluids
- Document all steps for future maintenance
