How to Find Gasket Size: A DIY Guide

Understanding gasket sizing basics

According to Gasketed, gasket sizing hinges on three core dimensions: bore, outside diameter (OD), and thickness. If the gasket sits in a groove or seal surface, you also need groove width and groove depth. For non-flat gaskets like O-rings or flange gaskets, you’ll encounter cross-section (thickness) and inner diameter. Recognize that the mating surface must be flat and clean to avoid measurement errors. Start by noting the component and gasket type, as this guides which measurements matter most (for example, a flange gasket relies heavily on OD and thickness, while an O-ring is defined mainly by ID and cross-section).

Accurate sizing reduces leaks, improves engine or appliance performance, and saves time during repairs. The Gasketed team emphasizes that consistency in measurement units (inches vs millimeters) and rechecking with a second method are simple habits that pay off in accuracy. When you’re unsure, leaning on OEM specifications or a trusted gasket kit helps you avoid common misfits and the frustration of returning parts.

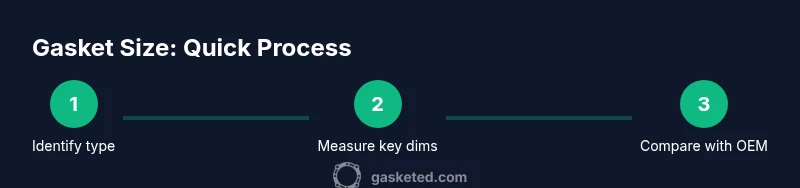

Common sizing methods

There are several reliable routes to finding gasket size, and which method you choose often depends on what information you already have. If you have access to the original equipment manufacturer (OEM) part number, you can search the official spec sheet or parts catalog for exact dimensions. When the part number is missing, you can use the old gasket as a template if it’s intact; lay it flat on a ruler or caliper to capture OD, ID, and thickness. Another common method is to reference the service manual or repair guide for the specific appliance or engine, which frequently lists gasket dimensions and compatible material options. In many cases, suppliers and gasket kits provide size charts that map part numbers to standard gasket dimensions. The key is to document which size corresponds to your exact model and material requirements, so you don’t guess your way into a leak.

If you’re replacing a gasket after disassembly, track the exact location and orientation. Gasket shapes differ (round, rectangular, or irregular), and the orientation affects the seal surface. Modern repair guides often suggest keeping a labeled parts tray to avoid mismatches. As you compare options, consider material compatibility with fluids and temperatures, because a gasket that matches size but uses an unsuitable material can fail sooner than expected.

Measuring with the right tools

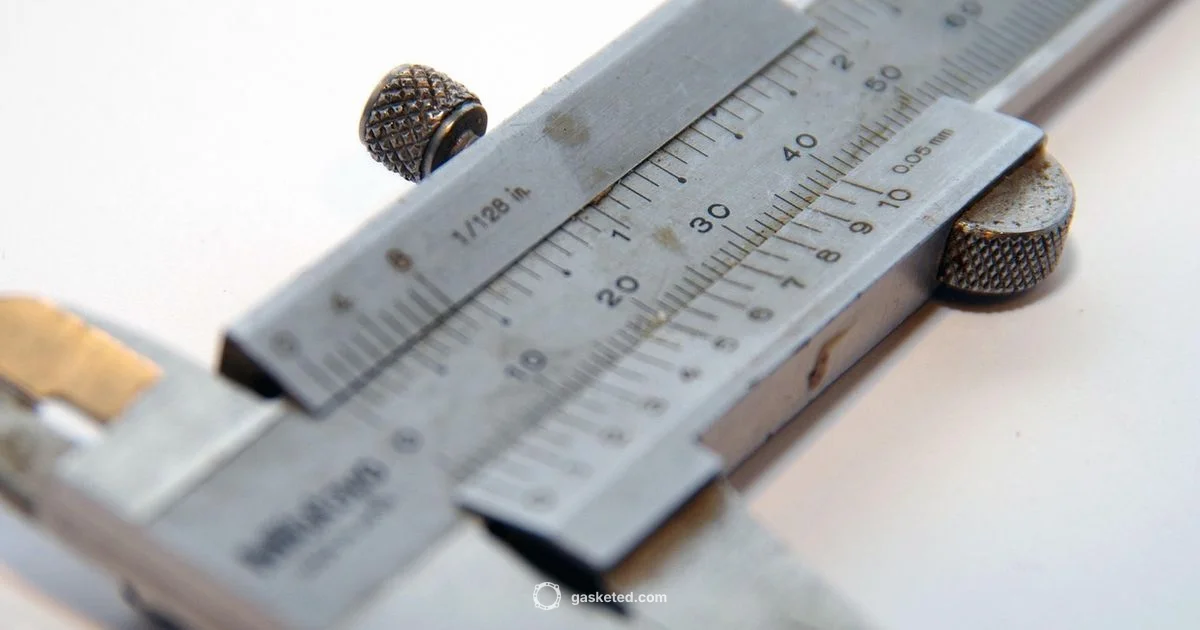

Precision matters in gasket sizing, so choose the right tools for accurate measurements. A digital or dial caliper is ideal for measuring bore and OD with a resolution of 0.01 in (0.25 mm) or better. Use a rigid ruler for quick checks on larger diameters when a caliper isn’t practical. If you’re measuring a groove, a groove gauge or calipers can help you determine width and depth without risking damage to the seating surface. When in doubt, take multiple measurements at different points around the circumference to catch irregularities or a slightly oval bore. Remember to zero your caliper on clean, flat surfaces and to convert units if your calipers display metric while your chart uses imperial measurements.

For thickness, measure the gasket while it’s out of the groove, lying flat. If you must measure in place, use a feeler gauge or a single-thickness reference from the kit. Document measurements in both metric and imperial units to cross-check with supplier charts. If you’re unsure about which dimension is critical for your part, start with the OEM spec sheet and compare the measured values side by side. A well-documented measurement set reduces the risk of ordering an incorrect size.

Alternative options when the old gasket is unavailable

If the old gasket is missing or damaged beyond readable dimensions, you still have reliable options. First, consult the repair manual or OEM data for the exact model—many manuals list gasket size by component. If the model is older or rare, contact the manufacturer or a certified parts supplier; they can provide an equivalent gasket with validated dimensions. A gasket kit designed for your appliance or engine often includes seals that cover a range of sizes; selecting the closest match within the kit’s tolerance can be acceptable, but avoid forcing a gasket into a non-conforming seat. When guessing, prioritize gaskets with precise cross-section and ID/OD that align with the seating groove geometry. Finally, if you cannot locate specs, measure an identical component in a machine of the same series and compare the three key dimensions (ID, OD, thickness) and cross-reference with supplier charts.

In all cases, verify the fit on a non-operational test before running the system. This reduces risk and helps you confirm that the gasket seats correctly without leaks.

Special cases: non-standard grooves, o-rings, and flange gaskets

Not all gaskets are flat rings. O-rings, for example, are sized by inner diameter (ID) and cross-section (CS). If you’re dealing with an O-ring or a gasket that rides in a groove, remember that groove dimensions can change effective seal size. For flange gaskets, OD is critical, but the bolt hole pattern and compression distance matter for proper seating. When an O-ring sits in a groove, ensure the cross-section matches the groove width and the ID matches the bore it seals. In some cases, you’ll encounter mixed materials (metal core with a rubber seal) where the thickness and cross-section influence compressibility more than surface area. Always check for compatibility with the sealant options and the fluids involved; some combinations require higher-temperature or chemical-resistant materials to prevent premature wear. If in doubt, consult OEM specs or a gasket specialist, as wrong material or incorrect cross-section can cause leakage or rapid failure.

Double-checking your measurements and getting it right the first time

Before ordering, cross-check the measured values against the OEM’s published dimensions or the gasket kit’s size chart. Use at least two independent measurement methods (e.g., calipers and a template) to confirm accuracy. A dry-fit test can help you verify seat alignment and compression expectations; if the gasket doesn’t sit flush without resistance, stop and re-check your measurements. Consider the sealing surface condition—dents, scratches, or corrosion can alter the effective seal, requiring a different gasket size or a surface recondition. Finally, pay attention to material compatibility with the fluids and operating temperatures the part will encounter. This reduces the chance of premature failure and extends the life of the repair.

Safety, care, and maintenance tips

Gasket sizing is straightforward, but always observe safety practices when disassembling components. Depressurize systems, wear eye protection when working with pressurized lines, and keep track of small parts that could fall or get damaged. Clean seating surfaces thoroughly to avoid contaminants that mimic dimension changes. Store measurement records and reference diagrams in a labeled kit to speed future projects. Regular maintenance, including periodic gasket checks and replacements, helps prevent leaks and avoids costly damage from undetected seal failures.
