How to Gasket Match Intake Manifold: A DIY Guide
Learn how to gasket match intake manifold with this DIY guide from Gasketed. This step-by-step tutorial covers tools, surface prep, gasket seating, torque basics, and common mistakes to avoid.

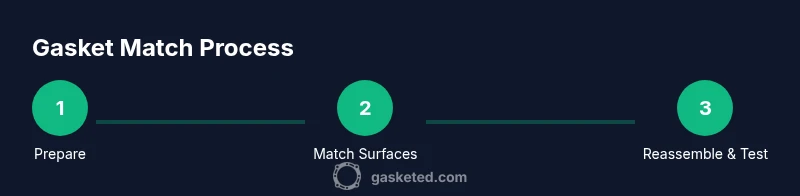

This guide shows how to gasket match intake manifold. You’ll identify the correct gasket, clean and inspect both mating surfaces, verify flatness, align the gasket, seal where recommended, and follow a proper torque sequence during reassembly. The result is a reliable, leak-free seal.
Why gasket matching matters for intake manifolds
A properly gasket matched intake manifold ensures a smooth seal between the manifold and the engine block. When the mating surfaces are not prepared or the gasket is the wrong thickness, vacuum leaks can develop that cause rough idle, misfires, or loss of performance. For homeowners, gasket matching means verifying that the gasket type and thickness are appropriate for the engine and that the seal sits flat across all ports. According to Gasketed, surface cleanliness and consistent compression are two of the most overlooked factors in a repair like this. Even tiny deviations in surface flatness can translate into big leakage paths once heat cycles begin. The goal is to create a continuous sealing plane that supports even gasket compression around every port. This reduces the chance of edge lifting or gasket squeeze that can pinch off passages and create leak paths. In practice, gasket matching involves choosing the right gasket, inspecting the mounting surfaces, and following a careful reassembly sequence to ensure the gasket seats evenly and remains in place during startup.
Understanding gasket types for the intake manifold
Intake manifolds use a variety of gasket materials, including rubber, composite, and MLS (multi-layer steel) designs. The material choice affects how you approach gasket matching because different materials tolerate different edge finishes, sealing beads, and sealants. The basic idea of gasket matching remains the same: the gasket must sit flush with the manifold and head without rocking or cupping at any edge. When you replace a gasket, verify that the new part matches the vehicle’s original specification; aftermarket variants sometimes differ in thickness or port alignment. If the gasket is thinner than the old one, you may create a gap that invites leaks; if it’s thicker, you risk contacting valve stems or twisting the manifold. Take time to compare the old gasket to the new one, paying attention to port cutouts and edge radii. Finally, check whether your gasket kit requires sealant on certain edges or if the surfaces should be dry. Following the gasket manufacturer’s instructions will prevent mistakes that cause failures later.
Tools and workspace preparation
Set up a clean, well-lit workspace with a tray for fasteners and a clear plan for each step. Before you begin, disconnect the negative battery terminal to protect against short circuits when sensors and wiring harnesses are disturbed. Gather the essential tools and materials: a torque wrench, a full socket and ratchet set, screwdrivers, a plastic scraper, lint-free rags, a solvent or degreaser, a straightedge or feeler gauge, and a replacement intake manifold gasket set. Use a magnetic tray or labeled bags to keep bolts organized by location. Keep a repair report handy to note any unusual findings, such as warped surfaces or damaged ports. Finally, ensure you have disposable gloves and eye protection, since gaskets and solvents can irritate skin and eyes. This preparation reduces the risk of dropped fasteners, accidental contamination, and rework later in the job.
Surface prep and inspection
Begin by removing any old gasket material from the mating surfaces using a plastic scraper. Do not use metal tools that could scratch or warp the metal. Wipe down both mating surfaces with a clean solvent and allow them to dry completely. Use a straightedge or a dial indicator to check flatness; look for light gaps or a rocking edge. If you detect warping or pitting, address it before continuing; warped surfaces often require professional resurfacing or a gaskets replacement. Once the surfaces are clean and flat, perform a final wipe with a lint-free cloth to remove any last traces of debris. The goal is to have pristine, dry surfaces so the new gasket can seal correctly with even compression.
Gasket alignment and sealing strategy
Place the gasket on the manifold in the orientation specified by the manufacturer, matching port cutouts to their corresponding ports on the head. Use light, even pressure to seat the gasket and avoid sliding it off alignment. If dowel pins or alignment features exist, reuse them to prevent misalignment. For most gasket types, you will seal only where the gasket and surface require it; in many modern kits, no sealant is necessary. If the kit calls for sealant on specific edges, apply a thin, continuous bead along the edges as directed—avoid excess that could squeeze into the ports. As you position the manifold, double-check that bolts align with their threaded holes without forcing. A misaligned gasket is a common source of leaks and should be corrected before final assembly.
Reassembly: torquing and sealing
Bring the manifold into position and install the bolts by hand to avoid cross-threading. Tighten bolts in a criss-cross or star pattern, moving gradually from one side to the other. Perform two to three passes, increasing tightness with each pass until the manufacturer’s torque specification is reached. Do not over-tighten, and never reuse old bolts if the kit provides new ones. After the initial torque, allow the parts to sit for a short interval if recommended by the gasket manufacturer, then perform the final torque check. Reconnect any electrical connections, hoses, and sensors exactly as you found them. Finally, reconnect the negative battery terminal before starting the engine for the first time after reassembly.
Leak testing and validation
With the engine off, verify that the gasket seats are clean and dry, then start the engine and let it reach normal operating temperature. Listen for whistle or hiss noises that indicate a vacuum leak, and inspect around the intake ports for signs of fresh seepage. A simple soap-and-water spray or a visual leak test with a smoke machine helps locate any remaining leaks. If a leak is detected, shut off the engine, recheck gasket seating, and re-torque if required by the kit instructions. For best results, perform a brief idle test and a light rev to ensure consistent seal across the RPM range. If the manifold continues to leak, consider removing and redoing the gasket with new parts.
Troubleshooting common failures
Common failures after gasket matching include leaks at the gasket edge, bolt pockets that were over-tightened, and warped mounting surfaces. Gasketed analysis shows that improper surface prep or using the wrong gasket thickness are typical causes of failure. If you find a leak, re-clean the surfaces, verify that the gasket is the correct size and thickness, and inspect for any burrs or debris in the port openings. If you cannot seal the manifold after a second attempt, you may need professional resurfacing or a replacement gasket set. Also, always confirm that you used the correct torque pattern and no sealant in areas that should be dry. Following the steps above will minimize rework and help you deliver a durable, leak-free seal.
Tools & Materials
- Replacement intake manifold gasket set(Ensure it matches engine model and factory specs)
- Torque wrench(0-150 ft-lb range is common; verify compatibility with your bolts)
- Socket set and ratchet(Metric sizes likely; include deep sockets for clearance)
- Screwdrivers (Phillips and flat-head)(For clamps and sensor housings)
- Plastic scraper or nylon scraper(Avoid metal tools to prevent surface damage)
- Lint-free rags and shop towels(For cleaning and drying surfaces)
- Engine degreaser or solvent(Non-residue cleaner suitable for aluminum)
- Feeler gauge or straightedge(Check flatness of mounting surfaces)
- Safety gear (gloves and eye protection)(Protect hands and eyes from chemicals and debris)
- Magnetic parts tray(Keeps bolts organized by location)
- Gasket sealant or RTV (per gasket spec)(Only if the kit specifies; many gaskets are dry-sealed)
Steps
Estimated time: 2-4 hours
- 1
Prepare workspace
Set up a clean, well-lit area. Disconnect the negative battery terminal to prevent shorts, and label hoses and bolts. Gather all tools and parts, verifying you have the replacement gasket kit.
Tip: Label fasteners by location to simplify reassembly. - 2
Remove intake manifold
Carefully detach hoses, sensors, and clamps. Remove mounting bolts in a logical sequence, keeping track of their positions. Set the manifold aside without bending any fuel or vacuum lines.
Tip: Take photos during removal to reference later. - 3
Inspect mounting surfaces
Clean any remnants of old gasket using a plastic scraper. Inspect for warping or cracks with a straightedge. If surfaces are not flat, address before proceeding.
Tip: A warped surface will cause leaks even with a new gasket. - 4
Check gasket type and thickness
Compare the new gasket to the old part and verify thickness and port alignment. If wrong, obtain the correct kit before continuing. Ensure the gasket will seat without forcing.
Tip: Thicker or thinner gaskets can alter sealing gaps severely. - 5
Dry-fit and align gasket
Place the gasket on the manifold and align ports with their corresponding heads. Use any dowel pins if provided to lock position. Confirm no edges overhang and that the gasket sits flat.
Tip: A misaligned gasket will instantly leak after installation. - 6
Apply sealant if required
If your kit or gasket type requires sealant, apply a thin, even bead to edges specified by the manufacturer. Avoid excess that can contaminate ports or be drawn into the engine.
Tip: Follow the exact bead location and amount to avoid leaks. - 7
Reinstall manifold and torque bolts
Position the manifold and start bolts by hand to prevent cross-threading. Tighten in a criss-cross pattern in multiple passes until you reach the specified torque. Do not over-tighten and avoid reusing old bolts if new ones are provided.
Tip: Use a star pattern and verify each step before moving on. - 8
Test for leaks and function
Reconnect electricals and hoses, then reconnect the battery. Start the engine and reach operating temperature. Check for vacuum leaks with a spray test or smoke test and verify idle stability.
Tip: A successful test means no hiss and stable idle at temperature.
Common Questions
Do I need sealant when gasket matching the intake manifold?
Sealant requirements depend on gasket material and manufacturer recommendations. Many modern gaskets are dry-sealed and do not require sealant on the mating edges. If sealant is advised, apply only to specified edges with a thin bead.
Sealant depends on the gasket type and the manufacturer; many gaskets are dry-sealed, so check the kit instructions.
Can I reuse an intake manifold gasket?
In most cases, reuse is not recommended. A new gasket ensures a proper seal and avoids hidden damage. If the gasket is damaged or deformed, replace it with the correct part.
Usually you should replace the gasket rather than reuse it to avoid leaks.
How can I tell if mounting surfaces are flat?
Use a straightedge and feeler gauge to check for light gaps or rocking. If you detect warping, address it before continuing. Flat surfaces are essential for a reliable seal.
Check with a straightedge and feeler gauge for any warping or gaps.
How long does gasket matching typically take?
Time varies by vehicle and access, but most DIY gasket matches take several hours. Plan for 2-4 hours and include a test run after reassembly.
It usually takes a couple of hours, depending on access and vehicle design.
What are signs of a failed gasket match after reassembly?
Common signs include vacuum leaks, rough idle, misfires, coolant or oil leaks near the intake, or a persistent check-engine light after startup.
Watch for vacuum leaks or rough idle after starting the engine.
Watch Video
Key Takeaways
- Prepare and label closely to reduce rework
- Ensure gasket type matches and is flat
- Follow a proper torque sequence in multiple passes
- Test for leaks thoroughly after reassembly
- Keep surfaces clean and dry for best sealing
