Replace Intake Manifold Gasket: DIY Step-by-Step Guide
Learn how to replace the intake manifold gasket with a safe, technique-driven approach. This DIY guide covers symptoms, tools, disassembly, gasket installation, reassembly, testing, and tips to avoid common mistakes.
Goal: replace intake manifold gasket to seal the intake tract and prevent vacuum leaks. This quick guide outlines symptoms, required tools, and a practical, step-by-step process to safely remove the manifold, install a new gasket, and verify a leak-free seal. Designed for DIY enthusiasts, the method emphasizes careful cleaning, proper torquing, and reliable testing. The Gasketed team supports you throughout the repair.
Why replacing the intake manifold gasket matters
A faulty intake manifold gasket can allow air, coolant, or vacuum leaks that degrade engine performance, cause rough idle, misfires, or coolant consumption. Replacing the gasket restores proper sealing and helps protect the intake runners, throttle response, and overall engine efficiency. Doing this repair correctly reduces the risk of long-term damage to intake valves and the cooling system. According to Gasketed, a careful gasket swap when symptoms appear preserves engine health and helps maintain fuel economy over time.
In many modern engines, the gasket also interfaces with coolant passages. If you see white exhaust vapor, coolant smell in the engine bay, or unexplained engine temp changes, consider a gasket inspection as part of your diagnostic workflow. A well-executed swap uses manufacturer-recommended gasket materials and torquing patterns, which are essential for longevity and leak prevention.
Symptoms that point to a faulty gasket
Identifying gasket trouble early saves time and parts. Common signs include ongoing coolant loss with no visible leak, white or sweet-smelling exhaust, coolant in the oil, rough idle or misfires, and decreased engine performance under load. You may also notice a vacuum leak indicated by high idle speed fluctuations or a check engine light related to air-fuel ratio sensors. Always perform a pressure or smoke test when in doubt to confirm the leak path. Early confirmation helps avoid damage to the throttle body, intake manifold, and related seals.
For DIYers, documenting symptom progression with photos and notes makes the replacement process smoother. Remember that engine variants differ; a gasket designed for one engine family may not fit another, so verify compatibility before purchasing parts.
Safety and prep before you begin
Work in a well-ventilated area with the engine cool. Disconnect the negative battery lead before touching electronics or fuel lines to reduce the risk of short circuits. Wear safety glasses and gloves to guard against coolant, oil splashes, and sharp edges. Gather the required tools and parts in advance, then label fasteners and hoses to ease reassembly. Finally, review the service manual for torque specs and the correct gasket orientation to avoid leaks or misalignment. As you proceed, plan for coolant drainage if your engine uses coolant passages near the intake manifold.
Planning and disassembly overview
Begin with a plan: identify all components that obstruct access to the intake manifold, such as air intake tubes, sensors, fuel rails, and hoses. Remove these parts methodically, keeping track of connectors and clips. Take reference photos during disassembly to simplify reassembly and avoid mixing up parts. Check the mating surfaces for damage, warping, or residue that could compromise the new gasket. This preparation reduces reassembly errors and helps ensure a clean seating surface.
Removing the intake manifold
Loosen bolts in the correct sequence and with appropriate tools to avoid warping the manifold. Lift the manifold carefully to free it from the gasket and any coolant passages, if applicable. Inspect the old gasket to determine its failure mode (cracking, squeezing, or deterioration). If any bolts show signs of wear or thread damage, address them before continuing. Have a helper ready for lifting if space is tight or the manifold is heavy.
Pro tip: Use penetrating oil on stubborn bolts, then apply steady, controlled force with a balanced wrench to avoid rounding edges.
Cleaning, inspecting, and preparing surfaces
Once the manifold is removed, scrape away old gasket material with care using a plastic scraper to avoid gouging the metal surface. Clean all mating surfaces with a solvent compatible with the gasket material, then dry thoroughly. Check for nicks, scratches, or warp; if present, machine or replace components as needed. Ensure any coolant passages are clear and free of debris. A flat, clean surface is critical for a good seal.
Installing the new gasket and reassembly
Position the new gasket carefully, aligning it with the bolt patterns and passages. Reinstall the manifold and finger-tighten bolts before torquing in the proper sequence. Use a calibrated torque wrench and follow the manufacturer’s torque specs to avoid over-tightening or leaks. Reconnect sensors and hoses in the reverse order of removal. Refill any lost coolant and bleed the system if required by your engine design.
Refit, coolant fill, and leak testing
After the manifold is secured, reconnect the battery, start the engine, and monitor for leaks. Check for abnormal hissing sounds, coolant dripping, or oil contamination on the gasket surface. If leaks appear, recheck the torque pattern and gasket seating. A smoke or pressure test can help verify a complete seal. Let the engine reach operating temperature and perform a short test drive to confirm sustained performance.
Troubleshooting and maintenance tips
Common mistakes include reusing old bolts, applying sealant where not recommended, and rushing torque sequences. Always consult your vehicle’s service manual for specific torque specs and sequence. Store removed parts in labeled containers and reuse only genuine or manufacturer-approved gaskets and seals. Regularly inspecting the gasket area after a replacement can catch leaks early and extend engine life.
Tools & Materials
- Battery terminal tool or lug wrench(For safely disconnecting the negative battery connector.)
- Mechanic’s gloves(Protect hands from sharp edges and hot components.)
- Safety glasses(Eye protection against splashes and debris.)
- Socket set (metric and SAE)(Includes deep sockets for hard-to-reach bolts.)
- Torque wrench(Use to meet exact torque specs in sequence.)
- Torque angle gauge (if required by manual)(Some engines require angle-torque steps.)
- Gasket scraper (plastic or brass)**(Avoid metal gouges on mating surfaces.)
- Plastic scraper or nylon brush(Clean gasket residue from surfaces.)
- Gasket sealant (OEM-approved, if required)(Only use if manual specifies; some gaskets are self-sealing.)
- Engine degreaser or solvent(Remove oil/coolant residue from surfaces.)
- Rags and lint-free towels(Dry surfaces and wipe cleanly.)
- Coolant and drain pan(Capture coolant during drainage; have replacement coolant ready.)
- Marker or labels(Label hoses, connectors, and wires for reassembly.)
- Service manual(Torque specs and sequence are vehicle-specific.)
- New intake manifold gasket set(Ensure correct fitment for your engine model.)
- Anti-seize lubricant(Apply to bolts if recommended by manual.)

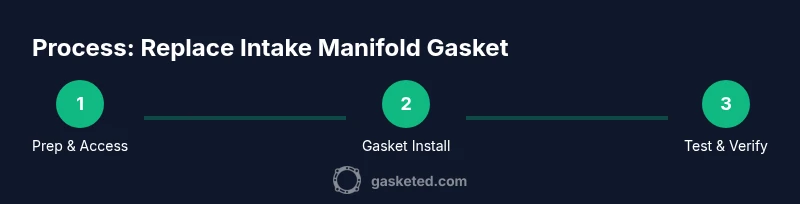

Steps
Estimated time: Total time: 3-6 hours
- 1
Disconnect battery
Begin by disconnecting the negative battery terminal to prevent accidental shorts while disconnecting electrical connectors near the manifold. This is a safety baseline that protects you and the electrical system. Tip: Take a photo of connectors before removal to simplify reassembly.
Tip: Label the disconnected terminal and keep it isolated from metal surfaces. - 2
Drain coolant (if required)
If your engine uses coolant passages that intersect the intake, drain a portion of the cooling system to prevent spills when the manifold is removed. Refill after resealing and check for air pockets. Tip: Place a drain pan under the radiator and open the drain valve slowly to minimize splash.
Tip: Check the service manual for whether coolant drainage is necessary for your engine. - 3
Remove obstructing parts
Loosen and remove components that block access to the manifold, such as air intake tubing, sensors, fuel rails, and hoses. Keep fasteners organized, using labeled bags or a magnetic tray. Tip: Keep track of all electrical connectors and take photos to guide reassembly.
Tip: Don’t force components; if something resists, reassess the access path. - 4
Detach the intake manifold
Loosen manifold bolts in the manufacturer’s recommended sequence. Keep them in order since some engines reuse specific bolts with different lengths or thread sizes. Tip: Have a helper lift gently to prevent bending or cracking the manifold.
Tip: Note any gasket or O-ring positions for proper seating. - 5
Remove old gasket and inspect surfaces
Carefully pry off the old gasket and inspect the mating surfaces for warping, nicks, or corrosion. Clean residue with a plastic scraper and solvent; ensure surfaces are dry and spotless before installing the new gasket. Tip: If you see damage beyond cleaning, plan for replacement parts before continuing.
Tip: Scratches can create leaks; if present, address before reassembly. - 6
Clean gasket surfaces
Thoroughly remove trace residues from both mating surfaces. A clean, flat surface ensures an even seal and proper gasket seating. Wipe surfaces dry and confirm no debris remains that could obstruct seal integrity. Tip: Use lint-free towels to avoid fiber contamination.
Tip: Avoid aggressive metal scraping; damage leads to leaks. - 7
Install the new gasket and reassemble
Position the new gasket with correct orientation. Reinstall the manifold and loosely thread bolts to allow even seating, then torque in the specified sequence to the manufacturer’s values. Tip: Use a torque wrench and follow the exact sequence to prevent warp or misalignment.
Tip: Double-check connections before the final torque step. - 8
Reconnect systems and refill coolant
Reconnect hoses, sensors, and wiring. Refill coolant as needed and bleed air from the cooling system if your engine requires it. Ensure all connections are secure before starting the engine. Tip: Run the engine at idle for a few minutes and monitor for leaks before a test drive.
Tip: Keep an eye on temperature gauge after the initial start. - 9
Test for leaks and verify operation
Start the engine and monitor for vacuum or coolant leaks. A smoke or pressure test can confirm sealing integrity. Take a short drive to verify smooth operation and consistent idle. Tip: If you detect leaks, recheck torque and reseat the gasket as needed.
Tip: Document the test results for future reference.
Common Questions
What are the signs that your intake manifold gasket is failing?
Look for coolant loss with no visible leaks, white exhaust vapor, rough idle, misfires, or a drop in fuel economy. A vacuum leak may also trigger a check engine light. If symptoms persist, perform a diagnostic test to confirm the gasket as the source.
Common signs include coolant loss without a trace and rough Idle; run a diagnostic to confirm the gasket is the culprit.
Can I reuse the bolts when reinstalling the intake manifold?
Most engines require bolts to be replaced or coated with anti-seize and torqued to a specific spec. Reusing bolts can lead to uneven clamping and leaks. Always follow the manufacturer’s torque sequence and bolt condition guidelines.
Usually, bolts should not be reused; follow torque specs for a proper seal.
Do I need to remove fuel injectors or other components to replace the gasket?
Some engines require removing the fuel rail or certain injectors for clearance, while others only need the air intake components moved aside. Consult your service manual for your exact model to minimize disassembly.
It depends on the engine; check your manual for injector clearance.
How long does a typical intake manifold gasket replacement take?
For a competent DIYer with the right tools, plan for several hours. Blocked access or vehicle-specific complexity can extend the job. Always allow extra time for cleanup and leak testing.
Most people set aside a few hours to complete the task, with extra time for tests.
Is it necessary to replace the intake manifold if the gasket is leaking coolant?
If coolant is leaking at the gasket, replacing it is often the best fix to prevent further damage. Verify there are no other sources of coolant loss before concluding the gasket is the cause.
If coolant leaks from the gasket area, replacement is typically required.
Where can I find the correct torque specification for my engine?
Refer to the vehicle’s service manual or OEM gasket kit instructions. These sources provide the exact torque values and tightening sequence for your engine family.
Check the manual or kit for the exact torque pattern.
Watch Video
Key Takeaways
- Prepare by gathering exact tools and parts.
- Follow torque sequence for a reliable seal.
- Inspect surfaces for damage before gasket installation.
- Test for leaks after reassembly to confirm success.
- Document steps for future maintenance.
