Intake Manifold Gasket Repair: DIY Guide for Home Mechanics
Step-by-step guide to diagnosing, removing, and replacing an intake manifold gasket. Essential tools, safety tips, and troubleshooting for a solid DIY repair.
By following this guide, you will diagnose, remove, and replace a worn intake manifold gasket. You'll need basic hand tools, a torque wrench, clean rags, and a service manual for your engine model. The steps emphasize safety, proper gasket seating, torque specs, and careful cleaning to prevent leaks and vacuum issues.
Diagnosing intake manifold gasket failures
An intake manifold gasket leak can mimic many problems, so start with symptoms rather than assumptions. Look for a rough or unstable idle, multiple cylinder misfires, coolant mixing with oil, steam from under the hood, or a noticeable drop in engine performance. You may also notice coolant loss without a visible leak or white exhaust smoke on startup. A smoke test or compressed-air leak test can confirm a leak at the gasket interface, while a compression test helps rule out bent valves or damaged cylinders. If your vehicle runs poorly when the engine is warm but runs smoothly when cold, a gasket leak is a plausible cause. Document any codes from the OBD-II reader to guide inspection.
Preparation: safety, workspace, and plan
Before you touch metal, plan the repair like a professional. Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal to prevent electrical shorts. Allow the engine to cool completely; manifold components and coolant lines can stay hot and cause burns. Gather the required tools and a new gasket, then verify the exact gasket part number for your engine. Read the service manual to confirm the sequence and torque specs. Photograph or label hoses and electrical connectors to ensure correct reassembly, and check for any coolant or vacuum lines that may need to be bled after reassembly. Create a clean, uncluttered workspace and cover surrounding components to protect them from dropped bolts and dirt.
Removal and inspection of the manifold
Start by removing any components that block access to the intake manifold: air intake duct, throttle body, and any stiff vacuum lines. Keep track of bolts by color-coding or labeling and use an organized tray. Loosen and remove the intake manifold bolts in the reverse of the manufacturer’s sequence; applying even pressure prevents warping. Carefully lift the manifold just enough to access the gasket surface. Remove the old gasket without gouging the mating surfaces. Inspect the metal surfaces for cracks, warping, or corrosion, and check the ports for carbon buildup. If the manifold or ports are damaged, replacement may be necessary rather than repair, to avoid leaks after reassembly. Wipe all mating surfaces with a lint-free rag and a non-residue cleaner; never use metal scrapers on aluminum or plastic parts.
Installation of the new gasket and reassembly
Install the new gasket onto the intake or the plenum, following OEM orientation marks. If the gasket surfaces are perfectly clean, you may not need sealant unless specified by the manufacturer. Apply a thin coat of gasket sealant only where recommended and avoid sealing all vacuum ports. Reinstall the manifold, hand-tighten bolts, then torque in the correct sequence to the specified value using a torque wrench. Reconnect any hoses and electrical connectors in the exact reverse order of removal. Reinstall throttle body and air intake components, reconnect the battery, and refill any coolant or vacuum fluids as required. Double-check all clamps and hose connections for secure fit to avoid leaks after startup. When in doubt, perform a gentle intake vacuum test or smoke test again after reassembly to confirm a solid seal.
Final checks and maintenance
After reassembly, start the engine and allow it to reach operating temperature. Check for leaks around all gasket joints and listen for hissing or whistling sounds that indicate a leak. Use a diagnostic scan tool to confirm no pending codes. If you observed coolant loss, resolve issue; top off coolant and bleed air if necessary. Monitor fuel economy and idle behavior for the first 50-100 miles as the gasket seats in. If you detect leaks or misfires after test drive, re-torque or reseat surfaces following manufacturer guidelines.
Tools & Materials
- Service manual for your engine/model(critical for torque specs and sequence)
- Torque wrench(digital or beam type, use two-socket increments if available)
- Socket set and ratchet(matched to fastener sizes on your engine)
- Screwdrivers (flathead and Phillips)(for clamps and screws)
- Gasket scraper or plastic scraper(avoid metal scraping on aluminum surfaces)
- New intake manifold gasket(matched to engine model)
- Rags, solvent, brushes(clean mating surfaces thoroughly)
- Sealant or gasket-maker (if specified)(only if engine spec calls for it)
- Thread sealant/anti-seize on bolts(apply per manual)
- Gasket adhesive (if required)(per manufacturer)
- Shop towels(absorb oil and coolant spills)
- Safety glasses and gloves(protect eyes and hands)

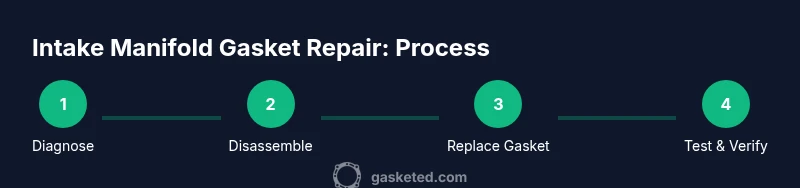

Steps
Estimated time: 2-4 hours
- 1
Disconnect the negative battery terminal
Safety first: disconnect the negative terminal to prevent electrical shorts while you work. This helps avoid accidental shorting during bolt loosening and reassembly when components are near sensors and wiring. Use appropriate tools and keep the cable away from the battery post.
Tip: Double-check that the vehicle is off and the key is out; wait a full minute for the system to discharge. - 2
Relieve fuel pressure and access the intake path
Relieve fuel pressure per your vehicle’s service manual and remove the air intake duct to expose the manifold. This gives clear access to the throttle body and plenum without prying on fragile hoses. Keep track of any clamps and fasteners so nothing is damaged during removal.
Tip: Label hoses as you disconnect them to ensure exact reattachment later. - 3
Label hoses and electrical connectors
Label or photograph all hoses, sensors, and connectors that attach to the intake assembly. This reduces reassembly errors and misrouted vacuum lines. Store fasteners in labeled trays by location to prevent mixups.
Tip: Use color-coded tape or a simple map for fast reference. - 4
Remove intake manifold bolts in sequence
Loosen and remove the manifold bolts following the reverse torque sequence specified by the manufacturer. Even, gradual loosening helps prevent warping. Support the plenum as bolts come free to avoid sudden drops that could damage gaskets or ports.
Tip: If bolts feel tight, stop and recheck your sequence; overtightening can cause damage. - 5
Lift the manifold and remove the old gasket
Carefully lift the manifold to access the gasket surface. Remove the old gasket without gouging the mating surfaces. Inspect both surfaces for warping, cracks, or heavy carbon buildup that could compromise the seal.
Tip: Use a non-abrasive scraper and clean with a lint-free rag; avoid metal gouging on aluminum. - 6
Clean mating surfaces and inspect for damage
Thoroughly clean the gasket surface and sealing ports. Look for pitting, corrosion, or deep scratches. If you see damage beyond cleaning, replacement of the manifold or port surfaces may be required.
Tip: A bright light helps reveal tiny defects; take your time and don’t rush this step. - 7
Install new gasket and reassemble components
Position the new gasket with correct orientation marks, then reassemble the plenum and associated parts. Tighten bolts in the recommended sequence, gradually increasing torque to spec. Reconnect hoses, sensors, and the throttle body in reverse order of removal.
Tip: Avoid using sealants on surfaces that are meant to seal with a gasket alone unless specified. - 8
Torque to spec and test for leaks
Use a torque wrench to bring bolts to the manufacturer’s specification, tightening in the exact sequence. Reconnect the battery, start the engine, and monitor for leaks with a quick smoke test or spray test around gasket joints. Check for abnormal idle or coolant leaks during the first drive.
Tip: If you notice leaks, stop the engine and recheck bolt torque and seating; re-seat if needed.
Common Questions
What are common signs of a failing intake manifold gasket?
Common signs include rough idle, misfires, coolant present in oil or coolant loss without a visible leak, and unusual white smoke on startup. A smoke test or compression test can help confirm the gasket as the leak source.
Common signs include rough idle and misfires; a smoke test can confirm a gasket leak.
Can I reuse the old intake manifold gasket or bolts?
Reusing the old gasket is not recommended, and bolts should not be reused if they show any sign of stretch or damage. Use new gaskets and bolts to ensure a proper seal and torque stability.
It's best to use new gaskets and bolts for a reliable seal.
Do I need to remove the exhaust manifold or other components?
In many engines you do not need to remove the exhaust manifold to replace the intake gasket, but you may need to remove plumbing, hoses, and sensors that block access. Always check the service manual for your specific engine.
Usually you don’t remove the exhaust manifold, but follow the manual for access.
Is this repair suitable for a beginner
It is doable for a capable DIYer with basic hand tools and mechanical patience, but it requires careful cleaning and correct torque. If you’re unsure, consider practicing on a less critical engine area first or consulting a professional.
It’s doable for a confident DIYer, but proceed with caution.
How long should the repair take?
Expect two to four hours depending on engine design and access. Variations occur with additional components that must be removed to access the gasket.
Plan for about two to four hours, depending on your setup.
Will replacing the gasket fix coolant/oil mixing issues?
If the leak is the cause of coolant or oil mixing, replacing the gasket and ensuring a proper seal should stop the mixing. Any contaminated fluids should be flushed and replaced as needed after repair.
The gasket repair should stop the mixing if that was the cause.
Watch Video
Key Takeaways
- Disconnect battery before work begins.
- Use new gasket and correct torque sequence.
- Clean mating surfaces thoroughly for a reliable seal.
- Replace and reassemble carefully, then test for leaks.
- Document and verify all connections during reassembly.
