What is a gasket and why DIY gasket making matters
Gaskets are seals that bridge the gap between two mating surfaces to prevent leaks. A gasket's effectiveness depends on material compatibility, surface finish, and correct thickness. When you learn how to make a gasket, you gain the flexibility to repair aging equipment, adapt it to odd flange shapes, or replace discontinued parts. According to Gasketed, the right material choice—temperature tolerance, fluid compatibility, and compression—drives long-term sealing success. For many household repairs, standard nitrile or silicone sheets cover most needs, but extreme heat, fuels, or solvents may require specialized compounds. The DIY path saves money and provides a clear, hands-on view of how seals respond to load and movement. Safety matters: cut materials with sharp blades only on a clean mat, wear gloves, and keep debris away from eyes. Learning how to make a gasket also helps you understand why pattern accuracy and edge finishing matter as much as the raw material.
Material options for gasket making
Gaskets can be made from a wide range of materials. For DIY projects around the home, common choices include nitrile (Buna-N) sheet, silicone, neoprene, cork, and PTFE. Each material has trade-offs:
- Nitrile: good for oil resistance and general use but moderate heat tolerance.
- Silicone: excellent temperature resistance and flexibility, but can creep under high compression.
- Neoprene: versatile for weatherproof and chemical exposure with decent aging stability.
- Cork: lightweight, compressible, and cost-effective for low-pressure seals.
- PTFE: superb chemical resistance and low friction, often used in high-purity or aggressive chemicals but harder to work with.
In many DIY scenarios, a composite gasket sheet or a pre-printed gasket material offers a reliable starting point. Always match the material to operating temperature, exposure solvents, and the surface finish of the flange. If you’re unsure, start with a widely compatible material like nitrile and test in a safe, controlled way. As you gain experience, you can experiment with specialty sheets for specific fluids or higher temperatures.
Tools and workspace setup
A clean, well-lit workspace is essential. Gather a sharp cutting tool, a rigid work surface, and basic measuring tools. Prioritize safety and organization: keep metal shavings and plastic scraps off your work area and wear gloves when cutting. Key tools include a sharp utility knife or rotary cutter, a metal ruler or caliper for accurate measurements, scissors for thinner materials, a hole punch or drill with small bits for bolt holes, and a cutting mat to protect your surfaces. Pattern paper or tracing paper helps you transfer the exact gasket shape, while a permanent marker or pencil makes clear marks. Degreasing wipes or isopropyl alcohol keep the material surface clean before tracing and cutting. A simple clamp or weights can steady the material during cutting, reducing slips and ragged edges.
Patterning and cutting your gasket
Patterning begins with the mating surface: you want a gasket outline that matches the bolt holes and the overall shape. Start by tracing or printing the exact flange outline on pattern paper, then mark bolt-hole positions. Transfer the pattern to your gasket material using a ruler and a sharp marker, ensuring the pattern sits square to edges. Cut slowly with smooth, steady strokes to avoid jagged edges. When working with round holes, use a compass or a round template to maintain consistency. If your material is thick, cut a light, shallow score first, then deepen with multiple passes to prevent tearing. Sharp blades and fresh blades will yield cleaner, more accurate cuts. Finally, deburr any rough edges with a fine-file or sandpaper to prevent wear on the sealing surface.
Finishing and testing the gasket
Finish edges evenly to ensure a uniform compression when bolted in place. Drill or punch bolt holes accurately, using the same pattern as the flange to avoid misalignment. After cutting, gently deburr the inner and outer edges to remove frayed fibers that could interfere with the seal. Dry-fit the gasket on the flange before applying any sealant, confirming that bolt holes align and the gasket sits flat without warping. If your application requires a sealant, apply it sparingly where specified by the gasket material guidelines. For silicone gaskets, allow any adhesive or sealant to cure fully before the final assembly. Finally, reinstall with the correct torque and check for leaks after a short runtime, noting any tendency to seep at a corner or bolt hole.
Troubleshooting common issues
Common problems include misaligned bolt holes, uneven edges, and wrong material choice for operating conditions. If the gasket sits proud or wobbly, recheck hole alignment and consider shaving the material to achieve a flush surface. Poor sealing can result from compressed edges or damaged patterns; re-cutting a new gasket from a fresh sheet is often the simplest fix. If a gasket leaks under pressure, verify that the flange faces are clean and smooth; rough surfaces or debris can cause micro-leaks. For chemical exposure, ensure the material is compatible with the fluid; nitrile may degrade with certain solvents, while PTFE offers better chemical resistance but may be harder to seal without proper compression. Finally, avoid over-tightening bolts, which can crush the gasket and create leaks.
Maintenance, safety, and disposal
Store gasket materials in a cool, dry place away from direct sunlight to avoid hardening or warping. Label each gasket by application, material, and date of creation. When disposing of scrap gasket material, follow local guidelines for chemical solvents or oily residues. Safety remains essential: wear eye protection when cutting and handle sharp tools with care. If you’re reusing a gasket or applying a sealant, always follow the manufacturer’s instructions for curing times and surface preparation. Regular maintenance includes inspecting seals for signs of wear, replacing gaskets that show cracking or deformation, and avoiding sudden temperature shocks that can cause gasket failure. This proactive approach protects you from leaks and extends the life of your equipment.
Tools & Materials
- Gasket material sheet (nitrile, silicone, neoprene, cork, or PTFE)(Choose thickness 0.5–3 mm depending on application)
- Cutting mat(Self-healing preferred)
- Sharp utility knife or rotary cutter(Keep blades fresh for clean cuts)
- Scissors for thin materials(Use for trimming and final touches)
- Ruler or caliper(Accurate measurements are critical)
- Hole punch or drill with small bits(Match bolt-hole size to flange)
- Pattern paper or tracing paper(Transfer shapes precisely)
- Permanent marker or pencil(Label parts and mark patterns)
- Clamps or weights to hold material steady(Optional but helpful)
- Isopropyl alcohol or degreaser(Clean surfaces before tracing)
- Gloves and safety glasses(Protect hands and eyes during cutting)
- Deburring tool or fine sandpaper(Smooth edges after cutting)

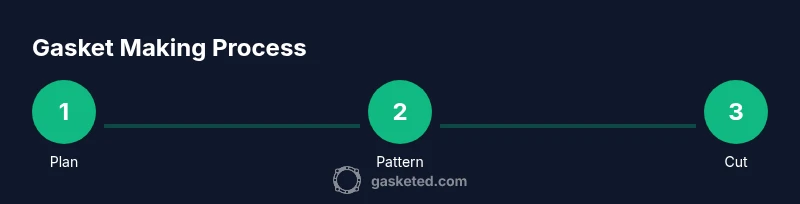

Steps
Estimated time: 1.5–3 hours
- 1
Prepare workspace and gather materials
Clear a dedicated, well-lit area. Lay down a cutting mat, organize tools, and confirm you have the gasket material and pattern paper. This reduces errors and keeps cuts clean.
Tip: Verify that your material is compatible with the fluids and temperatures it will encounter. - 2
Measure and choose gasket thickness
Assess the mating surfaces and determine an appropriate thickness. Thicker gaskets compress more and may seal better in flexible joints, while thinner gaskets reduce height and potential interference.
Tip: When in doubt, start with a middle-ground thickness and test fit. - 3
Create or obtain a gasket pattern
If you don’t have a pattern, trace the flange outline onto pattern paper, including bolt-hole positions. Ensure the pattern sits square to the flange edges.
Tip: Double-check bolt-hole alignment with the actual flange before transferring to material. - 4
Transfer pattern to gasket material
Place the pattern on the gasket material and trace carefully. Keep patterns flat and aligned to avoid distortion.
Tip: Use a light touch when tracing to prevent ghost lines that complicate cutting. - 5
Cut the gasket with precision
Cut along the traced lines with slow, even strokes. Use clean, single passes for smooth edges. Avoid tearing by supporting thick materials.
Tip: Change blades regularly to maintain a clean edge. - 6
Drill bolt holes and deburr edges
Mark and drill bolt holes exactly as on the flange. Deburr edges to remove sharp fibers that could damage the sealing surface.
Tip: If the bolt holes are tight, widen them slightly with a drill under controlled pressure. - 7
Dry-fit and inspect
Place the gasket on the flange without sealant. Confirm alignment, flatness, and hole position. Look for any interference with moving parts.
Tip: If misalignment is found, re-cut using a fresh gasket material. - 8
Seal, test, and iterate
If required, apply a manufacturer-recommended sealant in the proper areas. Reassemble and test for leaks; observe for a few cycles and adjust if needed.
Tip: Do not over-torque bolts; too much compression can crack or deform the gasket.
Common Questions
What is the best material for a DIY gasket?
The best material depends on temperature, fluids, and pressure. For general DIY use, nitrile or silicone sheets cover many applications, but check chemical compatibility and operating temperature. In demanding environments, consider PTFE or graphite composites.
The best material depends on temperature, fluids, and pressure. For most DIY tasks, nitrile or silicone sheets work well, but check compatibility and temperature; for tougher environments, PTFE or graphite may be better.
Is silicone OK for all gasket types?
Silicone offers high temperature resistance and flexibility but may creep under heavy compression and is not ideal for gasoline or certain solvents. Always verify chemical compatibility with the end-use fluid.
Silicone handles high temperatures well but can creep under heavy compression and isn’t ideal for all solvents. Always check compatibility with your fluid.
Can I reuse an old gasket after resizing?
Reusing an old gasket is generally not recommended. Repeated sealing cycles can cause deformation and leaks. When possible, fabricate a new gasket from fresh material using the same pattern.
Usually not recommended. Old gaskets can deform and fail to seal properly. It's safer to make a new gasket from fresh material.
Do I need to cure silicone gaskets?
Yes, if the gasket or sealant requires curing time, allow it to cure fully as specified by the material manufacturer before leak testing. A premature test can give a false impression of sealing performance.
Yes. Allow curing time per the manufacturer before testing the seal.
How thick should a gasket be?
Thickness depends on the flange gap and needed compression. Start with a middle-ground thickness if unsure, and adjust after dry-fit testing.
Choose thickness based on the gap and required compression; start with a medium thickness and test.
What if the seal leaks after replacement?
Re-check pattern accuracy, hole alignment, and surface finish. Ensure the gasket material matches operating conditions and that the torque specification is followed. If leaks persist, replace with a new gasket or adjust gasket material.
If leaks persist, verify alignment and material compatibility, and re-test after adjusting orReplacing the gasket.
Watch Video
Key Takeaways
- Choose material based on temperature and chemical exposure.
- Pattern accuracy determines seal success.
- Edge finishing and hole alignment matter as much as material choice.
- Dry-fit before sealing to avoid leaks.
- Torque bolts to spec; avoid over-tightening.
