How to Make a Gasket with Silicone: A DIY Guide
Learn how to make a gasket with silicone using RTV or sheet stock. This step-by-step guide covers design, material choices, curing, testing, and safety for reliable, leak-free seals.
How to make a gasket with silicone: design the outline, select the right silicone (RTV or sheet stock), and either pour into a mold or cut from sheet. Allow full cure before installation. According to Gasketed, verify chemical compatibility and temperature range, then test for leaks in a controlled setting. Choose appropriate tools and work in a clean area today.
How to make a gasket with silicone: why it works
Silicone gaskets are a practical DIY option because they combine chemical resistance, broad temperature tolerance, and long-term flexibility. When you need a custom seal for a home appliance, automotive project, or tight plumbing fit, silicone can be easier to work with than rigid rubber. This section explains why, when, and how silicone performs in real-world sealing tasks. With proper design and curing, you can achieve a reliable leak barrier without expensive tooling. The goal is a gasket that seals well under pressure, resists oils and coolants, and remains stable across thermal cycles. For many DIYers, silicone is the first choice for non-permanent or semi-permanent seals due to its forgiving handling and predictable cure.
Silicone types and what to choose
There are two practical routes for a DIY gasket: RTV silicone poured into a mold or sheet silicone cut to shape. RTV (room-temperature vulcanizing) silicone is available in acetoxy and neutral-cure formulations. Acetoxy cures with a strong odor and releases acetic acid vapor, while neutral-cure variants are more chemically stable around sensitive equipment. Sheet silicone gasket stock comes in various thicknesses and durometers, giving you a fast route if you already have a pattern. For food-contact surfaces, look for FDA-compliant silicone and avoid additives that could degrade in heat. Gasketed analysis shows that if you choose the right formulation and cure properly, you can achieve durable seals for common home equipment. Always check compatibility with the media and temperatures involved.
Design considerations: size, thickness, and durometer
The gasket’s geometry matters as much as the material. Start with the total thickness, which typically ranges from a thin 1 mm to a robust 3–6 mm depending on the pressure and surface area. The inner and outer diameters must align with bolt holes, grooves, and sealing faces; misalignment leads to leaks or overtightening. Durometer (hardness) affects how the gasket deforms to fill gaps without extrusion. Softer silicones seal better on uneven surfaces but may creep under heavy loads, while stiffer formulations resist permanent deformation but require precise tolerances. For a standard home-use seal, a mid-range durometer often provides a good balance. Document every dimension, including hole spacing, to ensure repeatability if you need multiple gaskets.
Tools, materials, and workspace setup
Before you begin, gather tools: a sharp blade, calipers, a clean cutting surface, and a scale or graduated cups for measuring silicone ratios. You’ll also need a release agent for molds or a stable method to secure sheet stock, along with gloves, eye protection, and solvent for cleaning. For sheet-cut gaskets, a precise pattern helps; for pour-in-place gaskets, you’ll need a mold or barrier system that creates a clean, flat rim around the gasket. Workspace cleanliness is essential to avoid dust or fibers embedding in uncured silicone. Label containers clearly and work in a well-ventilated area if you’re using acetoxy formulations.
Step-by-step overview: pour-in-place vs sheet-cut gaskets
Two primary pathways exist. Pour-in-place gaskets require a mold or barrier that defines the gasket’s shape and thickness, into which silicone is poured or dispensed and allowed to cure. Sheet-cut gaskets use pre-cut silicone sheets; you trace the outline, add bolt holes, and cut with a sharp knife or scissors. The pour-in-place route often yields a seamless gasket with fewer seams, but requires careful mold design and degassing. Sheet-cut gaskets are quick when you have a repeat pattern, but seams may be less forgiving under pressure. Decide based on equipment geometry, available tools, and the required seal reliability.
Curing, handling, and safety practices
Curing is the period when the gasket reaches full strength. Most silicone RTVs want 24–48 hours at room temperature for a full cure, longer in cooler environments. Avoid touching or moving the gasket during cure to prevent deformation. Use a dust-free environment and avoid exposing uncured silicone to solvents or solvents-based cleaners. When using two-part RTV, follow ratio instructions precisely to achieve optimal cure. Wear gloves, work with good ventilation, and never mix incompatible silicones with other sealants.
Testing, sealing, and verification
After curing, demold (if applicable) and inspect for air pockets, blisters, or incomplete cures. Trim any flash with a sharp blade and verify that bolt holes align with the mating surface. Install the gasket on a test rig and run a leak test at a low pressure first. For liquids, slowly increase pressure and monitor over an hour or two. If leaks appear at a joint, inspect the seating surface for damage, debris, or non-flatness, and re-seat with a new gasket if necessary.
Maintenance and storage of silicone gaskets
Proper storage helps maintain gasket performance. Store gaskets flat and in a clean, dry place away from direct sunlight, chemicals, and temperature extremes. Label the material type and thickness for quick reuse, and rotate stock to use older gaskets first. Clean surfaces before reuse and inspect gaskets for aging, cracking, or hardening. If deformation occurs, replace rather than attempt to re-seat, as repeated deformation can compromise the seal.
Common pitfalls and quick fixes
Common mistakes include using the wrong silicone formulation for the temperature or chemical exposure, failing to degas, or neglecting to cure long enough. Always consult the manufacturer’s data sheet for cure times and mixing ratios. If you see air pockets, re-degas and re-pour. For sheet gaskets, ensure clean thickness and precise cutting to avoid uneven seating. When in doubt, test a sample gasket on non-critical equipment first.
Tools & Materials
- RTV silicone rubber (neutral-cure preferred)(Choose a formulation rated for your expected temperature and chemicals; neutral-cure preferred near sensitive electronics.)
- Acetone or isopropyl alcohol(For cleaning surfaces before applying silicone and after demolding.)
- Release agent(Used for molds; helps demold without tearing the gasket.)
- Calipers or digital caliper(Precisely measure thickness and hole spacing.)
- Sharp utility knife or hobby knife(For clean, straight cuts on sheet stock.)
- Mold or barrier material(Shallow mold or barrier helps define gasket edges during pour-in-place casting.)
- Silicone sheet stock (optional)(Use if you’re cutting out a gasket pattern from pre-made sheets.)
- Gloves and eye protection(Protect skin and eyes from uncured silicone and solvents.)
- Vacuum chamber or degasser (optional)(Degassing reduces air bubbles in pours; not strictly required but highly beneficial.)

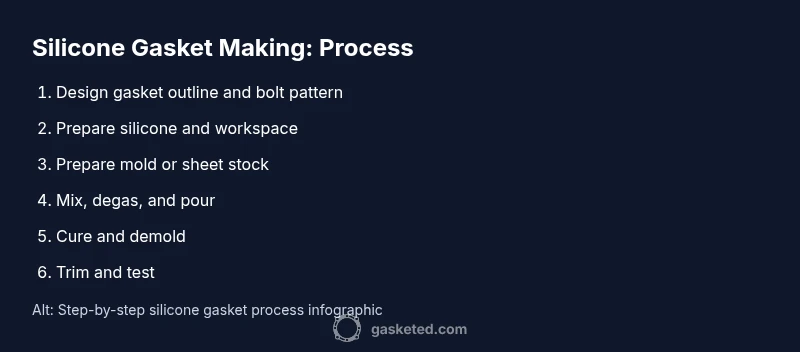

Steps
Estimated time: 2-3 days total (active work 2-4 hours; curing 24–48 hours)
- 1
Design gasket outline and bolt pattern
Trace the exact gasket shape on your chosen stock (sheet or mold). Mark bolt holes, bore openings, and the desired cross-section. Verify dimensions against the mating surface and ensure proper clearance for the bolts and any protrusions.
Tip: Double-check hole placement with calipers; a single misaligned hole ruins the seal. - 2
Prepare workspace and select silicone
Set up a clean, dust-free area. Choose RTV silicone with compatible cure type and, if needed, pattern a test area to confirm adhesion and sealing behavior. Put on gloves and goggles before handling.
Tip: If you’re new to RTV, start with a small test piece to confirm cure behavior before committing to the full gasket. - 3
Create or prepare the mold or sheet stock
Assemble a shallow mold or securely anchor sheet stock to prevent movement during shaping. Apply a release agent to prevent sticking. If you’re using sheet stock, trace the outline and punch the bolt holes with a sharp tool.
Tip: Use a straightedge for consistent lines; avoid uneven edges that can cause leaks. - 4
Mix and degas silicone (if using RTV)
Follow the manufacturer’s ratio for mixing, then gently mix until uniform. If you have a degasser, use it to remove trapped air bubbles; otherwise let the mixture rest briefly to reduce bubbles before pouring.
Tip: Too much agitation can introduce bubbles; mix slowly and in a single direction. - 5
Pour or cut the gasket pattern
For pour-in-place, pour into the mold to the correct height and spread evenly. For sheet stock, cut the gasket outline precisely along the traced lines and drill holes if needed.
Tip: Avoid overfilling to prevent squeeze-out; keep the surface flat and level to ensure a uniform thickness. - 6
Cure the gasket and protect the surface
Allow the gasket to cure undisturbed at room temperature, away from dust and direct heat. Typical cures take 24–48 hours, longer in cooler environments. Check manufacturer guidelines for exact times.
Tip: Cover the area if you must cure in a busy workspace to minimize contamination. - 7
Demold, trim, and verify fit
Carefully remove the gasket from the mold or sheet, trimming excess flash with a sharp blade. Test the gasket on the mating surface, ensuring proper seal and alignment. If needed, rework edges for a snug fit.
Tip: Clean faces with isopropyl alcohol before final installation to maximize seal integrity. - 8
Test seal and finalize installation
Perform a controlled leak test by applying pressure with the gasket in place while monitoring for any drips or seepage. If leaks occur, re-evaluate the surface finish and gasket thickness, and reseat with a fresh gasket.
Tip: Keep test conditions close to real operating conditions to catch potential failures early.
Common Questions
What is the best silicone for gasket making?
Neutral-cure RTV silicone is typically preferred for gaskets in sensitive environments, as it cures with fewer fumes and stable chemical properties. Always check the product data sheet for temperature and chemical compatibility.
Neutral-cure RTV silicone is usually best for gasket making, especially around sensitive parts. Always check the data sheet for temperature limits.
Can I reuse a silicone gasket after removal?
Reusing a gasket is not usually recommended if it shows signs of compression set, cracking, or dryness. For critical seals, make a new gasket using fresh silicone material.
Usually best to make a new gasket if the old one is damaged or has compression set.
Will silicone gaskets withstand high temperatures?
Silicone gaskets tolerate a wide temperature range, often from sub-freezing to well above 200°C depending on formulation. Always verify the product data sheet for the exact range.
Silicone gaskets handle a broad temp range, but check the product sheet for your exact numbers.
Is silicone gasket safe for food contact?
Yes, food-grade silicone variants exist. Use FDA-compliant silicone if the gasket will contact food or beverage and confirm compatibility with your cleaning and sterilization methods.
Food-grade silicone is available; use FDA-compliant material for any food contact applications.
Do I need a mold or can I cut from sheet stock?
Both methods work. Use a mold for pour-in-place gaskets to reduce seams; sheet stock is faster for simple shapes but may require adhesive or mechanical fasteners.
You can either use a mold for pours or cut from sheet stock; choose based on shape complexity.
Should I degas silicone before pouring?
Degassing helps remove air bubbles that can weaken the seal. If a degasser isn’t available, pour slowly and let the mixture rest to release trapped air.
Degassing is helpful; if you don’t have a degasser, pour slowly and let it settle.
Watch Video
Key Takeaways
- Design the gasket with precise dimensions and bolt hole positions.
- Select silicone type based on temperature and chemical exposure.
- Degas and cure fully before installation to avoid leaks.
- Test the gasket in a controlled setting before real use.
- Store gaskets properly to preserve seal integrity.
