How to Make a Gasket for a Water Pump: DIY Guide
Learn to fabricate a water-pump gasket at home using safe materials, templates, and a clear step-by-step method to prevent leaks and extend pump life.
Learn how to make a gasket for a water pump using safe materials and a simple template. This guide covers material choice, essential tools, and a step-by-step fabrication and installation process to prevent leaks. Always prioritize safety and verify compatibility with your pump model. We’ll outline alternatives for sheet gasket material, templates, cutting methods, and sealing considerations.
The Basics: what a water pump gasket does and why material choice matters
A water pump gasket creates a reliable seal between the pump housing and its mating surface. It prevents coolant or water leaks, maintains pressure, and allows for gentle compensation of minor surface irregularities. The material you choose must tolerate the coolant chemistry, operating temperature, and the specific pump design. According to Gasketed, selecting the right gasket material is as important as the cut pattern because a poor choice can lead to early leaks or gasket creep. If you’re learning how to make gasket for water pump, start with a conservative material choice—rubber-based gaskets for casual, residential pumps—and escalate to higher-grade materials if the system handles hotter or more chemically aggressive fluids.
By understanding the pump’s service conditions, you can design a gasket that lasts longer and seals more consistently. Take careful measurements of the bore, bolt pattern, and port openings, and compare them to the original gasket. This preparation is essential for a successful retrofit and reduces the chance of leaks after reassembly.
The Basics: what a water pump gasket does and why material choice matters
A water pump gasket creates a reliable seal between the pump housing and its mating surface. It prevents coolant or water leaks, maintains pressure, and allows for gentle compensation of minor surface irregularities. The material you choose must tolerate the coolant chemistry, operating temperature, and the specific pump design. The Gasketed team emphasizes that selecting the right gasket material is as important as the cut pattern because a poor choice can lead to early leaks or gasket creep. If you’re learning how to make gasket for water pump, start with a conservative material choice—rubber-based gaskets for casual, residential pumps—and escalate to higher-grade materials if the system handles hotter or more chemically aggressive fluids.
By understanding the pump’s service conditions, you can design a gasket that lasts longer and seals more consistently. Take careful measurements of the bore, bolt pattern, and port openings, and compare them to the original gasket. This preparation is essential for a successful retrofit and reduces the chance of leaks after reassembly.
Tools & Materials
- Gasket material sheet (rubber, nitrile, silicone, or gasket paper)(Choose material compatible with coolant type and temperature; typical thickness ranges from 0.5 mm to 1 mm, depending on the pump and gasket surface.)
- Pattern template (old gasket or printed template)(Use the original pattern or a precise template to ensure correct bolt holes and port openings.)
- Sharp utility knife or scalpel(Keep blades sharp for clean edges; dull blades cause tearing and uneven cuts.)
- Calipers or precise ruler(Accurate measurements prevent leaks from misaligned mounting holes.)
- Marker or pencil(Label parts and trace the template cleanly to avoid mix-ups.)
- Cutting mat or clean work surface(Protect blades and prevent slipping during tracing and cutting.)
- Gasket adhesive or non-silicone sealant (optional)(Only if the gasket material requires bonding to the surface or to seal irregularities; do not use on items with high heat unless compatible.)
- Safety gear (gloves and eye protection)(Wear eye protection when cutting and handle sharp blades carefully.)
- Solvent and lint-free cloths(Clean the mating surfaces thoroughly before installation.)

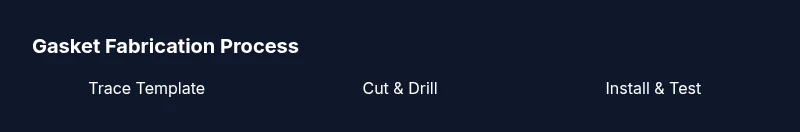

Steps
Estimated time: 60-90 minutes
- 1
Gather materials and prep workspace
Lay out all gasket materials, templates, and tools on a clean, stable surface. Put on safety gear and verify you have a well-lit area. This setup saves time later and reduces mistakes.
Tip: Double-check material compatibility with your coolant; a mismatch is a common cause of leaks. - 2
Trace the pattern onto gasket material
Place the template on the gasket sheet and trace the shape, including bolt holes and ports. Use a light touch so you can adjust if needed before cutting.
Tip: If tracing over a raised bolt pattern, mark hole centers precisely with a sharp point before cutting. - 3
Cut the gasket with a sharp blade
Using a sharp blade, carefully cut along the traced line. Keep cuts steady to avoid jagged edges that can cause leaks or uneven contact.
Tip: Score the line lightly first, then make a full pass with the blade for cleaner edges. - 4
Punch or drill holes accurately
If no pre-punched holes align, use a small punch or steady drill to create clean bolt holes. Check hole size and alignment against the mounting studs.
Tip: Test-fit the gasket on the pump housing without sealant to confirm hole alignment before final assembly. - 5
Inspect the gasket and surfaces
Compare the new gasket to the original for thickness and holes. Clean the mating surfaces with solvent and lint-free cloth to remove oil, grease, and debris.
Tip: Only use compatible cleaners; residual oils can prevent proper sealing. - 6
Install the gasket and test for leaks
Mount the pump and hand-tighten bolts, then torque to the manufacturer’s specification if available. Refill the system and run briefly to check for leaks before fully reassembling.
Tip: Avoid over-tightening; crush or deform the gasket, which can cause leaks.
Common Questions
Can I make a gasket for a water pump at home?
Yes, for many residential applications you can fabricate a gasket at home using common materials and a precise pattern. For critical or high-heat systems, consider replacing with a factory gasket or consulting a professional.
Yes, you can make a gasket at home for many residential pumps, but for critical or high-heat systems consider using a factory gasket or seek help from a professional.
What materials are best for a water pump gasket?
Nitrile rubber, silicone, and gasket paper are common choices for water pump gaskets. Select a material that resists the coolant chemistry and operating temperature, and ensure it is compatible with your pump design.
Common choices are nitrile rubber, silicone, and gasket paper. Pick a material compatible with the coolant and temperature and with your pump design.
How thick should the gasket be?
Match the thickness to your original gasket as closely as possible. A thicker or thinner gasket can affect sealing and bolt preload, potentially causing leaks.
Try to match the original gasket thickness; deviations can affect sealing and preload.
Do I need adhesive when installing the gasket?
Adhesive is not always required. Some gasket materials seal without glue, while others may benefit from a thin bead of compatible sealant on non-contact surfaces. Always follow the material instructions.
Glue isn’t always needed—use a sealant only if the gasket material requires it and it’s compatible.
How do I test the gasket after installation?
Refill the system and run the pump for a short period while monitoring for leaks at all bolt holes and joints. If any seepage is observed, stop the system and inspect gasket fit and bolt torque.
Fill the system, run briefly, and watch for leaks around the bolts. Recheck fit and torque if you see seepage.
Is reusing an old pattern safe?
Reusing an old pattern is not recommended if the gasket is deformed or damaged. Always transfer the pattern accurately to fresh material to ensure a proper seal.
Don’t reuse a damaged pattern; trace a clean new one to ensure a good seal.
Watch Video
Key Takeaways
- Choose material compatible with coolant and temperature.
- Use original pattern to ensure correct fit.
- Cut edges cleanly and drill holes accurately.
- Test for leaks before final assembly.
