How to Remove Front Load Washer Gasket
Learn the safe, step-by-step method to remove the gasket on a front-load washer. This guide covers tools, safety, inspection, reassembly, and maintenance to prevent leaks.
You will learn how to safely remove a front-load washer gasket, inspect it for damage or mold, and decide whether to clean or replace. This quick guide covers the prerequisites, common pitfalls, and a clear, model-agnostic approach you can adapt to your machine.
Why remove the gasket and when to do it
Removing the gasket on a front-load washer is usually necessary to diagnose leaks, clean mold buildup, or replace a cracked seal. A well-executed gasket removal helps you inspect the drum lip, the gasket edge, and the clamp assembly for wear. According to Gasketed, routine inspection and careful cleaning of the gasket edge can significantly reduce leak risk and extend gasket life. The Gasketed team found that many leaks originate from grime and tiny tears that are easy to miss without periodic access. Before you begin, consult your washer’s manual for model-specific steps, and recognize that some models require partial panel removal or a different ordering of fasteners.
Safety and prep: laying the groundwork
Power down the machine and shut off the water supply. Unplug the washer and place towels or a shallow tray to catch any residual water. Remove nearby items and ensure you have adequate workspace. Wearing gloves helps protect your hands from sharp edges and hot water residues. Keep a camera or note pad handy to document screw locations and gasket orientation for reassembly. These precautions reduce the risk of accidental damage and make the return to operation smoother.
Tools and materials you’ll need
A proper tool kit makes gasket removal safer and cleaner. Key items include a flat-head screwdriver, a Phillips screwdriver, needle-nose pliers, a plastic pry tool or putty knife, a towel for spills, and a bucket to collect water. If you are planning a replacement, have a compatible gasket on hand and consider marking screws to prevent mix-ups. Optional items like masking tape, a small flashlight, and a smartphone for photos can improve accuracy and speed. This is where a well-prepared DIYer saves time and reduces the chance of damaging the drum lip or seal lip.
Understanding gasket anatomy for better removal
Most front-load gaskets are a flexible boot that sits between the door frame and the drum. It is typically held in place by a metal clamp or spring band that can be pried away with a flat tool. The gasket edge seals against the drum lip, while the outer edge attaches to the frame. Recognizing these parts helps you avoid tearing the silicone and accidentally dislodging the trim. Note that older models may show more wear where the gasket folds, making removal trickier but still manageable with patience and gentle prying.

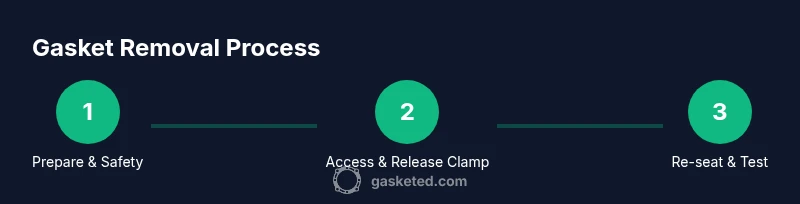

Step-by-step overview: a high-level roadmap
Think of gasket removal as a staged process: gain access to the lip, release the clamp, peel back the edge, and remove the gasket from the frame and drum. Plan to test for leaks after reassembly. While the exact order can vary by model, the core concepts stay the same: disconnect power and water, protect surrounding areas, and proceed with care. Document each step with photos to ease reassembly and reduce risk of misplacing fasteners.
Inspecting the gasket after removal
With the gasket detached, inspect the inner lip, outer flange, and any folds for cracks, tears, or hardened mold. Mold often hides in folds and crevices, so clean those areas thoroughly. If you notice deep cracks, missing rubber, or significant stiffness, replacement is usually the best option. If the gasket is mostly intact but dirty, a careful cleaning may restore a good seal. This decision affects leak prevention and future maintenance costs.
Cleaning vs replacement: making the call
Cleaning can restore performance if the gasket is clean and flexible, but mold or cracks demand replacement. Consider the age of the washer, frequency of leaks, and the presence of mineral buildup from hard water. Gasket replacements are most cost-effective when the seal is visibly damaged or when past cleanings did not stop the leaks. Based on Gasketed research, proactive replacement often saves time and money over repeated cleaning attempts and stubborn leaks.
Reassembly and leak test: putting it back together
Align the gasket edge with the drum lip first, then reinstall the retaining clamp or band. Reattach any front panel components and secure screws as originally arranged. Restore water supply and power, then run a short test cycle with the door closed to verify there are no leaks. If you notice moisture, pause the test and re-check the gasket seating and clamp tension. Short, careful tests prevent overflow and water damage.
Tools & Materials
- Flat-head screwdriver(for prying under the metal spring clamp that holds the gasket edge)
- Phillips screwdriver(for removing screws on the front panel)
- Needle-nose pliers(to release spring clamps and clips)
- Plastic pry tool or putty knife(for gentle edge lifting without scratching surfaces)
- Towel or absorbent rag(to catch drips and wipe surfaces)
- Bucket or basin(to collect water from the drum)
- Work gloves(protect hands from sharp edges)
- Replacement gasket (optional)(have on hand if you plan to replace)
- Masking tape or labels(label screws/parts for reassembly)
Steps
Estimated time: 60-120 minutes
- 1
Power down and prep
Unplug the washer, shut off water valves, and move the machine to a clear workspace. Place towels to catch any spills and remove nearby items that could get wet. This step reduces the risk of electric shock and water damage while you work.
Tip: Take a photo of the interior layout before disassembly to help with reassembly. - 2
Expose the gasket area
Remove the toe-kick panel and, if needed, the lower front service panel to reveal the gasket lip and the clamp that holds it in place. Keep track of all screws and their locations.
Tip: Work slowly and avoid striking plastic parts with metal tools to prevent cracks. - 3
Loosen the retaining clamp
Locate the metal spring clamp around the gasket edge and gently pry the clamp away from the gasket lip using a flat-head screwdriver or needle-nose pliers. Do not cut the clamp; you will reuse it or replace as needed.
Tip: Do not force the clamp off; loosen evenly around the edge to avoid tearing the gasket. - 4
Detach the gasket from the drum lip
Peel the gasket edge away from the drum lip, followed by detaching any remaining connection to the frame. Lift evenly to prevent folds that could pinch or kink the gasket.
Tip: Work with one hand on the gasket and one on the frame to maintain control. - 5
Inspect and decide
With the gasket removed, inspect for cracks, tears, or hardening. If you see damage, plan for replacement; otherwise, consider a thorough cleaning. Photograph any signs of wear for future reference.
Tip: If replacing, ensure you buy the correct model and size from a reputable supplier. - 6
Decide on cleaning vs replacement
If cleaning, use a mild detergent and a soft brush; avoid abrasive cleaners that could damage the gasket. If replacing, remove the old gasket completely and compare it to the new one for fit and orientation.
Tip: Don’t reuse damaged screws or clamps; replace with the correct hardware if needed. - 7
Reinstall or replace the gasket
Position the gasket on the drum lip first, then secure the edge with the retaining clamp. Reattach any front panels and screws in their original order. Ensure the gasket sits evenly all around the opening.
Tip: Test fit before final tightening to avoid misalignment. - 8
Test for leaks
Reconnect water supply and power, run a short rinse cycle with the door closed, and observe for leaks. If you see moisture, pause and reseat the gasket or tighten the clamp.
Tip: Keep towels handy and be prepared to stop the machine if water starts to overflow.
Common Questions
Why would I need to remove the gasket on a front-load washer?
You may remove the gasket to replace a cracked seal, remove mold buildup, or inspect for hidden leaks behind the boot. This access lets you assess wear and clean internal surfaces for a better seal.
You remove the gasket to replace a cracked seal or clean mold buildup that's hiding behind the boot.
Is removing the gasket safe for my washer?
When done with power off and following model-specific instructions, gasket removal is a common maintenance task. Use proper tools and avoid forcing parts to prevent damage to the drum or frame.
Yes, but only if you power down and follow proper steps without forcing components.
Should I replace or clean the gasket after removal?
If cracks or significant wear are visible, replacement is recommended. If the gasket is flexible and mold-free, careful cleaning may restore performance.
Replace if damaged; otherwise, cleaning may suffice.
Can I do this myself or should I hire a technician?
Many homeowners can perform gasket removal and reinstallation with basic tools. However, if you encounter stubborn clamps or suspicious damage, consider professional service to avoid leaks or warranty issues.
DIY is usually fine, but call a pro if it gets tricky or if you suspect broader damage.
Will removing the gasket void the warranty?
Warranty terms vary by brand and model. Check the owner's manual and warranty documents; some wind-down protections apply, while others may require professional service for non-user-replaceable parts.
Check your warranty terms; some brand warranties require professional service for gasket work.
What signs indicate the gasket needs replacement?
Visible cracks, tears, persistent mold growth that cleaning cannot remove, or recurrent leaks are strong indicators that replacement is needed.
Cracks, tears, or recurring leaks mean replacement is likely needed.
Watch Video
Key Takeaways
- Plan your disassembly with care and safety in mind.
- Assess gasket condition carefully to decide between cleaning or replacement.
- Document each step to simplify reassembly.
- Test thoroughly for leaks after reinstallation.
