Urgent Guide to Diagnosing and Fixing an Intake Manifold Gasket Leak

Intake Manifold Gasket Leak: Why It Happens and Why It Demands Action

An intake manifold gasket leak is more than a nuisance; it can trigger vacuum loss, misfires, rough idle, and reduced engine efficiency. According to Gasketed, understanding the root causes and addressing them quickly can prevent further damage and save you money on repairs. The intake manifold sits between the throttle body and the engine, sealing coolant passages and air/fuel flow. Over time, gasket material degrades due to heat cycles, age, and stress from repeated engine operation. When the seal fails, unmetered air enters the intake, causing lean conditions that throw off fuel trims and can cause stalling at idle or hesitation under load. For DIY enthusiasts, the key is to confirm that the leak is at the gasket rather than at hoses, clamps, or the throttle body itself. This section outlines symptoms, safe checks, diagnostic steps, and a practical repair plan to manage an intake manifold gasket leak, protect engine performance, and avoid costly engine damage.

Signs You Might Have an Intake Manifold Gasket Leak

Detecting an intake manifold gasket leak early saves hours and money. Common signs include:

• Unstable idle or rough running
• Lean misfire codes (P0171/P0174 in many engines)
• Poor acceleration and reduced power under load
• Hissing or whistling intake sounds around the gasket area
• Check Engine Light with vacuum or fuel trim codes
• Coolant loss without visible leaks or emulsified oil in the coolant reservoir
• Engine coolant smell in the intake or under the hood
• Visible soot or fuel vapor around the gasket area

If you notice a combination of these, the leak is often at the intake manifold gasket leak rather than at a hose or sensor. The Gasketed approach emphasizes methodical checks over guesswork.

What to Check First: Quick Diagnostics Before You Dig In

Before pulling parts, do these quick checks to avoid unnecessary work:

• Inspect obvious vacuum lines and clamps for looseness or damage
• Look for oil or coolant residue around the gasket and intake surfaces
• Check that the throttle body is properly seated and seals against the intake plenum
• Ensure the PCV system is functioning and not contributing to false vacuum readings
• Scan for codes and review live data to spot abnormal fuel trims or misfire patterns
• Compare idle vacuum readings with manufacturer specifications if available

Starting with these checks helps confirm whether the gasket leak is the primary issue or a secondary symptom of another fault in the intake system.

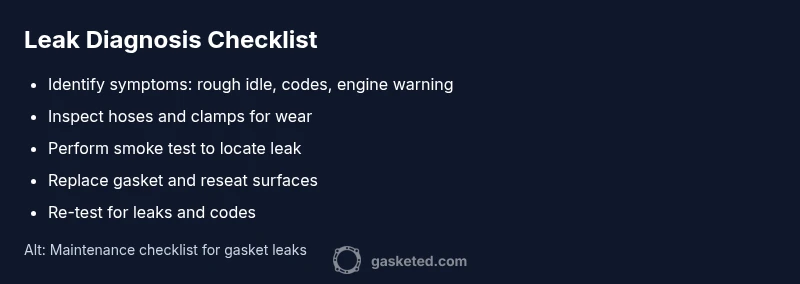

Diagnostic Tools and Techniques: Locate the Leak Safely

To confirm an intake manifold gasket leak, use tools and safe techniques:

• A handheld smoke machine or professional leak tester to visualize air leaks around the gasket
• A cautious intake spray or fog tester to observe changes in engine note, ensuring you avoid hot surfaces and fuel vapors
• A vacuum gauge and fuel pressure sensor to compare running vs idle conditions
• A thorough visual inspection for gasket material deterioration, cracking, or gasket shifting after reassembly

Safety and ventilation are critical. Work in a well-ventilated area, keep ignition sources away, and disconnect the battery before starting. If unsure, consult the service manual for torque specs and limitations.

The Most Common Cause: Step-By-Step Troubleshooting Plan

The most frequent reason for an intake manifold gasket leak is a deteriorated gasket or improper torque during previous work. Start by verifying bolt torque in the correct sequence per the service manual, inspect the gasket seating surfaces for nicks or warping, and replace the gasket if the surface is damaged. If the leak persists after reassembly, perform a smoke test to pinpoint the exact leak location and inspect the plenum for cracks. In many engines, the gasket also seals coolant passages, so coolant leaks may accompany air leaks and require additional checks on water jackets and passages. The goal is to isolate the leak without replacing components unnecessarily, documenting all findings for future maintenance.

Safety, When to Call a Pro, and Pitfalls to Avoid

Handling intake manifold gasket work involves hot engine areas, fuel vapors, and potential coolant exposure. Always disconnect the battery, relieve fuel pressure according to your manual, and wear eye protection and gloves. If you observe cracked surfaces, severe gasket damage, or coolant mixing with oil, stop and seek a certified mechanic. Common mistakes include over-tightening bolts, skipping surface cleaning, and reusing old gaskets. Use OEM or manufacturer-approved gasket sets and torque to the exact specifications. Remember: engine timing and sensor alignment can be impacted by gasket work, so re-check belt/chain timing if you disassemble related components.

Prevention: How to Extend Gasket Life and Prevent Future Leaks

Prevention starts with proper installation and routine maintenance. Use new gaskets and appropriate sealants only when specified by the manufacturer. Maintain clean sealing surfaces and inspect the intake manifold and plenum for signs of warping or corrosion. Regularly inspect vacuum lines, clamps, and the PCV system for wear. After any gasket service, perform a leak test and monitor engine behavior for several drive cycles to ensure there are no residual leaks. By following best practices, you reduce the likelihood of recurrence and extend the life of the gasket assembly.
