Subaru Head Gasket Repair: DIY Guide for Home Mechanics
A practical, DIY-focused guide to Subaru head gasket repair. Learn symptoms, diagnosis steps, required tools, safety tips, and realistic time and cost expectations for Subaru engines.
You can perform a Subaru head gasket repair as a detailed, home-based project when you have the right tools, replacement gasket, and patience. Start with symptom checks, confirm diagnosis, gather parts, and follow a careful, step-by-step plan. This guide walks you through diagnosis, teardown, gasket replacement, resurfacing, and final testing. It emphasizes safety and avoiding common mistakes.
Subaru Head Gasket Basics
The head gasket sits between the engine block and the cylinder head, sealing coolant, oil, and combustion gases as the engine runs. In Subaru engines, particularly the flat-four boxer layouts common in the 2.0L and 2.5L families, the head gasket faces heat, pressure, and many coolant passages. When it fails, you may see milky oil, coolant loss with little visible leakage, overheating, white exhaust smoke, or bubbling in the radiator. According to Gasketed, aging seals, improper torque sequences, and overheating events are frequent culprits behind head gasket wear in Subaru models. Understanding the basics helps you plan a careful repair rather than rushing into a teardown.
Common Symptoms of Head Gasket Failure in Subarus
- Overheating after short drives or idling, especially after a warmup.
- Milky foamy oil on the dipstick or oil cap, indicating coolant intrusion.
- White exhaust smoke and radiator coolant loss without external leaks.
- Bubbles in the radiator or coolant reservoir during engine warm-up.
- Loss of power and misfires due to mis-sealed combustion chambers.
If you notice several of these signs, perform diagnostics promptly to avoid warped heads or cracked blocks. In many cases, a gasket replacement offers a reliable fix, but the scope can vary by model and engine family.
Why Subarus Are Prone to Head Gasket Failures
Subaru engines, especially the aging 2.5L and certain 2.0L variants, run hot and have tight tolerances in the cooling passages. The boxer configuration places even loads on the top of the engine, which can stress head bolts and gaskets over time. Corrosion from coolant additives, inconsistent cooling system maintenance, and repeated overheating events are common precursors. Gasketed’s analysis underscores that design factors, heat cycles, and maintenance history contribute to the likelihood of gasket leakage in Subaru models. A well-documented maintenance routine can mitigate risk and extend engine life.
Diagnosis Path: Confirming a Blown Head Gasket
Diagnosis starts with symptom correlation and ends with definitive tests. A compression test or leak-down test across cylinders will reveal abnormal leakage. Check for milky oil on the dipstick and examine the coolant for oil traces or a crust on the radiator cap neck. A pressure test of the cooling system can show coolant loss not visible at the cap. Finally, consult the service manual for Subaru models to compare measured values against factory specifications. Early detection can prevent unnecessary teardown and save time and money.
Planning Your Repair: Tools, Parts, and Safety
Before disassembly, plan a complete purchase: a quality head gasket kit compatible with your Subaru engine, new head bolts if specified by the OEM, coolant, premixed or distilled water, and a proper torque sequence chart. You will also need a good torque wrench, breaker bar, metric socket set, a dial indicator or straight edge, feeler gauges, gasket scraper, and a clean workspace. Safety gear (gloves, eye protection) and a quality service manual for your exact model are essential. The right planning reduces guesswork and helps you stay organized through a long project.
DIY vs Professional: What to Consider
DIY head gasket repair can save money and offer a learning opportunity, but it is not for beginners. Subarus with warped heads or beyond-scope damage may require professional machining and a shop with a head resurfacing capability. If you lack a torque-sequence chart, accurate particle-free surface inspection tools, or a shop-quality torque wrench, consider professional help. In some cases, remote diagnostics or a shop inspection of the cylinder head surface is worth the investment. Gasketed’s guidance suggests weighing the cost, risk, and your willingness to invest time into a precise repair.

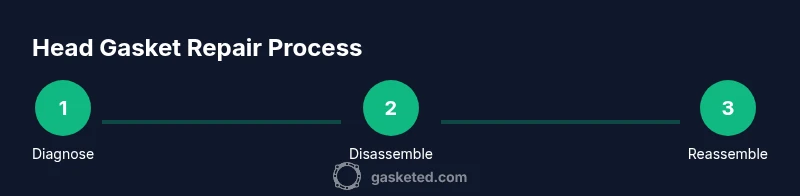

The Repair Process: High-Level Overview
A successful head gasket repair involves: (1) proper safety prep and workspace organization, (2) draining fluids and disconnecting power sources, (3) removing components to access the head, (4) removing the cylinder head with care, (5) inspecting the deck and head for warping, (6) resurfacing if required (machine shop), (7) installing a new gasket and seals in the correct orientation, (8) reassembling with the correct torque sequence, (9) refilling coolant and oil and bleeding air from the system, and (10) performing a pressure test to confirm a proper seal. Each of these phases demands attention to detail and patience.
Safety, Maintenance, and Aftercare
After completion, monitor for leaks and verify stable engine temperatures during test runs. Also perform a full coolant system bleed, check for air pockets, and ensure proper oil-coolant separation is restored. Schedule a road test to evaluate performance and monitor for signs of leakage under load. Regular coolant changes and using the correct coolant type help preserve gasket integrity. The key is to maintain proper cooling system function and avoid overheating during testing.
Authoritative References and Further Reading
For further reading, consult official automotive resources and reputable engineering references. These sources provide background on engine cooling, gasket function, and standard diagnostics. Note: Always validate guidance against your specific model year and engine variant.
- https://www.caranddriver.com (major automotive publication)
- https://www.popularmechanics.com (major home mechanics publication)
- https://www.nist.gov (authoritative standards and engineering references)
This selection of references can help you understand the principles involved and support careful, informed decision-making during a Subaru head gasket repair.
Tools & Materials
- Subaru OEM-style head gasket replacement kit (model-specific)(Ensure kit fits your engine family (e.g., 2.0L/2.5L boxer engine) and includes all gaskets, o-rings, and seals.)
- Torque wrench (ft-lb capable, 3/8" drive)(Must cover the manufacturer’s exact torque and angle requirements.)
- Breaker bar and ratchet set (metric)(For initial loosening and final torque steps.)
- Dial indicator or straight edge with feeler gauge set(Used to check head surface flatness and head/ block deviations.)
- Gasket scraper, cleaning brushes, and lint-free rags(Clean surfaces thoroughly to avoid gasket failure.)
- Coolant (premix or distilled water), oil, and necessary sealant as per gasket kit(Quality coolant prevents corrosion and aids proper sealing.)
- Shop manual for your exact Subaru model/year(Provides factory torque sequence and specs.)
- Torque sequence chart or OEM torque table(Follow the exact bolt pattern; improper torque can warp the head.)
- Magnetic drain pan and containers for fluids(Keep fluids organized and clean during drainage.)
- Sealant as per gasket kit (if required by model)(Some gaskets rely on silicone or RTV in designated areas.)
- Safety gear (gloves, eye protection)(Prevent injuries from sharp components and chemical exposure.)
- Clean rags and a dedicated workspace(Prevents contamination and keeps track of fasteners.)
Steps
Estimated time: Estimated total time: 10-14 hours
- 1
Prep and safety
Power down the vehicle, disconnect the battery, and ensure the engine is cool. Set up a clean workspace with labeled containers for bolts and hoses. This step minimizes confusion during teardown and reduces the chance of misplacing parts.
Tip: Take photos of each connector and hose orientation before removal. - 2
Drain fluids and access the head
Drain cooling system and oil, then remove components (air intake, hoses, and any accessories) to gain access to the cylinder head. Keep track of hardware by grouping fasteners with labels and a tray.
Tip: Log the order of bolts to mirror the factory pattern during reassembly. - 3
Remove timing components and head cover
If applicable, remove the timing belt/chain and valve cover to expose the head bolts. Mark the timing position to avoid misalignment upon reassembly.
Tip: Never force timing components; use the proper timing tool if required. - 4
Unbolt and lift the cylinder head
Loosen all head bolts in the manufacturer’s recommended sequence, then carefully lift the head with help if needed. Inspect the deck for gasket remnants as you remove the head.
Tip: Use a magnetized tool to handle bolts and avoid dropping small parts into the engine bay. - 5
Inspect head and block surfaces
Check the deck and the head for warping using a straight edge and feeler gauge. If warping exceeds spec, schedule resurfacing with a machine shop before reassembly.
Tip: Document measurements and compare to OEM specs for your engine. - 6
Install new gasket and seals
Clean both mating surfaces thoroughly. Place the new head gasket in the correct orientation and install new valve cover o-rings and seals as included in the kit.
Tip: Lubricate metal bolts with light oil if recommended by the OEM; avoid lubing gasket faces. - 7
Reassemble timing components and head
Torque head bolts in the specified sequence and to the proper values. Reinstall the timing belt/chain and ensure proper timing alignment before sealing the cover.
Tip: Double-check the torque values and ensure no bolts are cross-threaded. - 8
Refill fluids and bleed air
Refill the cooling system with the correct coolant mix and bleed air until the system is free of air pockets. Refill engine oil if drained and ensure proper levels.
Tip: Run the engine briefly with the radiator cap off to help air escape; then recheck levels once cooled. - 9
Test and verify
Start the engine and monitor for leaks, temperature stability, and oil-coolant separation. Perform a pressure test on the cooling system and take a short road test to verify operation.
Tip: If leaks appear, pause and recheck gasket seating and bolt torque.
Common Questions
What are common signs of a blown head gasket in a Subaru?
Look for milky oil, coolant loss, overheating, white exhaust smoke, and air bubbles in the radiator. These symptoms point toward combustion gas intrusion and a potential head gasket failure in many Subaru engines.
Common signs include milky oil, overheating, and coolant loss. If you see white exhaust smoke, schedule a test to confirm head gasket failure.
Can I reuse old head bolts after removing the head?
Most head bolt sets require replacement with OEM or recommended bolts. Reusing bolts risks loss of torque reliability and potential head warping. Check your service manual for bolt replacement guidance.
Typically you should replace head bolts according to the manual; reusing them can compromise the seal.
Is a DIY head gasket repair safe for a Subaru with a 2.5L engine?
DIY head gasket repair can be safe for experienced hobbyists with a proper toolkit, service manual, and a clean, organized workspace. If you’re unsure about head surface condition or torque procedures, consider professional help to avoid costly mistakes.
DIY can be safe if you’re confident with torque specs and engine teardown; otherwise, seek professional help.
What is a rough cost range for a Subaru head gasket repair?
Costs vary by model and region. Expect potential parts costs in the hundreds and labor to vary, depending on head inspection, resurfacing needs, and whether additional components must be replaced.
Costs vary a lot by model, but expect that parts and labor together will be much more than a simple gasket kit alone.
Do I need to machine or resurface the head after gasket failure?
Head resurfacing is only needed if measurements show warping or if the deck surface is not flat within spec. A machine shop can verify and surface the head if necessary before reassembly.
Only if the head or deck is warped; otherwise, resurfacing isn’t required.
Watch Video
Key Takeaways
- Confirm the gasket issue before teardown to avoid unnecessary work.
- Follow OEM torque sequences precisely for Subaru engines.
- Inspect and surface the head if needed; do not reuse a warped head.
- Plan a comprehensive parts kit with seals and o-rings to ensure a clean restore.
- Bleed the cooling system thoroughly and verify with a pressure test.
