Timing Cover Gasket Leak Symptoms: Diagnose & Fix Today
Learn the timing cover gasket leak symptoms, how to diagnose, and a practical DIY fix. This guide helps homeowners detect oil leaks early and prevent engine damage with safe steps.
Most timing cover gasket leaks start as oil seepage around the front of the engine, often presenting dark or milky oil near the timing cover. The likely culprit is a worn or mis-seated gasket or warped cover. Quick fix: stop driving, clean the area, replace the timing cover gasket (and reseal the cover and crankshaft seal if needed), then re-test for leaks.
Symptom overview: timing cover gasket leak symptoms
Timing cover gasket leak symptoms manifest primarily as oil seepage at the front of the engine where the timing cover sits. For DIY enthusiasts, this often shows up as fresh oil trails on the driveway after a cold start or a noticeable oil smell when the hood is opened. In some cases, you may notice a small pool of oil on the engine valley or a damp area around the timing cover itself. The phrase timing cover gasket leak symptoms is commonly used in service manuals and by repair shops to describe leaks that originate at the front of the engine. According to Gasketed, these leaks are a frequent entry point for motor oil loss in aging engines, and early detection helps prevent more serious damage and messy engine bays.
Visual clues: where leaks typically appear
Look for oil trails on the timing cover edge, a darkening of the plastic timing cover’s gasket area, and oil staining on neighboring components like the water pump, alternator bracket, or accessory belts. A magnifying glass can help detect tiny seepages around bolt holes and seam lines. If coolant is mixing with oil, you may see a milky residue under the oil fill cap or on the dipstick. Keep an eye out for sweet-smelling, burnt oil odors, especially after idling or short drives. These signs point toward a timing cover gasket leak symptom that should be investigated promptly.
Common causes behind timing cover gasket leaks
The most frequent cause is a worn or mis-seated gasket that fails to seal the timing cover properly. Warped or damaged timing covers due to overtightening, impact, or improper mounting can also create gaps. In some engines, the timing cover bolts may loosen over time, allowing the cover to shift slightly and tear the gasket. A failing front crankshaft seal or a warped mating surface can exacerbate seepage and complicate diagnosis. Finally, improper use of aftermarket gaskets or sealants can compromise sealing surfaces and lead to leaks that mimic gasket failure.
Why ignoring the leak is risky: potential engine damage
Oil that leaks from the timing cover can contaminate belts and pulleys, degrade bearing lubrication, and lead to overheating if coolant systems are involved. If the leak allows coolant into the oil or vice versa, the engine can suffer accelerated wear, sludge formation, or even bearing damage. The risk increases with high-mileage engines and those that frequently operate at high RPMs or under heavy loads. Early action reduces the chance of expensive repairs later and keeps the engine internals clean and protected. This is why timely diagnosis and sealing are essential.
How to diagnose the leak accurately: a safe approach
Start by cleaning the area around the timing cover and letting the engine run to observe seepage under steady operation. Use UV dye added to the oil and a UV flashlight to pinpoint the exact source. A shop-grade pressure test on the cooling system can reveal whether coolant escalation is involved. Check for signs of oil in the coolant or coolant in the oil, which would indicate a coolant leak crossing the seal. If you’re unsure, consult a technician to confirm the leak origin before teardown. Gasketed analysis shows that precise source identification saves time and reduces unnecessary part replacements.
Safety first: do this, not that
Always work with the engine cool and disconnect the battery when handling components near electrical connections. Wear eye protection and gloves to guard against hot oil and sharp edges. Avoid aggressive prying or using excessive force on the timing cover, which can crack the housing. If you’re not confident in reassembly torque specs, seek guidance from a professional to avoid under- or over-tightening bolts and causing new leaks.
Tools and materials you’ll need: basics for inspection and planning
Shop towels, degreaser, and aerosol cleaner; a clean rags kit and plastic scraper; mirror and flashlight; a torque wrench; replacement timing cover gasket kit; sealant rated for timing covers if recommended by the manufacturer; replacement crankshaft seal if needed; a valve cover gasket set as a precaution; and oil drain pan. Having the right sealant and gasket type is critical, as wrong materials can cause persistent leaks even after reassembly.
Prevention: how to minimize future leaks after repair
Regularly inspect the timing cover area for oil seepage and address any signs early. Use proper torque specs when reassembling, replace gaskets with OEM-compatible parts, and ensure mating surfaces are clean and dry before installation. Maintain a clean engine bay to help spot leaks quickly and consider routine dye tests during major maintenance to catch small leaks before they worsen.
Quick reference: what not to overlook during repair
Never reuse old gaskets or sealants; always replace with new, manufacturer-approved parts. Do not overtighten timing cover bolts, which can crush the gasket or warp the cover. After installation, run the engine and perform a leak test with dye or a pressure test to confirm the seal is holding.
Steps
Estimated time: 3-5 hours
- 1
Prepare and safety check
Park on a flat surface, disconnect the battery, and drain the engine oil into a suitable pan. Clean the engine area around the timing cover to prevent debris from entering the open cavity. Inspect for coolant leaks as a secondary issue and note all observations before disassembly.
Tip: Label disconnected wires and take photos of the original setup to guide reassembly. - 2
Access and remove the timing cover
Loosen and remove the accessory belts and pulleys as needed to access the timing cover. Remove mounting bolts in a crisscross pattern to avoid warping the cover, then carefully pry the cover free. Do not force; if it sticks, recheck bolts and sealant line.
Tip: Use a soft mallet and plastic tools to avoid dinging the cover surface. - 3
Inspect and clean mating surfaces
Thoroughly clean the mating surfaces on both the timing cover and engine block. Look for damage, warping, or old sealant remnants. If the cover is warped, test for straightness and plan replacement. Replace any damaged components before gasket installation.
Tip: Only use recommended cleaners; avoid solvents that could degrade gasket material. - 4
Install new gasket and sealants
Position the new timing cover gasket precisely in its groove. Apply any manufacturer-approved sealant to the designated areas and ensure an even seal around all bolt holes. Reinstall the cover with bolts finger-tight, then torque to spec in a cross pattern.
Tip: Don’t over-apply sealant; too much can squeeze out and contaminate belts. - 5
Replace the crankshaft seal if needed
If wear or leakage is visible at the front crankshaft seal, replace it to prevent future seepage. Clean surfaces, install the new seal per the service manual, and test fit for smooth rotation.
Tip: Check crankshaft pulley alignment after resealing. - 6
Reassemble and refill oil
Reinstall belts and accessories, reconnect the battery, and refill engine oil to the correct level. Start the engine and check for leaks from the timing cover area. If seepage persists, re-check gasket seating and torque values.
Tip: Use a dye test or UV oil to confirm any remaining leaks. - 7
Test and verify
Run the engine at operating temperature and observe the timing cover area under idle and light load. Look for any fresh oil trails and ensure the area stays clean after a short drive. If leak persists, re-evaluate gasket fitment or seek professional help.
Tip: Document test results with photos for reference. - 8
Document and maintain
Record the maintenance performed, including part numbers and torque specs. Schedule future inspections as part of regular maintenance to catch leaks early and avoid major damage.
Tip: Keep dye and UV kit handy for future troubleshooting.
Diagnosis: Oil leaks around the timing cover after engine start or during idle
Possible Causes
- highWorn or mis-seated timing cover gasket
- mediumWarped timing cover or damaged mating surface
- lowLoose timing cover bolts or damaged front crankshaft seal
Fixes
- easyReplace timing cover gasket and reseal the mating surfaces; inspect crankshaft seal
- mediumIf the cover is warped or damaged, replace the timing cover and re-seat all mating surfaces
- hardReplace the front crankshaft seal and re-torque bolts to spec; verify no seepage after reassembly
Common Questions
What are the signs of a timing cover gasket leak?
Look for fresh oil around the timing cover, oil on the front engine area, and occasional coolant-oil cross-contamination indicators like a milky residue. A persistent damp spot near the timing cover is a key sign that warrants inspection.
Watch for fresh oil around the timing cover and damp spots; this usually means a gasket leak is occurring.
Can I drive my car if I have a timing cover gasket leak?
Driving with a gasket leak is not advised. Oil loss can lead to low oil pressure and engine damage. If you must drive, limit operation and seek professional assessment soon.
No, driving with a gasket leak can be risky; get it checked as soon as possible.
Is timing cover gasket replacement DIY-friendly or should I hire a mechanic?
DIY replacement is feasible for experienced hobbyists with proper tools, but it’s a complex task that can affect engine timing. If you lack tools or torque specs, hire a mechanic to avoid damage.
It’s doable for a confident DIYer with the right tools, but consider a pro if you’re unsure.
How do I verify a leak after replacement?
Use a dye test or a pressure test to confirm there are no further leaks after installation. Recheck after a short test drive and inspect the area again.
After replacement, test with dye or pressure and recheck after a short drive.
What tools are essential for timing cover gasket replacement?
A torque wrench, a clean workspace, sealant per manual, replacement gasket kit, and basic hand tools are essential. Having a camera to document the setup helps during reassembly.
Key tools are a torque wrench and proper gasket kit; document setup for reassembly.
What is the typical cost range for timing cover gasket replacement?
Costs vary by engine model and labor, but expect a repair that involves gasket replacement to be on the higher side of DIY projects. Get multiple quotes to compare.
Costs vary, so check several shops and compare quotes before starting the work.
Watch Video

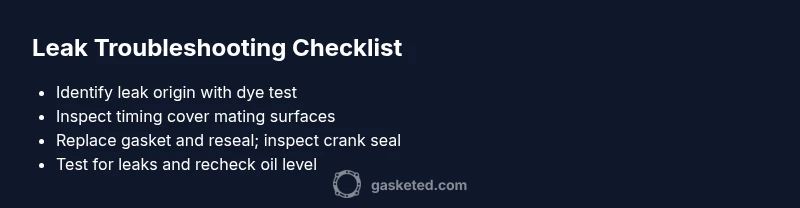

Key Takeaways
- Identify the leak location early
- Replace the gasket and reseal surfaces
- Inspect the crankshaft seal if seepage continues
- Torque bolts to spec and test for leaks
- Prevent future leaks with proper maintenance
