When to Use Gasket vs O-Ring: A Practical Guide for Seals

Learn when to use gasket vs o-ring in plumbing, automotive, and appliance seals. Compare performance, installation, and maintenance to choose the right seal for static and dynamic applications.

Gasketed Team

February 22, 2026·5 min read

Gasket O-Ring Gasket Replacement DIY Gasket Gasket Materials

Gasket vs O-Ring - Gasketed — Photo by This_is_Engineeringvia Pixabay

Quick AnswerComparison

TL;DR: Use a gasket for static, flat-seated seals on machined surfaces, and an o-ring for dynamic or groove-based seals where movement or compression occurs. Assess operating pressure, temperature, chemical exposure, and maintenance needs. In most home and industrial applications, matching the seal geometry to motion and surface finish yields the most reliable result. When to use gasket vs o ring guides the decision.

What are gasket and O-ring? Definitions and roles

Gaskets and O-rings are foundational seal types used to block fluid leaks in machines, plumbing, automotive, and consumer appliances. They protect compressors, pumps, pipes, housings, and valves from losing pressure or letting contaminants enter. A gasket is typically a flat sheet or shaped piece placed between two mating surfaces and compressed by bolts or clamps to create a seal. The gasket relies on the surface finish, clamping force, and the thickness of the material to produce a uniform seal across the joint. An O-ring is a torus-shaped loop, usually seated in a groove and compressed in one or more directions as surfaces come together. O-rings are inherently forgiving when faced with minor misalignments because the squeeze distributes pressure around the circumference. The central question in any sealing project is: when to use gasket vs o ring? Answering this requires looking at motion, surface geometry, and service conditions. For static applications, a gasket often provides a reliable, wide-seal area and benefits from a uniform load distribution. When movement is involved, the O-ring’s round cross-section and groove compatibility help maintain contact as the parts slide or rotate. For DIY repairs, choosing the right seal type reduces leaks and extends service life, especially if you plan ahead for future maintenance. In this guide, we’ll weave in the exact keyword when to use gasket vs o ring so you can apply the guidance to real-world tasks.

Static seals: when to use gasket vs o ring on flat surfaces

Static seals occur where the mating surfaces do not move relative to each other. In these cases, gaskets shine for their ability to cover irregularities, compensate minor surface imperfections, and distribute clamping force evenly across a large, flat joint. When to use gasket vs o ring becomes straightforward: if the joint is designed with a guaranteed bolt pattern, a flat flange, and minimal or no relative motion, a gasket made from appropriate material can deliver a long-lasting seal. Flat surfaces must be clean, correctly machined, and free from gouges or deep scratches; otherwise, leaks can appear even under what seems like adequate bolt torque. The gasket choice should consider the chemical exposure, temperature range, and chemical compatibility of the gasket material with the contained fluid. Common gasket choices for static, flat-seated seals include elastomeric sheets, compressed fiber, PTFE, and metal gaskets for high-temperature or high-pressure service. The selection process should also account for accessibility: if the seal will require frequent replacement, a gasket that is easier to align and compress consistently can save time and reduce downtime. In summary, when the joint remains stationary, gasket geometry and installation quality drive the success of the seal, reinforcing why the question of when to use gasket vs o ring is so central to reliable assemblies.

Dynamic seals: O-Ring in motion and groove design

Dynamic seals involve relative motion between the sealing surfaces, such as a rotating shaft, a piston, or a sliding lid. In these situations, an O-ring often provides superior performance due to its elastic, closed-loop geometry that can accommodate movement without losing contact. The decision to use an O-ring often hinges on groove design, cross-section size, and the ability to maintain a consistent squeeze around the circumference. O-rings are available in a broad array of materials optimized for temperature, chemical exposure, and mechanical load. When to use gasket vs o ring in dynamic contexts depends on the groove fit and whether the groove can reliably hold the cross-section with the correct clearance. If the groove is too shallow, cross-section becomes oversized, causing binding or extrusion. If the radial or axial clearance is insufficient, the O-ring can experience wear, nicking, or flattening. Lubrication and proper installation technique help reduce wear and improve seating. In addition to material choice, the O-ring’s performance benefits from careful selection of durometer (hardness) and a groove profile that minimizes leakage paths while accommodating pressure cycling. For DIY projects involving shafts, rotating seals, or pistons, O-rings are generally the preferred solution when dynamic sealing is required.

Materials and compatibility: choosing the right gasket or o ring for environment

Material compatibility is a core factor in sealing performance. Gaskets come in metal, composite, cork, rubber, and PTFE variants, among others. Each material offers different chemical resistance, temperature tolerance, and compressibility. O-rings come in elastomer families such as NBR (nitrile), FKM (Viton), silicone, ACM, and fluorosilicone, as well as non-elastomer options like PTFE and metal. When to use gasket vs o ring often boils down to the friction profile and the presence of aggressive chemicals. If the service fluid is aggressive to elastomers, a PTFE-based gasket or a metal gasket might be a better choice, particularly in high-temperature environments. In contrast, when the fluid is compatible with elastomeric materials and the design demands squeeze rather than deformation, an O-ring with the right durometer can provide a reliable seal with fewer installation challenges. Temperature and pressure thresholds must guide material selection; however, you should also consider aging effects, permeation rates, and solvent exposure. In practice, consult material data sheets for compatibility charts and select the seal that maintains seal integrity across expected thermal cycles and pressure spikes. For homeowners, this means avoiding generic “one-size-fits-all” seals and leaning on material guidance that aligns with the application’s chemistry and temperature envelope. The result is a durable seal that stands up to the test of time, rather than a quick fix that fails under stress.

Temperature and pressure considerations: matching specs to service

Temperature and pressure influence seal performance more than many other factors. Gaskets often tolerate a wide temperature spectrum when made from metal or high-temperature composites, but they rely on surface flatness and uniform compression to maintain a seal. O-rings, especially elastomer-based formulations, respond predictably to temperature swings, yet improper cross-section or inadequate squeeze can lead to extrusion or nibbling in high-pressure regions. In static service, gaskets can provide robust endurance against thermal cycling when the mating surfaces stay put and bolt torque remains stable. In dynamic service, O-rings must be sized with precise groove and squeeze to prevent leakage during movement and to resist extrusion under pressure. Pressure spikes, vibration, and thermal expansion must be considered; a seal should accommodate expansion without stressing the material. Material selection plays a significant role here. For example, FKM elastomers deliver excellent high-temperature resistance, while silicone rubber offers flexibility at lower temperatures but may have limited chemical resistance. Always verify the temperature range and pressure ratings of the chosen seal material and ensure compatibility with the system fluids. When timing is critical, a simple rule of thumb is to match the seal type to the dominant operating condition: static conditions favor gaskets for broad, even compression; dynamic conditions favor O-rings for reliable contact through movement.

Design and installation pitfalls: getting seals right the first time

A successful seal starts with careful design and proper installation. Common mistakes include under- or over-tightening bolts, which can cause uneven compression or damage to gasket faces. For gaskets, improper surface finish on flanges can lead to gaps that invite leaks. Ensure mating surfaces are clean, free of burrs, and adequately flattened; mismatches in thickness or flange alignment can create leak paths even when the bolt torque seems correct. For O-rings, groove design matters: too tight a groove can pinch the ring; too loose can cause extrusion or squashing. Cross-section choices must align with the groove width; the O-ring must sit evenly in its groove without being compressed beyond its designed squeeze. Lubrication can reduce friction and improve seating, yet certain fluids alter elastomer properties; check compatibility before applying lubricants. Storage matters, too: ozone, sunlight, and aging degrade gaskets and O-rings. Always replace seals with the same or an equivalent material when servicing critical equipment, and avoid reusing damaged or deformed parts. Finally, consider backup rings for high-pressure seals to prevent extrusion and extend life. The takeaway: plan for proper installation, quality seating, and routine inspection to minimize leaks and downtime.

Maintenance and lifecycle planning: extending seal life in real-world use

Maintenance is often overlooked but essential. Document seal types, material codes, and service environments for future repairs. Inspect seals during routine maintenance for signs of hardening, cracking, or swelling, and replace before leaks become evident. Static seals should be re-checked if equipment undergoes surface wear or material deposition from fluids. Dynamic seals require more frequent checks because movement accelerates wear; listen for metallic noises or creeping leaks around grooves and cross-sections. Replacement intervals depend on fluid compatibility, temperature, cycling frequency, and mechanical loads. It helps to keep a small inventory of common gasket sheets, O-rings, and groove inserts tailored to your equipment. When replacing, ensure the new seal matches the original cross-section, inner diameter, and groove dimensions. Document torque specs and seating procedures so future technicians follow consistent practices. If you’re unsure about compatibility or seating, consult manufacturer guidelines or seek expert help. Regular maintenance reduces unexpected shutdowns, preserves process integrity, and extends the lifespan of components. In short, proactive inspection and timely replacement are the best protection against leaks and costly downtime, especially in systems that experience frequent cycling or harsh fluids. When to use gasket vs o ring becomes a decision you can optimize with a clear maintenance plan.

Practical decision framework: a quick checklist for choosing the right seal

To decide when to use gasket vs o ring, start with a short checklist that translates conditions into a seal choice. First, determine whether the joint is static or dynamic. Static joints favor gaskets when surfaces are flat and bolt loads can be evenly distributed. For dynamic animations or reciprocal movement, O-rings in a suitable groove are typically preferred. Next, assess surface finish quality, bolt torque stability, and maintenance expectations. If the surface is rough or uneven, consider a flexible gasket or a different flange surface treatment; if movement is expected, ensure groove design accommodates the squeeze and surface contact. Temperature and chemical environment should also guide material choice: high-temperature or chemically aggressive fluids may require metal or PTFE gaskets, or elastomeric O-rings with compatible fillers. Finally, consider ease of replacement and accessibility. In DIY projects, the most practical decisions prioritize easy inspection and replacement—choose a seal type that you can reliably service. The bottom line: use a structured framework to evaluate static versus dynamic requirements, surface finish, environment, and maintenance when deciding when to use gasket vs o ring.

Application-specific guidance: best practices in plumbing, appliances, automotive, and industrial settings

Practical guidance on where to apply gasket vs o ring helps translate theory into real-world results. In household plumbing, static flange joints and drain connections often benefit from gaskets that resist leaks with a solid, even compression. In water heaters and boilers, metal or composite gaskets maintain integrity under pressure and long-term thermal cycling. For appliances, such as coffee machines or dishwashers, O-rings typically seal moving parts or pressurized water paths that involve intermittent movement or valves. In automotive and industrial equipment, choose gasket or O-ring based on whether the seal remains stationary or experiences piston or shaft motion. In high-velocity or high-heat areas, consider metal gaskets or reinforced PTFE gaskets and temperature-rated O-rings with suitable durometer. Always check manufacturer recommendations and ensure compatibility with liquids, gases, and ambient conditions. This pragmatic approach ensures you select a seal that will perform under expected service loads while remaining easy to service and replace when needed. Understanding which application requires static flat seals versus dynamic grooves ultimately reduces leak risk and extends equipment life. When to use gasket vs o ring is not a fixed rule—it's a decision based on the specific geometry and motion of your assembly.

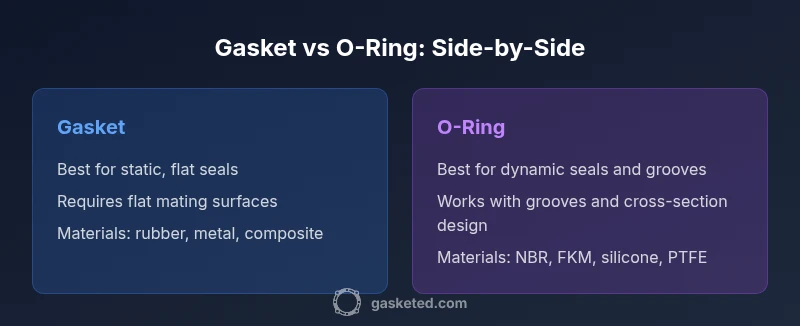

Comparison

Feature	Gasket	O-ring
Best use case	Static, flat-seated seals on machined flanges	Dynamic seals in grooves for moving parts
Motion tolerance	Relies on even compression; little to no movement	Designed to accommodate movement and pressure cycling
Pressure handling	Strong in static loads with controlled bolt load	Handles dynamic pressure with proper groove design
Temperature range	Material-dependent; wide options for metals and high-temp gaskets	Material-dependent; elastomeric and PTFE options cover broad temps
Material options	Metal, composite, or elastomeric gasket materials	Elastomers (NBR, FKM, silicone), PTFE, metal rings
Installation considerations	Requires flat, machined surfaces; careful torque control	Requires grooves and correct cross-section; lubrication helps
Cost and availability	Varies with material; suitable for budget or high-performance needs	Widely available; generally affordable and replaceable
Best for	Static, high-integrity joints on large flanges	Dynamic seals in pumps, cylinders, and moving assemblies

Pros

Excellent static seals on flat surfaces with even compression
Broad material options for chemical and temperature resistance
Relatively simple replacement and inspection in many applications
Low leakage paths when mating surfaces are well prepared

What's Bad

Gaskets require precise surface finish and flatness
O-rings can extrude if groove design and pressure are not matched
Both may require special tools or skills for optimal seating

Verdicthigh confidence

Gasket-dominant static seals excel on flat, well-prepared surfaces; O-rings win in dynamic, groove-based seals.

Choose gasket for stationary, flat joints; opt for O-ring when movement or grooves are involved. Material and environment should guide the final selection.

Common Questions

What is the primary difference between gasket and O-ring?

Gaskets seal by compressing a flat sheet between surfaces, relying on flatness and bolt tension. O-rings seal by a circular cross-section that is squeezed in a groove or between surfaces, better suited for movement. The choice depends on motion, surface geometry, and service conditions.

Can a gasket replace an O-ring in a static seal?

Yes, in many static applications with flat, well-maintained surfaces, a gasket can replace an O-ring if the material is compatible and the bolt load provides adequate compression. In dynamic or grooved settings, an O-ring is usually the safer choice.

What materials are best for high-temperature applications?

For high temperature, metal gaskets or PTFE-based options, and high-temperature elastomer O-rings (such as FKM) are common choices. Always verify the specific temperature limits for the material and the service fluid.

How do I determine the correct size of gasket or O-ring?

Sizing depends on the flange or groove ID, cross-section thickness for O-rings, and gasket thickness. Measure inner diameters and ensure the cross-section matches the groove or gasket groove width. Always follow manufacturer guidelines or use standardized size charts.

Are there industry standards for gasket and O-ring sizing?

Yes, there are standards and guides from industry bodies that cover dimensions, tolerances, and materials. Check applicable standards for your industry and region; always align with system design documentation.

Can gaskets handle dynamic loads?

Gaskets are generally less suited to dynamic loads unless designed with flexible materials and specific surface finishes. For moving parts or frequent pressure changes, an O-ring with proper groove design is typically preferred.
