Which Way Does Intake Gasket Go? A DIY Orientation Guide
Learn the correct orientation of the intake gasket with a practical, step-by-step approach. This guide covers gasket types, visual cues, prep, installation, and verification to prevent leaks and ensure a solid seal.
Goal: correctly orient the intake gasket to prevent leaks and ensure proper sealing. You will locate orientation marks or port alignment, clean mating surfaces, apply any recommended sealant, and torque bolts in the correct sequence. This quick guide assumes you’re working on a typical inline 4- to 6-cylinder engine and includes safety checks, basic tools, and a dry-fit test before final assembly.
What is the orientation for 'which way does intake gasket go' and why it matters
The intake gasket serves as the critical seal between the intake manifold and the engine head. Correct orientation is essential because most gaskets have a defined inner and outer edge, a designated top versus bottom, and port-specific holes that must align perfectly with the cylinder head ports. If you install it backward or rotated, the gasket can seal imperfectly, leading to vacuum leaks, coolant intrusion, or improper fuel-air mixing. DIYers should identify any orientation marks, embossed text, or port patterns before starting. Taking a moment to confirm the orientation from the outset saves time and reduces the risk of rework later on. In many engines, the gasket has one side with more pronounced sealing beads or a bevel that matches the head surface; use these cues as your guide to the correct direction.
Tip: If your gasket is unmarked, create a quick dry-fit by holding the gasket in place without bolts and visually confirm that all ports and guides line up with the head and manifold. This simple check helps catch a misfit before you torque anything.
"# Visual cues for orientation and alignment\nWhen you lay the gasket on the head, look for chamfers, bevels, or raised ridges that match the mating surface. Some gaskets have arrows, numberings, or text indicating “top” or “front.” Use the intake ports as a map: each port hole should align with its counterpart on the head in a straight line. If the gasket has a curved shape, ensure the curve follows the manifold and that no hole is obstructed by a tab or notch. If you see a misalignment during dry-fit, re-check the gasket orientation against factory diagrams or service manuals before applying any sealant or tightening bolts.
Gasket orientation is not only about fit; it also affects the flow path and sealing pressure. An incorrect orientation can create uneven contact, causing sealants to fail or hot exhaust gases to leak into the intake passages. In short, take the time to orient correctly the first time, and you’ll avoid leaks and performance issues down the road.
Tools & Materials
- Basic socket set(Metric and SAE sizes; include deep sockets for clearance)
- Torque wrench(Use the manufacturer’s torque spec and sequence)
- Gasket scraper/razor blade(Careful with the alloy head surfaces; avoid gouges)
- Cleaning supplies (degreaser, lint-free rags)(Clean surfaces until they’re polished and free of debris)
- New intake gasket kit(Use OEM or OEM-grade gasket for your engine model)
- Sealant (gasket maker or sealer)(Only if recommended by gasket instructions or OEM guidance; otherwise skip)
- Gasket seating lube or light oil(If required by gasket type; follow manual)
- Screwdrivers and ratchets(Flat and Phillips as needed for intake hardware)
- Safety gear (gloves, eye protection)(Protect hands and eyes during cleaning and scraping)

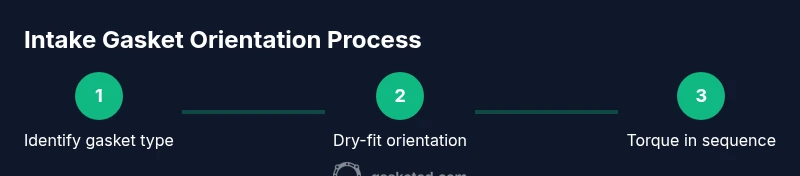

Steps
Estimated time: 60-90 minutes
- 1
Disconnect the battery and prepare workspace
Begin by disconnecting the negative battery cable to prevent any electrical shorts while removing components around the intake. Move the vehicle to a well-lit workspace and disconnect any nearby sensors or electrical connectors as needed. Label harnesses if you intend to reassemble in a different order to avoid mistakes later.
Tip: A clean workspace with good lighting reduces misidentification of parts during reassembly. - 2
Remove intake-related components to access the gasket
Carefully detach hoses, sensors, and intake tubing that block access to the gasket area. Keep track of fasteners and pay attention to which parts came from where. If your engine uses clamps, release them and store hardware in labeled containers.
Tip: Use a magnetic tray or small organizers to avoid losing small bolts. - 3
Clean mating surfaces and inspect for damage
Scrape away old gasket remnants with care, then clean both the head and manifold surfaces with a degreaser. Check for nicks, warps, or corrosion; if you find damage, address it before continuing as a flawed surface can ruin the seal.
Tip: Only light-to-moderate scraping; avoid gouges that create leak paths. - 4
Dry-fit the gasket to confirm correct orientation
Place the gasket onto the head without sealant or bolts to verify alignment with all ports and marks. Ensure the gasket’s embossed features, arrow indicators, or text are facing the intended direction according to your engine’s service manual.
Tip: If you see any misalignment, rotate slightly and re-check; never force a gasket into place. - 5
Install the gasket with correct orientation and reseat
Press the gasket into place and thread in the bolts by hand to confirm a smooth, even seating. If your kit includes a gasket sealant, apply a very light layer only where instructed by the manual or gasket instructions.
Tip: Avoid applying sealant to the entire surface unless required; excess sealant can siphon into ports. - 6
Torque bolts in the recommended sequence and verify
Tighten bolts in the prescribed pattern and to the specified torque. Reinstall the intake components and any sensors removed earlier. After reassembly, perform a leak test to confirm the gasket is seated correctly.
Tip: Always follow the exact torque sequence from the service manual or gasket manufacturer.
Common Questions
What happens if the intake gasket is oriented incorrectly?
Incorrect orientation can cause vacuum leaks, poor engine performance, and potential intake leaks. If you suspect misorientation, re-check the gasket marks and port alignment, then re-install with the correct orientation and torque. Always verify with a leak test after assembly.
If the gasket is oriented wrong, you may get leaks and rough performance. Recheck marks, re-seat, and test for leaks after reassembly.
How can I tell which side is up on a curved gasket?
Look for embossed markings or a bevel that matches the mating surface. Dry-fit with all ports aligned before applying sealant. If in doubt, consult the engine’s service manual or gasket kit instructions.
Check for embossed marks and fit it dry first. Align all ports, then secure with bolts.
Do I always need sealant on the gasket?
Not all gaskets require sealant. Follow the gasket manufacturer’s instructions or OEM guidelines. If sealant is recommended, apply a thin, even layer only to the non-embossed side.
Sealant isn’t always needed; follow the kit instructions and apply a thin layer if advised.
Is it safe to reuse the old gasket?
Reusing a gasket is generally not recommended. A new gasket ensures a reliable seal and reduces the risk of leaks. If you must reuse, inspect for cracks and impaired sealing surfaces.
Reuse is risky; a new gasket is best for a solid seal.
How do I test for leaks after reinstall?
With the engine cold, start the car and observe around the gasket area for any air or coolant leaks. For a more thorough check, use a smoke machine or soapy water around the joints to identify small leaks.
Start the engine and look for leaks; you can use soapy water to find bubbles at the joints.
What common mistakes should I avoid during orientation?
Avoid forcing the gasket into uneven seating, neglecting port alignment, or skipping the dry-fit check. Always confirm orientation marks before torquing bolts and re-check after the first drive if possible.
Don’t force a misaligned gasket; double-check orientation and do a brief test drive after installation.
Watch Video
Key Takeaways
- Confirm gasket orientation before final install
- Dry-fit first to avoid misalignment
- Torque bolts in correct sequence
- Keep components organized during disassembly
- Test for leaks after assembly
