Can you use gasket maker on a transmission pan? Generally no. Transmission pans rely on a precise gasket or an approved high-temperature sealant to prevent ATF leaks under heat and pressure. Gasket maker can fail, contaminate ATF, or create long-term leaks, so follow manufacturer guidance and use the correct gasket kit or a sealant rated for automatic transmissions.
Transmission pan sealing: what you need to know
When you start a DIY transmission pan reseal, the first question often is whether a gasket maker (RTV silicone) is an acceptable substitute for a pan gasket. According to Gasketed, the right approach hinges on the pan design and the vehicle’s maintenance history. Most modern transmissions are sealed with a rigid gasket or a pre-formed seal that’s designed to tolerate ATF exposure, temperature swings, and vibration. Using a generic gasket maker on the pan mating surface can trap hard-to-detect air pockets, hinder bolt seating, and promote slow leaks. The result is a fenestrated seal that looks fine at first, but leaks after a few miles. So while gasket maker has its place in many automotive seals, gasket makers for transmission pans require strict compatibility and explicit manufacturer approval. The goal is a leak-free, long-lasting seal that won’t contaminate the transmission fluid or trigger fault codes.
Choosing the right sealing approach for your pan
The gasket method you choose should reflect two core factors: the pan type (aluminum vs steel), and the surface finish of the transmission housing. Some vehicles come with an integrated gasket that relies on a stable, flat mating surface and a specific torque sequence. Others use a loose gasket that compresses with a bead of sealant. In either case, a universal gasket maker is rarely the best option for the pan. Gasketed seals and high-temperature sealants labeled for ATF compatibility are designed to handle fluid exposure and the heat cycling that a transmission endures. As a rule, rely on the OEM or a trusted aftermarket gasket kit unless the manufacturer explicitly approves an RTV-only seal.
Potential risks of gasket maker on the transmission pan
The main concerns fall into three categories: chemical compatibility, cure duration, and mechanical fit. ATF solvents can soften certain sealants or cleaners, leading to smear or incomplete cures. If the sealer cures unevenly or remains too soft, tiny leaks can form around the bolt holes and at the gasket edges. Debris and ATF residue can also trap the sealant and reduce adhesion. In the long run, a gasket maker that is not rated for ATF exposure can break down, contaminate the fluid, and cause shifting or sensor warnings. For DIY enthusiasts, the safest path is to use a properly rated gasket kit and sealant as recommended by the vehicle manufacturer.
When a gasket maker might be permissible under guidance
There are rare cases where a manufacturer or a repair guide approves a bead of high-temperature silicone around the edge of a pan in the absence of a gasket. In those scenarios, the sealant must be explicitly rated for use with ATF and heat, and the mating surface must be impeccably clean and free of old gasket residues. Even then, the sealant is often a temporary fix or used only in an emergency. If you encounter such a scenario, proceed with caution, follow the exact product instructions, and plan to replace with a proper gasket kit as soon as possible. The key is to know your vehicle’s design and to avoid a DIY patch that leaves you stranded on the road.
Best practices for sealing a transmission pan long-term
For most DIYers, the recommended approach is to replace the pan gasket with a new, OEM-specified kit and to apply any sealant only if the kit calls for it. Start with a clean mating surface, use a gasket scraper to remove old sealant, and ensure there are no nicks or burrs. If sealant is used, apply a continuous, even bead that covers the entire gasket surface as directed by the product label. Torque the bolts to exact manufacturer specifications in a crisscross pattern to ensure even clamping force. Finally, refill the transmission fluid to the proper level and test for leaks before road testing.
Troubleshooting leaks after resealing
After completing the reseal, inspect the pan area at several temperatures and driving conditions. A small leak might appear as a slow damp spot near the bolt line or along the gasket edge. If you observe seepage, recheck the torque and readjust if necessary according to the service manual. In some cases, a new gasket kit may be required if a salvage or damaged pan surface is involved. Regular maintenance and periodic checks will help catch leaks early before they become major issues.
Tools & Materials
- Floor jack and jack stands(Use on a level surface; keep wheels chocked.)
- Socket set and torque wrench(Metric sizes common for transmissions; follow manufacturer torque specs.)
- Gasket scraper or razor blade(Careful to avoid gouging the mating surface.)
- Shop towels and degreaser/ATF-safe cleaner(Clean surface thoroughly; lint-free towels preferred.)
- New transmission pan gasket kit(OEM or high-quality aftermarket; kit often includes bolts.)
- High-temperature gasket sealant rated for ATF (optional)(Only if the kit specifies use of sealant with the gasket.)
- ATF (new or drained but clean to reuse if acceptable)(Follow manufacturer capacity and type.)
- Replacement drain pan(Use if the current pan is warped or damaged.)
- Gloves and eye protection(Protect from chemical exposure.)
- Drain pan for used ATF(Place under the pan before loosening bolts.)

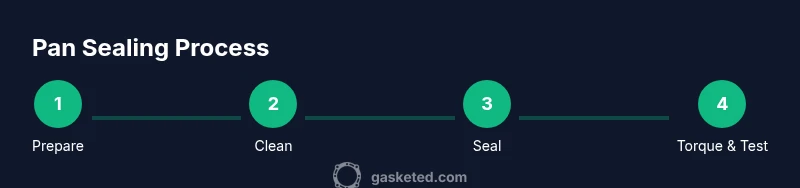

Steps
Estimated time: 90-180 minutes
- 1
Gather tools and prep area
Collect all required tools and parts. Clear the workspace and ensure the vehicle is on a flat, level surface with the parking brake engaged.
Tip: Have a second person assist with lifting and holding the pan. - 2
Raise vehicle and secure
Safely raise the vehicle and support it with jack stands. Place wheel chocks and ensure the area is stable before crawling underneath.
Tip: Never rely on a jack alone to support the vehicle. - 3
Drain ATF and relieve pressure
Place a drain pan underneath. Remove the pan bolts partially to allow ATF to drain cleanly, then remove all bolts and lower the pan carefully.
Tip: Catch as much ATF as possible to minimize spills. - 4
Remove old gasket and inspect surface
Take the pan off and peel away the old gasket material. Inspect the mating surface for nicks, scratches, or damaged paint and clean thoroughly.
Tip: A damaged surface can cause persistent leaks even with a new gasket. - 5
Clean and prepare mating surfaces
Use an ATF-safe degreaser to remove old sealant residues. Wipe with lint-free towels until the surface is dry and spotless.
Tip: Avoid leaving fibers that could disrupt the seal. - 6
Apply sealant or install gasket kit
If your kit requires sealant, apply it as directed, and place the new gasket so it sits flush against the transmission housing. Do not over-apply silicone bead.
Tip: Follow the kit’s instructions to avoid gaps. - 7
Reinstall pan and torque bolts
Reinstall the pan and bolt it to the manufacturer’s torque specification in a crisscross pattern to ensure even pressure.
Tip: Avoid cross-threading; start bolts by hand if possible. - 8
Refill ATF and check level
Refill with the correct ATF type and quantity. Start the engine and shift through the gears to circulate fluid, then recheck for leaks.
Tip: Check for leaks after a 10–15 minute drive and re-torque if necessary. - 9
Test drive and final inspection
Take a short test drive to verify transmission operation. Re-check the pan area after cooling down to ensure no fresh leaks appear.
Tip: If a leak persists, inspect gasket seating and inspect the mating surface again.
Common Questions
Can you use gasket maker on a transmission pan?
In most cases, gasket maker is not recommended for the transmission pan. Transmission pans are designed to seal with a pre-formed gasket or a manufacturer-approved sealant. Using an RTV gasket maker can risk leaks and contamination of ATF. Always follow the vehicle’s service manual or OEM gasket kit instructions.
Typically, you should not use gasket maker on the transmission pan. Rely on the approved gasket kit or sealant recommended by the manufacturer, and check the manual for specifics.
Is it safe to drive if I see a leak after sealing?
No. A leaking transmission pan after resealing indicates the seal isn’t holding. Stop driving to prevent ATF loss and potential transmission damage. Recheck torque, surface cleanliness, and gasket seating before continuing.
If you see a leak, stop driving and inspect the seal. Don’t drive it until you’ve fixed the leak and rechecked the level.
What type of sealant should I use for a transmission pan?
Use a high-temperature automotive sealant rated for ATF exposure and the specific pan material. If the gasket kit specifies a sealant, follow those instructions exactly. Silicone-based products are common, but only when rated for ATF and heat.
Choose a sealant that’s rated for ATF and high temperatures, and follow the kit’s directions carefully.
Will resealing with gasket maker void my vehicle warranty?
It can, depending on the manufacturer and the method used. If the service manual requires a gasket kit and you substitute with gasket maker, it may affect warranty coverage. Always check the vehicle’s warranty terms and follow OEM guidelines.
It depends on the manufacturer. Check your warranty terms and stick to OEM-recommended methods.
How long does a pan gasket replacement take for a DIYer?
A typical DIY gasket replacement takes around 1–3 hours, depending on vehicle access and tool availability. More complex transmissions or difficult-to-reach bolts can extend the time. Plan for extra time if you’re new to this job.
Most DIYers finish in about an hour or two, but it can take longer on tough vehicles.
Is there a temporary fix if I don’t have the gasket kit handy?
Temporary fixes with gasket maker are not reliable for transmissions. If you’re stranded, consider a temporary patch only as a last resort and arrange proper parts as soon as possible. A permanent fix requires the correct gasket kit.
Temporary patches aren’t reliable. Get the right gasket kit as soon as you can for a proper fix.
Watch Video
Key Takeaways
- Avoid gasket maker as a universal fix on transmission pans.
- Use OEM gasket kits or approved sealants per manufacturer guidance.
- Clean mating surfaces thoroughly before reinstalling.
- Torque bolts to spec and recheck for leaks after refill.
- If in doubt, replace the gasket instead of patching with sealant.
