Oil Pan Gasket Replacement Guide for Chevy Cruze
A complete, step-by-step DIY guide to replacing the oil pan gasket on a Chevy Cruze. Learn tools, safety practices, common mistakes, and preventive tips to stop leaks and protect your engine.
Goal: Replace the oil pan gasket Chevy Cruze to stop leaks and protect the engine. This quick guide shows you exactly what you’ll need, how to approach removal and installation safely, and what to check afterward to ensure a reliable seal. By following these steps, DIY enthusiasts can tackle this repair with confidence, minimize downtime, and avoid common mistakes.
What the oil pan gasket does in the Chevy Cruze
The oil pan gasket is the seal between the oil pan and the engine block. In the Chevrolet Cruze, this gasket helps keep oil inside the sump and prevents contaminants from entering the oil system. Over time, heat cycles, vibration, and improper torque can cause tiny gaps that allow oil to seep. A healthy gasket helps maintain proper oil pressure and engine lubrication, reducing the risk of excessive wear.
Symptoms of a failing oil pan gasket and how to diagnose them
Common indicators of a degraded oil pan gasket include visible oil seepage along the oil pan flange, fresh oil on the ground after parked overnight, or rising oil level with no obvious culprit. You may notice a chalky residue on the pan edge or a musty oil odor near the underside of the vehicle. Diagnosis often starts with a visual inspection after the engine has cooled, followed by checking oil pressure and confirming the leak point with dye or UV light. If you see streaks along the pan edge, that’s a strong sign the gasket is failing.
Planning, safety, and the right mindset for this repair
Before you lift the Cruze, gather the right tools and parts and secure the vehicle. Work on a level surface with the parking brake engaged and wheel chocks in place. Disconnect the battery to avoid sparks during any metalwork and drain the oil to prevent messes. Consider supporting the engine with a jack stand if you’re removing the pan and know that the exhaust system or subframe may require extra clearance. Remember, a clean workspace reduces the risk of losing small bolts.
What you’ll need and how to prepare the work area
A clean, organized workspace makes this job easier. The essentials include a metric socket set, a torque wrench, a gasket scraper, a drain pan, and a new oil pan gasket compatible with the Chevy Cruze. You’ll also want degreaser or brake cleaner, rags, and a gasket sealant (if your gasket kit requires it). Keep spare bolts handy in a labeled tray and lay out a magnetic tray to catch any fasteners. A bright work light and a non-slip mat help keep everything visible and manageable.

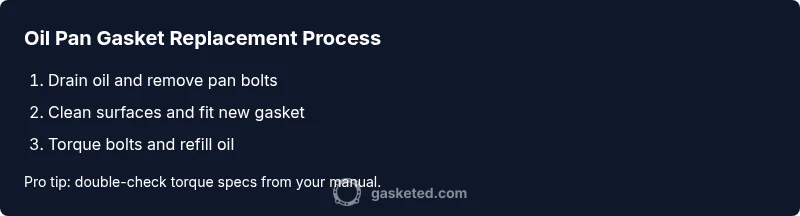

How replacement typically proceeds (high-level overview)
The repair involves draining the oil, removing the oil pan bolts, detaching the pan, cleaning the mating surfaces, installing the new gasket with any required sealant, reattaching the pan, and finally refilling oil to the proper level. While the steps are straightforward, ensuring a clean seal and correct bolt torque is essential for a leak-free result. Most Cruze engines follow a similar sequence, but always consult your owner’s manual for torque specs and any model-specific cautions.
Tools & Materials
- Metric socket set(Include a range from 6mm to 14mm.)
- Torque wrench(Use to reseal bolts to spec.)
- Oil drain pan(Large enough to hold several quarts.)
- New oil pan gasket for Chevy Cruze(Check compatibility with your model year.)
- Gasket scraper(Plastic preferred to avoid gouging surfaces.)
- Brake cleaner / degreaser(Clean mating surfaces thoroughly.)
- Rags and shop towels(For spills and wiping surfaces.)
- Gasket sealant (optional)(Only if your gasket kit specifies it.)
- Jack stands and wheel chocks(Safety first when lifting the car.)
- Workshop flashlight or headlamp(Good lighting for visibility.)
Steps
Estimated time: 2-4 hours
- 1
Prepare and secure the vehicle
Park on level ground, engage the parking brake, chock rear wheels, and disconnect the battery. Allow the engine to cool before starting to avoid burns. This setup reduces risk and makes later steps smoother.
Tip: Use a magnetic tray for fasteners to avoid losing bolts. - 2
Drain engine oil safely
Place the drain pan beneath the oil pan, remove the drain plug, and let the oil drain completely. Catch the drained oil for proper disposal and avoid spills.
Tip: Replace drain plug gasket if present to prevent leaks. - 3
Remove oil pan bolts and pan
Loosen and remove the pan bolts in a criss-cross pattern and carefully lower the pan. Support the pan so it doesn’t slip and damage the oil pickup.
Tip: Keep bolts in order to reuse or reference torque later. - 4
Clean mating surfaces
Scrape away old gasket material and clean both mating surfaces with degreaser until the surfaces are free of oil and debris. A clean surface is essential for a good seal.
Tip: Do not gouge the metal; use light, even strokes. - 5
Install new gasket and sealant
Place the new gasket on the oil pan or block as specified by the kit. If using sealant, apply a thin, even bead in accordance with the manufacturer's directions.
Tip: Align bolt holes carefully to avoid leaks. - 6
Reinstall the oil pan
Reposition the pan and hand-tighten bolts, then torque in a criss-cross pattern to the manufacturer's specs. Reconnect the pickup and ensure the pan sits flush.
Tip: Use a torque wrench to achieve even compression. - 7
Refill and check for leaks
Refill with the correct oil type and quantity as per the owner’s manual. Start the engine, run briefly, and inspect for leaks around the pan and gasket.
Tip: Check for leaks after a short drive and re-tighten if needed. - 8
Cleanup and final checks
Dispose of old oil responsibly and wipe down the area. Recheck oil level after the engine reaches normal operating temperature.
Tip: Keep a spare gasket and bolts in the toolbox for future maintenance.
Common Questions
What are the common signs of an oil pan gasket leak on a Chevy Cruze?
Common indicators include oil seepage around the oil pan edge, puddles beneath the vehicle, and a burning oil smell when the leak hits hot exhaust components. A visual inspection after engine cooling is usually sufficient to spot the gasket area.
Look for oil seeping from the pan edge and small puddles under the car, especially after sitting overnight.
Can I replace the oil pan gasket without removing the engine?
In many Cruze models you can access the oil pan by lifting the vehicle and removing the pan without engine removal. Some setups require partial subframe support. Consult your manual for model-specific clearance.
Often you can replace the pan gasket without removing the engine, but check your model’s clearance and follow the manual.
Should I use gasket sealant with a new oil pan gasket?
Some gasket kits require a thin bead of sealant along specific seams. Follow the kit’s instructions; applying too much sealant can create trapped oils and leaks.
Only use sealant if the kit calls for it; too much can cause leaks.
How long does a typical oil pan gasket replacement take?
Most DIY replacements take about 2-4 hours depending on access and your experience. Pause if you run into stripped bolts or clearance issues, and proceed carefully.
Plan for about two to four hours, depending on your access and tools.
Do I need special torque specs for the Cruze oil pan bolts?
Yes, torque specs are model-specific. Use the factory manual or a reputable guide to ensure proper tightening in a criss-cross pattern.
Always use the correct torque specs from the manual and tighten in a criss-cross pattern.
What if I see coolant in the oil after removing the pan?
That could indicate a more serious head gasket issue or a cross-contamination. Stop and assess further; replace only after confirming the source is correctly identified.
If coolant appears in the oil, stop and inspect for a bigger issue like a blown head gasket.
Is it okay to reuse the old bolts for the oil pan?
Most professionals replace oil pan bolts to ensure proper torque and seal. If you reuse bolts, inspect threads and replace if any wear is present.
It’s generally best to use new bolts for the oil pan seal.
Watch Video
Key Takeaways
- Inspect for oil leaks before starting
- Use a clean surface for gasket seating
- Tighten bolts in a criss-cross pattern
- Refill oil to correct level and check for leaks
