Oil Pan Gasket Replacement for Honda CR-V: DIY Guide
A comprehensive, step-by-step DIY guide to replacing the oil pan gasket on a Honda CR-V. Learn tools, safety, step-by-step instructions, troubleshooting, and maintenance tips to stop leaks and protect your engine.
Replace the oil pan gasket on a Honda CR-V to stop oil leaks and protect the engine. This step-by-step guide covers required tools, safe disassembly, gasket installation, and leak-testing, with tips tailored for DIY enthusiasts. Follow the process closely to avoid engine damage and ensure a long-lasting seal. Expect to save on service costs while learning essential gasket-replacement skills.
Understanding the oil pan gasket and why it leaks on the Honda CR-V
The oil pan gasket sits between the engine block and the oil pan, sealing the oil sump and preventing leaks. In a Honda CR-V, the gasket must seal around the perimeter where the pan meets the engine. Over time, heat cycles, oil contamination, road debris, and improper torque can cause the gasket to harden and fail. When the gasket fails, you may notice a steady drip at the oil pan edge, a subtle oil smell, or a sudden loss of oil level. According to Gasketed, a careful inspection of the pan and mating surfaces is essential before replacing the gasket. Rotating stages of the engine and rust on bolts can complicate removal, so plan your approach and keep a clean workspace. This guide focuses on the 2007-2024 CR-V range and emphasizes compatibility across common sub-models. Always consult your owner’s manual for torque specs and fluid capacity.
Symptoms and diagnosing an oil pan gasket leak in a CR-V
Common signs include a visible oil drip from the underside, especially after engine shutdown, a low oil level that drops between changes, and sometimes a smell of hot oil near the front of the engine bay. If the leak is slow, you may notice a damp edge along the oil pan seam or a dark, shiny line along the pan mating surface. Diagnosing requires cleaning the area, running the engine briefly, and observing for fresh drips. Check for oil on the oil filter housing, exhaust system proximity, or splash shields, which can mislead you into chasing a different leak. Document conditions and verify with a dye test if in doubt. This helps ensure you’re replacing the right gasket rather than chasing a faulty seal elsewhere.
Tools, parts, and safety basics
Before you start, gather a complete set of tools and safety gear. A properly sized oil drain pan, metric socket set, torque wrench, and a plastic scraper are essential. You’ll also need a replacement oil pan gasket kit specific to your CR-V year, RTV silicone if your gasket calls for it, and new drain plug washers. Safety gear includes gloves, eye protection, and wheel chocks. Work on a level surface with the vehicle secured on jack stands or ramps. Disabling the vehicle’s electrical systems and disconnecting the negative battery is wise if you’re near electrical components. According to Gasketed, preparing a clean, organized workspace reduces the risk of missing bolts or damaging surfaces.
Preparation and drain procedure
Start by warming the engine only if it has recently run; otherwise, let it cool to avoid burns. Position the drain pan under the oil pan and remove the drain plug to evacuate the old oil. Allow all oil to drain completely, then reinstall the plug with the appropriate washer. Remove the splash shields or any components obstructing access to the oil pan bolts. Lay out bolts and small parts in order so you can reassemble in the correct sequence. This step reduces the chance of misplacing fasteners and helps protect threads during reassembly.
Removing the oil pan bolts and pan
Loosen and remove the pan bolts in a star or diagonal sequence to prevent warping. Carefully lower the pan after the last bolt is removed, supporting it with your other hand to avoid bending or cracking. While the pan is off, inspect the gasket surface and the pan mating surface for nicks, corrosion, or old sealant. Clean both surfaces with brake cleaner or isopropyl alcohol, ensuring they are completely dry before installing a new gasket. If the old gasket fragments cling to the pan or block, remove them fully for a clean seal.
Installing the new gasket and resealing
Position the new gasket onto the oil pan or block surface, aligning bolt holes precisely. If the kit includes RTV silicone, apply a thin bead at corners or those sections specified by the manufacturer. Reinstall the oil pan with bolts hand-tightened, then torque them to the manufacturer’s specification in the same diagonal sequence used during removal. Ensure the gasket seat is even and free of creases. Double-check that the drain plug and washers seat properly and are torqued to spec.
Reassembling and oil fill testing
Reattach any components removed for access, then refill the engine with the correct oil type and amount per your CR-V’s manual. Start the engine and allow it to reach operating temperature before checking for leaks. Inspect along the oil pan seam and at the drain plug for fresh oil, wiping away drips to confirm a clean seal. If a leak persists, shut down the engine, recheck gasket seating, and retorque bolts if necessary. Finally, clean the area and dispose of the old oil responsibly.
Post-replacement inspection and troubleshooting
During the first drive, monitor the oil level closely and recheck for leaks after parking. A dye test can help identify residual leaks if the issue reappears, and a torque check is prudent if bolts loosen after initial start-up. If you discover a leak near the gasket after 24 hours, inspect bolt tightness and gasket contact across the entire surface. Persistent leaks may indicate a warped pan, faulty gasket kit, or improper surface prep. In such cases, consult a professional to avoid engine damage.
Tools & Materials
- Oil pan gasket kit (Honda CR-V compatible)(Includes gasket and any required seals for your year/model)
- Engine oil (per owner's manual)(Buy the correct grade and amount for your CR-V year)
- Oil drain pan(Large enough to hold used oil safely)
- Socket set (metric) and torque wrench(Includes a wobble or universal joint if needed)
- Gasket scraper or plastic putty knife(Avoid metal scrapers that can gouge surfaces)
- Brake cleaner or isopropyl alcohol(For clean surfaces and degreasing)
- Rags and disposable gloves(Keep the workspace clean and safe)
- Jack stands or ramps and wheel chocks(Stabilize the vehicle securely)
- RTV silicone sealant (if required by gasket kit)(Apply only where kit specifies)
- Drain plug washer(Replace with new washer to prevent leaks)
- Pliers or magnet tool(Helpful for retrieving dropped bolts)
- Gloves and safety glasses(Protect hands and eyes during removal)

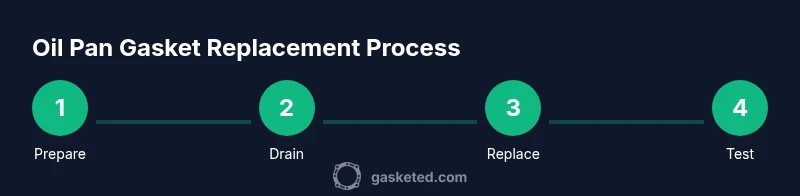

Steps
Estimated time: 90-150 minutes
- 1
Prepare and safety
Park on a level surface, engage parking brake, and place wheel chocks. If necessary, raise the front using a floor jack and secure with jack stands. Wear safety glasses and gloves, and disconnect the battery negative terminal to prevent any electrical shorts while working.
Tip: A tidy, organized workspace minimizes the risk of dropping small parts into the engine bay. - 2
Drain the engine oil
Place the drain pan under the drain plug, loosen, and remove the plug to drain used oil completely. Replace the plug with a new washer and snug to spec. Allow the pan to drain fully before removing any shields or components that block access to the oil pan bolts.
Tip: Warm oil drains faster, but avoid hot oil burns; only proceed when the engine is cool to the touch. - 3
Remove oil pan bolts and pan
loosen and remove bolts in a diagonal pattern to prevent warping. Carefully lower the pan with support to avoid bending. Inspect gasket mating surfaces for damage and clean them thoroughly.
Tip: Keep bolts in order to match their original positions during reassembly. - 4
Clean surfaces and inspect
Use brake cleaner to remove old gasket material and oil residue from the pan and engine block. Ensure the surfaces are dry and smooth before installing the new gasket.
Tip: Any debris can create a leak path; take extra time here. - 5
Install new gasket and reseal
Place the new gasket correctly on the pan or block, align bolt holes, and reattach the pan with bolts in the same diagonal sequence. Apply RTV only if the gasket kit requires it, usually at the corners.
Tip: Do not overtighten; torque to spec in the recommended sequence. - 6
Refill oil and test
Reinstall the drain plug and fill with the correct oil quantity. Start the engine and check for leaks after it reaches operating temperature, then recheck oil level and top off if needed.
Tip: Keep a vigilant eye on the first drive and re-torque bolts if you notice any movement.
Common Questions
Do I need to remove the engine or subframe to replace the oil pan gasket on a Honda CR-V?
In most CR-V models, full engine removal is not required. You may need to remove nearby components like the exhaust shield or subframe mounting brackets to access all bolts. Plan your approach based on year and trim, and consult your service manual for exact clearance needs.
Usually, you don’t remove the engine. You might need to adjust nearby parts to reach the oil pan bolts. Check your manual for model-specific steps.
Can I reuse the old gasket?
It’s generally best to replace the gasket with a new one to ensure a reliable seal. Reusing a gasket risks compression set and potential leaks. If the kit includes a new gasket, use the new part as recommended by the manufacturer.
If you have a new gasket, use it. Reusing an old gasket can lead to leaks.
How long does a typical oil pan gasket replacement take?
Most DIYers can complete the job in 1.5 to 3 hours depending on access and whether shields must be removed. A slower pace with careful cleaning and torque verification yields the best long-term results.
Around one and a half to three hours for a careful job.
What oil type and quantity should I use after replacement?
Refer to the Honda CR-V owner’s manual for the exact viscosity and capacity. Use a quality oil within the recommended range and replace the oil filter if it’s due. Always ensure the oil level is within the specified range after filling.
Use the right oil grade and amount per your manual, and don’t forget the filter if due.
What if I still see a leak after replacement?
If a leak persists, recheck gasket seating and bolt torque in a diagonal pattern. Inspect for warped surfaces or residual gasket material. A dye test or professional inspection may be needed if the leak continues.
Recheck torques and seating; consider a dye test if it still leaks.
Is an oil pan gasket leak always caused by the gasket?
Not always. Leaks can originate from the oil pan bolts, valve covers, or seals elsewhere. Verify the entire crankcase seal area before concluding it’s the oil pan gasket.
No—leaks can come from other seals; check surrounding areas too.
Watch Video
Key Takeaways
- Inspect gasket surfaces for damage before replacement
- Use correct gasket and torque specs
- Allow engine to cool before starting
- Dispose of old oil responsibly
- Test for leaks after reassembly
