Replacing an Oil Pan Gasket: A Step-by-Step DIY Guide
Step-by-step instructions for replacing an oil pan gasket, with tool lists, safety tips, and troubleshooting to prevent leaks and protect your engine.
You can replace an oil pan gasket by safely draining the oil, removing the oil pan, cleaning the surfaces, installing a new gasket, and reassembling with the correct torque sequence. This guide provides a clear checklist of tools, steps, and safety precautions to help DIY homeowners complete the job with minimal risk of leaks or engine damage. According to Gasketed, proper gasket seating and torque are crucial for a long-lasting seal.
Why replacing an oil pan gasket matters
Oil pan gasket leaks are a common drain on engine reliability and overall maintenance costs. When the gasket fails, oil can escape between the oil pan and the engine block, leading to low oil levels, reduced lubrication, and the potential for overheating and sludge buildup. Replacing the gasket restores a reliable seal and prevents messy oil spots under the vehicle. For DIY homeowners, tackling this repair can save money and deepen your understanding of the engine’s lower end. According to Gasketed, a well-seated gasket is the first line of defense against leaks and contamination, and addressing leaks early reduces the risk of long-term damage. The job can range from resealing a simple flange on some models to a full gasket replacement on engines where the pan or mounting surface is warped. In all cases, clean surfaces, correct gasket type, and careful torque are essential to a durable seal.
The oil pan sits at the bottom of the engine and is exposed to heat and contaminants. A compromised gasket not only leaks oil but can allow dirt and moisture into the oil, accelerating wear. Regularly inspecting the pan’s sealing surface and gasket condition helps prevent sudden leaks that could drain oil while driving. Gasketed’s guidance emphasizes proper seating, surface cleanliness, and following the vehicle manufacturer’s torque specs for bolts to ensure a reliable seal over time.
When to replace vs. reseal
Not every oil pan leak requires a full gasket replacement. If the gasket is visibly deformed, cracked, or if the pan surface is warped, replacement is usually necessary. In some engines, a careful reseal with a compatible gasket sealant may be sufficient if the surfaces are clean and flat and the gasket is intact. Symptoms that suggest replacement include persistent drips after a thorough cleaning, oil staining around bolt holes, or a noticeable drop in oil level after a few days. The decision also depends on the engine design; some pans are easier to reseal than others. Gasketed notes that choosing the correct gasket material is critical—rubber, cork, or composite gaskets behave differently under heat and vibration. If you’re unsure, start with a surface inspection and consult your service manual to confirm whether resealing is appropriate for your specific engine model.
Preparation and safety considerations
Safety first: work on a cool engine and on a level surface. Gather all tools before starting to minimize time with the engine open. Disconnect the battery negative terminal to prevent any shorts when removing components near wiring or sensors. Place a drain pan beneath the oil pan to catch used oil and prevent environmental spills. Wear gloves and eye protection, and use a gasket scraper or plastic putty knife to avoid gouging the mating surfaces. If your vehicle uses catalytic components or heavy exhaust routing near the oil pan, consider removing or moving those parts only if you have the correct tools and a clear plan. Keep old gaskets and bolts organized, and label anything that’s removed so it goes back in the right place.
Surface prep and choosing gasket materials
Choose a gasket material compatible with your engine and oil type. Common options include rubber, cork, and composite gaskets. Some engines require a silicone-based sealant in addition to a gasket; others rely on a metal pan with a pre-formed gasket and no sealant. Always consult the manufacturer’s guidelines. Before reassembly, thoroughly clean both mating surfaces with a degreaser or brake cleaner, ensuring there is no old gasket material, oil, or debris that could prevent a good seal. Inspect the pan flange for warping or damage; if found, the pan may need to be replaced or trued by a professional. When reinstalling, align bolt holes carefully to avoid cross-threading and ensure an even seal around the entire perimeter.
Planning for removal and access
Accessing the oil pan may require removing nearby components such as a crossmember, exhaust heat shield, or sensor assemblies. Plan the removal in small, logical stages and keep track of bolts by length and location. A magnetic tray helps prevent losing fasteners. If a component must be removed, document its orientation and location so reassembly is straightforward. Having a second person can help maneuver the oil pan in tight engine bays and reduce the risk of damaging gaskets or mating surfaces. Remember to support the engine if necessary, and never rely on the oil pan flange to support the engine during work.
Installation considerations: gasket, sealant, and torque philosophy
When choosing a gasket and sealant combination, follow your manual and the gasket manufacturer’s recommendations. In many cases, a non-silicone gasket is used with a light coat of gasket sealant at the corners only, while other situations call for a full bead of sealant along the entire perimeter. Tighten bolts in a criss-cross pattern to distribute clamping force evenly and to avoid warping the pan. Do not over-tighten; excessive torque can crush the gasket and damage the pan. If you’re using a torque wrench, verify the required torque range and ensure you’re using the correct bolt sequence from the service manual.
Post-installation checks and maintenance
Refill the engine with the correct oil grade and quantity as specified by the manufacturer. Start the engine and let it reach normal operating temperature while inspecting for leaks around the oil pan, bolts, and gasket. If any seepage is observed, stop the engine and re-tighten bolts in small increments using the specified pattern. After a heat cycle, recheck the oil level and look again for leaks. Proper disposal of used oil and a log of maintenance activities help protect your engine and the environment. The Gasketed team emphasizes testing under safe conditions and confirming a leak-free seal before driving long distances.
Tools & Materials
- New oil pan gasket(Choose the correct part for your engine model; some kits include a gasket and bolts)
- Oil pan gasket sealant/sealant compatible lubricant(Only use if manufacturer calls for it; not all gaskets require sealant)
- Drain pan(Large enough to hold the full oil capacity of your engine)
- Socket set with metric and standard sizes(For removing bolts and nuts on the oil pan and related components)
- Torque wrench(Ensure you have the correct torque range for oil pan bolts; follow manual)
- Gasket scraper/plastic putty knife(Gently remove old gasket without scratching the pan or block surface)
- Degreaser or brake cleaner(Clean surfaces thoroughly; avoid leaving residue that could prevent sealing)
- Shop towels/rags(Keep area clean and dry; wipe surfaces before reassembly)
- Jack and jack stands or ramps(Raise and support the vehicle safely; never rely on a jack alone)
- Gloves and eye protection(Protect hands and eyes from oil and solvents)
- Replacement oil filter (optional)(If changing oil, replace the filter to complete service)

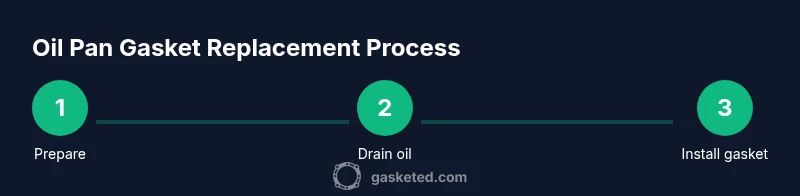

Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace and safety checks
Set the vehicle on a level surface and chock the wheels. Disconnect the negative battery terminal to prevent electrical shorts near wiring and sensors. Gather all tools and a large drain pan before starting so you won’t have to scramble mid-task.
Tip: Using a magnetic tray for bolts helps keep fasteners organized and prevents loss. - 2
Drain the engine oil
Warm the engine and then shut it off. Place the drain pan under the oil pan and remove the drain plug to let the oil drain completely. Reinstall the plug only after most of the oil has exited the pan.
Tip: Allow a few minutes for complete drainage; leftover oil can contaminate the gasket area. - 3
Gain access to the oil pan
If necessary, remove components blocking access to the pan (crossmember, shield, exhaust, or sensors). Keep track of all fasteners and labeling components by size and location to simplify reassembly.
Tip: Photograph or label positions to facilitate correct reassembly. - 4
Loosen and remove oil pan bolts
Loosen bolts in a criss-cross pattern to prevent distortion, then carefully remove them and set the pan aside. Be prepared for residual oil to seep as the last bolts are removed.
Tip: Support the pan with a hand to prevent it from dropping suddenly. - 5
Remove the old gasket and clean surfaces
Peel away the old gasket and scrape any residue from the flange surfaces. Wipe both mating surfaces clean with degreaser until no oil or old gasket remains, ensuring a flat, smooth seal.
Tip: Avoid gouging the mating surfaces with metal tools. - 6
Inspect for damage and prepare the new gasket
Check the pan, block faces, and drain holes for warpage or cracks. If surfaces are damaged, address them before proceeding. Align the new gasket with bolt holes and ensure proper orientation.
Tip: If your gasket kit includes washers or spacers, verify their placement before installation. - 7
Install the new gasket and reattach the pan
Place the gasket evenly on the pan, or onto the block depending on kit instructions. Reinstall the pan and tighten bolts in the cross pattern to manufacturer spec, using a torque wrench if available.
Tip: Always refer to your manual for exact torque specs and bolt sequence. - 8
Refill oil and check for leaks
Reinstall the drain plug or after-market drain assembly as required. Refill with the correct oil type and quantity. Start the engine and inspect for leaks around the pan and bolts; re-tighten if necessary after a short run.
Tip: Check oil level after it cools; running with too little or too much oil can cause damage. - 9
Final verification and cleanup
Run the engine for a few minutes, then re-check seals after the oil has cooled. Clean up tools, dispose of waste oil properly, and store spare gaskets for future maintenance.
Tip: Keep a maintenance log for future reference.
Common Questions
What are common signs of a failing oil pan gasket?
Common signs include fresh oil leaks under the front or sides of the engine, oil puddles after engine shutdown, and sudden drops in oil level. If you notice oil on the driveway or reduced oil pressure, inspect the oil pan gasket and surrounding seals.
Look for oil spots under the car and falling oil levels. A leak at the oil pan is a telltale sign to inspect the gasket.
Can I reuse my old oil pan gasket?
Reusing an old gasket is not recommended. Old gaskets may be brittle or compressed, leading to an imperfect seal. Always install a new gasket with proper cleaning and surface preparation.
No, use a new gasket for a reliable seal.
Do I need sealant with a new gasket?
Some gasket types require a sealant at specific corners or not at all. Always follow the gasket manufacturer’s instructions and the vehicle manual to determine if sealant is needed.
Check the gasket kit instructions and manual to decide if sealant is required.
How long does the oil pan gasket replacement take?
For a typical passenger car, plan for about 1-2 hours if you have the right tools and workspace. More complex engines may take longer due to access challenges.
Usually around 1 to 2 hours with the right tools.
Is it safe to drive after replacing the gasket?
It’s safe to drive after a successful leak-free test and ensuring the oil level is correct. Avoid long trips until you confirm no leaks during a heat cycle.
Yes, once you’ve confirmed there are no leaks and the oil level is correct, you can drive.
What are common mistakes to avoid?
Avoid reusing damaged surfaces, incorrect bolt torque, and improper gasket alignment. Don’t rush the cleaning step; a clean surface is essential for a proper seal.
Take your time with cleaning and alignment to avoid leaks.
Watch Video
Key Takeaways
- Prepare workspace and safety first.
- Use a cross-pattern torque sequence.
- Inspect pan surface for damage before reassembly.
- Replace gasket with compatible material; avoid over-tightening.
- Test for leaks after a full heat cycle.
