Oil Pan Gasket Leak Quick Fix: A DIY Guide for Home Mechanics
Learn how to diagnose and fix an oil pan gasket leak quickly with a safe, step-by-step DIY approach. Discover required tools, temporary fixes, and when to call a professional.
This guide helps you diagnose and stop an oil pan gasket leak quickly with a safe, step-by-step approach. You’ll learn how to inspect the leak, prepare the area, perform a temporary seal, and plan a permanent fix. We cover tools, materials, safety, and when to seek professional help.
Why an Oil Pan Gasket Leak Happens and Why It Matters
According to Gasketed, oil pan gasket leaks are a common issue for aging engines. The gasket can degrade from heat cycles, oil exposure, and normal vibrations, allowing oil to seep between the oil pan and engine block. A leaking gasket not only wastes oil but can lead to low oil pressure and eventual engine damage if left unchecked. Early detection and a calm, methodical repair approach reduce risk and cost. In this section you’ll see how a leak presents itself on the driveway or garage floor, how to differentiate it from other seals, and why a quick fix can be a smart interim solution while you plan a longer-term replacement if needed. The core idea of the oil pan gasket quick fix is to stop the leak safely, then complete the gasket replacement properly to prevent future failures.
Quick diagnostic steps to confirm a gasket leak
- Look for fresh oil drips underneath the engine, especially when the car has been parked for a while. A slow seep will often trail to a puddle.
- Check around the oil pan edge and the lower sides of the engine for wet spots or staining. Use a clean sheet of white cardboard under the pan for a clear read.
- If safe, clean the area with appropriate degreaser and re-check after a short drive to see if staining reappears.
- Note any oil level drop between checks; consistent loss points toward the gasket area rather than a loose filler cap or a distant seep.
- Confirm you’re not seeing oil from another source (drain plug, oil filter, or valve cover). A careful wipe and re-inspection helps you focus on the gasket area.
Safety-first approach: contain, cool, and plan
- If the engine is hot, wait for it to cool before touching any components to avoid burns.
- Work in a well-ventilated space and wear gloves and eye protection. Oil and solvents can irritate skin and eyes.
- Use wheel chocks and a secure lift or ramps to prevent movement while you work. Keep the workspace clean to avoid slips.
- Have a drip pan ready to catch oil during the process and dispose of used oil properly per local regulations.
Temporary fixes: slowing the leak without a full gasket replacement
Temporary approaches can slow a seep but are not durable replacements for the gasket. Examples include applying a high-quality gasket sealant or stopper product after cleaning the mating surfaces, or using a temporary gasket dressing as a stopgap. These methods may buy time if you’re waiting for parts or a professional repair, but they should not be considered permanent solutions. Always follow the product instructions and remove any temporary sealant once you plan the full replacement.
Planning a permanent fix: what you’ll do in a gasket replacement
A proper gasket replacement involves safely removing the oil pan, cleaning the surfaces, inspecting the pan for cracks or damage, applying new gasket material, and reassembling with proper torque according to the vehicle’s service manual. You’ll want to confirm the pan and surrounding bolts are clean, dry, and free of debris to ensure a good seal. Taking notes on bolt locations and lengths helps when reassembling. If the oil pan shows damage that can’t be repaired (warping, corrosion, or cracks), replacement of the pan itself may be required.
Workspace setup and safety reminders before you start
A well-organized workspace reduces mistakes. Keep a clean toolkit, labeled containers for bolts, and a stable surface for the oil pan. Lift the vehicle only on rated stands or ramps and never rely on a jack alone. Make sure you have fresh oil on hand for refilling and a new gasket ready. Double-check that you have a means to capture old oil and dispose of it responsibly. Safety first keeps you from rushing and making mistakes.
Aftercare: verification and ongoing maintenance
After reinstalling the gasket and refilling oil, start the engine and let it run to operating temperature while inspecting for leaks. Check the oil level again and look for any fresh seepage around the oil pan seam. A short test drive can help reveal any drips that appear after reassembly. If you notice ongoing leaks or see oil on the ground after a test drive, re-inspect the pan bolts and gasket seating. Regular maintenance, including periodic oil changes and gasket condition checks, can prevent future leaks.
Tools & Materials
- New oil pan gasket(Ensure it matches the engine model and pan design)
- Oil drain pan(Large enough to hold used oil)
- Ramps or jack stands(Vehicle must be securely lifted)
- Socket set and ratchets(Metric and SAE as needed)
- Screwdriver set(Flathead and Phillips for clamps and screws)
- Gasket scraper or plastic putty knife(Careful to avoid scratching mating surfaces)
- Shop rags and degreaser(Clean surfaces before resealing)
- Torque wrench(Follow manufacturer specs; do not guess)
- Gasket sealant or gasket dressing (optional)(Only if recommended for your gasket type)
- Engine oil(Choose correct grade for your vehicle)
- Gloves and eye protection(Personal safety gear)
- Breaker bar or long-handled ratchet (optional)(For stubborn bolts)

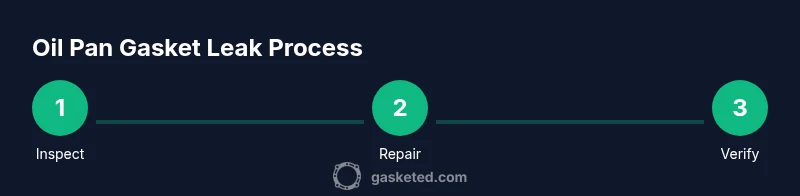

Steps
Estimated time: 1.5-3 hours
- 1
Secure the vehicle and safety check
Chock the wheels, raise the vehicle on ramps or stands, and ensure a stable work area. Confirm the engine is cold before starting.
Tip: Pad under the oil pan to catch any minor drips when you unbolt the pan. - 2
Drain the engine oil
Place the drain pan under the oil drain plug, remove the plug, and allow excess oil to flow into the pan. Reinstall the drain plug once drainage is finished.
Tip: Do not rush this step; complete drainage helps prevent spills when removing the pan. - 3
Remove the oil pan
Unbolt the oil pan from the engine block and carefully lower it. Keep track of all bolts and gaskets for reassembly.
Tip: If bolts resist, use a breaker bar to avoid snapping them. - 4
Inspect and clean mating surfaces
Remove the old gasket and clean both mating surfaces thoroughly with degreaser. The surface must be dry and free of oil or residue to seal properly.
Tip: Avoid gouging the metal with metal scrapers; use plastic tools where possible. - 5
Install new gasket and reassemble
Place the new gasket and reinstall the oil pan with bolts in a criss-cross pattern. Tighten bolts to the recommended torque values from the manual.
Tip: If using sealant, apply a thin even layer and let it sit briefly before tightening. - 6
Refill oil and check level
Pour in the correct amount and type of engine oil as specified by the manufacturer. Start the engine and check for leaks while it runs at idle.
Tip: Let the engine run for a minute, then recheck the oil level and top up if needed. - 7
Conduct a leak test
Place a clean sheet under the pan and observe for new drips while the engine warms up. Inspect the pan seam and bolts again.
Tip: If you see fresh leaks, depressurize, re-tighten in a star pattern, and recheck after cooling. - 8
Final cleanup and disposal
Safely dispose of old oil and gasket waste per local regulations. Wipe down tools and store them properly.
Tip: Label drained oil for recycling and take it to an approved facility. - 9
Road-test and verify
Take a short test drive and recheck for leaks after the engine has cooled. Look for any drips after parking.
Tip: Document any signs of leakage and address promptly.
Common Questions
What causes an oil pan gasket leak?
Gasket leaks typically result from aging, heat cycling, or improper installation. The gasket can become brittle, crack, or deform, allowing oil to escape at the seam.
Gasket leaks usually come from aging or heat damage that makes the gasket brittle and deform, letting oil escape at the seam.
Is it safe to drive with a leaking oil pan gasket?
Driving with a leak can reduce oil level and damage the engine. It’s best to address the leak promptly, check oil level regularly, and avoid long trips until repaired.
It’s not safe to drive long with a leak; check oil levels and get it fixed before extended trips.
Should I replace just the gasket or the oil pan?
If the oil pan is undamaged and threads look good, replacing the gasket is the typical fix. Inspect the pan for cracks or warping and replace if needed.
Usually you replace the gasket unless the pan is damaged; inspect for cracks and replace if needed.
Can gasket sealants be used as a permanent fix?
Sealants can slow a minor seep but are not a substitute for a proper gasket replacement. Rely on sealants only as a temporary measure if recommended by the manufacturer.
Sealants can slow leaks temporarily but aren’t a lasting fix; a new gasket is typically required.
What tools are essential for this job?
A basic toolkit, gasket material, degreaser, a drain pan, and a torque wrench are essential. Follow the vehicle manual for exact steps and torque specs.
You’ll need basic tools, a gasket kit, degreaser, and a torque wrench for proper reassembly.
What maintenance should follow a gasket fix?
Recheck oil level after repair, inspect for leaks after short drives, and schedule regular oil changes. Proper disposal of old oil is also important.
After the fix, recheck oil levels and leaks, and keep up with regular oil changes.
Watch Video
Key Takeaways
- Identify the leak source early to avoid unnecessary work.
- Follow the vehicle manual for correct torque and gasket type.
- A temporary sealant is not a long-term fix; replace the gasket for a lasting seal.
- Proper disposal of used oil protects the environment and your vehicle.
- Safety first: work on a cold engine with secure vehicle support.
