Oil Pan Gasket Replacement Kit: DIY Guide
Learn how to select and use an oil pan gasket replacement kit. This comprehensive DIY guide covers safety, tools, step-by-step instructions, and troubleshooting for a leak-free seal.
With an oil pan gasket replacement kit, you can fix leaks and restore engine performance. This guide covers kit selection, workspace prep, and the safe replacement process. Expect basic hand tools, a torque wrench, and a clean, level surface for best results. Follow these steps to complete the job confidently.
What is an oil pan gasket replacement kit and when to use it
An oil pan gasket replacement kit bundles gaskets, sealant or gasket sealant, and hardware needed to reseal the oil pan when it leaks. These kits are designed to fit common engine configurations, reducing guesswork and ensuring proper material compatibility. Using a kit helps ensure the gasket material matches the pan and that sealing surfaces are compatible. According to Gasketed, selecting a complete kit improves sealing performance and lowers the chance of future leaks, especially on engines prone to gasket degradation over time.
A typical kit includes a new gasket, a tube of sealant or gasket-making adhesive, bolts or fasteners if the pan has damaged hardware, and sometimes a new or replacement drain plug. Some kits also offer MLS (multi-layer steel) gaskets for improved heat resistance and durability. Before buying, verify fitment for your exact engine model, year, and whether the kit assumes a full engine block re-seal or a simple pan-to-block gasket replacement.
Safety and prep before you start
Safety is the foundation of any gasket replacement. Begin by parking on a level surface, engaging the parking brake, and allowing the engine to cool if it has been running. Disconnect the negative battery terminal to prevent any accidental short circuits while you work. If you’re working under a raised vehicle, use solid jack stands placed on a flat, sturdy surface. Have a clean, well-lit workspace with a dedicated drain pan, rags, and a fire extinguisher nearby in case of incidental fuel exposure. Finally, verify you have the exact replacement kit compatible with your engine to avoid misfit issues that can compromise sealing integrity.
Identifying leak sources and kit selection
Oil pan leaks can stem from the pan gasket, drain plug, or a compromised oil pickup area. Start by cleaning the area around the pan with a degreaser and wiping away oil to inspect the leak path. Look for bead-like residue around the pan edge, dried oil trails, or seepage around the drain plug. When selecting a replacement kit, ensure it includes the correct gasket profile (cork, rubber, MLS) and that it’s designed for your engine’s mounting pattern. If you’re dealing with a history of gasket failure, MLS options or OEM-style gaskets can offer improved sealing under higher heat and pressure.
Tools and materials overview
Gathering the right tools and materials before you begin saves time and reduces the risk of damage. You’ll need a clean drain pan, a basic socket set, a torque wrench, a gasket scraper or plastic scrapers, brake cleaner, shop rags, and the replacement oil pan gasket kit. It’s wise to have a container for used oil and a funnel for oil re-fill. If you’re planning to reuse studs or bolts, inspect threads for wear and replace any damaged fasteners with those provided in your kit. A digital camera or smartphone can help document the bolt pattern and gasket alignment for accuracy during reassembly.
Choosing the right gasket material and avoiding common mistakes
Gasket material matters for long-term reliability. Cork gaskets are common and cost-effective, rubber gaskets can offer good sealing with some flexibility, and MLS gaskets provide superior heat resistance for modern engines. Your kit choice should reflect operating conditions such as engine temperature and oil pressure. Avoid using old, worn seals alongside a new gasket; mismatched compression can lead to leaks. If sealant is required, use only the amount recommended by the kit or the vehicle manufacturer to avoid oozing that can attract dirt and cause clogging.
Step preparation: drainage and workspace setup
Prepare your workspace by placing the drain pan directly under the oil pan and setting the vehicle on a level surface. Coolant or brake cleaners should be kept away from heat sources. Remove any underbody panels or shields if they obstruct access to the oil pan. Loosen the drain plug slightly before fully removing it to prevent a sudden oil gush; catch the oil in the drain pan and dispose of used oil according to local regulations. Having a helper can speed relief work when removing the pan bolts and maneuvering the pan free from the gasket.
Surface cleaning and gasket removal techniques
Once the pan is loose, carefully remove the oil pan and inspect for any substrate damage. Use a plastic scraper to remove the old gasket material and sealant, taking care not to gouge the metal surface. Clean the mounting surfaces with brake cleaner and a lint-free rag until they are free of oil and debris. Any raised ridges should be smoothed with a fine file or a gasket scraper. A clean, flat surface is essential for an even seal and long gasket life.
Installing the replacement gasket and torquing bolts
Place the new gasket in the correct orientation on the oil pan. If your kit includes sealant, apply a light, even bead along the pan edge as specified by the kit instructions. Reinstall the pan and finger-tighten bolts, then use a torque wrench to tighten in the recommended pattern and torque specification. Always follow the engine family’s sequence (usually from center outwards) to ensure an even seal. If any bolts are stiff or damaged, replace them with those supplied in the kit.
Reassembly, oil refill, and leak testing
With the oil pan reattached, refill the engine with the recommended oil type and amount from your owner’s manual or kit instructions. Reconnect the battery, start the engine, and let it reach normal operating temperature while inspecting for leaks around the pan. If you see fresh seepage, shut down and re-check gasket seating and torque values. After a short test drive, recheck the oil level and top off if necessary. Proper disposal of old oil preserves the environment and complies with regulations.
Common pitfalls and troubleshooting
Common mistakes include over-tightening bolts, which can warp the pan or deform the gasket, and under-tightening, which leaves a path for leaks. Not cleaning the sealing surfaces can create gaps that allow seepage. Using incompatible sealants or applying too much sealant can trap dirt and reduce sealing effectiveness. If the engine oil pressure is unusually high after replacement, verify that the gasket type is appropriate for your engine and that you have not introduced debris into the oiling system. If leaks persist, re-check mounting surface cleanliness, bolt torque, and gasket orientation.
Authority Sources
- National Institute of Standards and Technology (NIST) automotive maintenance guidelines: https://www.nist.gov
- Automotive Service Excellence (ASE) technical resources: https://www.ase.com
- University automotive program guidance (example.edu): https://www.example.edu/gasoline-engine-maintenance
Tools & Materials
- Oil drain pan (large capacity)(At least 4 quarts capacity; stable position under pan.)
- Gasket scraper (plastic or nylon)(Avoid metal scrapers on aluminum pans.)
- Torque wrench(Use the correct torque spec per manufacturer.)
- Socket set and ratchet(For removing and re-tightening bolts.)
- Brake cleaner or degreaser(Cleans gasket surfaces before install.)
- Shop rags or lint-free towels(Keep surfaces dry and clean.)
- Oil pan gasket replacement kit(Ensure compatibility with your engine.)
- Car ramps or jack stands(Support vehicle safely; use on level ground.)
- New drain plug and washer (if kit includes)(Replace if provided to ensure tight seal.)
- Engine oil (quantity as per capacity)(New oil to refill after test.)
- Gloves and eye protection(Optional for comfort and safety.)

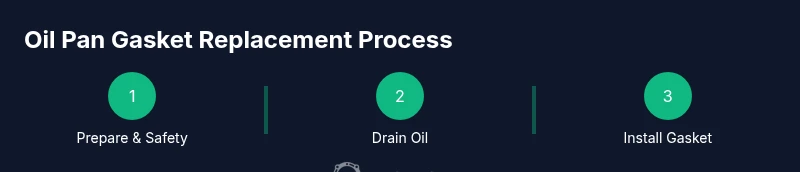

Steps
Estimated time: 1.5-3 hours
- 1
Prepare workspace and safety checks
Park on a level surface, engage parking brake, and disconnect the negative battery. Ensure the engine is cool before you begin and gather all tools in one reachable area.
Tip: Double-check that the vehicle won’t roll and that you have a fire extinguisher nearby. - 2
Drain old engine oil
Place the drain pan under the oil pan. Loosen the drain plug just enough to start a drip, then remove fully once oil slows. Allow the pan to drain completely before proceeding.
Tip: If the oil is hot, don’t rush—allow extra time to avoid burns. - 3
Remove oil pan bolts
Using the socket set, remove the pan bolts in a crisscross pattern. Keep bolts organized by size and note any that are longer or shorter.
Tip: Loosen gradually to prevent bending the pan or warping the gasket surface. - 4
Lower the oil pan and strip old gasket
Carefully lower the pan and peel away the old gasket. Scrape away old sealant without scratching the metal surface beneath.
Tip: Keep the pan level to prevent oil spills and preserve gasket seating surfaces. - 5
Clean sealing surfaces
Clean the flange on the oil pan and engine block with degreaser until free of oil and debris. Wipe dry with lint-free towels.
Tip: Inspect for nicks or warping; replace if damage is present. - 6
Install new gasket and sealant (if required)
Apply a thin bead of sealant if your kit requires it, then position the new gasket on the pan. Ensure correct orientation before reassembly.
Tip: Avoid excess sealant that can ooze into the oil passages. - 7
Reattach the oil pan and torque bolts
Hand-tighten bolts, then tighten in a crisscross pattern to the manufacturer’s torque spec. Re-check torque after initial run.
Tip: If your kit includes new bolts, replace all to ensure proper clamping force. - 8
Refill oil and reconnect battery
Refill with the recommended oil type and quantity. Reconnect the battery and start the engine to check for leaks.
Tip: Let the engine reach operating temperature before final leakage check. - 9
Check for leaks and test drive
Inspect around the oil pan after a short run and again after a test drive. Top off oil if necessary and look for fresh seepage.
Tip: Take note of any odd sounds or leaks and address immediately. - 10
Dispose of waste properly
Dispose of old oil and gasket materials according to local regulations. Recycle if possible.
Tip: Keep containers sealed to prevent spills.
Common Questions
Do I need to remove the exhaust or catalytic converter to access the oil pan?
In most cars, you can access the oil pan from below without removing exhaust components. Some models with tight spaces may require partial exhaust clearance, but this is not always necessary. Check your vehicle’s service manual for specifics.
Most vehicles let you access the oil pan from underneath without removing the exhaust. Some tight spaces might need clearance adjustments per the manual.
Can I reuse the old bolts or gasket?
It’s best to use new bolts if the kit provides them and replace old seals with the new gasket. Reusing bolts risks insufficient clamping force or thread damage, which can cause leaks.
Use the new bolts if included and don’t reuse old gaskets. Reusing parts can lead to leaks.
How long does a typical oil pan gasket replacement take for a home DIYer?
Most DIYers complete the job in about 1.5 to 3 hours, depending on engine layout and access. Allow extra time for difficult clearance or unexpected issues.
Most people finish in around 2 hours, with some engines taking a bit longer if access is tight.
Is sealant required with every oil pan gasket kit?
Sealant requirements vary by gasket type and kit. Follow the kit instructions; some gaskets seal well on their own, others need a thin sealant bead.
Some kits need sealant, others don’t. Check the instructions for your kit.
What are signs that the oil pan gasket is failing after replacement?
Continuous or new leaks around the pan edge, oil spots under the vehicle, or low oil levels after a test run indicate gasket issues.
New leaks near the oil pan after replacement mean you should recheck gasket seating and torque.
Watch Video
Key Takeaways
- Choose the right oil pan gasket replacement kit for your engine.
- Prepare a clean, safe workspace and follow torque specs precisely.
- Thoroughly clean sealing surfaces to prevent leaks.
- Inspect for leaks after a test drive and re-torque if needed.
- Dispose of old oil responsibly and follow local regulations.
