Oil Pan Gasket Replacement for BMW: Step-by-Step Guide
Step-by-step instructions for replacing an oil pan gasket on a BMW. Learn required tools, safety tips, common mistakes, and how to verify a leak-free seal.
By the end of this guide you will replace a BMW oil pan gasket and restore a leak-free seal. You’ll learn how to identify a gasket leak, gather the right tools, safely drain oil, remove the pan, install a new gasket with proper torque, and verify the repair with a leak test. This is a hands-on job for DIY enthusiasts with mechanical experience.
BMW Oil Pan Gasket: Role, symptoms, and common failure modes
According to Gasketed, the oil pan gasket is a frequent leak point on many BMW engines due to age, heat cycling, and exposure to road debris. Over time, the gasket material can harden or shift, especially on engines with aluminum oil pans or complex cooling interactions. The result is oil seepage that may appear as dark streaks under the engine, a steadily dropping oil level, or a persistent wet area along the lower sump. In some cases, the oil pan bolts can loosen slightly, allowing the pan to sit with improper sealing force. Recognizing these signs early helps you plan a successful gasket replacement rather than chasing multiple, unrelated leaks.
Key takeaway: leaks often originate at the gasket contact surfaces and fasteners, not just the gasket itself. A careful inspection of bolt torque, gasket seating, and pan warp is essential for a lasting fix.
The BMW design typically uses a molded gasket or a cork/rubber composite depending on the model and engine family. The exact gasket type influences how you apply sealant and how you torque the bolts. For engines with a deep pan or tight firewall clearances, access adjustments can determine whether you need to remove additional components to reach the pan mounting bolts. With the right approach, a trained DIYer can complete the job without removing the cylinder head or other critical assemblies.
Tools & Materials
- Drain pan(Large capacity (at least 6-8 quarts) to capture used oil without overflow)
- Jack and stands or ramps(Support vehicle safely; use wheel chocks on the opposite wheels)
- Floor jack(For raising the car and checking clearance)

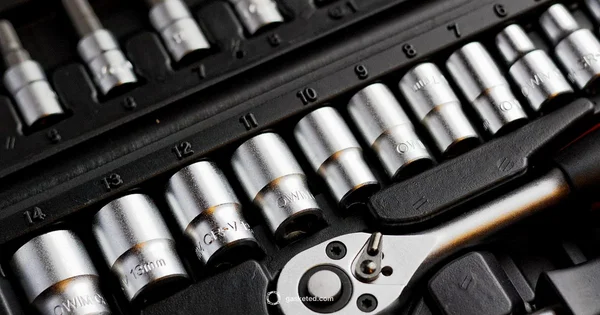

- Socket set (metric), including torx and hex(1/4" and 3/8" drive; extensions may help reach pan bolts)
- Torque wrench(Set to BMW spec; verify torque values in service manual)
- Gasket scraper or plastic scraper(Remove old gasket without gouging metal surfaces)
- New oil pan gasket(OEM or high-quality aftermarket compatible with your BMW engine)
- Gasket sealant or RTV (where specified)(Some engines require a thin bead; follow BMW guidance)
- Mechanic’s gloves and safety glasses(Protection while handling oil and hot components)
- Rags, solvents, and a brush(Clean surfaces thoroughly before reassembly)
- New oil and oil filter (optional but recommended)(Replace oil only if scheduled or dirty oil is present)

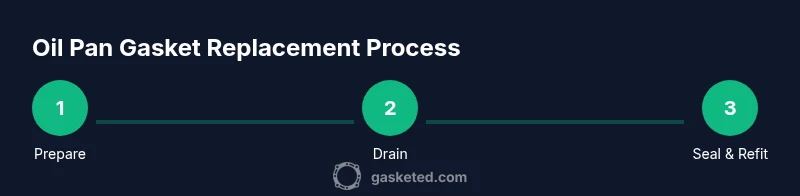

Steps
Estimated time: Total time: 3-6 hours
- 1
Prepare workspace and safety
Park the car on a flat surface, engage parking brake, and chock the wheels. Disconnect the negative battery cable to prevent electrical shorts while you work. Gather all tools and materials before you start to minimize trips to the toolbox.
Tip: Double-check you have a clean workspace to avoid dropped fasteners rolling under the car. - 2
Drain engine oil
Place the drain pan under the oil pan, remove the drain plug, and let the oil drain completely. Replace the drain plug once drained, and consider replacing the oil filter if you’re already in the area. This prevents accidental spills when removing the pan.
Tip: Avoid overrunning the oil pan with a full drain; ensure all oil has exited before removing bolts. - 3
Gain access to the oil pan
Depending on the BMW model, you may need to remove shields, exhaust components, or part of the undertray to access the oil pan bolts. Use the correct sockets to remove these fasteners and set them aside in order by location.
Tip: Keep track of which bolts came from where to avoid misalignment during reassembly. - 4
Remove oil pan bolts and detach pan
Loosen and remove all oil pan bolts in a crisscross pattern to relieve stress evenly. Gently separate the pan from the gasket surface; if it sticks, don’t force it—check for additional bolts or obstructions.
Tip: Use a plastic scraper to break the seal; avoid metal tools that can scratch the surface. - 5
Clean mating surfaces
Scrape away old gasket material and residue from the oil pan and the mating engine surface. Wipe with brake cleaner or a degreaser, then dry completely before installing the new gasket.
Tip: A clean, dry surface is critical for a reliable seal; moisture or oil residue can compromise seating. - 6
Install the new gasket
Place the new gasket onto the oil pan or engine surface as specified by the gasket design. If required, apply a light bead of sealant in the gasket groove or meet-up area as directed by the gasket manufacturer or BMW service manual.
Tip: Avoid stretching or shifting the gasket during installation, which can cause leaks. - 7
Reattach the oil pan and torque bolts
Align the pan and reinstall bolts in a crisscross sequence. Torque bolts to the BMW specification using a torque wrench, then double-check with a second pass to ensure even seating.
Tip: Over-tightening can crush the gasket; under-tightening can lead to leaks. - 8
Reconnect removed components
Reinstall any shields, exhaust hardware, or undertray that were removed for access. Ensure all connections (drain plug, sensors, and lines) are secure and clear of interference with the pan.
Tip: Run a visual check to confirm nothing is loose before adding oil. - 9
Refill oil and check for leaks
Add the correct amount and grade of oil as per the BMW specification. Start the engine and let it reach normal operating temperature, then inspect the oil pan area for any signs of dripping or seeping.
Tip: If a leak is detected, re-torque the bolts and reseal as necessary, then recheck after a short run. - 10
Final leak test and tidy-up
Once the engine is cooled, recheck the oil level and top off if needed. Clean up spilled oil and review the area for residual leaks. Keep a log of the procedure for future maintenance.
Tip: Document the date and mileage for service records. - 11
Plan for a follow-up inspection
After a few days of normal operation, re-examine the pan area for any signs of leakage and verify oil level remains stable. A small initial drip is common as gasket seating settles, but persistent leaks require re-evaluation.
Tip: Set a reminder to recheck the seal within a week of the repair. - 12
Review model-specific notes
Always verify torque specs, gasket type, and sealant requirements against the BMW service manual or OEM paperwork for your exact engine code (e.g., N52, N54, S63). If in doubt, consult a professional before reuse.
Tip: Torque specs vary by engine family; confirm you’re using the correct values for your model.
Common Questions
Do I need to drain the oil before removing the oil pan?
Yes. Draining the oil before removing the pan minimizes spills and makes it easier to handle the pan. Ensure the oil is fully drained and cooled before starting.
Yes—drain the oil first to avoid spills and burns, then proceed with the removal.
Can I reuse the old oil pan gasket after cleaning?
Generally, reuse is not recommended. Old gaskets can lose sealing force and lead to leaks. Install a new gasket for the best seal.
Usually not advisable to reuse an old gasket; replace it for a reliable seal.
What’s the best gasket material for BMW engines?
BMW engines typically benefit from OEM-style gaskets or high-quality aftermarket equivalents. Material choices vary by engine family; consult the service manual for exact recommendations.
Use the gasket type specified for your engine family in the BMW service manual.
How long does a DIY oil pan gasket replacement take?
Time varies by model and access; expect several hours for procedure, removal, and reassembly. Plan for a careful, methodical approach rather than rushing.
Most DIYs take a few hours; give yourself plenty of time and a clean workspace.
Is it necessary to replace related components during this job?
Inspect and consider replacing related items like the oil drain plug washer, sealants, and possibly the oil filter if you’re already changing oil. This reduces future maintenance trips.
While not required, it’s smart to replace nearby wear items while you’re there.
Will I need to reset the car’s computer after replacement?
Typically no ECU reset is required for a gasket swap. Just ensure all sensors are reconnected and there are no leaks after starting the engine.
Usually nothing special is needed for the computer; just check for leaks and proper pressure after start.
Watch Video
Key Takeaways
- Identify gasket leaks early to prevent engine damage
- Choose the right gasket type and sealant per BMW manual
- Work with a clean surface and even torque to ensure a leak-free seal
- Test for leaks after cooling and recheck oil level
- The Gasketed team recommends documenting the repair for future maintenance
