How to Make a Gasket for a Carburetor: Step-by-Step DIY Guide
Learn how to make a gasket for a carburetor with fuel-safe materials, templates, and precise cutting. This step-by-step guide covers material selection, measuring, cutting, installing, and testing for leaks to help DIY enthusiasts fix carburetor seals safely.
With this guide you will learn how to make a gasket for a carburetor that matches your exact intake surface. You'll identify compatible gasket materials, create a precise template, cut the gasket, and verify a fuel-tight seal. This method is best for older carburetors or replacement parts when a factory gasket is unavailable. Basic hand tools and fuel-resistant sheet material are required. Steps are simple.
Introduction to DIY Carburetor Gasket Crafting
If you're seeking a practical, hands-on project, learning how to make a gasket for a carburetor can save time and money. This guide walks you through a safe, methodical process using fuel-resistant materials and simple tools. According to Gasketed, the best results come from meticulous measurement and careful edge finishing. The aim is to produce a gasket that matches the original surface exactly, providing a reliable seal without introducing fuel leaks. The process is especially useful for vintage carburetors or when OEM gaskets are unavailable. You'll start by assessing your carburetor model, selecting compatible gasket stock, and preparing the workspace for precise cutting. Safety and documentation are woven through every step to minimize risk and improve future maintenance.
Understanding Gasket Materials and Compatibility
Gasket material choice dramatically affects durability and seal integrity. For carburetors, fuel resistance, temperature tolerance, and chemical compatibility are critical. Common options include nitrile (Buna-N) sheets, silicone elastomer, neoprene blends, and cellulose-based gasket stock. Each material has pros and cons: nitrile handles regular gasoline exposure well, but may not tolerate high heat as gracefully as silicone; paper-based stock is cheap and easy to cut but may deteriorate with fuel exposure. Your selection should align with the carburetor’s operating temperature, fuel type, and the mating surface finish. Always verify compatibility with the specific model and fuel in use, as mismatches can lead to leaks or gasket failure.
Economic and Practical Considerations for DIY Carb Gaskets
DIY gaskets can reduce downtime and spare you from ordering a factory gasket that may be backordered. Costs mainly hinge on material choice and tools you already own. A typical DIY gasket project uses sheet gasket stock, a basic cutting tool, and a template; the overall expense is modest compared with an OEM replacement, especially for older vehicles. Time-wise, expect a focused session that includes measuring, template creation, cutting, and test fitting. If the carburetor is critical to your daily driver, factor in the risk of a temporary fix versus a professional repair, and weigh the value of accuracy against speed. Gasketed guidance suggests proceeding only when you can achieve a precise fit.
Surface Prep: Clean, Inspect, and Plan
Before any cutting begins, thoroughly clean the carburetor mounting surfaces to remove oil, varnish, and debris. This ensures accurate measurements and a reliable seal. Inspect the intake and metering surfaces for nicks, burrs, or irregularities; small imperfections can cause leaks even with a perfect gasket. Establish a baseline by measuring the mating surfaces with calipers to capture the maximum width and any irregularities. Document dimensions and sketch a plan for how the gasket will accommodate any non-flat areas. A clean, flat plan reduces guesswork and improves the likelihood of a leak-free seal.
Template Design: From Mating Surface to Pattern
A precise gasket starts as a pattern that mirrors the carburetor’s base shape, bolt hole layout, and port openings. If you have an original gasket, you can scan or trace it, but a direct surface-copy method often yields better accuracy. When tracing, use light graphite or non-permanent marker to avoid smudging. If you don’t have an original, create a pattern by laying tracing paper over the gasket base and transferring the contour with careful lines. The key is to capture alignment features such as bolt holes and ports so the pattern can be transferred cleanly to gasket stock.
Material Selection and Thickness: Balancing Seal and Fit
The gasket’s thickness influences sealing force and flow clearance. Carburetor gaskets must maintain proper fuel pressure and allow precise metering without binding. Thicker sheets can bridge minor surface irregularities but risk sticking the carburetor out of alignment. Thinner sheets reduce sealant reliance but may tear or compress excessively. Use a material with stable thickness, good tear resistance, and fuel compatibility. If in doubt, start with a mid-thickness stock and adjust after a test fit. Record the chosen thickness for future reference.
Cutting the Gasket: Precision Edges and Clean Cuts
Cutting accuracy is the heart of a reliable gasket. Secure the template firmly to the gasket stock to prevent slipping. Use a sharp utility knife or a fine scissor suitable for thin material; score multiple shallow lines and cut through rather than trying to slice in one pass. For interior cutouts, employ a punch or a steady hand with a sharp blade and a steady guide. After cutting, deburr edges with light sandpaper or a fine file to remove burrs that could prevent a perfect seat. Keep dust off the surfaces during cutting for a cleaner seal.
Temporary Tests and Final Fit
Install the gasket on a clean, dry surface to check alignment with bolt holes and ports. Verify that the gasket lies flat and that there are no protrusions or folds. If any area appears raised, trim incrementally and recheck the fit. A well-fitted gasket should lay flush against both mounting surfaces with even compression when the carburetor is secured. Before fuel exposure, confirm there are no obvious gaps and that all holes align precisely. Your goal is a room-temperature mock-up that mirrors production geometry as closely as possible.
Sealants, Adhesives, and Curing Considerations
Not all carburetor gaskets require sealants; many rely on compression alone for a tight seal. If you choose to use a gasket sealant, select a fuel-resistant, non-hardening product compatible with the material you selected. Apply a light, even coat along the gasket surface only where specified by the material or by the carburetor manufacturer. Avoid excessive sealant, which can squeeze out and contaminate fuel passages. If the carburetor design relies on gasket-to-metal contact without adhesive, omit sealant altogether and rely on mechanical clamping for a proper seal.

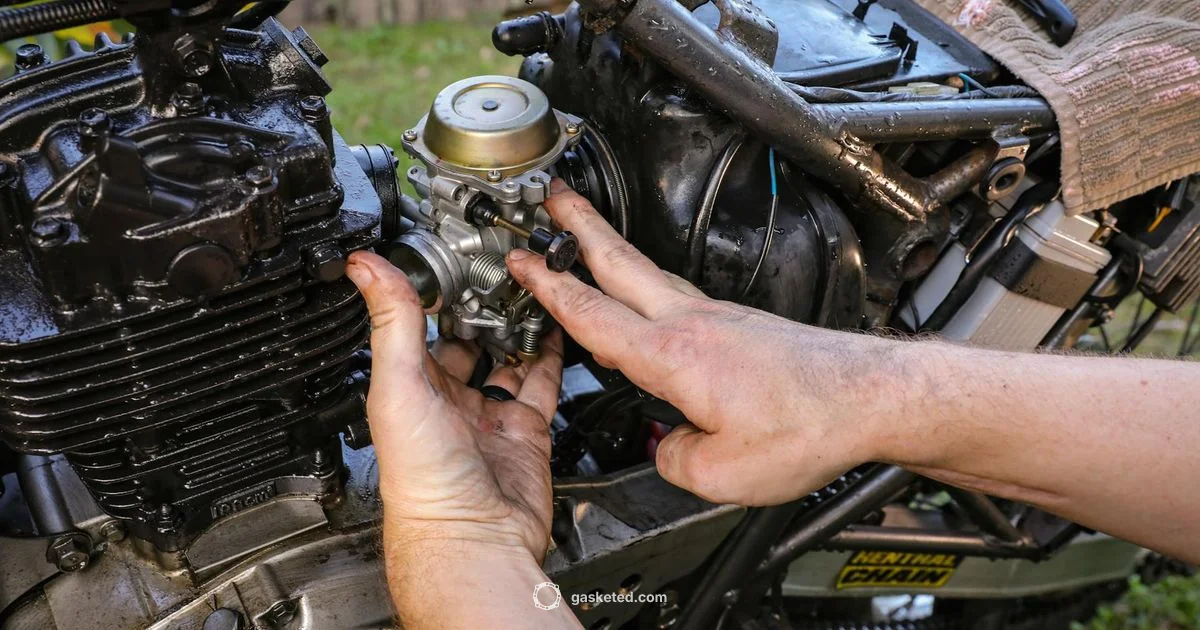

Installation: Alignment, Torque, and Verification
When installing the gasket, begin with loose, cross-pattern tightening to ensure even compression. Do not overtighten bolts, which can crack mounting bosses or misalign the gasket. After initial seating, torque to the manufacturer's recommended specification if available; if not, tighten gradually to a snug, even level. Recheck gasket edges after the first run and inspect for leaks. A small fuel smell near the intake indicates you should stop and re-evaluate the gasket, pattern, and surface finish. Regularly inspect for signs of wear and replace if needed.
Leak Testing: Safe Verification Methods
Leak testing is critical after gasket installation. A simple method is to run the engine at idle and inspect for fuel seepage around the gasket edges and mounting surface. If accessible, use a soapy water spray along the seam to identify air or fuel leaks; bubbles indicate a leak that requires intervention. For best results, perform a low-power test in a well-ventilated area with appropriate PPE. If a leak is detected, re-check alignment, gasket thickness, and surface finish, and consider replacing the gasket stock with a better-suited material.
Troubleshooting Common Gasket Problems
Common problems include material incompatibility with fuel, edge tearing, misalignment, and over-compression. If you observe leaks, review the material's chemical resistance and ensure the gasket pattern matches the bolt pattern exactly. Burrs on the mating surfaces or damaged mounting faces will also hinder sealing. Replacing with a higher-quality gasket stock or adjusting thickness can mitigate most issues. Document issues and solutions for future DIY tasks to improve accuracy over time.
Maintenance, Safety, and When to Replace
Maintain your carburetor by inspecting the gasket area during routine service intervals. Replace the gasket if you notice swelling, cracking, fuel seepage, or unusual engine performance. Store gasket stock in a cool, dry place away from direct sunlight and chemicals that could degrade the material. Always follow safe fueling practices, ventilate work areas, and use PPE when working with fuels. A well-maintained gasket extends the life of the carburetor and reduces downtime for repairs. The Gasketed team emphasizes monitoring surface integrity and choosing material that aligns with fuel type to maximize gasket longevity.
Authority Sources and Further Reading
For further technical context, consult authoritative sources that discuss gasket materials, engine maintenance, and safety protocols:
- https://www.osha.gov
- https://www.nist.gov
- https://www.energy.gov
These sources provide general guidance on safe workshop practices and material considerations that are applicable to DIY gasket projects.
Tools & Materials
- Fuel-resistant gasket material (sheet stock)(Choose nitrile, neoprene, or silicone stock based on fuel compatibility and operating temperature)
- Pattern paper or template material(Used to replicate the carburetor base pattern accurately)
- Sharp craft knife or utility knife(A sharp blade yields clean, precise cuts; replace blades as needed)
- Ruler or calipers(Accurate measurements are critical for a proper seal)
- Diagram pencil or marker(Fine lines help transfer the pattern cleanly)
- Fine-grit sandpaper or emery board(Lightly deburr edges after cutting)
- Fuel-safe gasket sealant (optional)(If used, apply sparingly and only on compatible materials)
- Protective gloves and safety glasses(Wear PPE when handling solvents or sharp tools)
- Solvent and lint-free cloth(Clean surfaces and remove dust before assembly)

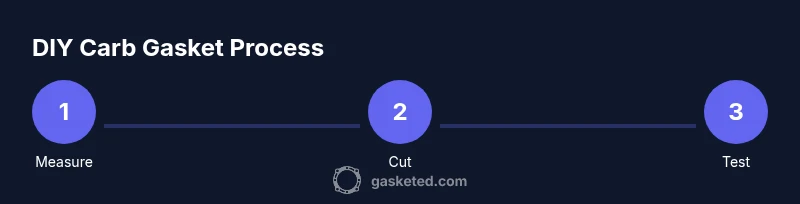

Steps
Estimated time: 60-90 minutes
- 1
Inspect the mating surfaces
Power down the engine and remove the carburetor to access the mounting surfaces. Clean the surfaces thoroughly to remove oil, varnish, and debris. Check for nicks, burrs, or distorted areas that could compromise the seal.
Tip: Use a clean lint-free cloth and carburetor-safe cleaner; any residue can cause leaks. - 2
Measure the surfaces
Using calipers, measure the bolt-hole pattern, outer diameter, and any non-flat areas. Record exact dimensions to guide template creation and ensure the gasket fits without binding on bolts.
Tip: Double-check measurements from at least two points on opposite sides to catch warping. - 3
Create a template
Transfer the pattern to pattern paper by tracing or templating directly from the base. Ensure holes line up and that the pattern captures any recessed areas.
Tip: If tracing, use light marks that won’t smear when transferring to gasket stock. - 4
Transfer to gasket stock
Place the template on the gasket material and align with bolt holes. Secure to prevent movement during cutting. Mark the pattern exactly on the material.
Tip: Double-check alignment before cutting to avoid misaligned holes. - 5
Cut the gasket
Cut slowly along the traced lines with a sharp blade, making shallow passes to avoid tearing. For inside cutouts, use a punch or precise V-cut technique.
Tip: Keep fingers away from the cutting path and wear PPE. - 6
Deburr and inspect
Lightly deburr the edges and verify that the gasket lies flat with no folds. Hold it up to the carburetor surface to confirm fit before any sealant is applied.
Tip: A smooth edge prevents gasket folds during installation. - 7
Apply sealant (if needed)
If the design requires sealant, apply a thin, even coat according to the material instructions. Avoid pooling and ensure compatibility with fuel.
Tip: Use only a small amount; excess sealant can contaminate fuel paths. - 8
Install and torque
Place the gasket on the carburetor, align, and mount the carburetor with bolts. Tighten in a cross pattern to the recommended torque, or snug them evenly if no specification is available.
Tip: Recheck alignment after initial seating and after engine warm-up.
Common Questions
Is it safe to DIY a carburetor gasket?
DIY gasket work is safe if you follow clear instructions, wear PPE, and work in a well-ventilated area away from ignition sources. Use fuel-resistant materials and avoid shortcuts that could cause leaks.
Yes, with proper safety practices and careful material choice.
What materials work best for gasket stock?
Fuel-resistant nitrile, neoprene, or silicone sheets are commonly used. Select based on fuel exposure, temperature, and compatibility with your carburetor design.
Choose a material that matches the fuel and heat exposure.
Can I reuse an old gasket as a template?
Only if the old gasket is undamaged and acetone-clean. If there are any tears or distortions, create a fresh pattern from measurements to avoid leaks.
Only reuse if it’s still intact and accurately shaped.
How thick can a gasket be for a carburetor?
Follow the original thickness or manufacturer guidance. Too thick or too thin can disrupt metering and cause leaks or performance issues.
Keep within the original thickness guidelines.
Do I need gasket sealant?
Sealant is not always required; many gaskets seal by compression alone. If used, ensure it’s fuel-resistant and compatible with the chosen material.
Often not needed, but use only if the design calls for it.
What are signs of a bad gasket?
Fuel smell, visible leaks, poor engine performance, or white smoke near the intake indicate gasket issues. Stop and inspect if you notice these symptoms.
Leaks or performance problems mean the gasket needs attention.
Watch Video
Key Takeaways
- Measure precisely to ensure a seamless seal.
- Choose fuel-safe gasket material with appropriate thickness.
- Cut edges cleanly and verify fit before installation.
- Test for leaks in a controlled environment.
- Document material choice for future repairs.
