Is Intake Manifold Gasket Hard to Replace? A DIY Guide
Learn how to determine if is intake manifold gasket hard to replace, what to expect during the repair, essential tools, a practical step-by-step approach, and safety tips for a successful DIY gasket replacement.
Replacing the intake manifold gasket is doable for many DIYers, but it depends on engine design and access. It involves careful disassembly, surface cleaning, and precise torque, with higher risk on interference engines. With proper planning, the right tools, and clean surfaces, most non-interference designs are manageable.
What makes replacing the intake manifold gasket challenging?
Replacing the intake manifold gasket is not a simple, bolt-on repair. The difficulty varies by engine layout, age of components, and how many ancillary parts you must remove just to access the gasket. According to Gasketed, the task often requires careful disassembly of air intake plumbing, fuel lines, and sensors, plus a clean reassembly to avoid leaks. If the engine uses tighter spaces, or if you must remove the manifold to access the gasket, the risk of disturbing other seals or breaking bolts increases. A good test question for many DIYers is: is intake manifold gasket hard to replace? In many modern engines it's a moderate-to-high difficulty job, but with the right plan, it is doable.
Engine design and access: why it matters
The engine's configuration (inline, V, or flat) and the location of the intake manifold relative to the cylinder head dictate how accessible the gasket sits. On some designs, the manifold sits on top with straightforward bolt access; on others, you must remove the throttle body, fuel rail, or even auxiliary components. Vehicle weight, clearance in the engine bay, and the presence of variable valve timing can complicate extraction and reassembly. Understanding your specific engine helps you estimate time, tools, and the risk of damage. The Gasketed team notes that planning around these design traits reduces surprises once you start.
Tools, workspace, and prep work you can’t skip
Successful gasket replacement hinges on having a clean workspace and the right tools. Gather a metric socket set, a quality torque wrench, screwdrivers, a gasket scraper, and approved cleaners. Label hoses and sensors before disconnecting anything, and keep fasteners organized in labeled trays. Check the vehicle's service manual for torque specs and sequence; reusing bolts can lead to leaks or stripped threads. A tidy bench and clear work area prevent mix-ups during reassembly.
Step-by-step overview for typical engines
This section provides the high-level flow you’ll follow to replace the gasket on most inline- or V-series engines. Start by depressurizing the cooling and fuel systems, then remove the air intake components to access the manifold. After you unbolt and lift the manifold, inspect the gasket surfaces for warping or residue. Install the new gasket with the correct orientation, reinstall components in reverse order, and torque in the manufacturer’s sequence. Finally, perform startup checks and leak tests to confirm a clean seal.
Common surface problems and how to inspect them
Gasket sealing depends on flat mating surfaces. Warped or pitted intake ports, scoring on the manifold face, or leftover gasket material can prevent a proper seal. Use a straightedge to check for warp beyond a few thousandths of an inch, and clean surfaces thoroughly with an approved degreaser. If you find cracks in the manifold or damaged bolts, address those issues before continuing. A poor seal often shows up as vacuum leaks or misfires after startup.
Safety warnings and potential failures you should know
Always disconnect the negative battery terminal before beginning, and relieve any stored fuel pressure. Engine coolant can leak if hoses or the thermostat housing are disturbed; have coolant on hand and use proper containers for draining. Be cautious with newborn bolts—do not force fasteners beyond their torque spec, as overtightening can crack the manifold. If the engine is an interference design, a gasket issue may be symptomatic of deeper head or valve problems.
When you should seek pro help and pricing expectations
If you own a modern engine with tight clearances or if you lack the proper torque-angle tools, professional service may be a safer choice. Labor time can vary widely by engine design, but plan for several hours to a full weekend for a DIY root-cause and replacement project. In a shop, you’ll pay for parts (gasket kit) and labor, but you gain calibrated torque control, warranty coverage, and troubleshooting support. The decision often hinges on access, the chance of secondary gasket or seal damage, and your confidence level.
Authority sources and additional resources
For further reading and validation, refer to reputable automotive sources such as NHTSA for safety guidance, SAE for engineering standards, and consumer-focused automotive outlets for maintenance best practices. These sources help ensure you understand the risks and follow best practices during a gasket replacement.
Tools & Materials
- Fully equipped metric socket set(2.5mm-19mm sockets; deep sockets helpful)
- Torque wrench(Calibration within +/- 4% if possible)
- Gasket scraper or plastic razor blade(To avoid gouging metal surfaces)
- Engine degreaser / solvent(For cleaning gasket surfaces)
- Shop towels or lint-free rags(Keep surfaces dust- and debris-free)
- New intake manifold gasket kit(Replace with correct kit for your engine)
- Sealant or gasket maker (per manufacturer spec)(Use if kit calls for it)
- Labeling supplies and small trays(Keep bolts and hoses organized)

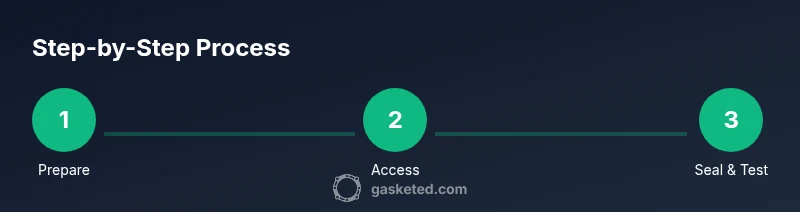

Steps
Estimated time: 3-6 hours
- 1
Prepare the vehicle and safety measures
Park on a flat surface, disconnect the negative battery, and relieve fuel pressure. Gather tools and protective gear before disturbing the engine bay. This reduces risk of sparks and fuel spray.
Tip: Label connectors and hoses as you remove them to avoid misassembly. - 2
Access the manifold
Remove air intake ducts, throttle body hardware, and any coverings that block access to the manifold. Keep fasteners organized and note their locations.
Tip: Take photos during disassembly to guide reassembly. - 3
Disconnect fuel lines and sensors
Carefully detach fuel lines, vacuum hoses, and electrical connectors; cap open ports to prevent debris. Use a bag or cap to cover lines to minimize leaks.
Tip: Never pry on lines with force; use the proper removal tools. - 4
Unbolt and lift the manifold
Loosen bolts in the recommended sequence and lift the manifold slowly. Support the manifold to avoid bending studs or warping the gasket face.
Tip: Be mindful of coolant passages; keep them intact. - 5
Inspect and clean gasket surfaces
Check for warpage with a straightedge and scan for scratches. Thoroughly clean both mating surfaces; remove old gasket material completely.
Tip: If surfaces are warped beyond limits, replace the manifold or machine the surface. - 6
Install the new gasket and sealants
Position the new gasket according to orientation marks and apply any sealant per kit instructions. Do not mix gasket types across mating surfaces.
Tip: Avoid any sealant on bolt threads; use only where specified. - 7
Reassemble and torque bolts
Reinstall the manifold components in reverse order, then torque bolts in the manufacturer’s sequence to spec. Reconnect sensors and lines.
Tip: Use a torque-angle method if specified by the OEM. - 8
Test and verify
Reconnect the battery, start the engine, and look for leaks. Check for abnormal sounds and perform a vacuum test or coolant leak check as needed.
Tip: Run the engine to operating temperature and re-check torque after heat cycling.
Common Questions
What are common signs that the intake manifold gasket needs replacement?
Common signs include vacuum leaks, rough idle, misfires, coolant loss with no visible leak, and poor acceleration. If you notice white exhaust or sweet coolant smell, inspect the gasket further.
Watch for rough idle, misfires, and coolant loss with no external leaks.
Can I replace the gasket myself?
DIY replacement is possible on many engines, but access, tools, and skill level matter. For engines with tight spaces or interference designs, consider professional help.
Yes, many DIYers can do it, but assess access and tools first.
How long does replacement typically take?
Time varies by engine; plan several hours for a typical DIY job, longer on complex or tight engines. A professional shop may complete it faster with proper equipment.
It usually takes several hours, depending on engine access.
Should I replace other components at the same time?
If the gasket surfaces show wear, consider replacing the bolts, valve cover or throttle body gaskets, or related hoses to prevent future leaks. Use OEM-recommended parts.
You may want to replace related seals if they're due for service.
Will replacing the gasket affect the cooling system?
The cooling system can be affected when you disturb hoses or passages. Check for coolant leaks and bleed the cooling system if required after reassembly.
Bleed and check for leaks after the job.
What if I damage the gasket or surfaces?
If the gasket or mating surfaces are damaged, stop and replace the affected parts. Warped manifolds or scratched sealing faces require professional remediation.
If damaged, replace the affected components and recheck fit.
Watch Video
Key Takeaways
- Assess engine design to judge difficulty
- Prepare with a full toolkit and clean workspace
- Follow OEM torque patterns to avoid leaks
- Inspect gasket surfaces thoroughly before reassembly
- Test for leaks after start-up and heat-cycle
