How to Change the Intake Manifold Gasket
A complete DIY guide for replacing the intake manifold gasket, focusing on safety, planning, proper torque, and thorough leak testing to protect your engine.
In this guide you will learn how to change the intake manifold gasket on most modern engines. You’ll need basic hand tools, a clean workspace, coolant-safe containers, and torque specs from your service manual. The steps cover safety prep, removing the manifold, installing a new gasket, reassembly, and leak testing. This process requires patience and careful torque to prevent warping.
What is the intake manifold gasket and why it fails
The intake manifold gasket seals the boundary between the intake manifold and the engine, preventing air leaks and coolant crossovers. Over time, heat cycles, vibration, improper torque, and exposure to standard automotive cleaners can cause the gasket to harden, crack, or shift. When the gasket leaks, you may observe misfires, rough idle, coolant in the oil, white smoke, or coolant loss without obvious external leaks. According to Gasketed, failures are more common on aging engines that experience frequent temperature swings or prolonged idling. The gasket and its seating surfaces must be clean and flat to ensure a proper seal; even a small surface mismatch can cause vacuum leaks and gasket failure. In fuel-injected engines, a leaking gasket creates lean conditions and downstream sensor errors, which can cascade into driveability issues. Thorough inspection of the gasket, valve covers, and adjacent ports is essential. This understanding helps you plan a durable repair rather than a quick, temporary fix. The take-home: a failed intake manifold gasket is not always dramatic, but it almost always affects performance, efficiency, and cooling.
When to consider replacing the gasket
Not every gasket failure requires a full engine teardown, but certain symptoms strongly indicate replacement is needed. If you detect coolant in the oil, white exhaust, milky residue under the oil fill, or persistent coolant loss with no external leaks, plan a gasket change. Vacuum leaks, check-engine lights, rough idle, or misfires in multiple cylinders also point to gasket issues rather than minor hose problems. Gasketed's analysis shows that repeated overheating or regular high-load driving accelerates gasket deterioration, especially where intake ports are tall and geometry is complex. Before removing parts, verify that the engine has cooled and that you have access to a service manual for torque sequences and gasket orientation. If your vehicle uses an aluminum intake manifold, surface warping or pitting can occur after years of heat cycling; in such cases, plan for surface resurfacing or a replacement manifold. This section helps you decide whether a gasket replacement is warranted now or if you should pursue a more extensive repair.
Before you begin: safety and planning
A gasket change is a moderate-to-high-impact repair, so start with safety and planning. Disconnect the negative battery cable and ensure the ignition is off before touching any wiring harnesses. Work in a well-ventilated area, wear eye protection, and use gloves. Relieve coolant pressure if your engine uses a pressurized system, and prepare a suitable catch pan for coolant. Label hoses and electrical connectors as you disconnect them, and take photos to help with reassembly. Keep a clean workspace with clearly marked bolts; a tray or magnetic mat helps track fasteners and prevents mix-ups. Finally, consult your vehicle’s service manual for the correct gasket orientation, bolt sequence, and torque specifications. This preparation reduces rework and protects the engine from accidental damage.
Tools and materials you’ll need
Having the right tools makes the job safer and more reliable. Essential items include a socket set with metric sizes, a torque wrench, screwdrivers (flat-head and Phillips), a gasket scraper, and a clean shop rag. You will also need a new intake manifold gasket, appropriate coolant for refilling, a drain pan, and sealant or RTV if recommended by the OEM. Add a label or marker to identify each hose and wire, and keep a service manual or digital reference handy for the correct torque sequence. If your engine has known oil leaks or warped mounting surfaces, consider adding a surface float gauge or straight edge to assess flatness before reassembly. Optional but helpful: magnetic tray, compressed air for drying ports, and a gasket-safe cleaner to wipe down surfaces.
Step-by-step overview

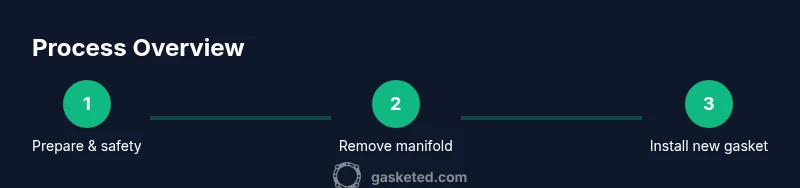

The following steps outline the practical workflow for changing an intake manifold gasket. Each step is designed to be performed in a logical sequence to avoid rework and ensure a solid seal. You’ll begin with safety and access, proceed through removal, cleaning, gasket seating, and reassembly, and finish with a leak test and coolant refill. The exact bolt torque and sequence are engine-specific, so always confirm with the manufacturer’s manual. Plan for a total duration of several hours, depending on your experience and vehicle complexity. While this overview is high level, the subsequent step-by-step section provides detailed actions for each stage. Remember: quality gaskets and proper torque are essential for a durable repair.
Tips & warnings
- Pro_tip: label components and take photos during disassembly to simplify reassembly.
- warning: never reuse damaged bolts or overtighten; damaged threads can lead to leaks or a warped manifold.
- note: inspect the surface for warping and clean thoroughly to establish a true sealing plane.
- Pro_tip: use OEM or manufacturer-recommended gasket and sealant to avoid compatibility issues.
- warning: never run the engine until you confirm there are no leaks and all hoses are reconnected properly.
Authority sources
- National Highway Traffic Safety Administration (NHTSA): https://www.nhtsa.gov/road-safety/vehicle-maintenance
- SAE International: https://www.sae.org/
- iFixit repair guides: https://www.ifixit.com/Guide
Common questions about gasket replacement
- Is this job suitable for a DIYer with basic mechanical skills? Yes, with patience, a clean workspace, and follow torque and step-by-step guides; some models may require specialty tools. Voice: Yes, with caution.
- How long does it typically take? Plan for several hours depending on engine layout and experience. Voice: It usually takes a few hours.
- Can I reuse the old bolts? Generally no; replace bolts per the OEM recommendations and torque to spec. Voice: Better to replace bolts.
- What are signs of a failed gasket after reassembly? Look for leaks, misfires, overheating, or contaminated oil; monitor coolant levels closely. Voice: Watch for leaks, misfires, and overheating.
- Do I need to resurface the mating surfaces? If warping or pitting is evident, resurfacing or replacing the manifold is advised. Voice: Surface condition matters.
Tools & Materials
- Socket set(Metric sizes common to your engine (8-14mm); include deep sockets)
- Torque wrench(Set to OEM torque specs)
- Screwdrivers (flathead & Phillips)(For hose clamps and covers)
- Gasket scraper(To remove old gasket residue from surfaces)
- New intake manifold gasket(OEM or high-quality aftermarket gasket)
- Safety gear(Gloves, eye protection)
- Coolant and catch pan(Drain coolant; have a catch pan ready)
- Sealant/RTV (optional)(As recommended by OEM)
- Service manual(Torque specs and sequence)
Steps
Estimated time: 2-6 hours
- 1
Prepare and safety check
Set up a clean workspace and verify safety. Disconnect the negative battery cable, wear PPE, and chock wheels if needed. Label connectors and hoses to simplify reassembly.
Tip: Take photos of each connection before removal to avoid mistakes later. - 2
Relieve pressure and drain coolant
If the cooling system is pressurized, carefully relieve pressure and drain coolant into a suitable container. This prevents spills and helps you work cleanly around ports.
Tip: Keep coolant away from your skin; store used coolant per local regulations. - 3
Disconnect components obstructing access
Remove or move any brackets, hoses, and electrical connectors that block access to the manifold. Document their positions for exact reinstallation.
Tip: Label every part; using a magnetic tray keeps fasteners organized. - 4
Remove intake hardware
Unbolt the intake manifold in the correct sequence and lift it away. Do not force it; if it sticks, check for hidden bolts or clamps.
Tip: Use a proper breaker bar to avoid rounding fasteners. - 5
Clean and inspect mating surfaces
Scrape off old gasket material and inspect the surfaces for warping, pitting, or corrosion. A flat, clean surface is essential for a good seal.
Tip: Wipe surfaces with solvent and dry thoroughly before resealing. - 6
Install new gasket and reseal
Place the new gasket in the correct orientation, then reseal any mating surfaces as required by the OEM. Reposition the manifold and hand-tighten bolts.
Tip: Check gasket alignment before final tightening to prevent leaks. - 7
Torque bolts and reassemble
Torque the bolts in the manufacturer's recommended sequence to spec. Reconnect all lines and components in the reverse order of removal.
Tip: Double-check each connection before starting the engine. - 8
Test and refill coolant
Refill the cooling system with fresh coolant, reconnect the battery, start the engine, and check for leaks. Allow the engine to reach operating temperature and recheck levels.
Tip: Watch for leaks at gasket joints; top off coolant if needed after a brief warm-up.
Common Questions
Is this job suitable for a DIYer with basic mechanical skills?
Yes, with patience, a clean workspace, appropriate tools, and careful adherence to torque specs and the manufacturer step-by-step guide.
Yes—it's doable for a careful DIYer who follows the steps and uses the right tools.
How long does a typical intake manifold gasket replacement take?
Most DIYers allocate several hours depending on engine layout and access. A well-prepared session minimizes surprises.
Usually a few hours, depending on the engine and how tidy you are with labeling and tools.
Can I reuse the old bolts or gasket surfaces?
Generally, you should replace bolts and ensure surfaces are clean and flat. Reusing bolts can risk leaks or bolt failure.
Better to replace bolts and ensure surfaces are pristine before reassembly.
What are the main signs that the gasket was fixed correctly after reassembly?
No leaks at the intake, oil and coolant levels stay stable, and the engine runs smoothly with no misfires.
If you see no leaks and the engine runs clean, the repair should be good.
Do I need to resurfaced a warped manifold?
If you notice surface warping or pitting, resurfacing may be necessary or you may need a replacement manifold to ensure a proper seal.
Warped surfaces need addressing; otherwise the gasket won’t seal correctly.
Watch Video
Key Takeaways
- Follow OEM torque specs for bolts.
- Use a new gasket and clean surfaces before reassembly.
- Label and photograph connections to ensure accurate reassembly.
- Check for leaks after refilling coolant and starting the engine.
- Inspect mating surfaces for warping before reinstallation.
